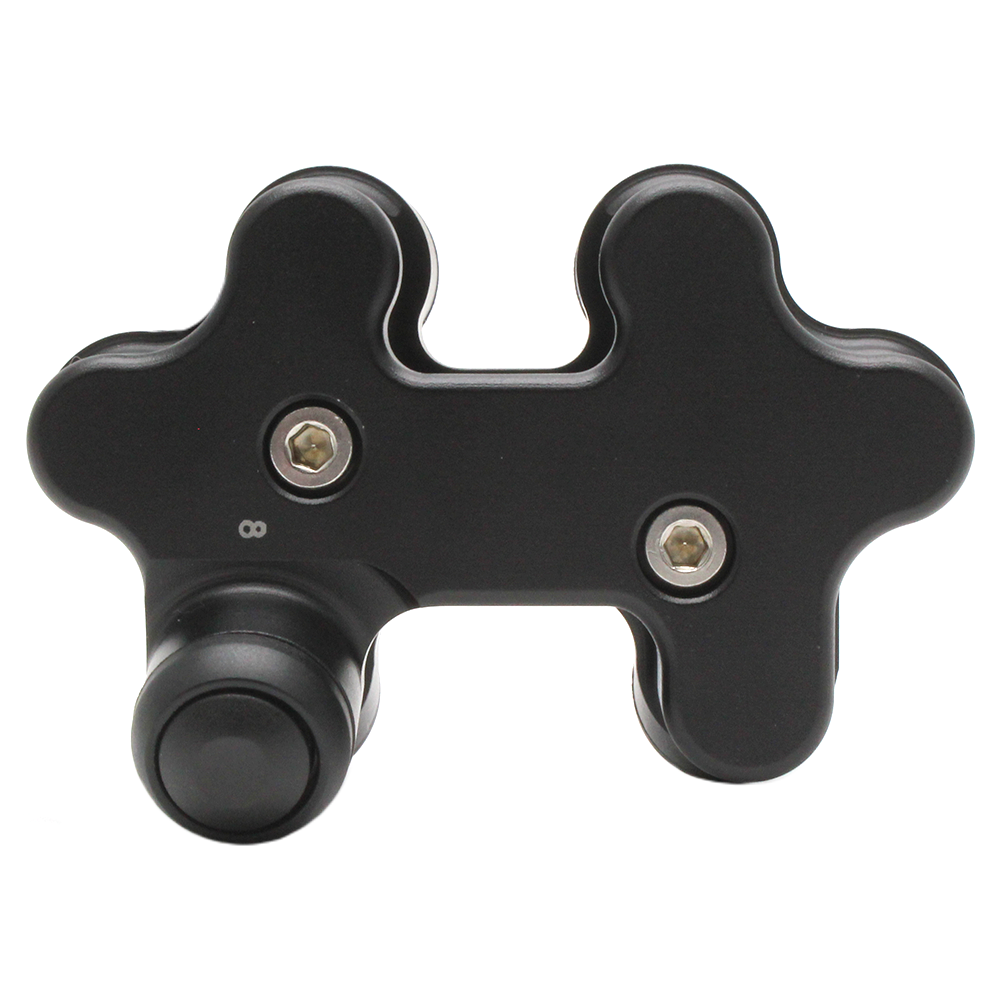

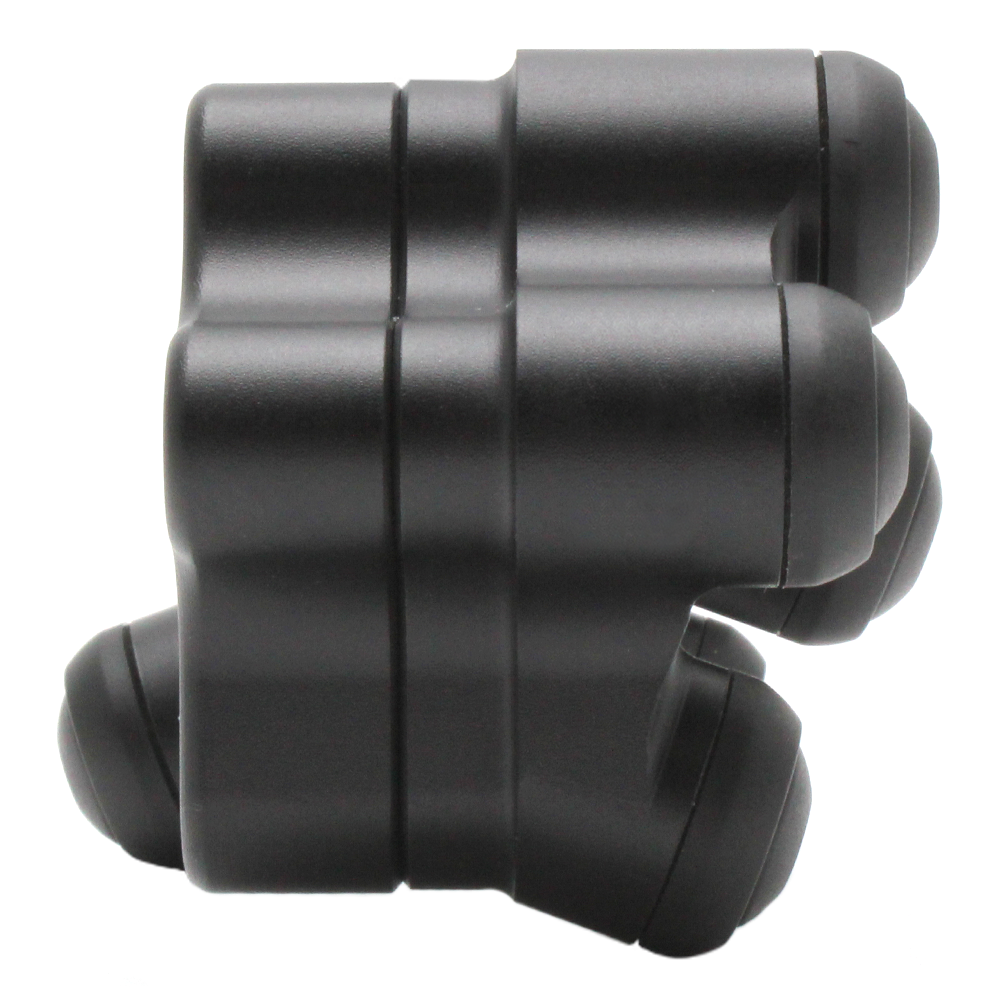

8 Button Handlebar Control Switches for Motorcycle

SKU: SP231

Regular price
£315.00
Regular price
Sale price
£315.00

+ ضريبة القيمة المضافة (المملكة المتحدة فقط)

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

8 Button Handlebar Control Switches for Motorcycle

This eight-button custom motorsport configuration switch has been designed for use on race & track bikes, with the standard ECU and where lights and turn signals are not needed.

Key Features :

Custom 8 button switch pad Road/Track


The aluminium assembly has been ergonomically designed for easy use and encompasses eight sealed momentary switches, which are black in colour and metal bezel.
With rugged machine aluminium construction and fully waterproof switches to provide greater crash protection and electrical integrity.

As an example of functions you could have:
Dash Mode UP
Dash Mode DOWN
Select / Cancel
Main beam OFF / ON
Flasher/lap set
Left Turn
Right Turn
Horn

Eight-way button is all black in colour & metal bezel
Common Ground
400mm DR25
All Switches are momentary N/O
Black - Common Ground

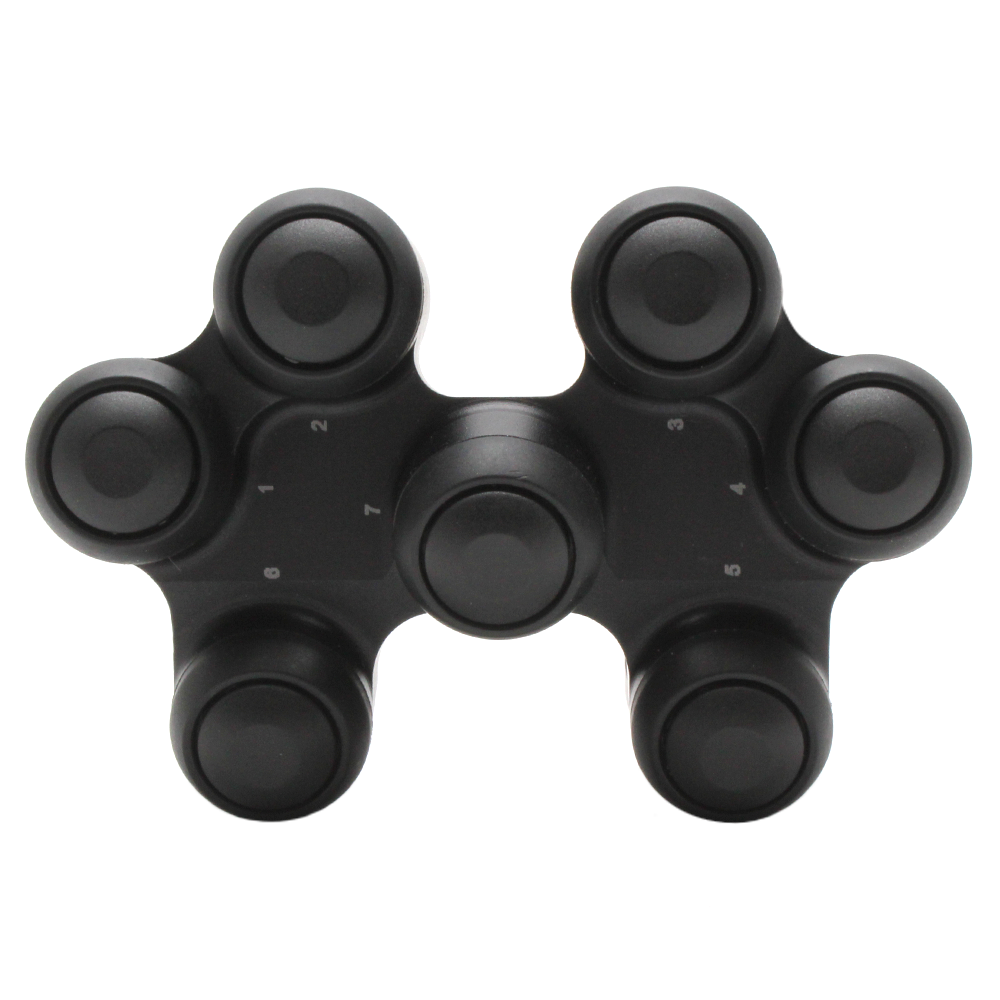

Laser engraved 1 > 8


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

8 Button Handlebar Control Switches for Motorcycle

  • 8-way button
  • Width at the centre: 13.5mm
  • Colour: Black
  • Metal Bezel
  • Common Ground
  • 400mm DR25
  • All switches are momentary N/O
  • Black: Common Ground
  • Switch Sealing: IP67
  • Laser Engraved: 1 - 4
  • Wire colours are 1 - Red, 2 - Green, 3 - White (no stripe), 4 - Blue, 5 - Yellow, 6 - Grey, 7 - Orange, 8 - White (+ stripe)
  • SP231 - BD-SW-8B





8 Button Handlebar Control Switches for Motorcycle

  • 1 x 8 Button Handlebar Control Switch
FAQ Centre

Description

8 Button Handlebar Control Switches for Motorcycle

This eight-button custom motorsport configuration switch has been designed for use on race & track bikes, with the standard ECU and where lights and turn signals are not needed.

Key Features :

Custom 8 button switch pad Road/Track



The aluminium assembly has been ergonomically designed for easy use and encompasses eight sealed momentary switches, which are black in colour and metal bezel.
With rugged machine aluminium construction and fully waterproof switches to provide greater crash protection and electrical integrity.

As an example of functions you could have:
Dash Mode UP
Dash Mode DOWN
Select / Cancel
Main beam OFF / ON
Flasher/lap set
Left Turn
Right Turn
Horn

Eight-way button is all black in colour & metal bezel
Common Ground
400mm DR25
All Switches are momentary N/O
Black - Common Ground
Laser engraved 1 > 8


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

8 Button Handlebar Control Switches for Motorcycle

  • 8-way button
  • Width at the centre: 13.5mm
  • Colour: Black
  • Metal Bezel
  • Common Ground
  • 400mm DR25
  • All switches are momentary N/O
  • Black: Common Ground
  • Switch Sealing: IP67
  • Laser Engraved: 1 - 4
  • Wire colours are 1 - Red, 2 - Green, 3 - White (no stripe), 4 - Blue, 5 - Yellow, 6 - Grey, 7 - Orange, 8 - White (+ stripe)
  • SP231 - BD-SW-8B





What's in The Box

8 Button Handlebar Control Switches for Motorcycle

  • 1 x 8 Button Handlebar Control Switch
