AiM Solo 2 DL CAN / RS232 2M External Power Lead

SKU: SOLO-K3-L

Precio regular
£42.00
Precio regular
Precio de venta
£42.00

Envíos con cero emisiones de carbono con Shopify Planet
Envíos neutros en carbono en todos los pedidos

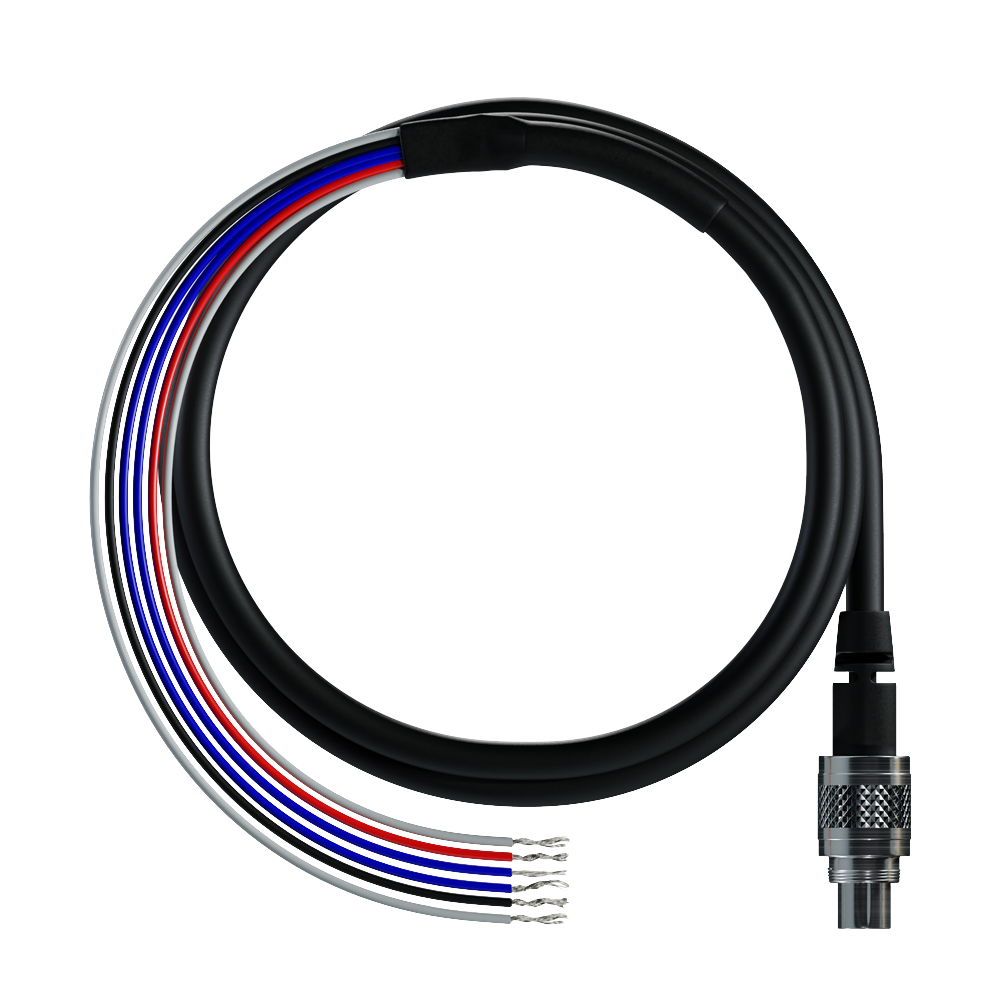

AiM Solo 2 DL CAN / RS232 2M External Power Cable

The AiM CAN/RS232 2m external power cable connects your Solo 2 DL to your ECU wiring.

Key Features :

7 pin - 712 male binder connection 6 non-terminated wires
Suitable for Solo 2 DL


RS232/CAN External Power Cable

The AiM RS232/CAN 2m external power cable connects your Solo 2 DL to your ECU.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RPM cable.


Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Solo 2 DL CAN / RS232 2M External Power Cable

  • 7 pin - 712 male binder connection
  • 2m length cable
  • Free cables:
  • White - CAN+
  • Blue - CAN-
  • Red - 9-15DC
  • Blue - ECU RS232 TX
  • White - ECU RS232 RX
  • Black - GND
  • Both blue wires have a tag identifier, stating the connection type.






AiM Solo 2 DL CAN / RS232 2M External Power Cable

  • Solo 2 DL RS232/CAN External Power Lead
FAQ Centre

Description

AiM Solo 2 DL CAN / RS232 2M External Power Cable

The AiM CAN/RS232 2m external power cable connects your Solo 2 DL to your ECU wiring.

Key Features :

7 pin - 712 male binder connection 6 non-terminated wires
Suitable for Solo 2 DL



RS232/CAN External Power Cable

The AiM RS232/CAN 2m external power cable connects your Solo 2 DL to your ECU.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RPM cable.


Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

AiM Solo 2 DL CAN / RS232 2M External Power Cable

  • 7 pin - 712 male binder connection
  • 2m length cable
  • Free cables:
  • White - CAN+
  • Blue - CAN-
  • Red - 9-15DC
  • Blue - ECU RS232 TX
  • White - ECU RS232 RX
  • Black - GND
  • Both blue wires have a tag identifier, stating the connection type.






What's in The Box

AiM Solo 2 DL CAN / RS232 2M External Power Cable

  • Solo 2 DL RS232/CAN External Power Lead
