Link Exhaust Gas Temperature Probe

SKU: EGT

Prix ​​habituel
£109.00
Prix ​​habituel
Prix ​​de vente
£109.00

+ TVA (Royaume-Uni uniquement)

Expédition neutre en carbone avec Shopify Planet
Expédition neutre en carbone pour toutes les commandes
Créé avec Shopify Planet

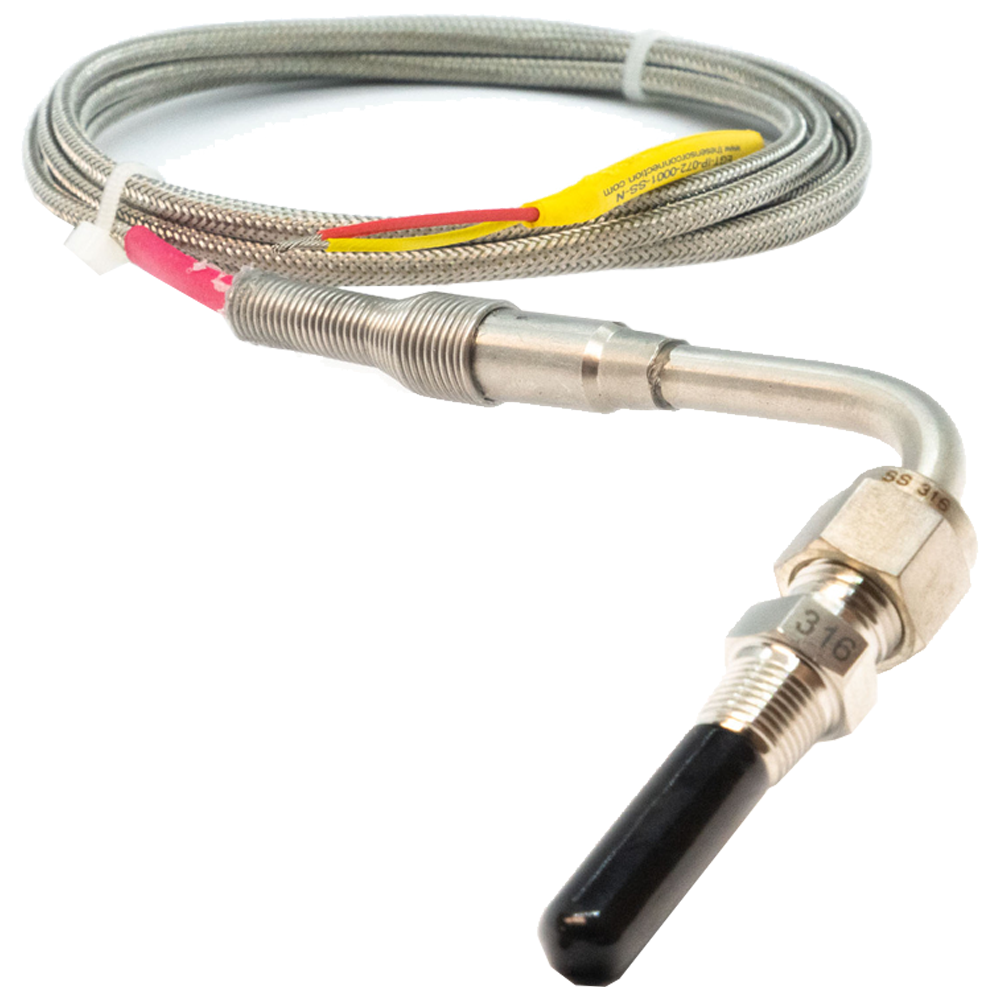

Link Exhaust Gas Temperature Probe

Extreme Duty Fast Response EGT Temperature Probe

Type K thermocouple probe
Exposed sensing junction for fastest response
Includes 316 SS adjustable compression fitting
Stainless steel protected wires
Designed for extreme engine test & racing environments


When using this with an ECU other than the Thunder, you will need to use an amplifier.


Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C)
Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS
*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value
Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge
Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread

Wiring: + = Yellow – = Red

Link Exhaust Gas Temperature Probe

  • Exhaust Gas Temperature Probe
FAQ Centre

Description



Link Exhaust Gas Temperature Probe

Extreme Duty Fast Response EGT Temperature Probe

Type K thermocouple probe
Exposed sensing junction for fastest response
Includes 316 SS adjustable compression fitting
Stainless steel protected wires
Designed for extreme engine test & racing environments


When using this with an ECU other than the Thunder, you will need to use an amplifier.


Technical

Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C)
Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS
*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value
Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge
Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread

Wiring: + = Yellow – = Red

What's in The Box

Link Exhaust Gas Temperature Probe

  • Exhaust Gas Temperature Probe
