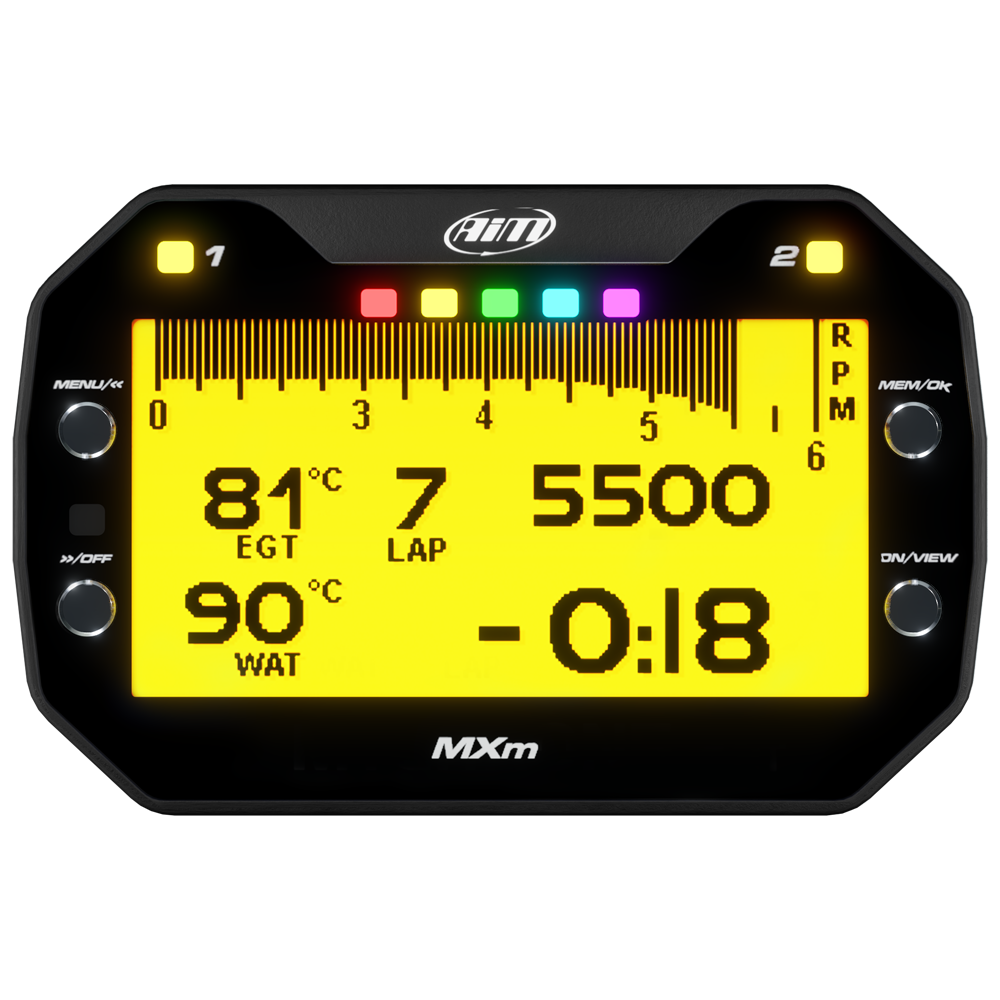

AiM MXm Motorcycle Data Logging Dash With GPS

SKU: MXM

מחיר רגיל
£1,025.00
מחיר רגיל
מחיר מבצע
£1,025.00

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

AiM MXm Motorcycle Data Logging Dash With GPS

The AiM MXm is a compact-sized dash logger designed for racers needing all the information they need to improve their and the performance of their vehicles.

Key Features :

High contrast LCD display Integrated GPS
5 configurable RGB LEDs 2 alarm RGB LEDs
Wi-Fi connection 7 backlight colours
Configurable display 4GB memory

AiM MXm Motorcycle Data Logging Dash With GPS

The compact MXm dash display unit features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their vehicles and to improve their own performance. Designed to acquire and display data coming from your ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.

The MXm features 2 CAN connections for obtaining information directly from the vehicles ECU with a wide range of compatible ECU systems available to choose from. This offers the most straight forward method of installation while also offering 4 analogue and 2 digital inputs for additional data input.


Integrated Shift Lights & Alarms

The display has an integrated shift light system that features 5 fully configurable LEDs which can be customised to your requirements and for each gear. Two further LEDs can be configured to operate as warning alarms. These warning lights can be customised for a particular parameter that requires a warning light, the colour of the LED, and whether you want a solid or a flashing style alarm, even the flashing frequency can be tailored to suit your requirements


Sharp Liquid Cyrstal Display

Making use of a sharp liquid crystal screen, the user can select the information that is displayed and the backlight can be switched between 7 available colours, all with high contrast and easy to read graphics. The information that is displayed on the screen can be fully configured by the user to prioritise the most important information for the driver. If there is simply too much information to be shown on the screen, the driver can scroll between multiple pages using the integrated buttons so that nothing is missed.

After the session has concluded, all of the data can be recalled on the screen including a summary of the drivers best laps along with max/min RPM, speed and temperatures. If you would prefer to go through the data in more detail, the MXm features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 meters away, so you no longer need to take the laptop to the car.


Pin Harness

The 37 pin harness comes standard in the kit.


Expand Your System

These are only some of the items that can be added to our MXm for incrementing the performance and the data acquired :


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by the MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM MXm Motorcycle Data Logging Dash With GPS

  • Display Resolution: 268 x 128 pixels
  • Backlight: 7 configurable RGB colours
  • Ambient light sensor: Yes
  • Alarm LEDs: 2 configurable RGB LEDs
  • Shift lights: 5 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • GPS: Integrated
  • ECU compatibility : + 1000 industry leading EUCs
  • External Modules: Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD
  • Analogue inputs: 4 fully configurable, max 1,000 Hz each
  • Digital inputs: 2-speed inputs, coil RPM input
  • Digital outputs: 2 high side
  • Wi-Fi connection: Yes
  • Internal memory: 4 GB
  • Body: Glass Fibre Nylon
  • Pushbuttons: Metallic
  • Connectors: 37 pins Motorsport connector + 4 pins power connector
  • Dimensions : 137 x 88.4 x 31.4mm
  • Weight: 330g
  • Waterproof: IP65



AiM MXm Motorcycle Data Logging Dash With GPS

  • MXm Dash Display
  • 37 Pin standard harness
  • 4 Pin Connector Kit
  • AiM Sticker
FAQ Centre

Description

AiM MXm Motorcycle Data Logging Dash With GPS

The AiM MXm is a compact-sized dash logger designed for racers needing all the information they need to improve their and the performance of their vehicles.


Key Features :

High contrast LCD display Integrated GPS
5 configurable RGB LEDs 2 alarm RGB LEDs
Wi-Fi connection 7 backlight colours
Configurable display 4GB memory


AiM MXm Motorcycle Data Logging Dash With GPS

The compact MXm dash display unit features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their vehicles and to improve their own performance. Designed to acquire and display data coming from your ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.

The MXm features 2 CAN connections for obtaining information directly from the vehicles ECU with a wide range of compatible ECU systems available to choose from. This offers the most straight forward method of installation while also offering 4 analogue and 2 digital inputs for additional data input.


Integrated Shift Lights & Alarms

The display has an integrated shift light system that features 5 fully configurable LEDs which can be customised to your requirements and for each gear. Two further LEDs can be configured to operate as warning alarms. These warning lights can be customised for a particular parameter that requires a warning light, the colour of the LED, and whether you want a solid or a flashing style alarm, even the flashing frequency can be tailored to suit your requirements



Sharp Liquid Cyrstal Display

Making use of a sharp liquid crystal screen, the user can select the information that is displayed and the backlight can be switched between 7 available colours, all with high contrast and easy to read graphics. The information that is displayed on the screen can be fully configured by the user to prioritise the most important information for the driver. If there is simply too much information to be shown on the screen, the driver can scroll between multiple pages using the integrated buttons so that nothing is missed.

After the session has concluded, all of the data can be recalled on the screen including a summary of the drivers best laps along with max/min RPM, speed and temperatures. If you would prefer to go through the data in more detail, the MXm features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 meters away, so you no longer need to take the laptop to the car.




Pin Harness

The 37 pin harness comes standard in the kit.




Expand Your System

These are only some of the items that can be added to our MXm for incrementing the performance and the data acquired :




Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by the MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical Specifications

AiM MXm Motorcycle Data Logging Dash With GPS

  • Display Resolution: 268 x 128 pixels
  • Backlight: 7 configurable RGB colours
  • Ambient light sensor: Yes
  • Alarm LEDs: 2 configurable RGB LEDs
  • Shift lights: 5 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • GPS: Integrated
  • ECU compatibility : + 1000 industry leading EUCs
  • External Modules: Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD
  • Analogue inputs: 4 fully configurable, max 1,000 Hz each
  • Digital inputs: 2-speed inputs, coil RPM input
  • Digital outputs: 2 high side
  • Wi-Fi connection: Yes
  • Internal memory: 4 GB
  • Body: Glass Fibre Nylon
  • Pushbuttons: Metallic
  • Connectors: 37 pins Motorsport connector + 4 pins power connector
  • Dimensions : 137 x 88.4 x 31.4mm
  • Weight: 330g
  • Waterproof: IP65



What's in The Box

AiM MXm Motorcycle Data Logging Dash With GPS

  • MXm Dash Display
  • 37 Pin standard harness
  • 4 Pin Connector Kit
  • AiM Sticker
