AiM CAN Channel Expansion

SKU: CH-4-X08CHANEXP0

{{ product.metafields.descriptors.subtitle.value

通常価格
£250.00
通常価格
セールスプライス
£250.00

Shopify Planetを使用したカーボンニュートラルな配送
注文すべてでカーボンニュートラルな配送

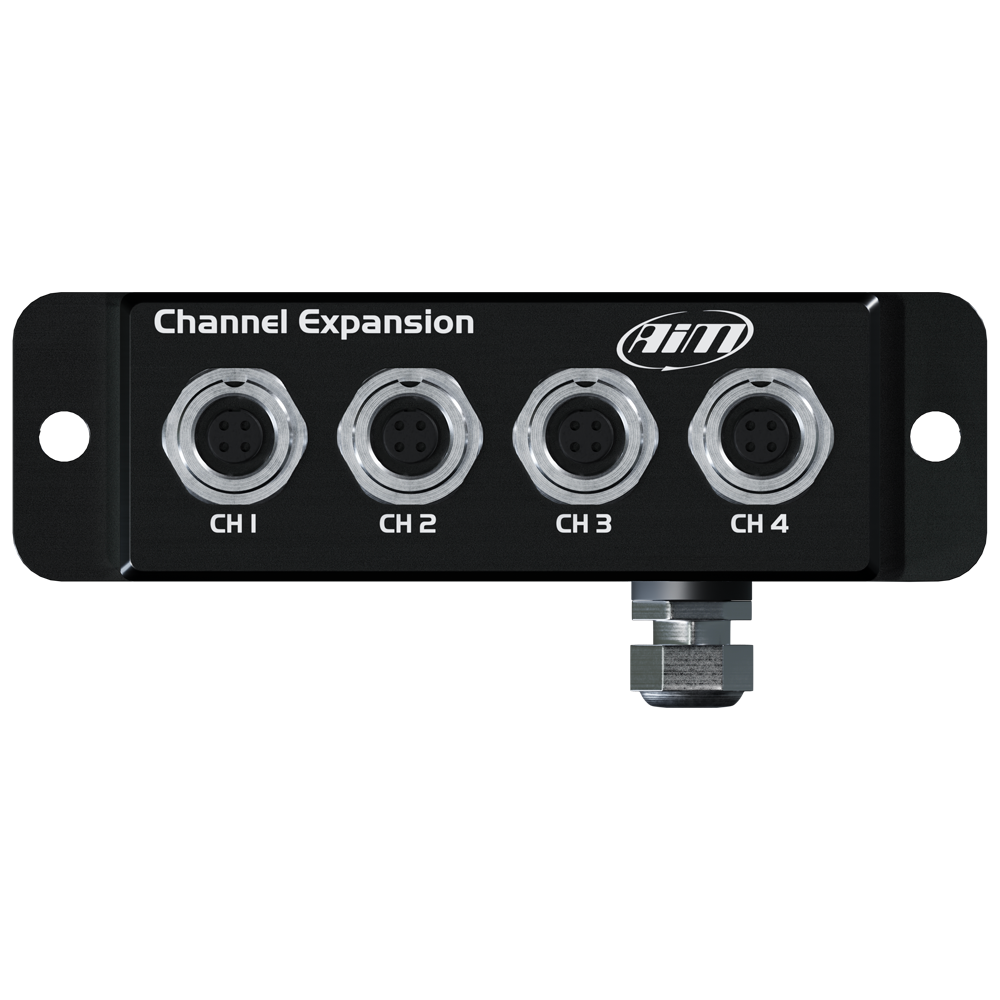

AiM CAN Channel Expansion

The Aim Channel Expansion is a compact CAN device used to enhance your logger's and your racing performance. Add our LCU Lambda Controller, GPS Module, TC Hub or any SmartyCam to advance your track days.

Key Features :

Enhance your logger performance Simplify wiring
CAN cable length <50cm Five pins 712 male binder connection


CAN Channel Expansion

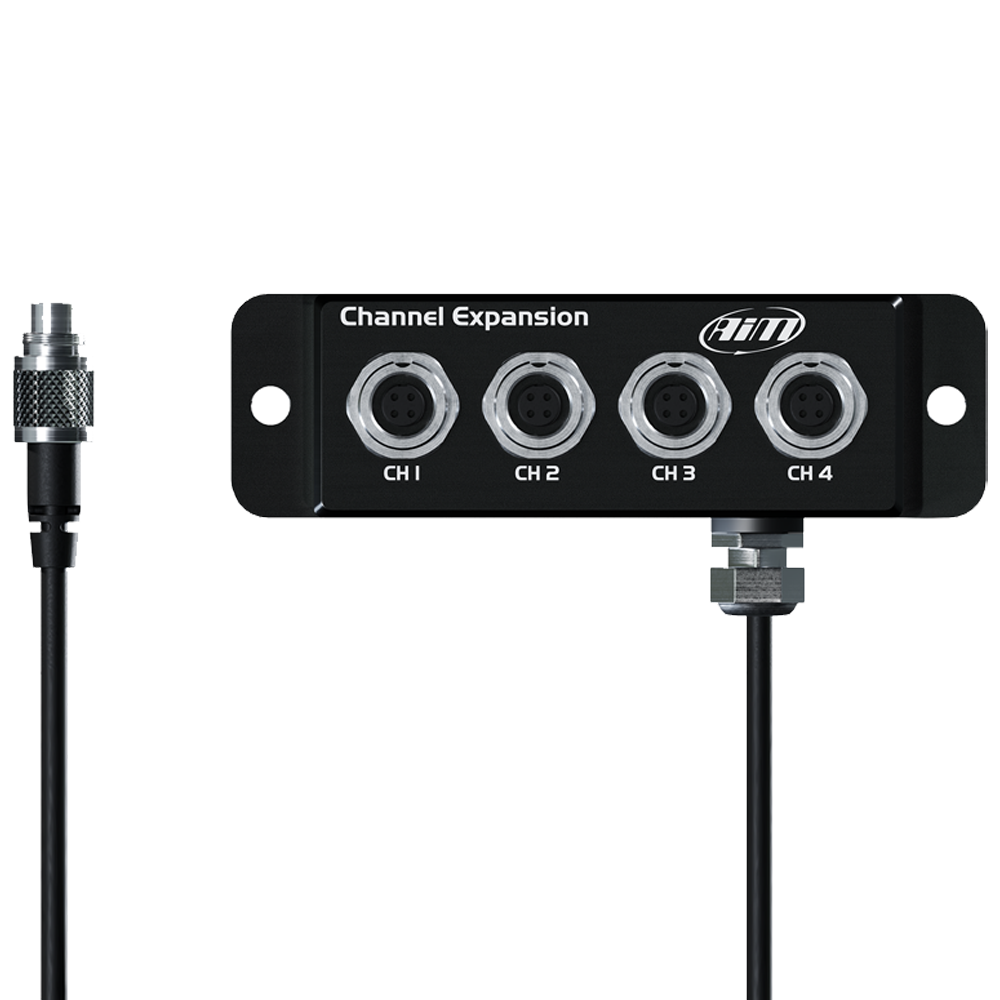

The AIM Channel Expansion is a compact CAN device that provides virtually endless data system expansion possibilities. The Channel Expansion hub adds up to four freely configurable analogue (or two digital and two analogues) channels without occupying or modifying any existing system channels.

A further benefit of using the Channel Expansion is that it simplifies sensor wiring, allowing the various sensors to plug into the hub and just one cable to the logger. It is also possible to use a Data Hub to connect to the data logger or dash display as many Channel Expansions as needed.

Configured using the Race Studio 3 software, the Channel Expansion will be recognised automatically by the logger when switched on. Easy to install, the aluminium chassis is both robust and waterproof.

The CAN cable length is 150 cm long.

Please Note: To connect to each sensor, you will need a 712-719 patch lead for the connected sensor.


Create a Network

You can create a network to advance your system by adding a Data Hub, which will give you four additional CAN channels. In addition, you can add the LCU Lambda Controller, GPS Module, TC Hub and SmartyCams.
See the image below.


Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.



Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM CAN Channel Expansion

  • Waterproof: IP65
  • Cable Length: 150cm

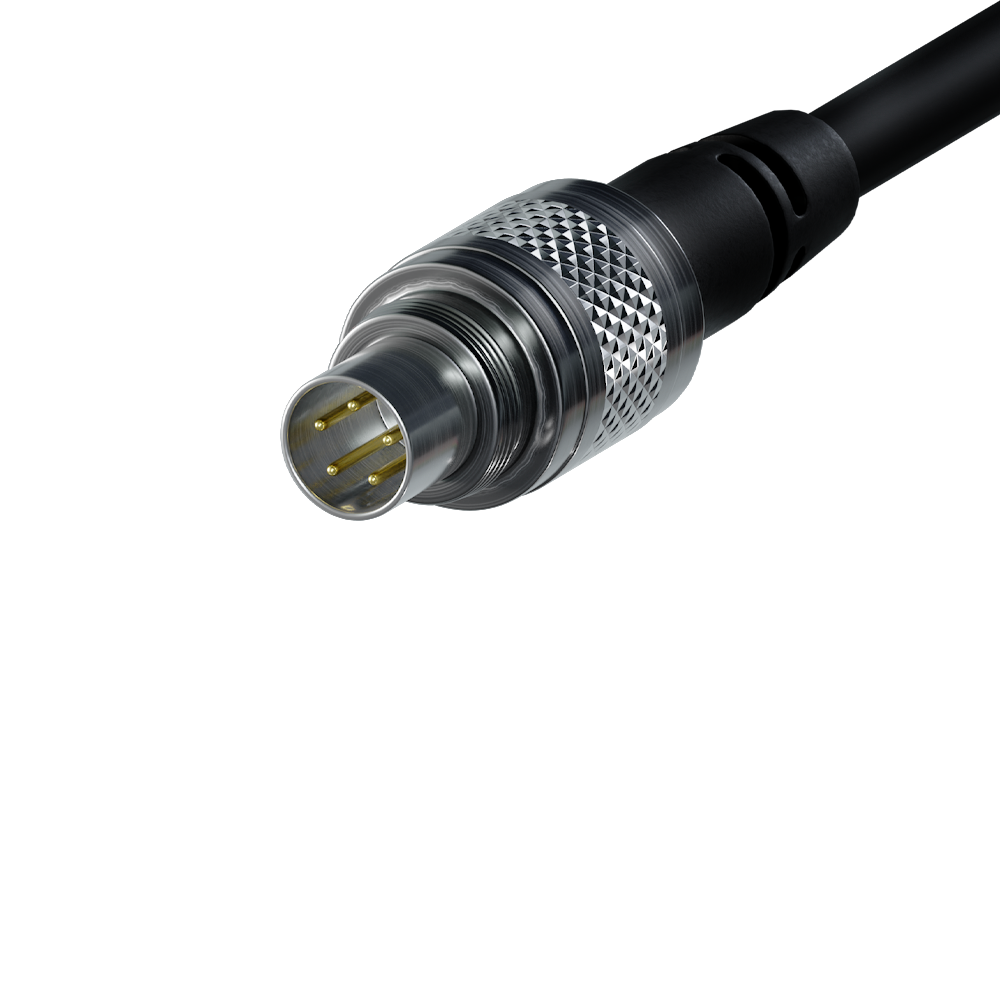

  • Five pins Binder 712 male connector
  • x 4 channel 4 pins Binder 712 female connector on channel expansion



AiM CAN Channel Expansion

  • x 1 CAN Channel Expansion
FAQ Centre

Description

AiM CAN Channel Expansion

The Aim Channel Expansion is a compact CAN device used to enhance your logger's and your racing performance. Add our LCU Lambda Controller, GPS Module, TC Hub or any SmartyCam to advance your track days.

Key Features :

Enhance your logger performance Simplify wiring
CAN cable length <50cm Five pins 712 male binder connection



CAN Channel Expansion

The AIM Channel Expansion is a compact CAN device that provides virtually endless data system expansion possibilities. The Channel Expansion hub adds up to four freely configurable analogue (or two digital and two analogues) channels without occupying or modifying any existing system channels.

A further benefit of using the Channel Expansion is that it simplifies sensor wiring, allowing the various sensors to plug into the hub and just one cable to the logger. It is also possible to use a Data Hub to connect to the data logger or dash display as many Channel Expansions as needed.

Configured using the Race Studio 3 software, the Channel Expansion will be recognised automatically by the logger when switched on. Easy to install, the aluminium chassis is both robust and waterproof.

The CAN cable length is 150 cm long.

Please Note: To connect to each sensor, you will need a 712-719 patch lead for the connected sensor.


Create a Network

You can create a network to advance your system by adding a Data Hub, which will give you four additional CAN channels. In addition, you can add the LCU Lambda Controller, GPS Module, TC Hub and SmartyCams.
See the image below.


Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.



Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

AiM CAN Channel Expansion

  • Waterproof: IP65
  • Cable Length: 150cm
  • Five pins Binder 712 male connector
  • x 4 channel 4 pins Binder 712 female connector on channel expansion



What's in The Box

AiM CAN Channel Expansion

  • x 1 CAN Channel Expansion
