AiM Solo 2 DL RPM & External Power Lead

SKU: SOLO-K4-L

정가
£42.00
정가
세일 가격
£42.00

Shopify Planet을 통한 탄소 중립 배송
모든 주문에 대해 탄소 중립 배송

AiM Solo 2 DL RPM & External Power Lead

The AiM RPM cable is used for vehicles when the particular ECU is not supported.

Key Features :

8 pin - 712 male binder connection 3 free cables
Suitable for Solo 2 DL


RPM External Power Cable

In the unlikely event, your particular ECU is not supported you can connect the Solo 2 DL to the coil RPM which will provide a digital input delivered from square wave signals or pulse signals.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RS232/CAN cables.


Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Solo 2 DL RPM & External Power Lead

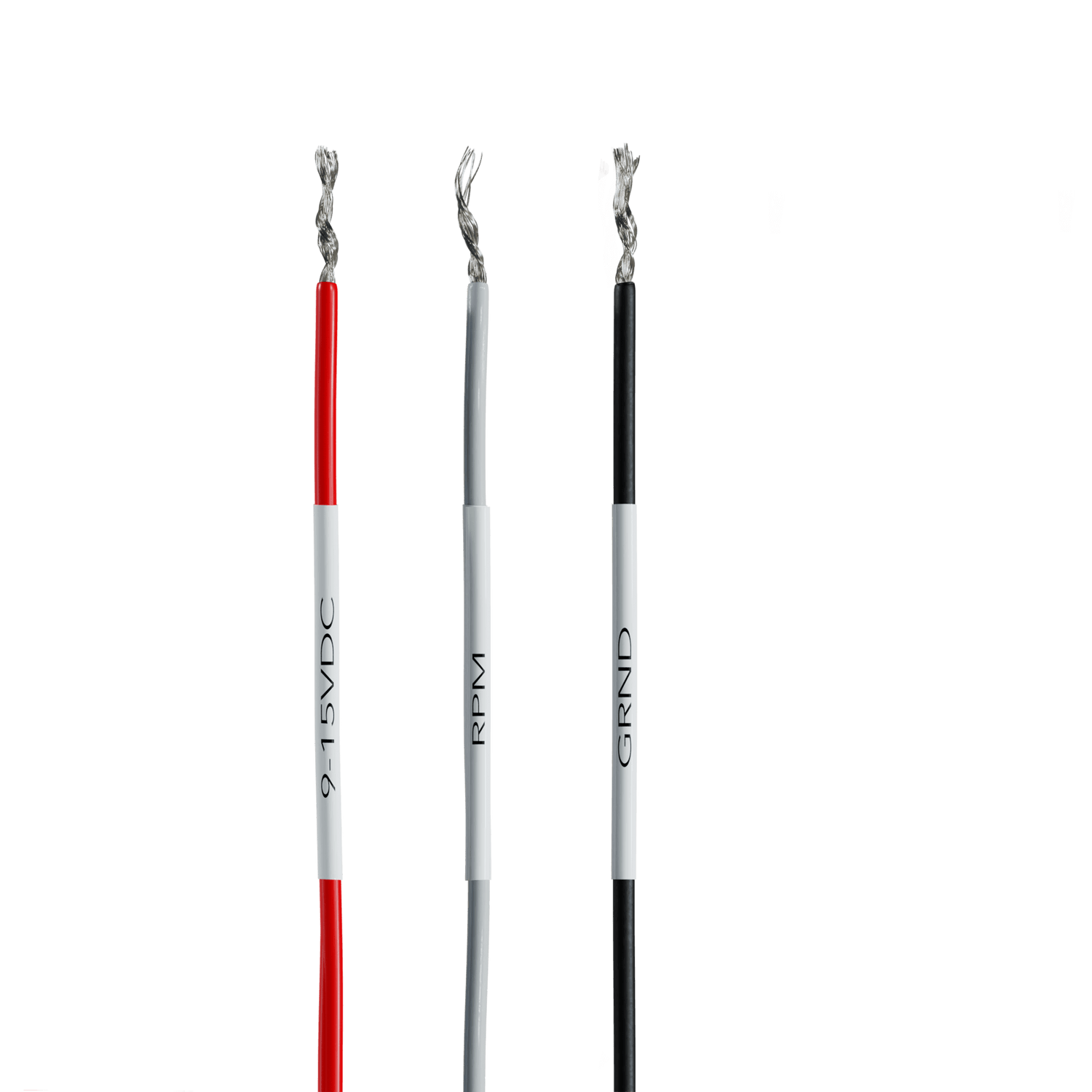

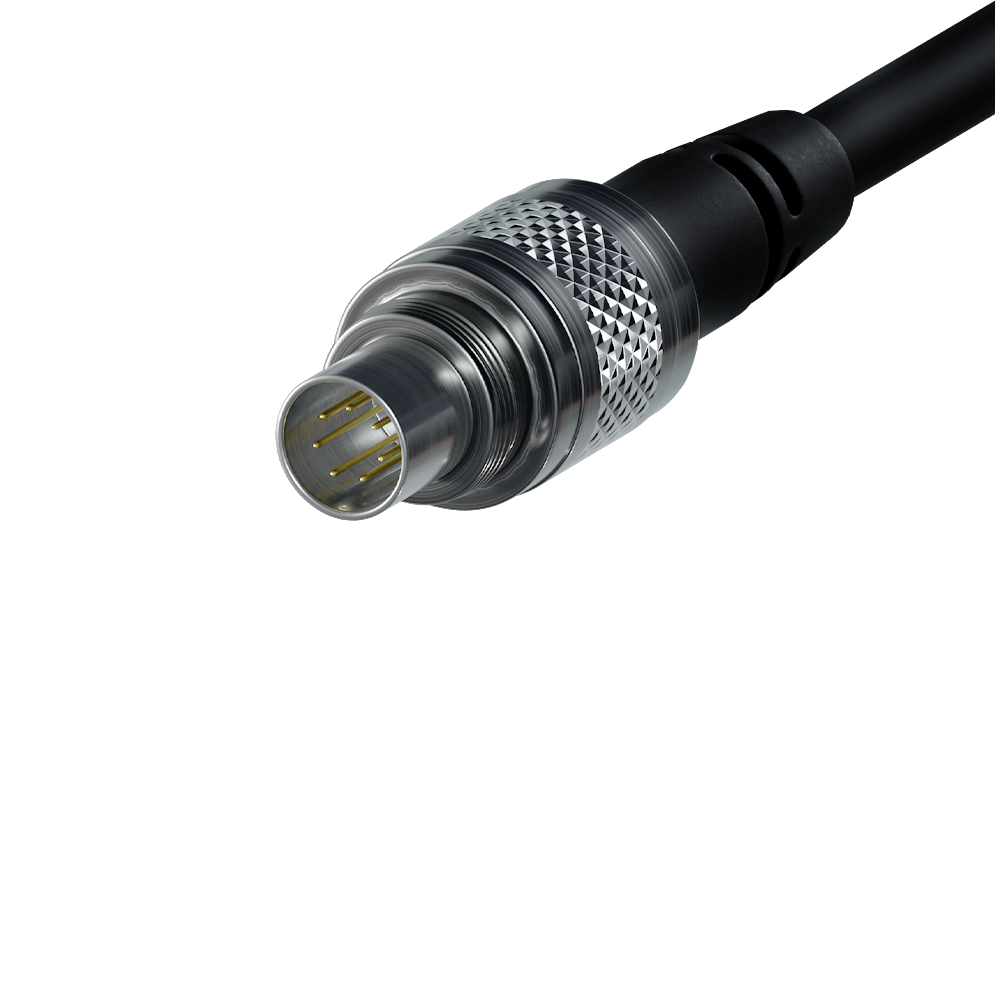

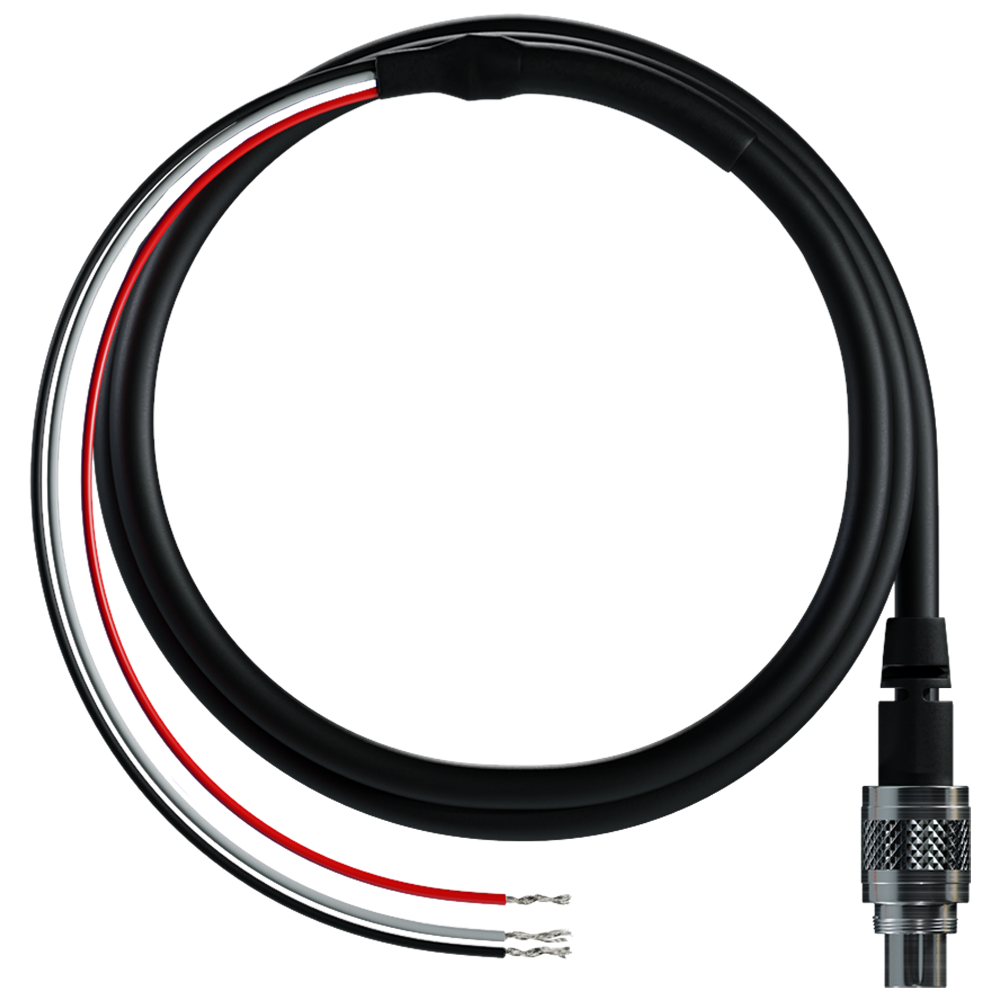

  • 8 pin - 712 male binder connection
  • 2m Cable
  • Red - 9-15 VDC
  • Black - GND
  • White - RPM






AiM Solo 2 DL RPM & External Power Lead

  • Solo 2 DL OBDII & External power cable connector
FAQ Centre

Description

AiM Solo 2 DL RPM & External Power Lead

The AiM RPM cable is used for vehicles when the particular ECU is not supported.

Key Features :

8 pin - 712 male binder connection 3 free cables
Suitable for Solo 2 DL



RPM External Power Cable

In the unlikely event, your particular ECU is not supported you can connect the Solo 2 DL to the coil RPM which will provide a digital input delivered from square wave signals or pulse signals.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RS232/CAN cables.


Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

AiM Solo 2 DL RPM & External Power Lead

  • 8 pin - 712 male binder connection
  • 2m Cable
  • Red - 9-15 VDC
  • Black - GND
  • White - RPM






What's in The Box

AiM Solo 2 DL RPM & External Power Lead

  • Solo 2 DL OBDII & External power cable connector
