Super B Epsilon 12V150Ah Lithium Traction Battery

SKU: SB-E-150

정가
£1,650.00
정가
세일 가격
£1,650.00

+ VAT (UK Only)

Shopify Planet을 통한 탄소 중립 배송
모든 주문에 대해 탄소 중립 배송
Powered by Shopify Planet

superb lithium batteries

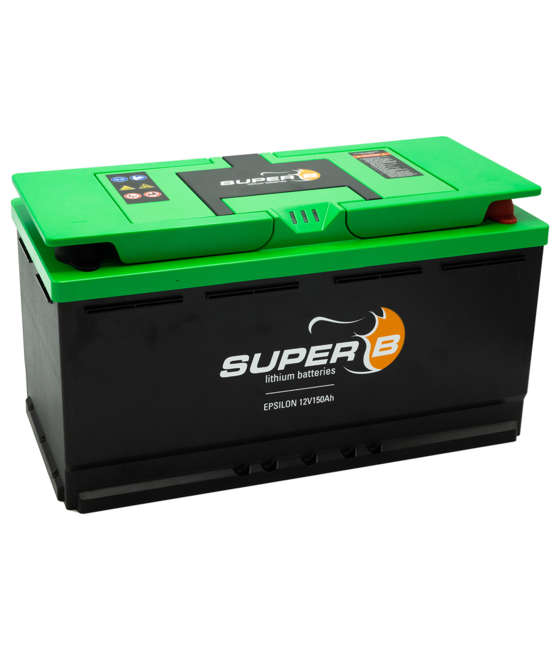

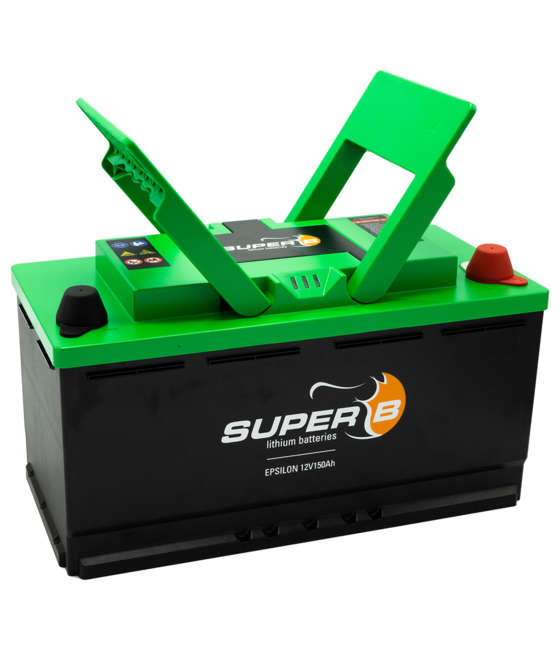

Super B Epsilon 12V150Ah Lithium Traction Battery

The Epsilon 12V150Ah Lithium Iron Phosphate battery has the highest capacity in a standard casing available on the market. The highly sophisticated and integrated BMS brings safety, functionality, and ease of use together in a lightweight and robust casing. The fully automatic heating functionality, improved Bluetooth connectivity, and multi-connectable coated aluminum terminals make this battery a must-have.

  • Product Features

  • A-grade prismatic cells for highest possible energy density and quality
  • Lithium Iron Phosphate (LiFePO4): Safe lithium technology
  • Integrated short circuit protection
  • Integrated protection device for maximum protection and safety
  • Integrated BMS (Battery Management System)
  • Integrated cell heating to allow safe charging below 0°C (with autonomous operation if needed)
  • Adaptive cell balancing
  • Robust casing made from environmentally friendly materials (fully recyclable)
  • Overheating protection on battery terminals in case of badly connected cables
  • Communication interface: Bluetooth (wireless), CAN bus(wired) and LIN bus (wired)
  • Configurable general purpose inputs/outputs to control external devices (chargers for example)
  • Separate power output connection for powering accessories. Analog SoC output
  • Battery monitoring / History Storage
  • Monitoring via Be In Charge Bluetooth app (iOS and Android) and Be In Charge Software (PC)
  • Multi-connectable coated aluminium terminals, including temperature sensors for protection
  • LN3 / DIN H6 and LN5 / DIN H8 sizes available in different capacity (100Ah and 150Ah)
  • Integrated and configurable discharge limit (Shutdown based on State of Charge)
AiM Shop Youtube Channel Product Videos - AiM Technologies - AiM Academy

Intended Use

The Epsilon 12V100Ah/12V150Ah Li-ion battery serves as an energy source of 12V in power systems for recreational vehicles, commercial vehicles, leisure boats, commercial vessels and stationary applications. Potential applications of this Li-ion battery include: off grid power supply, marine power supply, medium for (renewable) energy storage and (traction) battery for vehicles. Use as a starter battery is not possible. Never install multiple Epsilon Li-ion batteries in series. Up to 8 batteries can be connected in parallel to increase the total capacity up to 800Ah or 1200Ah depending on the Epsilon variant.

PERFORMANCE

Low maintenance
Fast charging
Safest lithium technology
High discharge currents
High capacity
Low weight
High cycle count
Low self-discharge

EPSILON BLUETOOTH TROUBLESHOOTING

EPSILON AUTOMOTIVE TERMINAL CONNECTORS

CERTIFICATIONS

UN38.3 UN38.3 UN38.3 UN38.3 UN38.3

3 Year Warranty

A 3-year warranty offers the best peace of mind. It is the benefit of years of continuous engineering improvement and proven experience with all of our batteries in the harshest environments.

3 year warranty

Lithium batteries are becoming more popular in the automotive industry due to their superior performance and environmental benefits. One such lithium traction battery that has been gaining attention is the Super B Epilson 12v150ah. This battery is designed for use in electric vehicles, hybrid vehicles, and other electric industrial equipment.

The Super B Epilson 12v150ah lithium traction battery offers a higher energy density compared to traditional lead-acid batteries. This means that it can store more energy in a smaller and lighter package, making it ideal for vehicles where weight and space are critical factors. In addition, lithium batteries have a longer life, meaning they can be recharged and discharged more times before they start to degrade. This results in a longer lifespan for the battery, reducing the need for frequent replacements.

Another advantage of the Super B Epilson 12v150ah lithium traction battery is its fast charging capabilities. Lithium batteries can be charged much faster than lead-acid batteries, allowing for quicker turnaround times and increased productivity. This is especially important for vehicles that are used in high-demand applications where downtime is not an option. Additionally, lithium batteries maintain a more stable voltage throughout the discharge cycle, providing consistent power output for longer periods of time.

ELECTRICAL SPECIFICATIONS

Nominal capacity
150Ah
Open circuit voltage
13.2v
self-discharge
<3% per month
Cycle Life
>5000 cycles (at 100% DoD)
Voltage
12v

MECHANICAL SPECIFICATIONS

Dimensions (LxWxH)
353 x 175 x 190 mm / 13.9” x 6.9” x 7.5” (=DIN H8 / LN5)
Weight
15.5 kg / 34.2 lbs
Case material
PC/ABS
Ingress protection
IP56
Cell type / Chemistry
Prismatic - LiFePO4

CHARGE & DISCHARGE SPECIFICATIONS

Charge method
CCCV
Charge voltage
14.3V - 14.6V
Max. charge current
135A
End of discharge voltag
8V
Discharge current continuous
200A
Discharge pulse current
350A

TEMPERATURE SPECIFICATIONS

Charge temperature
-30°C to 45°C / -22°F to 113°F
Discharge temperature
-20°C to 60°C / -4°F to 140°F
Storage temperature
-20°C to 45°C / -4°F to 113°F

COMPLIANCE SPECIFICATIONS

Certifications
CE, FCC, UN 38.3, UN ECE R10.06, UL 1642 (Cells)
Shipping classification
UN 3480

GENERAL SPECIFICATIONS

EAN-13
8718531362185
Battery designation
lFpP/27/148/135[3p4s] M/-20+60/95

Available to download Here

Be In Charge - Software and App

Super B provides a Be In Charge Software tool which can be used to read out the internal BMS system. The software uses a CAN to USB converter to connect to the communication interface. The software is capable of reading out the actual status like battery / cell voltages and temperature but also statistical information. The Be In Charge software can also be used to update the installed firmware of the Li-ion battery. The Be In Charge software and hardware are not part of the Li-ion battery scope of delivery. Super B also provides a Be In Charge App for mobile devices such as Android and Apple . The app can be found in the Google play store or Apple app store.

superb app
