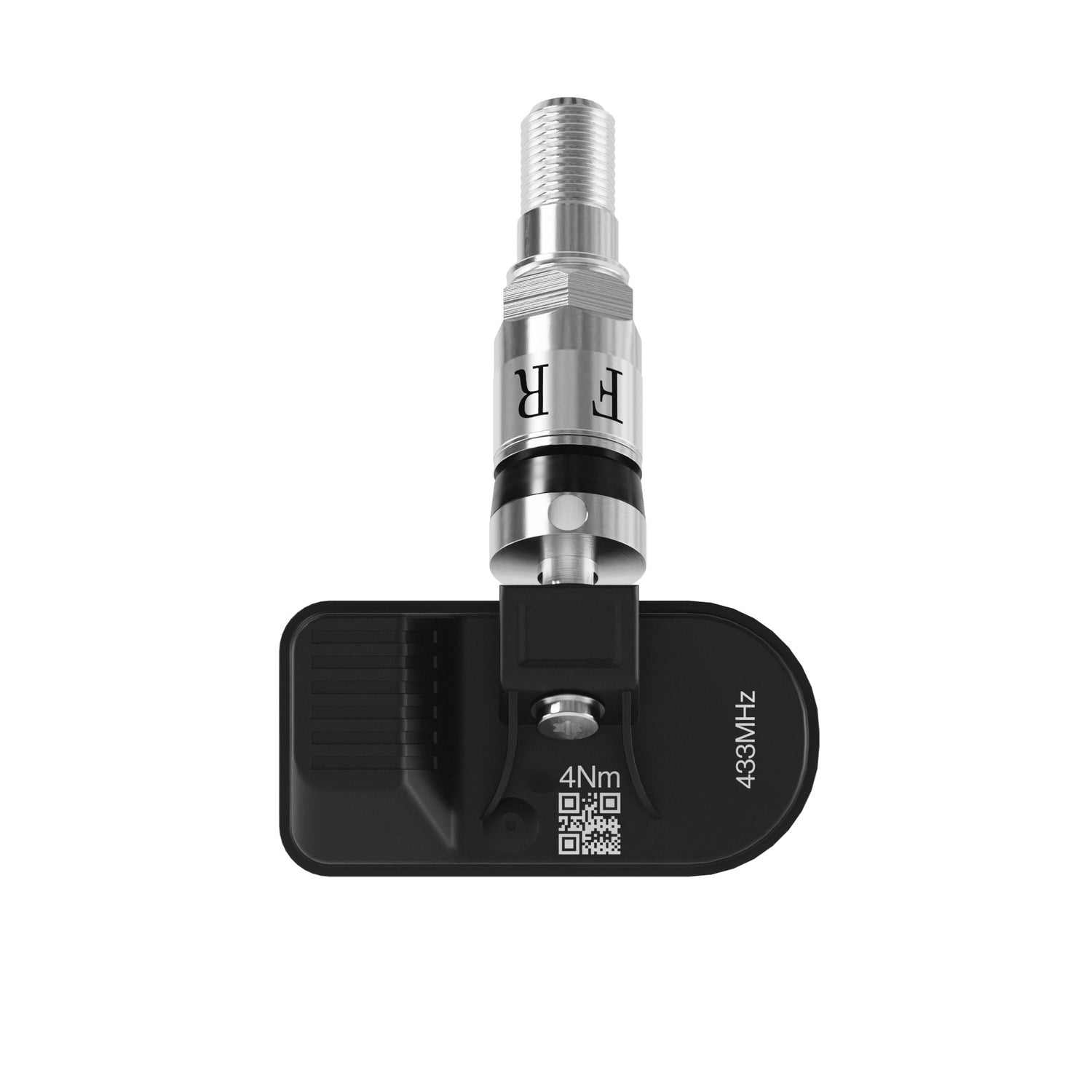

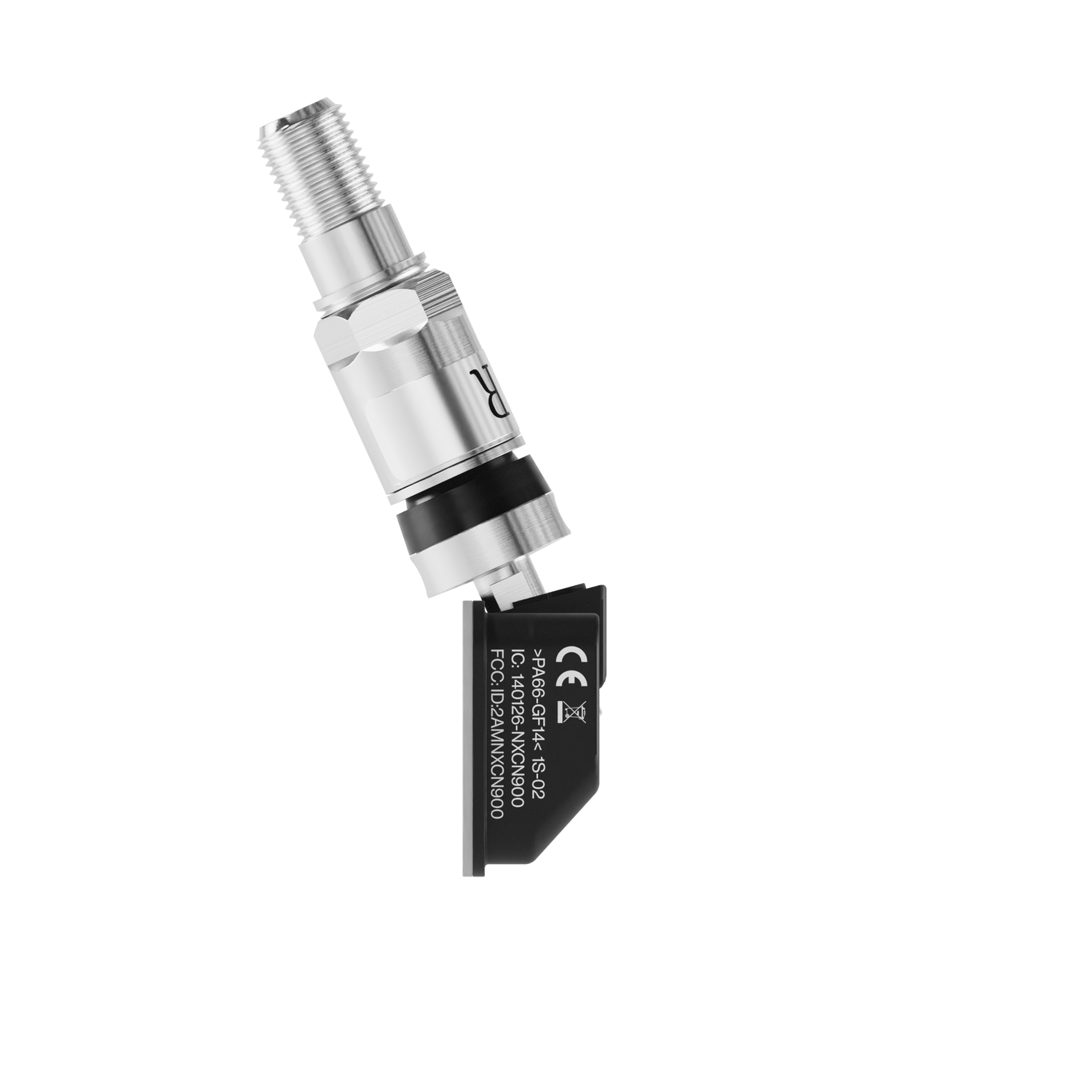

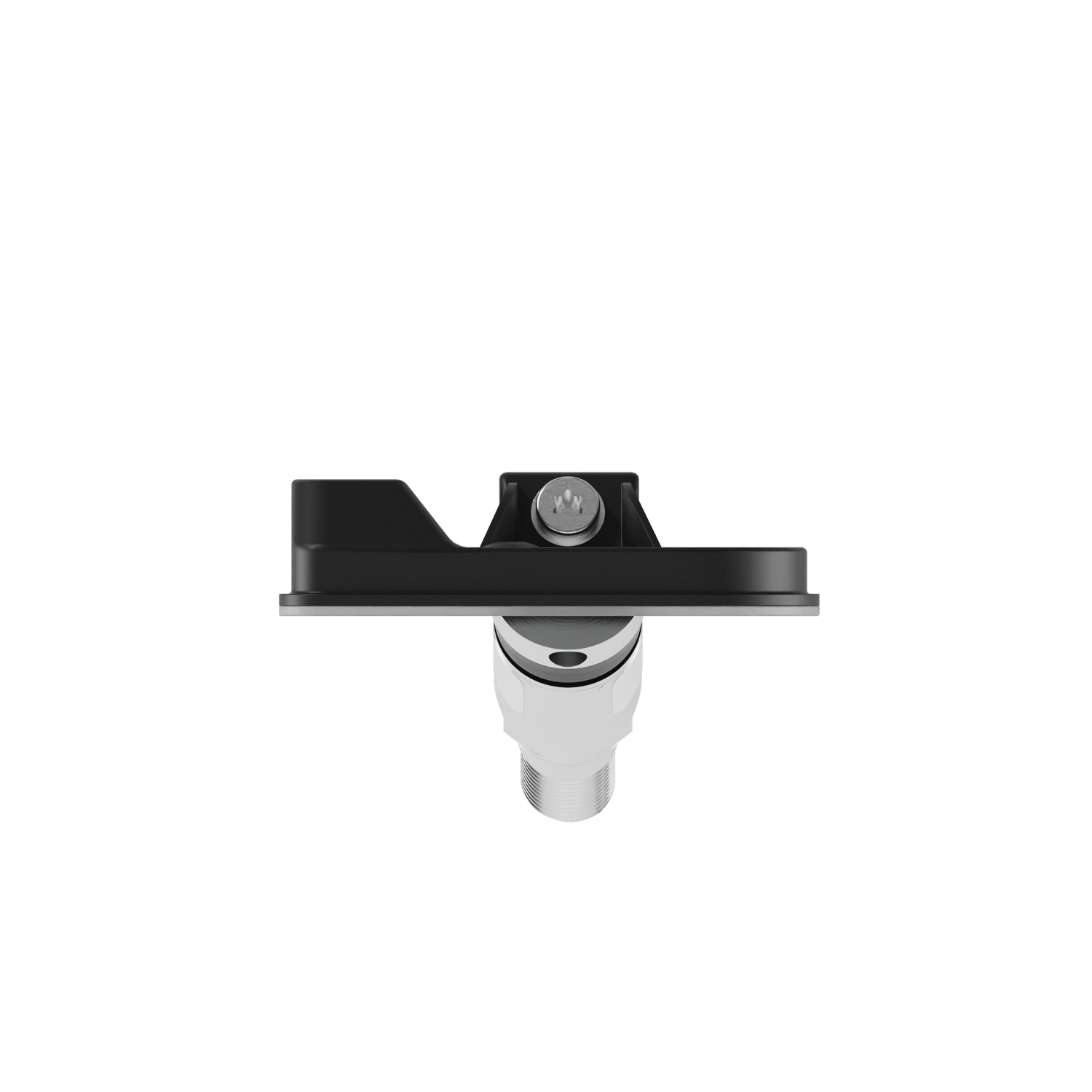

Tyre Pressure Monitoring System Single Sensor

SKU: TPMS-S

Vanlig pris
£60.00
Vanlig pris
Salgs pris
£60.00

Klimanøytral frakt med Shopify Planet
Klimanøytral frakt på alle bestillinger

Tyre Pressure Monitoring System Single Sensor

This sensor has been specifically designed for use with our Tyre Pressure Monitoring System. Ideal to fit to spare wheels ready for mid-race tyre changes.

Key Features :

Ideal for spare wheelsets Lightweight rugged design
One sensor Suitable for Motorsport

Tyre Pressure Monitoring System Single Sensor

This sensor has been designed for use with the AiM tyre pressure monitoring system. It is ideal if you want to add a spare set of wheels for testing purposes or mid-race tyre changes.

The whole purpose of using a Tyre Pressure Monitoring Sensor within each tyre helps to monitor specific pressure levels such as temperature readings. All the data is sent to the monitoring system where it can be analyzed and interpreted.

With this technology, each sensor has lots own serial number. And this is how the system not only distinguishes between itself and systems on other vehicles. Changes can then be made to improve the performance of your vehicle on the track.

AiM Dashes and Loggers will require a CAN Protocol which can be obtained from AiM Technologies to interface with the unit.

Please Note: The Tyre Pressure Monitoring System can be used with all of our dash loggers (Except SOLO 2).


Sensor Features

Spare sensors can be programmed with any of the serial numbers that have been allocated to the receiver.
Sensor IDs of two unmounted wheels can be swapped.
Sensors are supplied with an 11mm valve stem.

Automatic Assignment of Sensor Location (AASL)
When sensors are located in a different position of your vehicle, you can automatically reassign them to their new position using the TPMS handheld receiver (sold separately). Please see our accessories tab to purchase.

If the front wheels are swapped this operation enables you to reallocate the sensor data in the receiver so that the valves for the front left sensor are now transmitted on the CAN ID for the front right. Consequently, the sensor data that is viewed on the dashboard and logged is correct and will appear as the front right.


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Tyre Pressure Monitoring System Single Sensor

  • Sensor pressure range: 0-8000 mbar
  • High-frequency mode: FSK
  • Sensor temperature range: -40°C to 125°C
  • Sensor temperature resolution: 1°C
  • Sealing: IP67
  • Battery lifespan: >2.5 Million transmissions
  • RF frequency: 433.92MHz
  • High-frequency emission power: <8dBm (50ohms)



Tyre Pressure Monitoring System Single Sensor

  • One Spare Sensor
FAQ Centre

Description

Tyre Pressure Monitoring System Single Sensor

This sensor has been specifically designed for use with our Tyre Pressure Monitoring System. Ideal to fit to spare wheels ready for mid-race tyre changes.

Key Features :

Ideal for spare wheelsets Lightweight rugged design
One sensor Suitable for Motorsport


Tyre Pressure Monitoring System Single Sensor

This sensor has been designed for use with the AiM tyre pressure monitoring system. It is ideal if you want to add a spare set of wheels for testing purposes or mid-race tyre changes.

The whole purpose of using a Tyre Pressure Monitoring Sensor within each tyre helps to monitor specific pressure levels such as temperature readings. All the data is sent to the monitoring system where it can be analyzed and interpreted.

With this technology, each sensor has lots own serial number. And this is how the system not only distinguishes between itself and systems on other vehicles. Changes can then be made to improve the performance of your vehicle on the track.

AiM Dashes and Loggers will require a CAN Protocol which can be obtained from AiM Technologies to interface with the unit.

Please Note: The Tyre Pressure Monitoring System can be used with all of our dash loggers (Except SOLO 2).


Sensor Features

Spare sensors can be programmed with any of the serial numbers that have been allocated to the receiver.
Sensor IDs of two unmounted wheels can be swapped.
Sensors are supplied with an 11mm valve stem.


Automatic Assignment of Sensor Location (AASL)
When sensors are located in a different position of your vehicle, you can automatically reassign them to their new position using the TPMS handheld receiver (sold separately). Please see our accessories tab to purchase.

If the front wheels are swapped this operation enables you to reallocate the sensor data in the receiver so that the valves for the front left sensor are now transmitted on the CAN ID for the front right. Consequently, the sensor data that is viewed on the dashboard and logged is correct and will appear as the front right.




Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

Tyre Pressure Monitoring System Single Sensor

  • Sensor pressure range: 0-8000 mbar
  • High-frequency mode: FSK
  • Sensor temperature range: -40°C to 125°C
  • Sensor temperature resolution: 1°C
  • Sealing: IP67
  • Battery lifespan: >2.5 Million transmissions
  • RF frequency: 433.92MHz
  • High-frequency emission power: <8dBm (50ohms)



What's in The Box

Tyre Pressure Monitoring System Single Sensor

  • One Spare Sensor
