AiM MXPS Suzuki GSX-R1000 (2017-2023) Plug & Play Dash Logger With GPS09 Module
SKU: MXPS
- Vanlig pris
- £1,000.00
- Vanlig pris
-
- Salgs pris
- £1,000.00
- Enhetspris
- per
Plug & Play Dash Logger for Suzuki GSX-R 1000
(Now Includes GPS09 Module )
Plug & Play Dash Logger designed explicitly for Suzuki GSX-R 1000 Years 2017-2023 and Suzuki GSX-R 1000 R Years 2017- 2023.
- Yoshimura harness compatible,
- 6" TFT high contrast
- 1,100 Lumen display,
- 9 alarm LEDs,
- 10 shift lights LEDs,
- 2 CAN connections,
- 4 GB internal memory, anodized aluminium body,
- 1 32 pins JAE main connector + 4 Binder 712 female connectors,
- IP65.
Please Note: The MXPS dash can be programmed with your current mileage. Please state your required mileage in miles or kilometres in the notes section on your order.

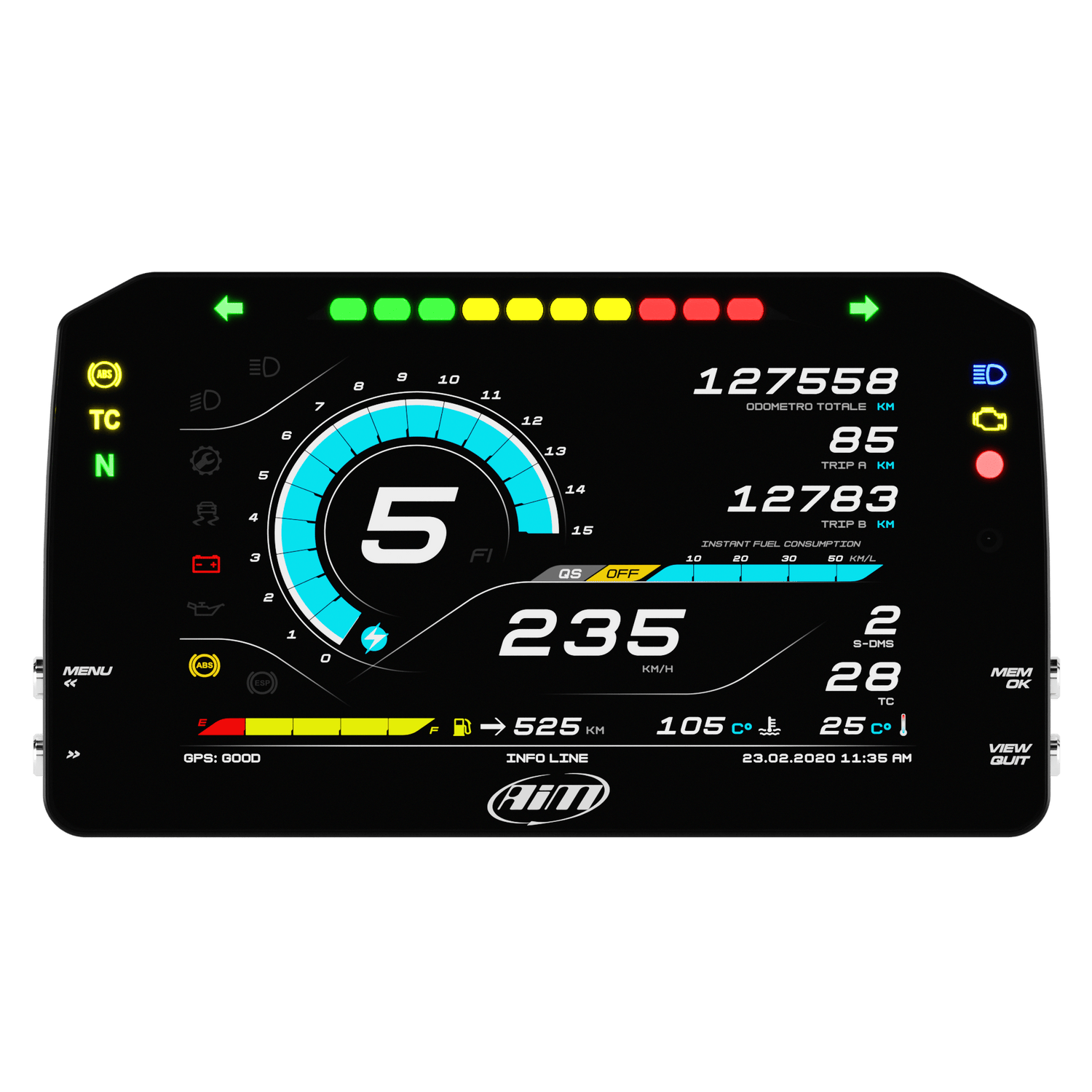

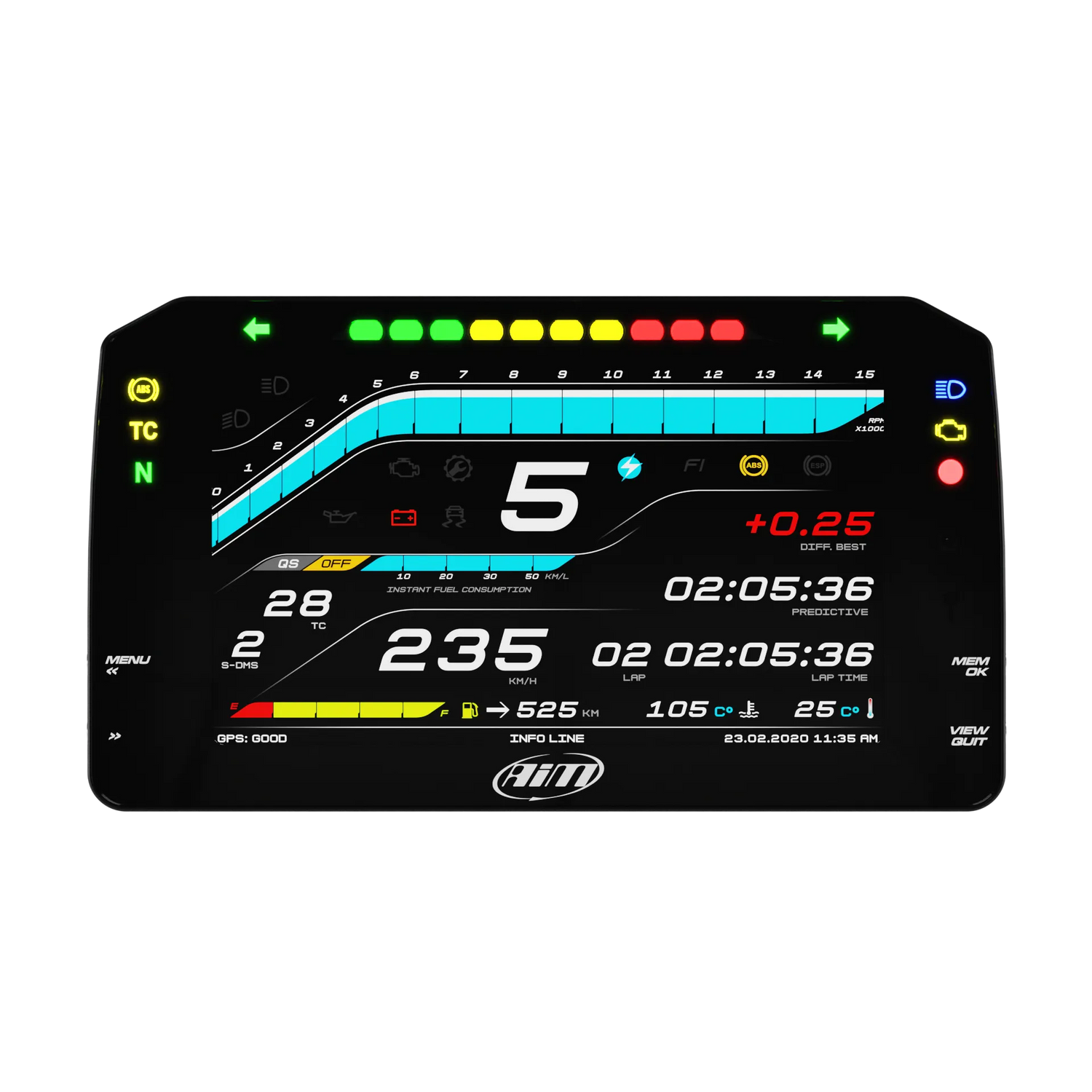

Configurable layouts
MXPS features several configurable layouts in 2 themes both in light and dark mode for your needs in every situation, whether you are on track or riding down the streets.

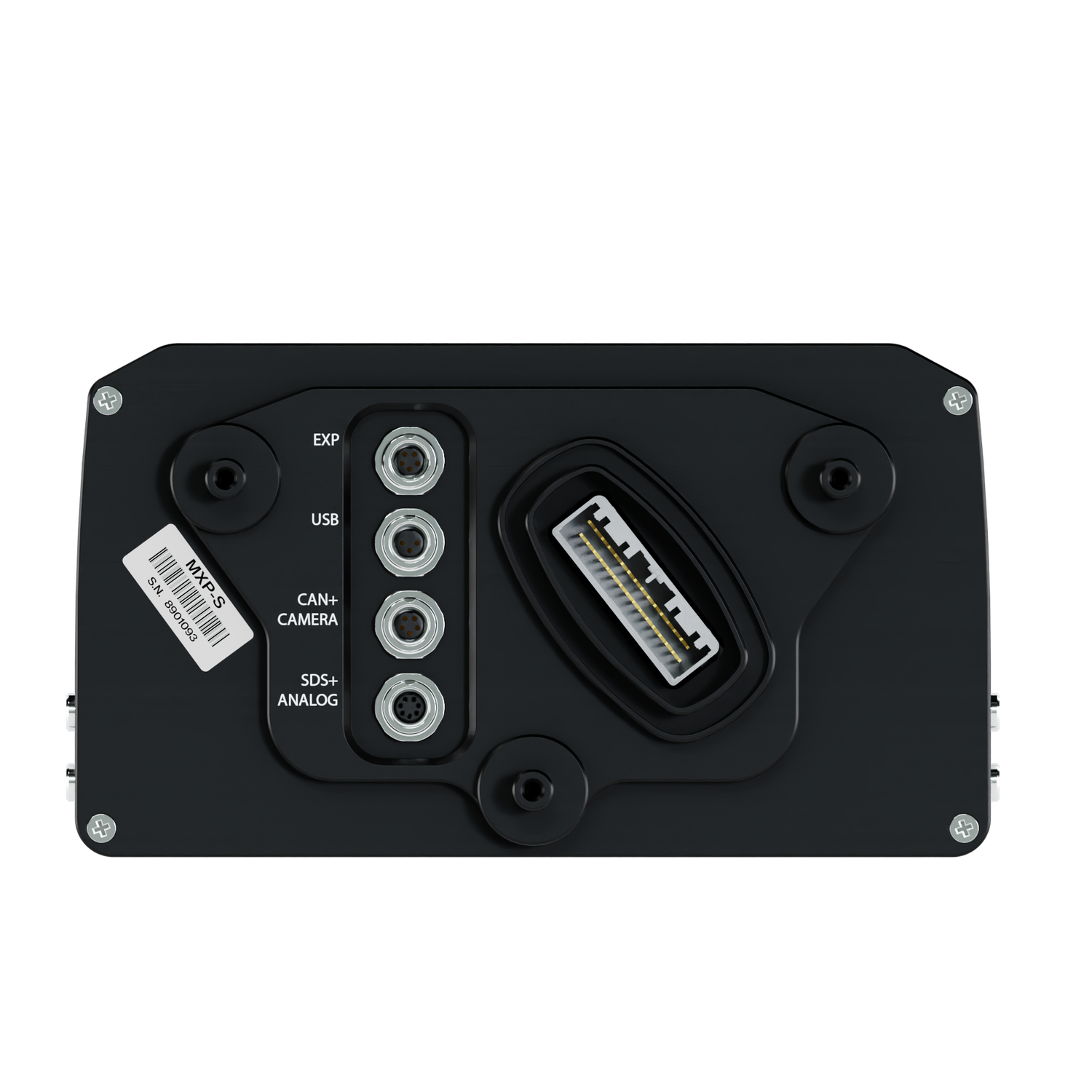

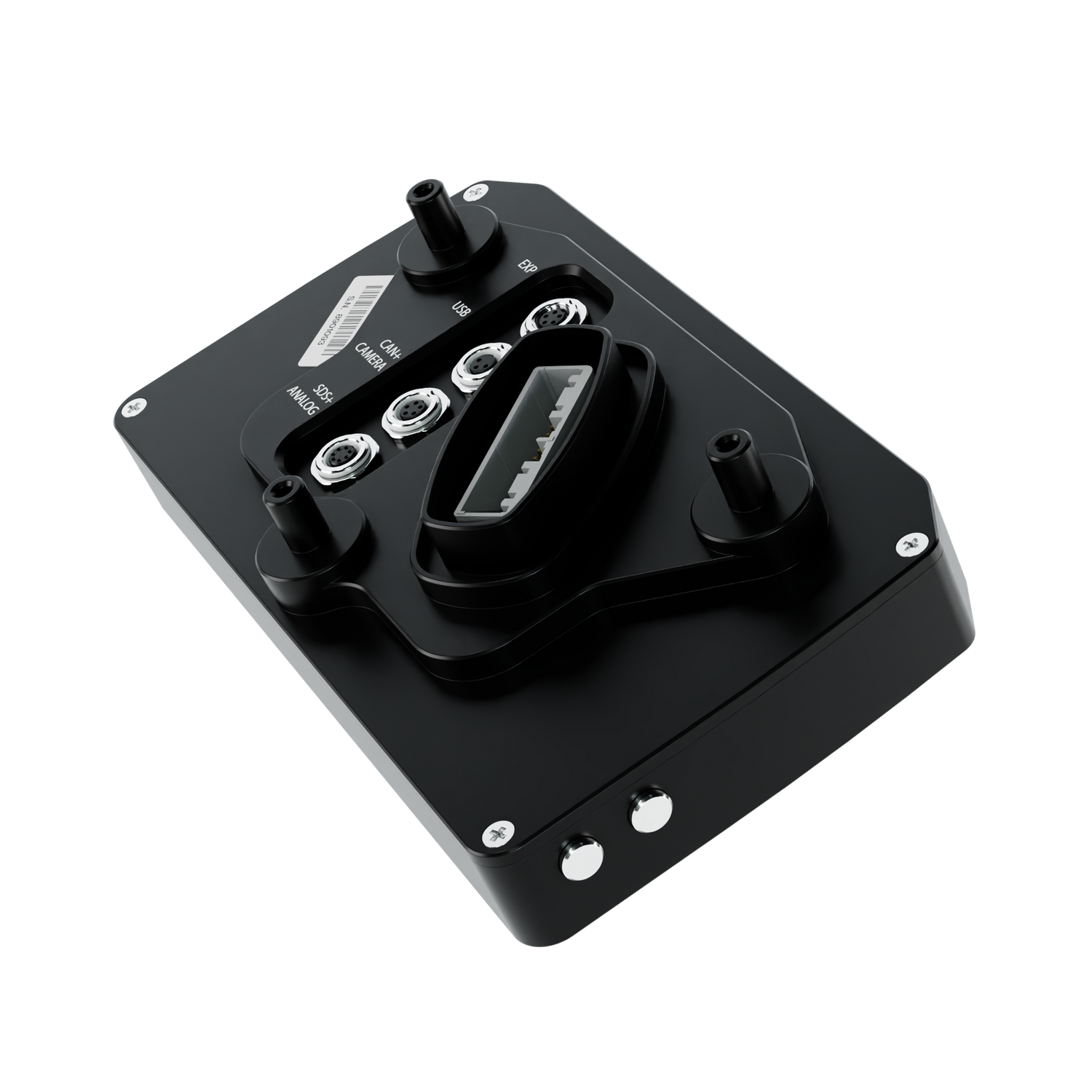

Connections and expansions
Get the best out of your GSX-R 1000.
In addition to the main connection that gives you all the information from the ECU, MXPS provides you also:
EXP connection upgrades your bike with some of the best AiM expansions like GPS09 Module, Lambda Controller, Channel Expansion or even a SmartyCam to record your ride.
USB or Wi-Fi connection enables you to download data and configure your MXPS.
Camera connection allows you to install a mirror camera.
SDS+Analog connection gives you the possibility to read 28 ECU extra channels and 4 user defined analog inputs.
Connection Example
Efficient and unfussy user experience
MXPS benefits from a user-friendly menu created for ease of use on every page. The navigation and configuration of the dash is designed to be simple and clear. Setting up your MXPS it’s just a matter of riding style: choose what perfectly fits your road/track needs.
The complete menu allows you to easily modify every parameter of your bike: ECU maps, traction control, anti-wheeling, ABS and so on.
Racing kit for Suzuki GSX-R 1000
Thanks to its dedicated RACING KIT, the dash turns into a complete datalogger with every feature you may need on the track.
Every element is designed to extend the huge potential of your bike, recording data to be downloaded and analyzed with our proprietary software, Race Studio Analysis 3.
By adding the GPS09 Module to your MXPS, you may gather your lap times and track data.
Featuring a wide database of tracks, your dash logger will automatically recognize the track you are at, recording all the data coming from your ECU, as well as from the GPS.
With the kit, you can read 28 ECU extra channels and connect up to 4 sensors for precise performance logging.
Now you have total control of your GSX-R 1000, with the potential to drastically improve your performance.
Display: 6" TFT
Resolution: 800x480 pixels
Contrast: 600:1
Brightness: 700cd/m2 - 1,100 Lumen
Ambient light sensor: Yes
Alarm LEDs: 9
Shift Light LEDs: 10
CAN connections: 2
ECU Connection: Yes
External modules: GPS Module, Channel Expansion, Lambda Controller, TC Hub, SmartyCam HD
Wi-fi connection: Yes
Internal memory: 4GB
Body: Anodized Aluminium
Connectors: 1 32 pins JAE main connector + 4 Binder 712 female connectors
Dimensions: 189.6 x 106.4 x 24.9 mm
Weight: 620g
Power consumption: 400 mA
Waterproof: IP65
MXPS Plug&Play Dash Logger for Suzuki GSX-R 1000
- MXPS Plug & Play Dash
- Fixing/Installation Kit
- GPS09 Module
Description
Plug & Play Dash Logger for Suzuki GSX-R 1000
(Now Includes GPS09 Module )
Plug & Play Dash Logger designed explicitly for Suzuki GSX-R 1000 Years 2017-2023 and Suzuki GSX-R 1000 R Years 2017- 2023.
- Yoshimura harness compatible,
- 6" TFT high contrast
- 1,100 Lumen display,
- 9 alarm LEDs,
- 10 shift lights LEDs,
- 2 CAN connections,
- 4 GB internal memory, anodized aluminium body,
- 1 32 pins JAE main connector + 4 Binder 712 female connectors,
- IP65.
Please Note: The MXPS dash can be programmed with your current mileage. Please state your required mileage in miles or kilometres in the notes section on your order.
Configurable layouts
MXPS features several configurable layouts in 2 themes both in light and dark mode for your needs in every situation, whether you are on track or riding down the streets.
Connections and expansions
Get the best out of your GSX-R 1000.In addition to the main connection that gives you all the information from the ECU, MXPS provides you also:
EXP connection upgrades your bike with some of the best AiM expansions like GPS09 Module, Lambda Controller, Channel Expansion or even a SmartyCam to record your ride.
USB or Wi-Fi connection enables you to download data and configure your MXPS.
Camera connection allows you to install a mirror camera.
SDS+Analog connection gives you the possibility to read 28 ECU extra channels and 4 user defined analog inputs.
Connection Example
Efficient and unfussy user experience
MXPS benefits from a user-friendly menu created for ease of use on every page. The navigation and configuration of the dash is designed to be simple and clear. Setting up your MXPS it’s just a matter of riding style: choose what perfectly fits your road/track needs.The complete menu allows you to easily modify every parameter of your bike: ECU maps, traction control, anti-wheeling, ABS and so on.
Racing kit for Suzuki GSX-R 1000
Thanks to its dedicated RACING KIT, the dash turns into a complete datalogger with every feature you may need on the track.Every element is designed to extend the huge potential of your bike, recording data to be downloaded and analyzed with our proprietary software, Race Studio Analysis 3.
By adding the GPS09 Module to your MXPS, you may gather your lap times and track data.
Featuring a wide database of tracks, your dash logger will automatically recognize the track you are at, recording all the data coming from your ECU, as well as from the GPS.
With the kit, you can read 28 ECU extra channels and connect up to 4 sensors for precise performance logging.
Now you have total control of your GSX-R 1000, with the potential to drastically improve your performance.
Technical
Display: 6" TFT
Resolution: 800x480 pixels
Contrast: 600:1
Brightness: 700cd/m2 - 1,100 Lumen
Ambient light sensor: Yes
Alarm LEDs: 9
Shift Light LEDs: 10
CAN connections: 2
ECU Connection: Yes
External modules: GPS Module, Channel Expansion, Lambda Controller, TC Hub, SmartyCam HD
Wi-fi connection: Yes
Internal memory: 4GB
Body: Anodized Aluminium
Connectors: 1 32 pins JAE main connector + 4 Binder 712 female connectors
Dimensions: 189.6 x 106.4 x 24.9 mm
Weight: 620g
Power consumption: 400 mA
Waterproof: IP65
What's in The Box
MXPS Plug&Play Dash Logger for Suzuki GSX-R 1000
- MXPS Plug & Play Dash
- Fixing/Installation Kit
- GPS09 Module
