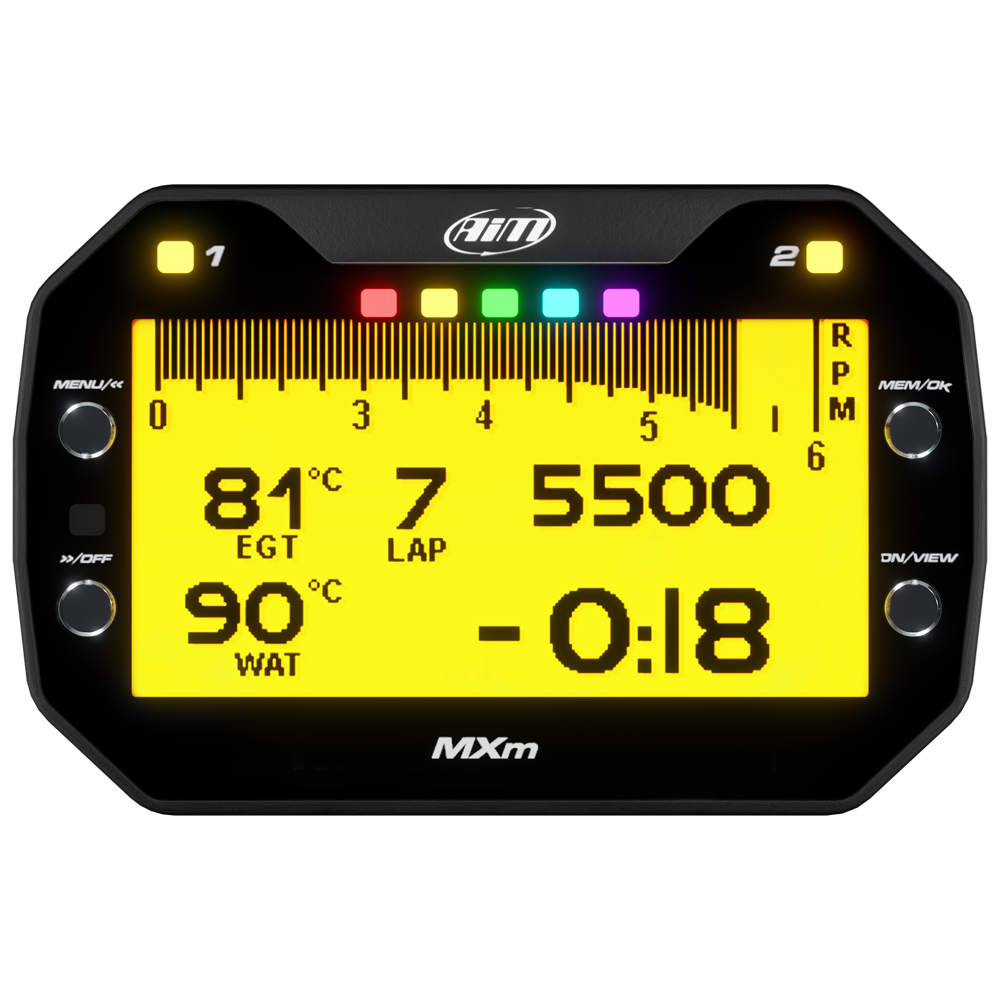

AiM MXm Legends Kit Compact Dash Display

The AiM MXm display has been designed to specifically suit Legends race cars, 2018 onwards fitted with 3 cylinder Yamaha FZ09 engine.

Key Features :

High contrast  Integrated GPS
5 configurable RGB LED shift lights 2 configurable RGB LED alarm LEDs
37-pin Legends harness Choice of 7 colour display screens
Wi-Fi connection 2 high side digital outputs

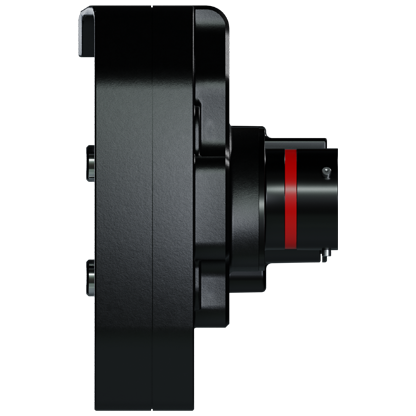

AiM MXm Legends Kit Compact Dash Display

AiM has designed a specific connection kit to the Legends cars ECU for the MXm.

This compact MXm display has been designed to specifically suit Legends race cars, 2018 onwards fitted with the 3-cylinder Yamaha FZ09 engine. The Legends cars specific 37 pin Deutsch connector harness allows connection to the vehicle battery and ECU directly, through the 8 pins white JST connector (labelled “ECU”), and to the on-board gear sensor, through the 6 pins white Sumitomo connector (labelled “CH. 1”).

The unit features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their vehicles and to improve their performance. Designed to acquire and display data coming from your ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.




This kit is compatible with:

Legends Cars (with 3 cylinders Yamaha FZ09 engine) - 2018 onwards

Please Note: If you are unsure if this cable will fit your car don't hesitate to contact our team. Either by email, phone or online chat.


Integrated Shift Lights and Alarms

The display has an integrated shift light system that features 5 fully configurable LEDs which can be customised to your requirements and for each gear. Two further LEDs can be configured to operate as warning alarms. These warning lights can be customised for a particular parameter that requires a warning light, the colour of the LED, and whether you want a solid or a flashing style alarm, even the flashing frequency can be tailored to suit your requirements.


Sharp Liquid Crystal Display

Making use of a sharp liquid crystal screen, the user can select the information that is displayed and the backlight can be switched between 7 available colours, all with high contrast and easy-to-read graphics. The information that is displayed on the screen can be fully configured by the user to prioritise the most important information for the driver. If there is simply too much information to be shown on the screen, the driver can scroll between multiple pages using the integrated buttons so that nothing is missed.

After the session has concluded, all of the data can be recalled on the screen including a summary of the driver's best laps along with max/min RPM, speed and temperatures. If you would prefer to go through the data in more detail, the MXm features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 meters away, so you no longer need to take the laptop to the car.



Expand Your System

These are only some of the items that can be added to our MXm for incrementing the performance and the data acquired.


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by the MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM MXm Legends Kit Compact Dash Display

  • Display Resolution: 268 x 128 pixels
  • Backlight: 7 configurable RGB colours
  • Ambient Light Sensor: Yes
  • Shift Lights: 5 configurable RGB LEDs
  • Alarm LEDs: 2 configurable RGB LEDs
  • CAN Connections: 2
  • ECU Connections: CAN, RS232, K-Line
  • ECU Compatibility: +1,000 industry-leading ECUs
  • GPS: Integrated
  • External Modules: Lambda Controller, SmartyCam HD
  • Analogue Inputs: 4 fully configurable, max 1,000 Hz each
  • Digital Inputs: 2-speed inputs, coil RPM input
  • Digital Outputs: 2 high side
  • Wi-Fi Connection: Yes
  • Internal Memory: 4GB
  • Body: Glass fibre reinforced Nylon
  • Pushbuttons: Metallic

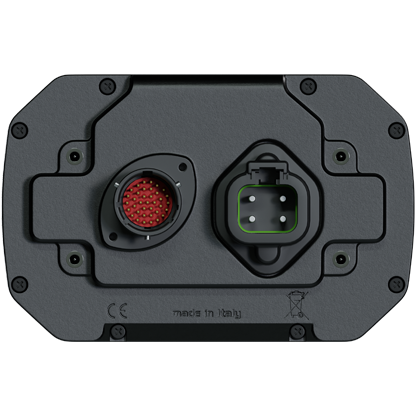

  • Connectors: 37 pins Motorsport connector for Legends Cars + 4 pins power connector
  • Weight: 330g
  • Waterproof: IP65
  • 37 pins harness spec below:
  • x1 6 pins male Sumitomo - On-board gear sensor connection
  • x3 4 pins 719 female binder - Analogue sensors connection
  • x2 4 pins 719 female binder - Speed inputs
  • x2 5 pins 712 female binders ("Y" cable) - AiM Expansions connection (labelled CAN EXP)
  • X1 4 pins 719 female binder - USB connection
  • x1 8 pins JST connector - ECU + external power connection (labelled ECU)



AiM MXm Legends Kit Compact Dash Display

  • MXm Dash Display
  • 37 pins connector harness for Legends Cars
  • 4 pins secondary connector kit for power output connection (up to 15A each)
