AiM PDM32 with GPS Module Data Logging & TFT Screen

SKU: PDM-32-6-XC1PDM32D06G050C2

Regular price
£1,845.00
Regular price
Sale price
£1,845.00

+ VAT (UK Only)

Carbon-neutral shipping with Shopify Planet
All deliveries are carbon neutral
Powered by Shopify Planet

AiM Power Distribution Module with GPS & TFT Screen



The AiM PDM32 Power Distribution Module has been designed to easily replace the traditional fuse and relay systems.

Key Features:


  • 6" or 10" TFT display
  • GPS08 Module

AiM PDM32



The AiM PDM32 is a 32-channel advanced power distribution module designed to power a multitude of vehicle circuits removing the need for traditional fuse boxes and relays.

It allows for a simplified wiring harness with increased reliability and control functions. The PDM32 is available units own or with a choice of 6" or 10" dash displays. It is also capable of receiving data from the vehicle's ECU and even includes a data logger and GPS module for lap timing and track mapping.

 Simplifies electronic installations with greater control
32 outputs, ideal for controlling vehicle electrical circuits
Dash controller with 6" or 10" dash display options
GPS Module option for lap timing and track mapping
Rugged aluminium case designed to withstand harsh environments
Built-in data logging facility to log all PDM outputs and ECU data plus lap timing.

Please Note: Our CAN Keypads have been specifically designed to work with our Power Distribution Systems. No other keypads will work with this system. We offer keypads in 4, 6, 8 and 12 buttons and they can be found in CAN Buttons & Switches.


PDM32 Power Outputs

 The PDM32 features 28 high-sided outputs and 4 half bridge outputs:

High sided outputs - 4 x 20A continuous current, 12 x 12A continuous current and 12 x 10A continuous current. Total continuous max current 120A.

Each of the outputs provides feedback to the data logger to provide vital information such as open circuits, short circuits, high/low voltage, the number of fault retires and the time between the reties is definable. All outputs can be configured as PWMs for a soft start/stop. All of the PDM circuits can be set up and monitored via our Race Studio Software.



PDM32 Inputs



The PDM32 features 8 x analogue/digital inputs, 4 x digital only inputs and 2 x speed inputs.

PDM32 Data Management

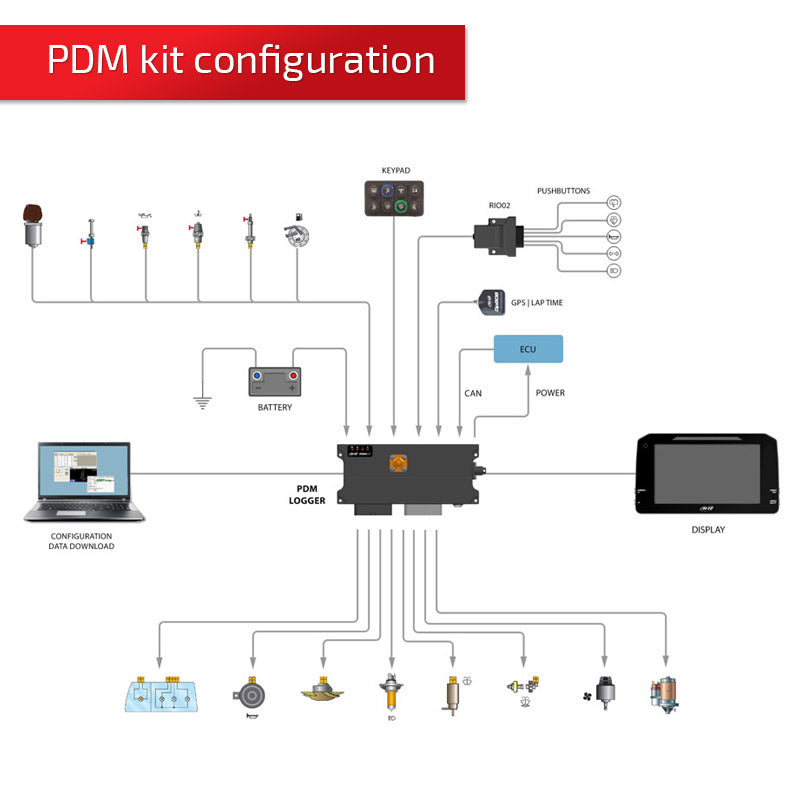

The PDM32 is capable of receiving and recording data from the following sources:

ECU - Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS - Lap time and position / Expansions / Push Buttons - From RIO02 module or Our CAN Keypads / PDM outputs - Currents and status of each channel individually / Other user defined math channels.

GPS Option



The GPS module option provides easy lap timing and lap position for track mapping.

The PDM has over 4000 race tracks in the database so once you arrive at the track the system already knows the timing points so you can just get on with your driving.

The GPS module is available in various lead lengths to suit differing applications

ECU - Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS - Lap time and position / Expansions / Push Buttons - From RIO02 module or OUR CAN Keypads / PDM outputs - Currents and status of each channel individually / Other user defined math channels.

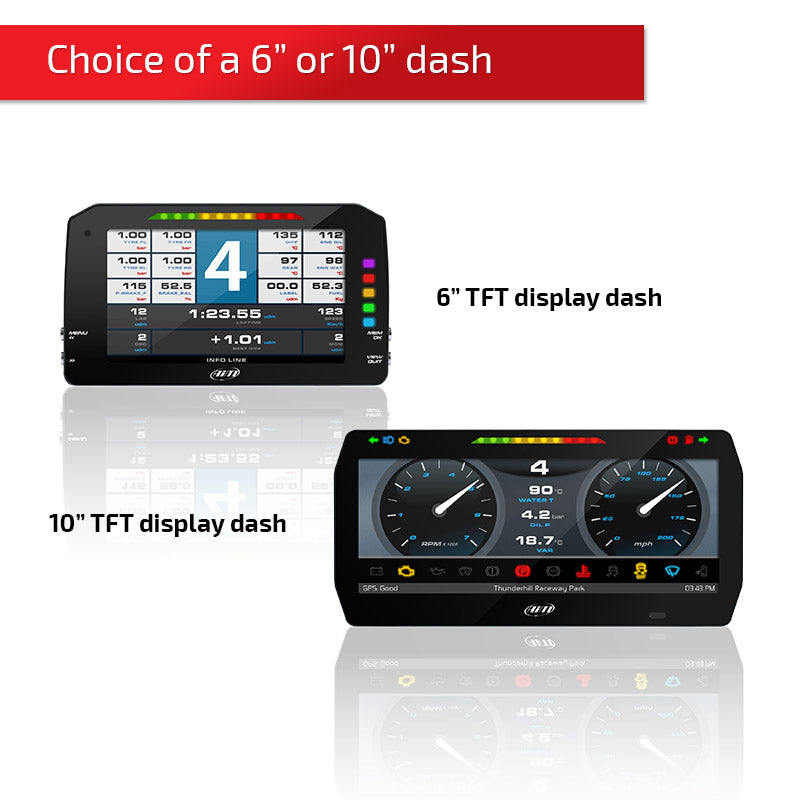

Dash Display Option

Suitable for replacing all of the dashboard gauges and warning lamps these TFT dash displays are available in 6" or 10" versions. Both are fully configurable displays and offer a range of layouts.



AiM PDM32

  • Inputs: 14 fully configurable, max 500 Hz each: 8 analogue / digital, 4 digital inputs of which 2 speed input
  • Power Outputs: 4 rated up to 20 A (high power) 12 rated up to 15 A (mild power) 12 rated up to 10 A (low power) 4 rated up to 35 A (half bridge) Protected for: over voltage, under voltage, over current, over temperature. Total max current: 120A
  • Lin Bus: 1
  • CAN Connections: 3
  • Intertial Platform: 3 axis + 5G accelerometer + 3 axis gyro + 3 axis magnetometer
  • Internal Memory: 4 GB
  • External Modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Steering Wheel, Remote I/O Pushbutton Module
  • External Analogue Camera Input: 2
  • Body: Anodised Aluminium
  • Waterproof: IP65
  • Dimensions: 234.5 x 94.6 x 49.5mm

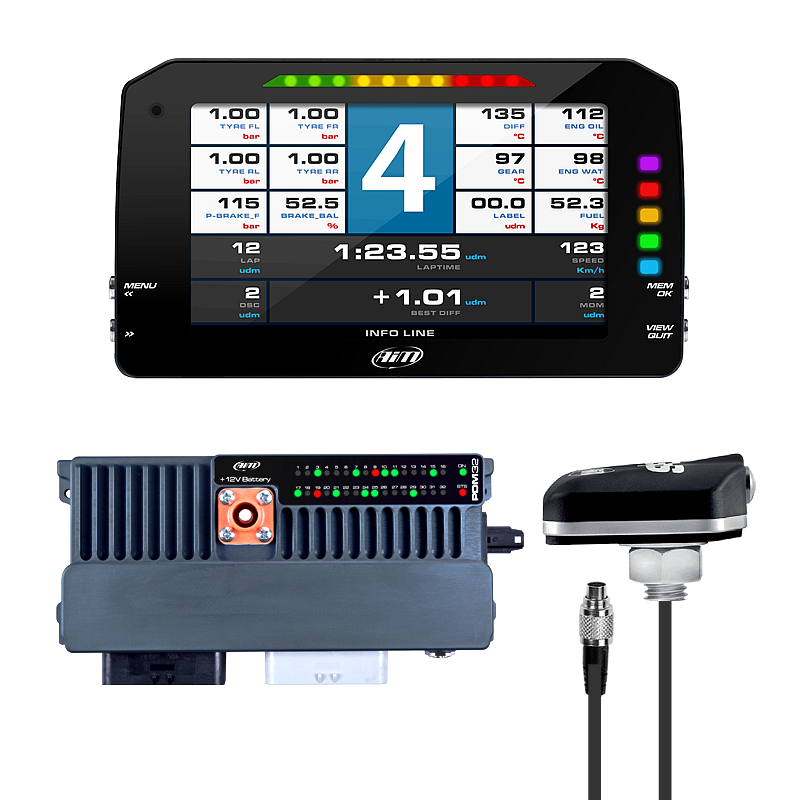

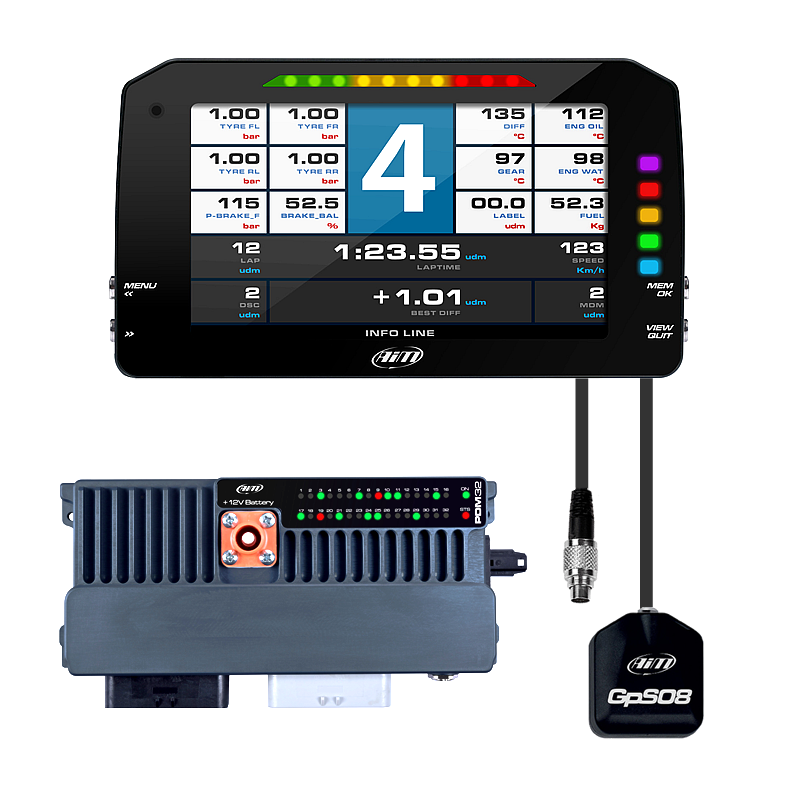

AiM 6" TFT Display

  • Display: 6" TFT
  • Display Resolution: 800x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2
  • Alarm Display Icons: Yes, freely configurable
  • Shift Lights: 10 configurable RGB LEDs colours
  • Alarm LEDs: 5 configurable RGB LEDs colours
  • Connectors: 1 Rosenberger
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Dimensions: 189,6 x 106,4 x 24,92mm
  • Weight: 640g
  • Waterproof: IP65

AiM 10" TFT Display

  • Display: 10,3 TFT
  • Display Resolution: 1280 x 480 pixels
  • Contrast: 1100:1
  • Brightness: 800cd/m2
  • Alarm Display Icons: Yes, freely configurable
  • Shift Lights: 10 configurable RGB LEDs colours
  • Alarm LEDs: 6 configurable RGB LEDs colours
  • Connectors: 1 Rosenberger
  • Body: Anodised Aluminium
  • Push Buttons: Metallic
  • Dimensions: 278 x 135 x37,2mm
  • Weight: 1035g
  • Waterproof: IP65

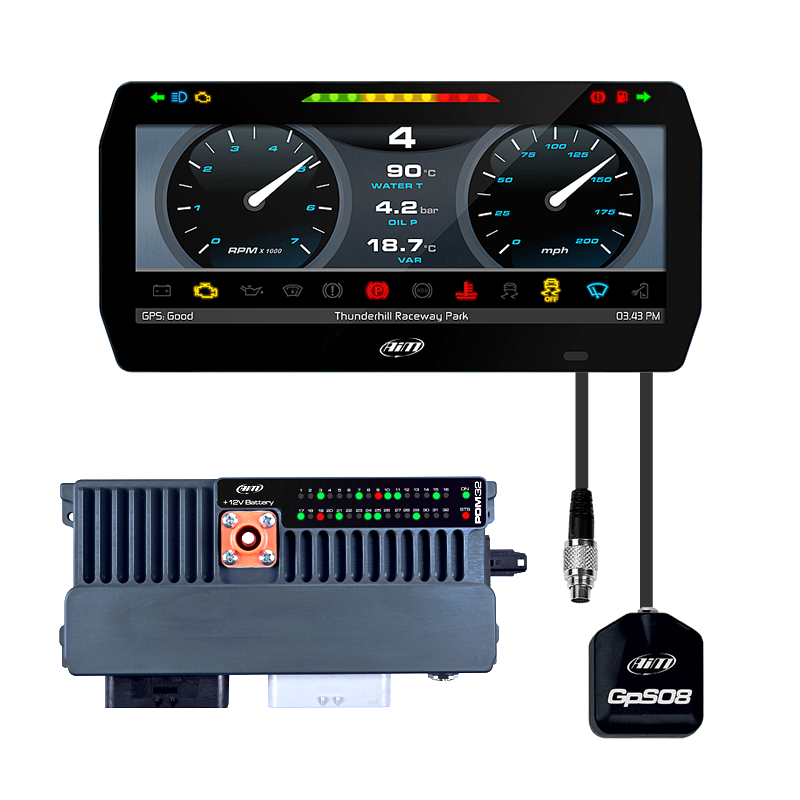

GPS08 Module

  • Dimensions: 64.8 x 53.2 x 19.7mm
  • Weight: 60.5

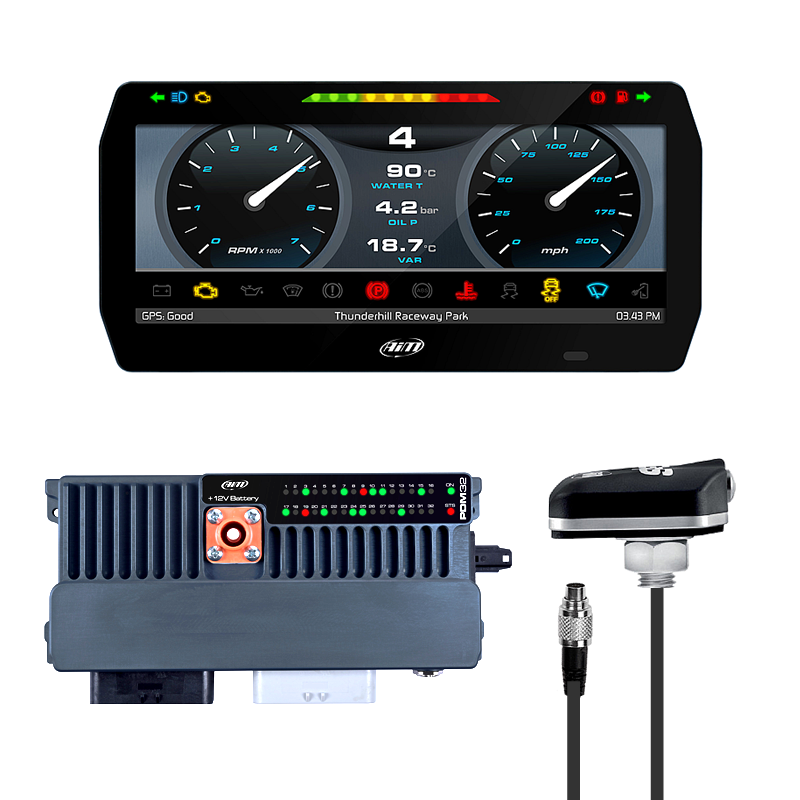

GPS08 Module Roof Version

  • Dimensions: 64.8 x 56.8 x 21.4mm
  • Weight: 100g





AiM PDM32, TFT Screen, GPS08
