Aim SmartyCam HD Rev2 HD 84° Wide Powerboat Video Camera

SKU: SM-CAM-M-HD-PB
Availability: 45 in stock
£840.00

QTY:
Trust Badge

The Aim SmartyCam HD Rev2 HD 84° Wide Powerboat Racing Onboard Video Camera has been designed for Powerboat Racing with a single purpose providing great videos that include all the technical information that will help you improve your performance. All this in the most robust and reliable system ever.

In its new version, the electronics/mechanics have been further improved, and SmartyCam HD is now even easier to manage.

Smartycam HD Rev2.1 - Competitive Adavantages



Real Time Data Overlayed on Videos

Aim SmartyCam HD Videos

SmartyCam HD overlays all the data you need from different sources.

  • From GPS: track map and vehicle position, as well as speed, lap and split times.
  • From Aim loggers connected to your ECU: RPM, throttle, engaged gear, acceleration, temperatures, pressures and - in presence of additional sensors - also their values.

All this info will be overlayed on videos in each single point of the track.

See Video Tab above for overlay examples

Race Studio 3, your software for video configuration and analysis

Aim SmartyCam HD Rev2 HD 84° Wide Car Racing Onboard Video Camera uses the newest Race Studio 3, the powerful software which allows to configure all details of your videos and to get plenty of fun and information out of them.

Configuration

You can configure your overlays in a virtually infinite variety of modes: add your logo and the track map, and choose your graphic objects from a list of pre-determined sets with same layout or even single objects from different sets. Your videos will be truly "yours" in all details, from the data to their graphic layouts.



Video analysis

The video of a whole session, once downloaded on your PC, can now be split - with a simple click - in individual videos of each lap: so that you can simultaneously watch two of them and check where you were faster or slower.
The same operation can be performed with any SmartyCam HD video recorded on the same track: you will be able to compare your best lap with your friends personal best!

Smartycam Video analysis

Smartycam Video analysis

Automatic Start and Stop

You are on the starting grid, ready to sprint, your adrenaline reaching the climax: the last thing you can worry about is... switching on the camera. You have other things to worry about.  The Aim SmartyCam HD Rev2 HD 84° Wide Car Racing Onboard Video Camera is aware of that, that's is why it switches on/off automatically and starts/stops recording the same way.

Smartycam Automatic Start and Stop

Automatic On/Off Switch

The Aim SmartyCam HD Rev2 HD 84° Wide Car Racing Onboard Video Camera can be switched on by the logger it is connected to. Switch-off is automatic, too: simply decide after what period of non-activity the camera will switch-off. Both operations can also be carried out using the keyboard, if you prefer.

Recording

Recording can also be started/stopped automatically or via keyboard. With automatic switch-on, the camera will start recording when the speed or RPM threshold is exceeded.
In this case, you simply decide how long after dropping below the selected threshold the video will automatically stop.

Smartycam Automatic Start and Stop recording

No "Wave Effect" with the new CMOS Sensor and improved video quality

Engine rumble causes vibrations, which are not a good thing for video recording.
Never again will you experience that seasick "wave effect" you get when watching videos recorded by a generic camera, when the car rolls at 7000 RPM.
SmartyCam HD has been designed for that environment and for those vibrations. "Wave effect" is just a memory.



Aim SmartyCam HD Rev2 60

The new CMOS significantly improves image quality in low-brightness conditions, reducing the 'noise' to the minimum.

Smartycam Video quality

The Global Shutter CMOS Sensor

Unlike generic multipurpose cameras, SmartyCam HD has been designed to avoid the problem of image distortion, thanks to the innovative Global Shutter CMOS sensor.
The camera shutter captures the entire image at the same time, not "pixel by pixel" like traditional sensors.
The result is that images are captured at once and are not affected by the vibrations that happen on a racing vehicle, which create the so-called "wave effect".

Smartycam The Global Shutter CMOS Sensor

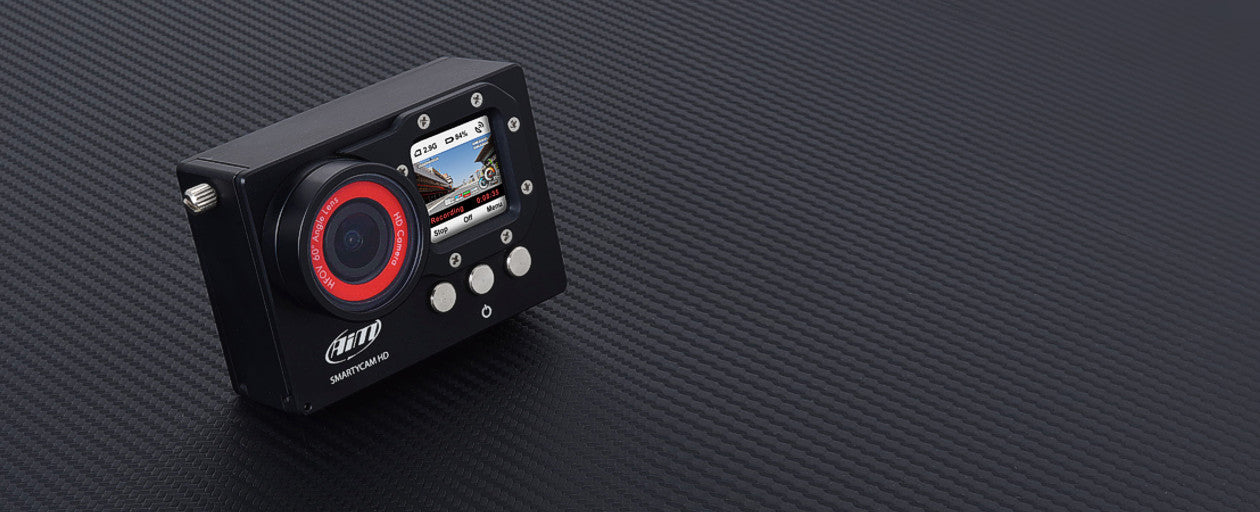

Proprietary Lenses Designed for Motorsport

motorsports must be robust, must be able to work when the engine rolls 100 times per second, and have good resolution and brightness. But above all a lens designed for motorsports must reduce distortion, which is a typical problem of lenses used by generic action-cameras: objects placed at ten meters' distance look very far, making it impossible to accurately determine whether the track is straight or curved.

SmartyCam HD 84° Wide Car Racing Video Camera telecentric lens with six elements reduces distortion to the minimum and will withstand track vibrations for years. Moreover the lenses with different HFOV's allow a tailor-made framing in all kind of vehicles.

Smartycam 60 degree Proprietary Lenses

Which One?

Smartycam Narrow HFOV lens

The narrow HFOV lens is preferred for closed-roof cars, as it "sees" the track just within the wind-screen pillars, reducing that unpleasant black frame around typical of generic camera on-board videos.

Smartycam Narrow HFOV lens

Smartycam Wide HFOV lens

The wide HFOV lens is specific for open-roof, formula car and kart use, where it is possible to have a more ample view of the track and there is no risk of black frames.

Smartycam Wide HFOV lens

Front Mount color TFT display for in-car installation

On-board cameras are to be installed inside the car. Where should the display be placed to check the correct position of the camera? The SmartyCam HD 128x128 pixel TFT color display is on the front, not on rear - where general cameras place the viewfinder.

Smartycam Front Mount color TFT display

High Quality, small size video files

SmartyCam HD videos have the same quality as other HD cameras but their files are smaller

HD cameras competition is focused on the highest pixel number. The result is that their video files are far too large, taking too much memory.  SmartyCam HD videos have the same quality as other HD cameras but their files are smaller because the H264 compression system parameters have been optimized to a perfect balance between video quality and file size.

You can choose among three video file quality levels: one-hour recording takes 4GB (high quality), 2GB (normal) or 1,5GB (low). Files are stored on SD cards: with current SD cards reaching 128GB capacity, you can record more than 30 hours of high-quality videos without changing the card.

Smartycam is Designed to withstand extreme on-track working conditions

Frail things have a bad time on track.
An on-board camera designed for motorsports must guarantee great resistance against the extreme working conditions typical of track racing and against the most adverse weather, such as: strong and prolonged vibrations, storms, continuous rain, and extreme high and low temperatures.

Aim SmartyCam HD Rev2 on track

That is why SmartyCam HD 84° Wide Car Racing Onboard Video Camera is made in machinery molded aluminum, just like many competition car parts.
The most robust and reliable system ever.

That is why SmartyCam HD is made in machinery molded aluminum, just like many competition car parts.  The most robust and reliable system ever.

Smartycam Onboard Racing Camera is Compact, Handy and Easy to Install

Its small size (87x63x49mm) and light weight (just 280g) make SmartyCam HD easy to install inside your car or on your bike.

SmartyCam HD racing camera easy to install inside your car or on your bike.

Buy Yours Now and Get Free Delivery!

Technical specs

Video format:  H.264 1280x720 pixel @ 30 fps
Display resolution: 128x128 pixel
Lens: Telecentric with 6 elements
Angle of view: 67° or 84°
Internal battery: Rechargeable lithium battery - 1.950 mAh
Battery charge: 700 mAh 12V
Battery duration: 120 '- 150' of recording
External power: 9-15 Volt
Memory: Up to 128 Gb
Memory capability:
1.5 Gb (1 hour low quality recording)
2 Gb (1 hour medium quality recording)
4 Gb (1 hour high quality recording)
Accelerometer: Tri-axial ± 5G
Usage temperatures: -10°C/+60°C
Auto Power ON: Yes, if connected to an AiM logger
Auto Power OFF: Yes
Auto Start/Stop Recording: Yes
Dimensions: 87x63x49 mm
Weight: 280 g, battery included
Waterproof: IP67

Aim SmartyCam HD Technical specs

Aim SmartyCam HD Technical specs

Aim SmartyCam HD Technical specs



Improvements

Improved video quality with the new CMOS sensor

The new CMOS significantly improves image quality: no more 'noise' anymore.

improved smartycam

Increased Battery life

When connected to an AiM logger, SmartyCam HD Rev. 2 goes on recording without any time limit.
If the camera is used in stand-alone mode, the new battery - with an almost double the power of the previous model - now allows to record more than two hours of video with data overlays.

improved battery life

Broke your camera glass? no worries!

It is now possible to replace, where necessary, both glasses of your camera.

The USB port and SD card housing is 100% protected from air and weathering, thanks to the newly shaped lateral door.

100% weather-proof lateral door

The USB port and SD card housing is 100% protected from air and weathering, thanks to the newly shaped lateral door.

Smartycam is weather proof

Whats in the box?

  • SmartyCam HD 84° lens
  • 4 Gb HC10 SD card
  • CAN cable (3) or external power cable
  • Battery charger
  • USB/AC power adapter
  • CD for software installation

Videos

SmartyCam HD - The Camera Designed for Motorsports



Parts and Accessories

Spare Parts



Smartcam Spare Parts

Smartcam Spare Parts and cables

Accessories



ECU Bridge for Aim Smartycam

Aim SmartyCam HD Rev2 60 RPM Bridge



Aim SmartyCam HD Rev2 60 GPS Module

Aim SmartyCam HD Rev2 60 Cable and Microphone

Aim SmartyCam HD Rev2 60 Bracket Kits

Aim SmartyCam HD Rev2 60 Glass replacement Kits



Downloads

User manual ver. 1.00

Technical sheet and product history ver. 1.01

Product brochure

Quick reference ver. 1.01

Pinout
