Link Ethanol Content Sensor #ECS

SKU: ECS

Regular price
£205.00
Regular price
Sale price
£205.00

+ VAT (UK Only)

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

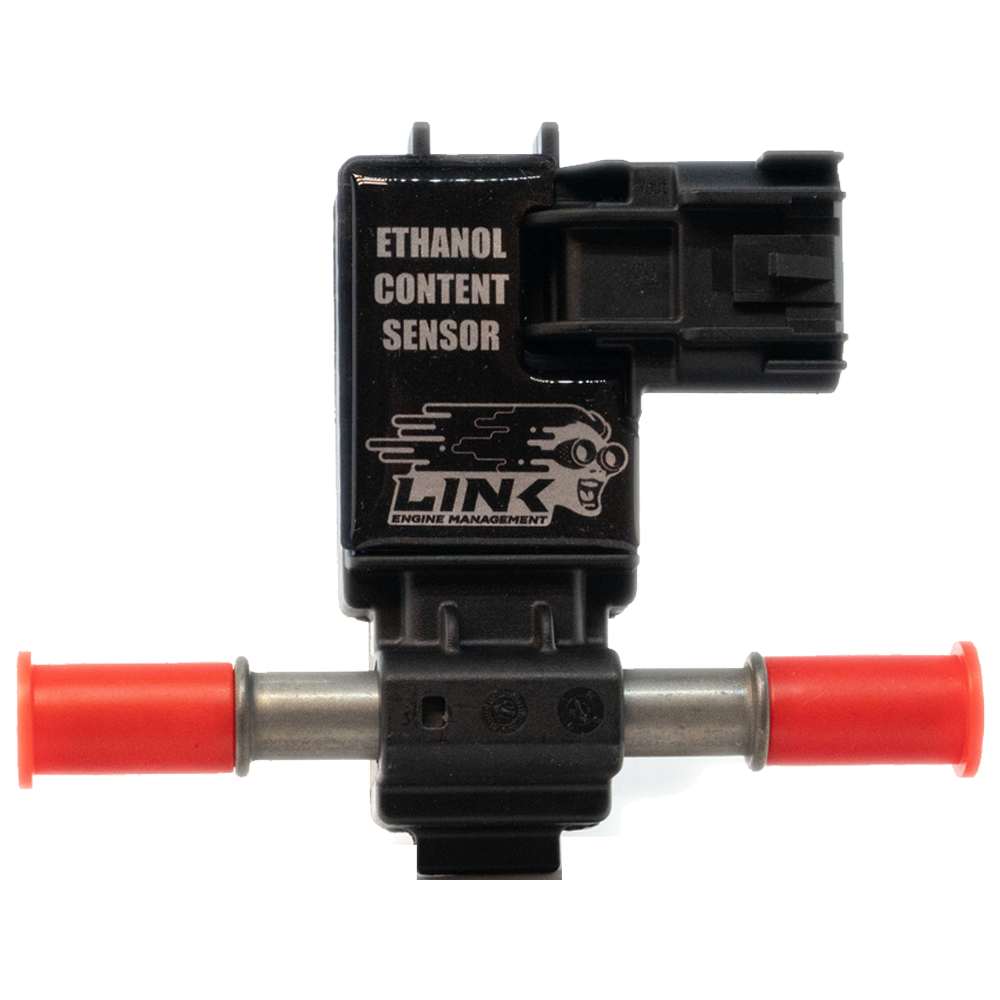

Link Ethanol Content Sensor #ECS

The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex-fuel vehicle. This sensor also measures fuel temperature. Compatible with all current Link Wire-In and Plug-In ECU. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.

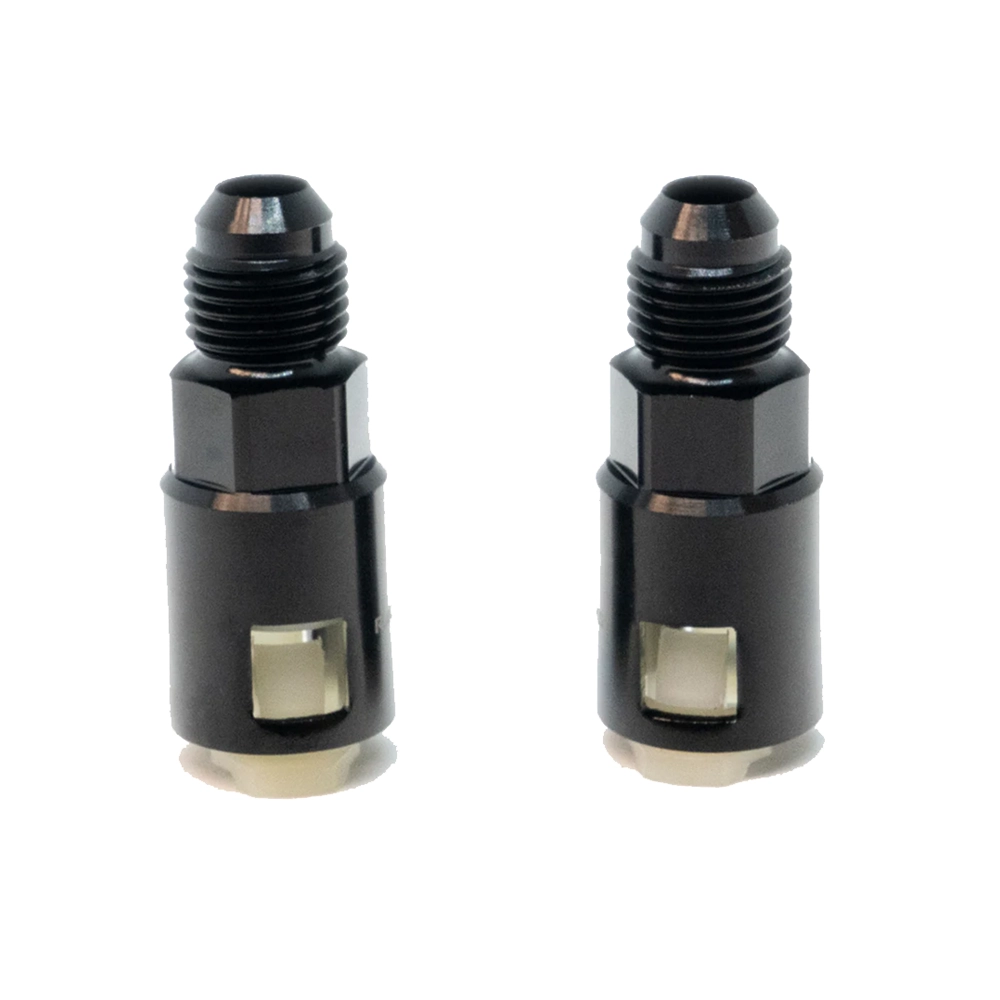

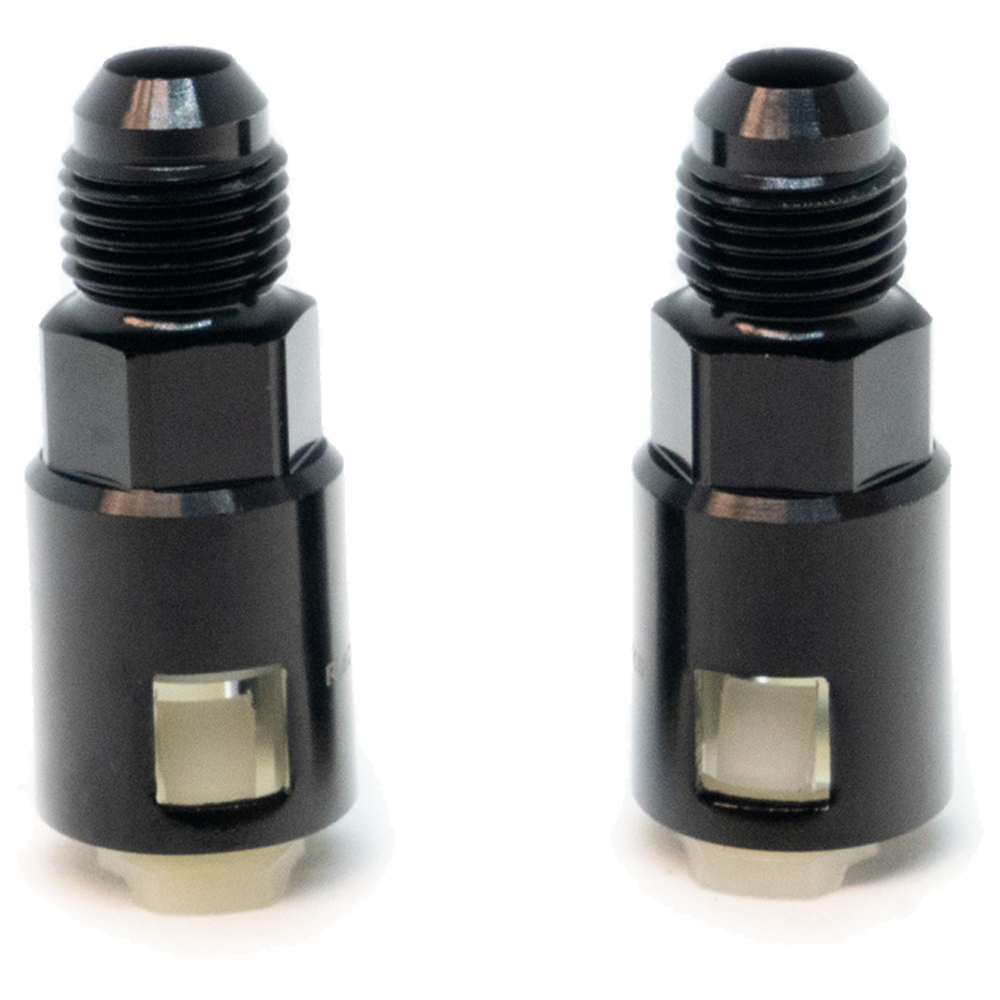

AN-6 Fittings

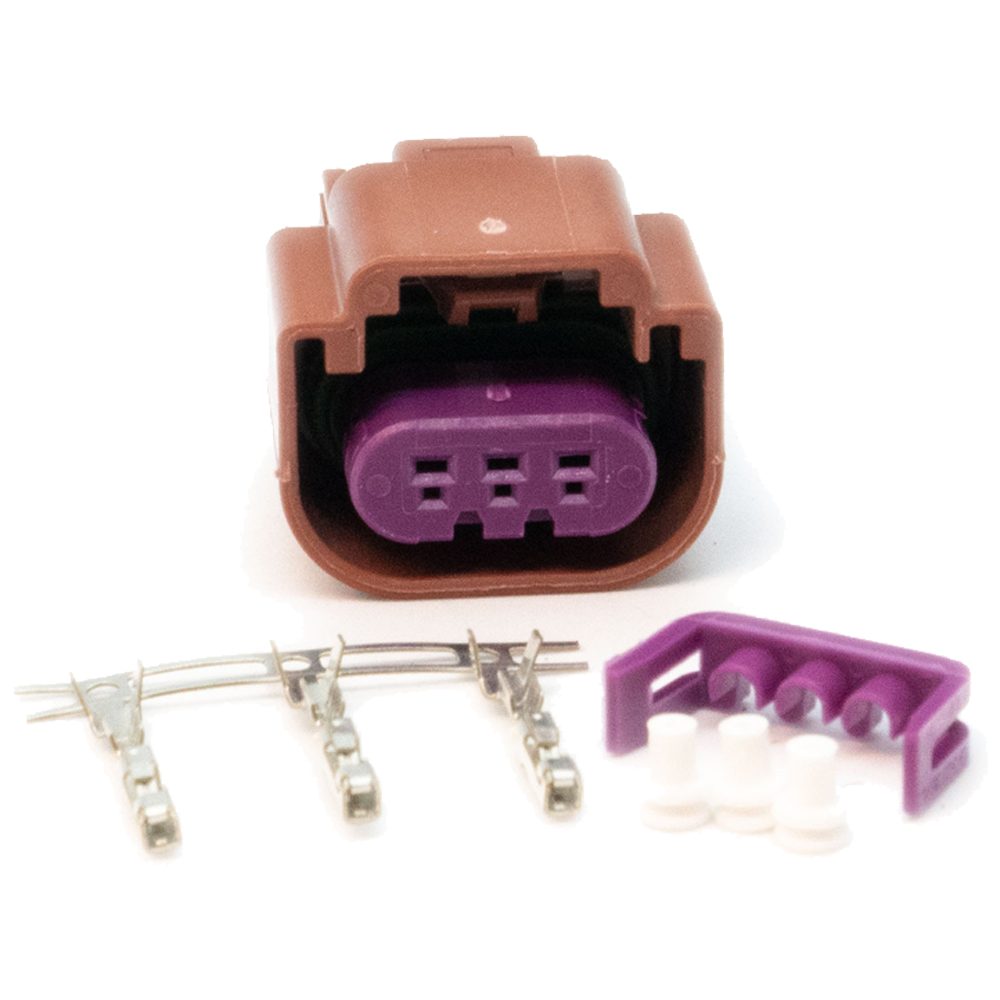

Includes plug and pin kit


The pinout is indicated on the sensor itself (from left to right looking into connector on sensor) as :
1.) Vcc (+12V supply)
2.) GND (ground)
3.) Vout (digital signal out)

Link Ethanol Content Sensor #ECS

  • Ethanol Contact Sensor
  • AN-6 Fittings
  • Plug and Pins
FAQ Centre

Description



Link Ethanol Content Sensor #ECS

The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex-fuel vehicle. This sensor also measures fuel temperature. Compatible with all current Link Wire-In and Plug-In ECU. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.


AN-6 Fittings
Includes plug and pin kit


Technical

The pinout is indicated on the sensor itself (from left to right looking into connector on sensor) as :
1.) Vcc (+12V supply)
2.) GND (ground)
3.) Vout (digital signal out)

What's in The Box

Link Ethanol Content Sensor #ECS

  • Ethanol Contact Sensor
  • AN-6 Fittings
  • Plug and Pins
