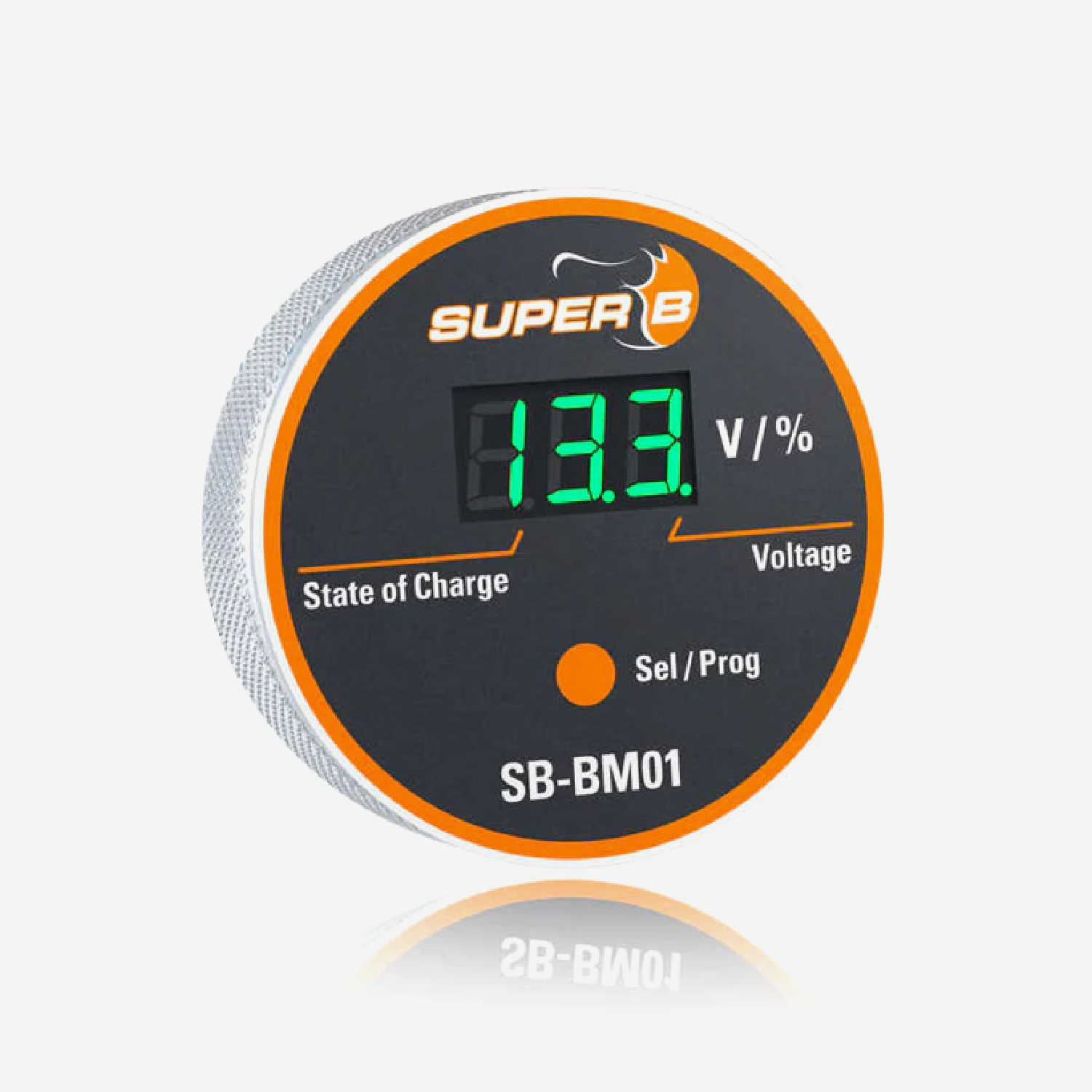

Super B Display BM01 12V/24V
SKU: D-12-24
- Regular price
- £110.00
- Regular price
-
- Sale price
- £110.00
- Unit price
- لكل

Display BM01 12V/24V
The BM01 12-24V is a smart battery meter that can measure and display the voltage and the charge level (in percent) of a battery. It can also produce an alarm for a user programmable, low charge level. This device can be used for 12V and 24V applications Compatible with: Nomia and Epsilon
PRODUCT SPECIFICATIONS
Weight
57.8 gr / 0.12 lbs
Signal voltage (bat 1)
6 VDC to 31 VDC
Signal voltage (bat 2)
0 VDC to 12 VDC
Current consumption - Display on
± 20 mA
Current consumption - Display off
± 8 mA
Minimum cable diameter
0.75 mm2
Mounting Hole
55 mm / 2.16"
Installation depth
18 mm / 0.7"
Description

Display BM01 12V/24V
The BM01 12-24V is a smart battery meter that can measure and display the voltage and the charge level (in percent) of a battery. It can also produce an alarm for a user programmable, low charge level. This device can be used for 12V and 24V applications Compatible with: Nomia and EpsilonSpecifications
PRODUCT SPECIFICATIONS
Weight
57.8 gr / 0.12 lbs
Signal voltage (bat 1)
6 VDC to 31 VDC
Signal voltage (bat 2)
0 VDC to 12 VDC
Current consumption - Display on
± 20 mA
Current consumption - Display off
± 8 mA
Minimum cable diameter
0.75 mm2
Mounting Hole
55 mm / 2.16"
Installation depth
18 mm / 0.7"
