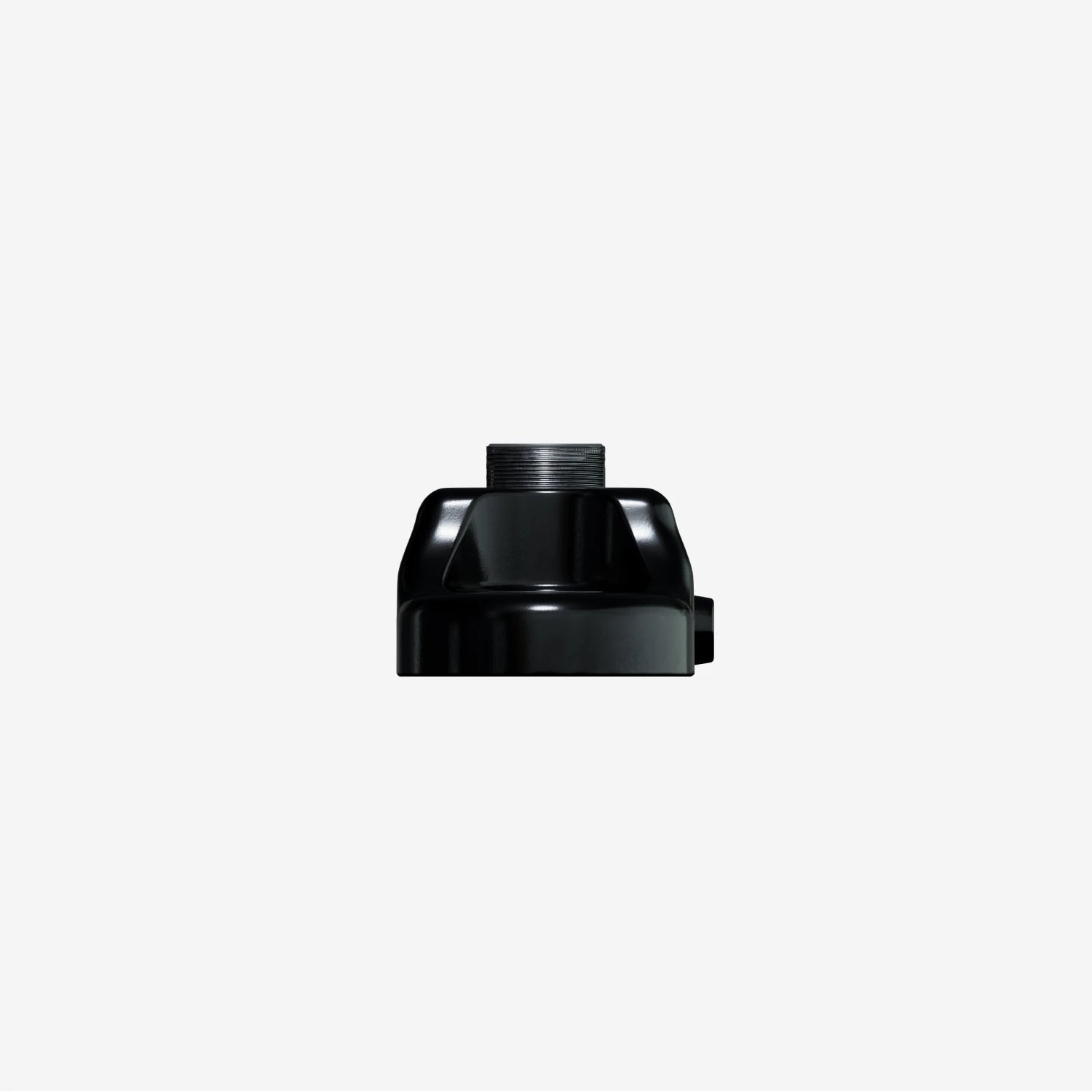

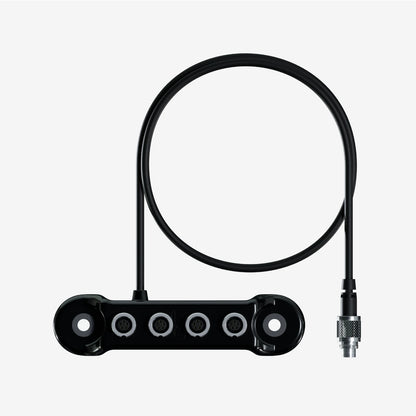

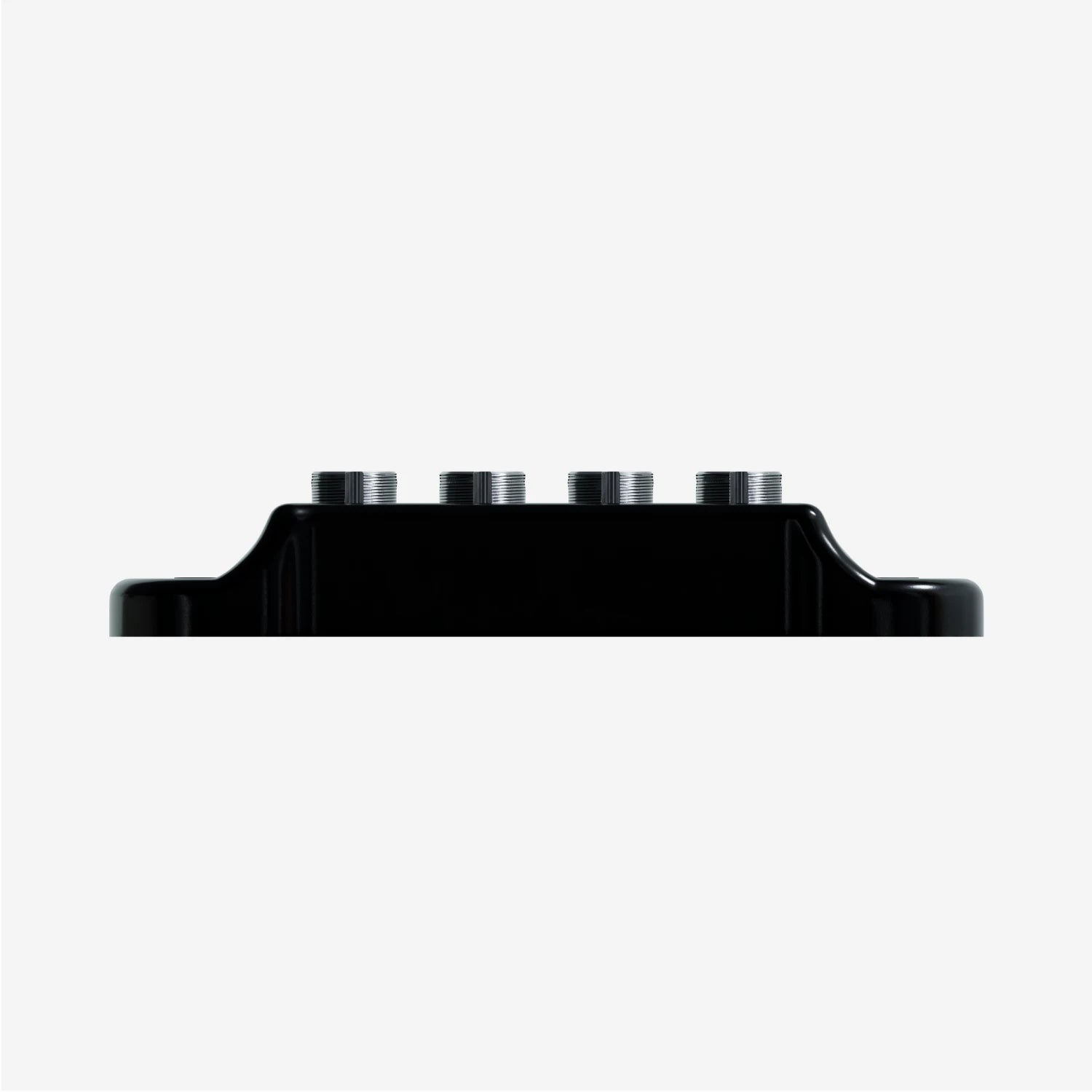

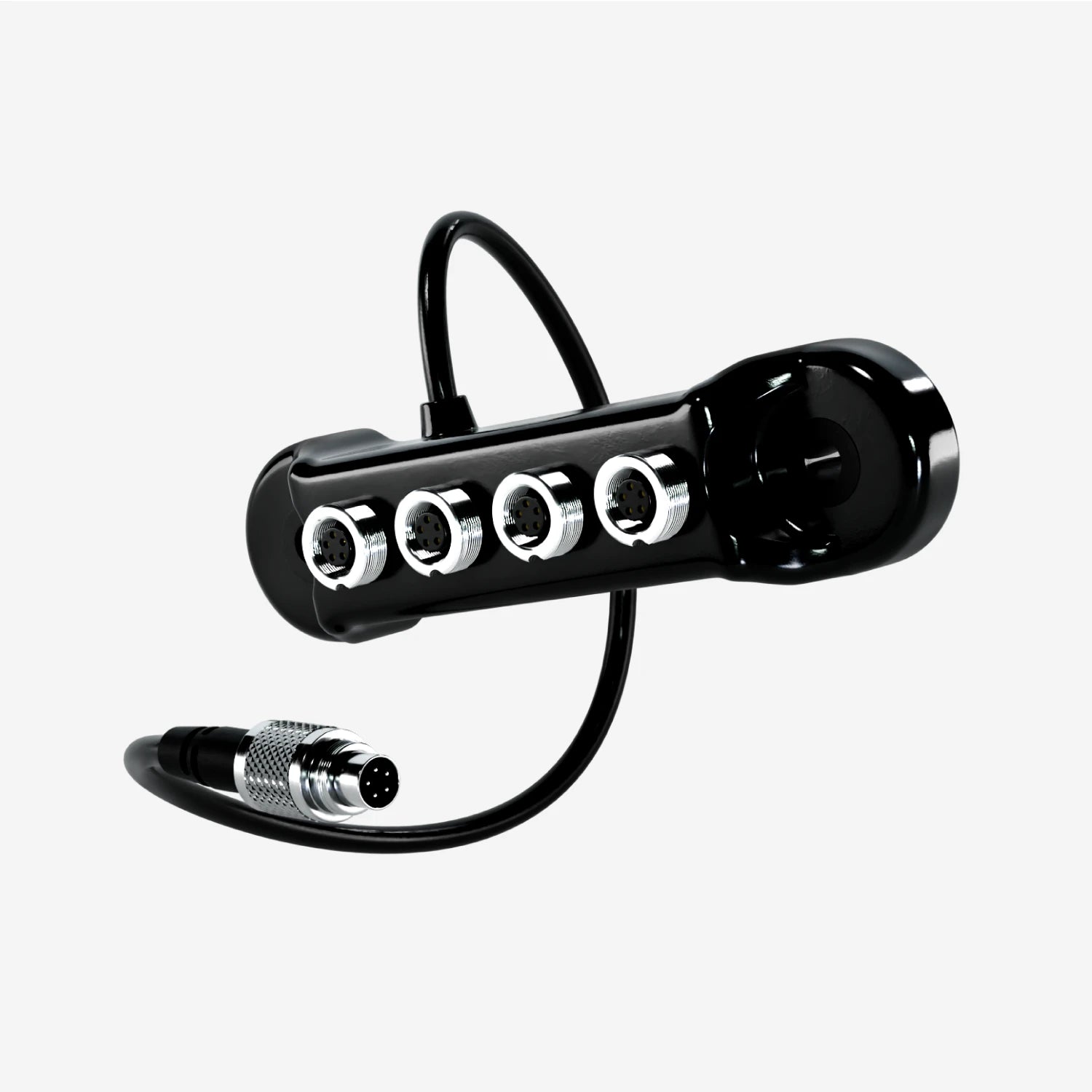

Aim Four-Way Data Hub CAN Connection Multiplier
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Four-Way CAN Connection Multiplier

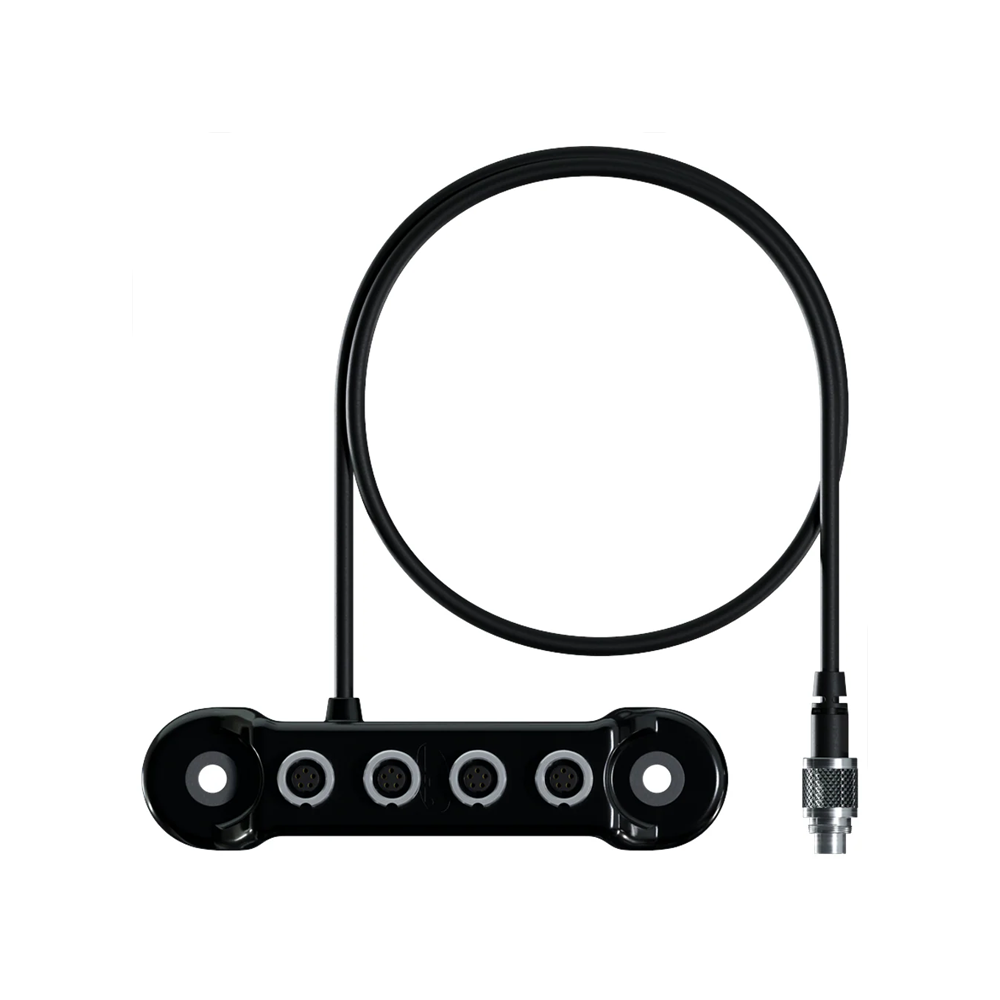

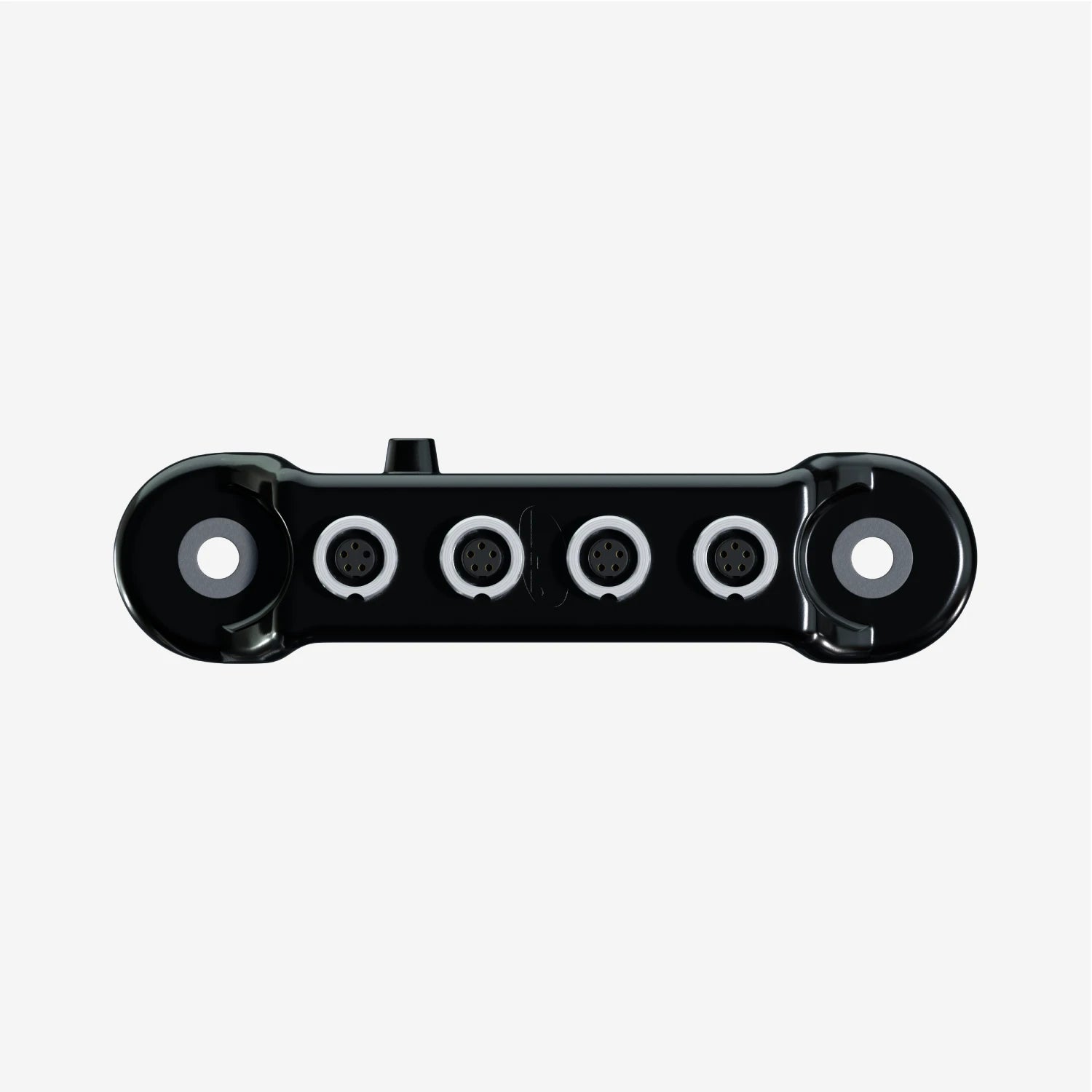

The compact four-way data hub provides four additional CAN channels and works as an interface between the Aim logger and accessories.
Why Choose the Four-Way Data Hub
Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring. Aim data hubs take all the information you need to your logger with only one cable, minimising wires overall.
Aim data hubs are available in the following versions to suit your setup:
- Four-way data hub
- Two-way data hub
- Two-way data hub with external power cable
Connections
Additional devices, such as GPS modules, TC hubs (thermocouple multipliers), SmartyCams and Lambda sensors, can be added to provide extra data from your vehicle and improve performance. You can also use the four-way data hub with our MX series dashes and loggers, powered by the vehicle's 12V onboard battery supply.
Note: You can connect multiple data hubs to build a wider network.
Technical Information
Technical Specs

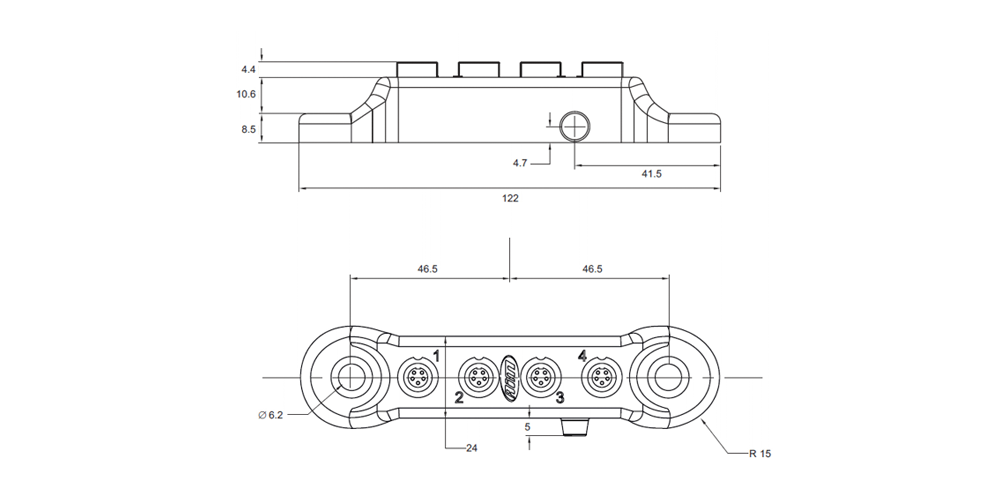

Diagram
Included in the Box
Four-Way Data Hub
-
Free Aim Software
Downloads

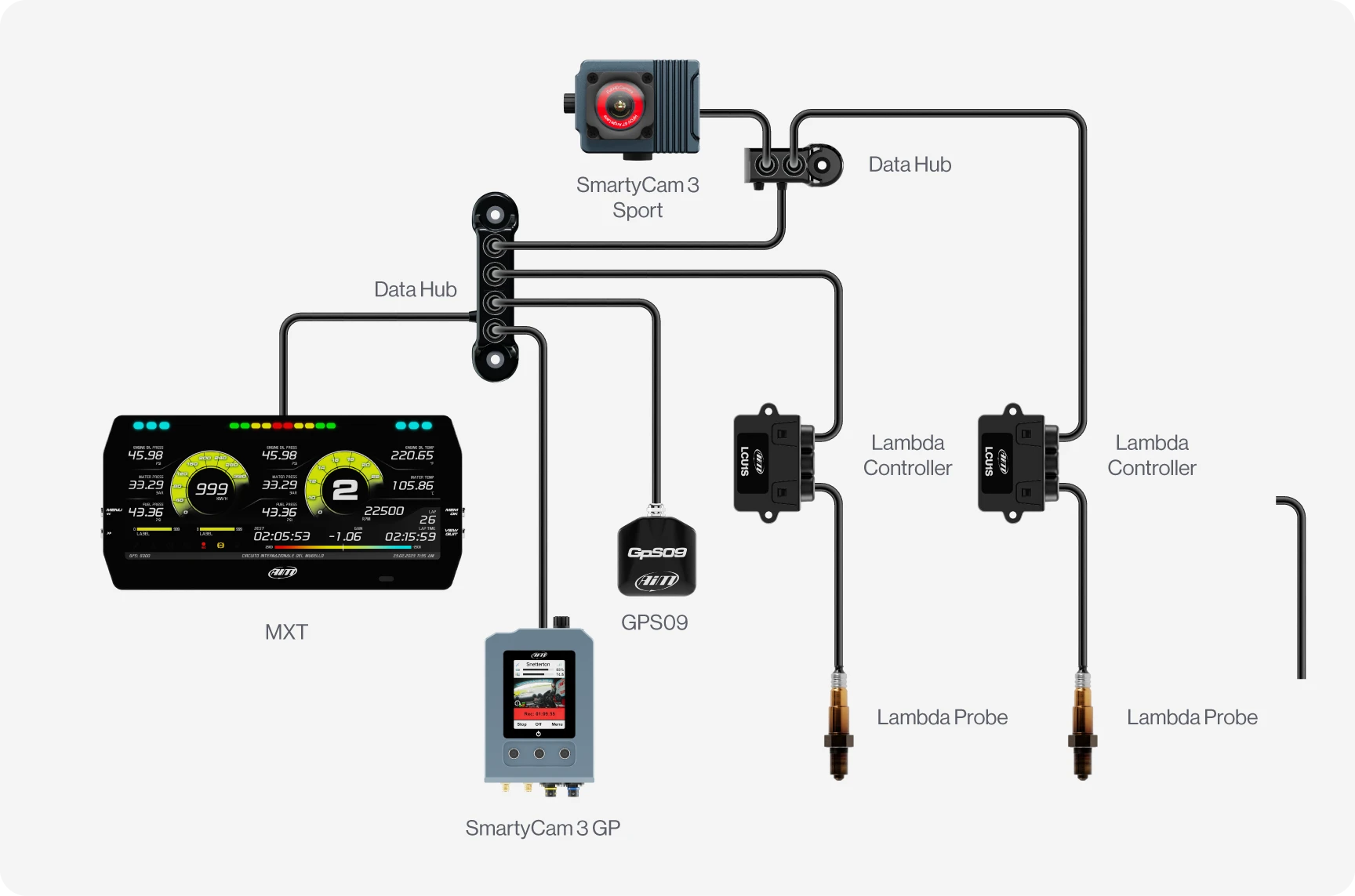

Connection Example
FAQs
Please read our FAQs page to find out more.
What sizes are available for the Aim Four-Way Data Hub CAN Connection Multiplier?
The Aim Four-Way Data Hub CAN Connection Multiplier is available with 40cm or 150cm cable length options to suit your setup.
What can be connected to the Aim Data Hub CAN Connection Multiplier?

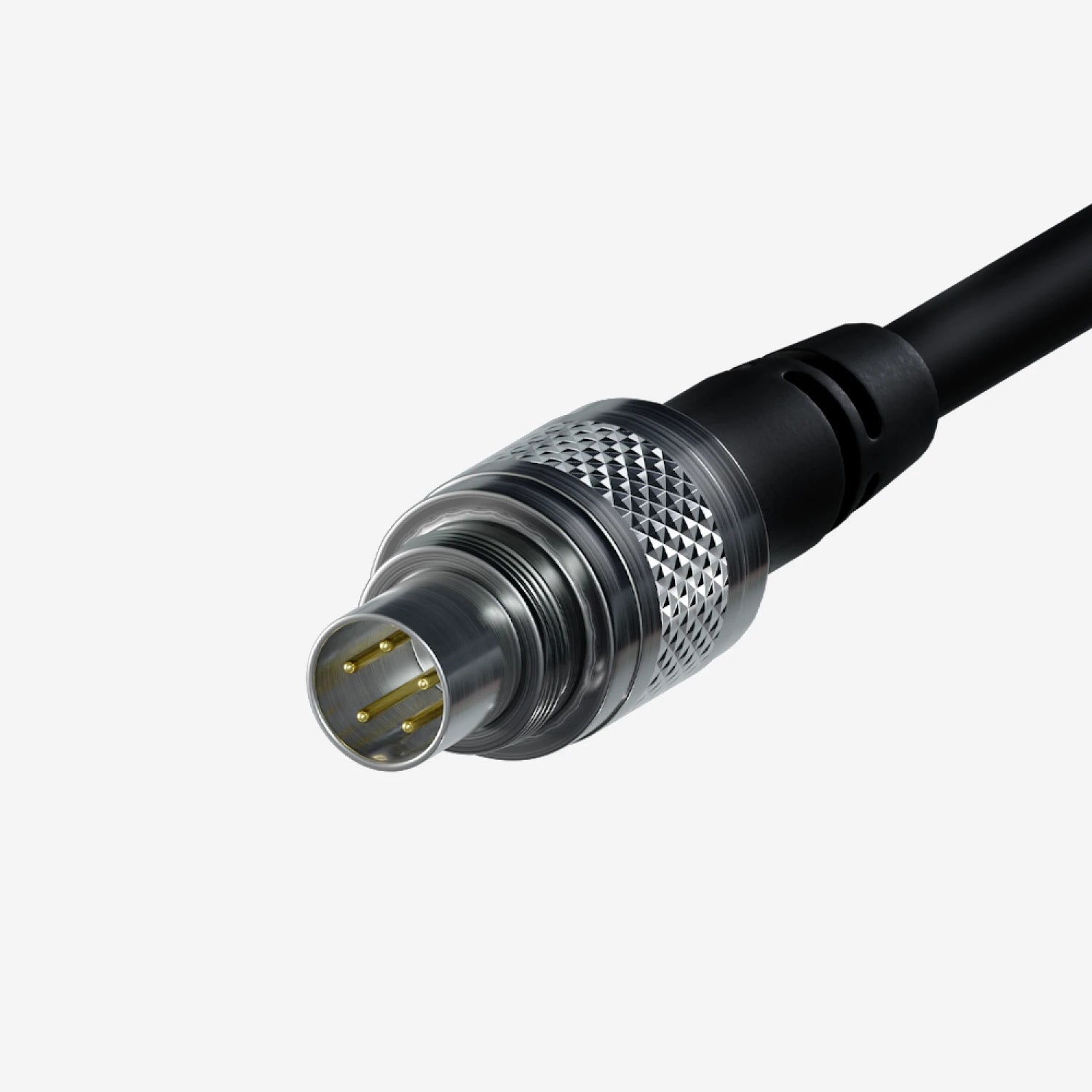

Data Hubs communicate with Aim loggers using the Aim CAN network (5-pin 712 binder connector) and are needed to mutually connect more expansions, but are not needed to connect the sensors to Aim loggers. Supported expansions include:
- Other Data Hubs
- GPS Module
- Lambda Controller
- SmartyCam
- ACC3
- Loggers
