Aim Kart Steering Angle Rotary Potentiometer/Belt Type Sensor
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Kart Steering Angle Sensor
The Aim Steering Angle Sensor Kit is suitable for use with all Aim MyChron Kart Lap Timers/Data Loggers; the MyChron 6, 6 2T, 5S, 5S 2T and 4. It comes with a bracket for easy installation and is ideal for 1 revolution karting setups.
Why Choose the Steering Angle Rotary Potentiometer
The Steering Angle Rotary Potentiometer measures and records the driver’s steering input using a sensor (rotating potentiometer) to measure the displacement between two points. Using the Steering Angle Sensor, you can see where the driver is losing time due to steering angle; too much or too little at each corner.
Kart Steering Angle Sensor Connections
The Kart Steering Angle Sensor is available with or without a 712-719 male to female 4-pin patch lead, which is required to connect the sensor to a MyChron Expansion for the MyChron 5S, 5S 2T, and 4. For the MyChron 6 and 6 2T, the sensor will connect via a 712-712 male to female 4-pin patch lead with the ACC3 719 harness connectors.
Technical Information
Technical Specs

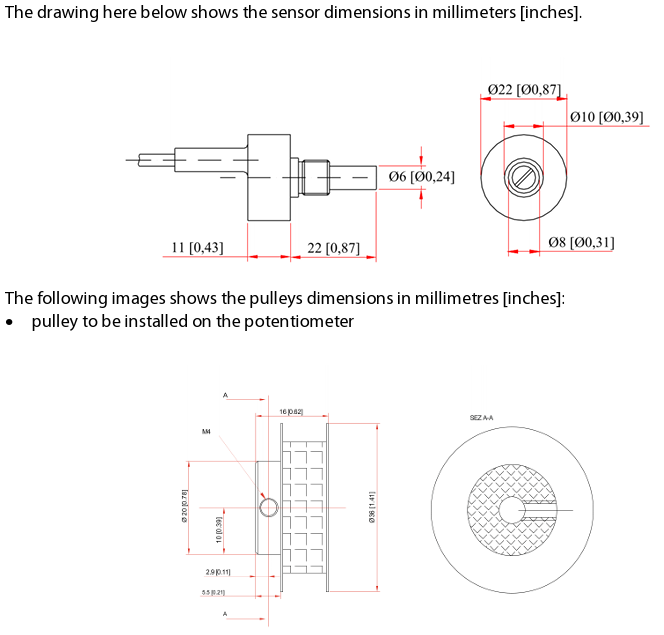

Diagram
Included in the Box

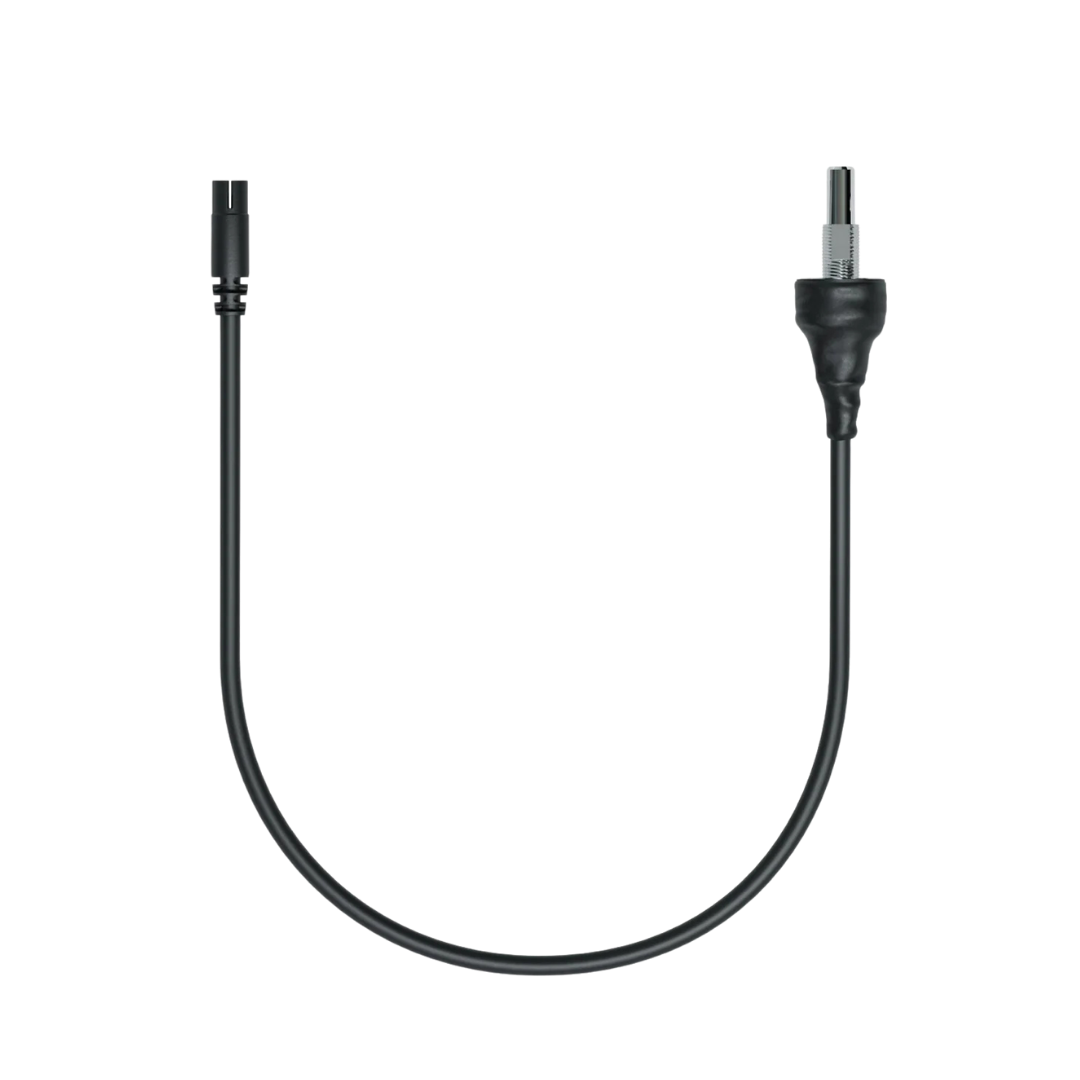

1G Kart Steering Rotary Potentiometer

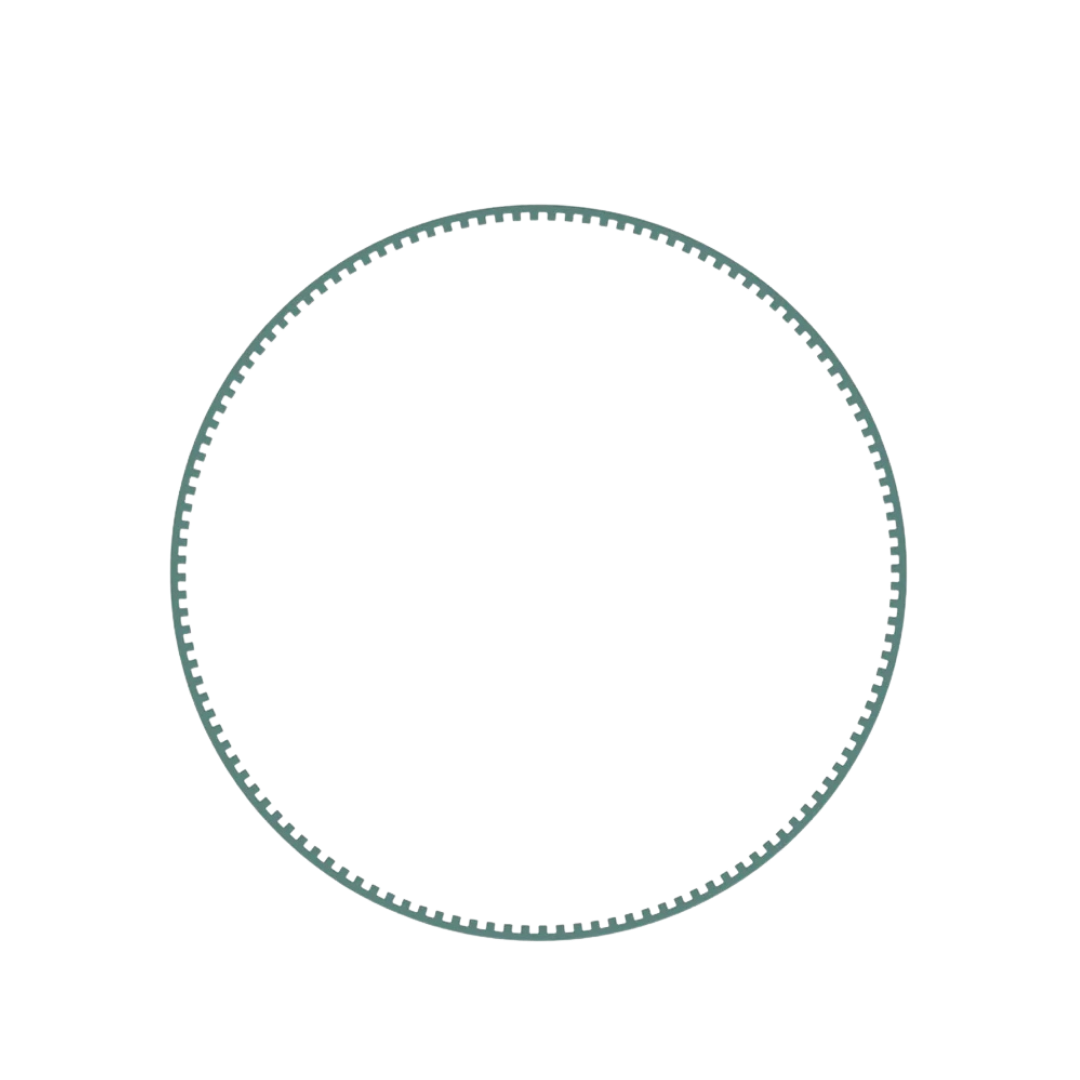

Toothed Belt

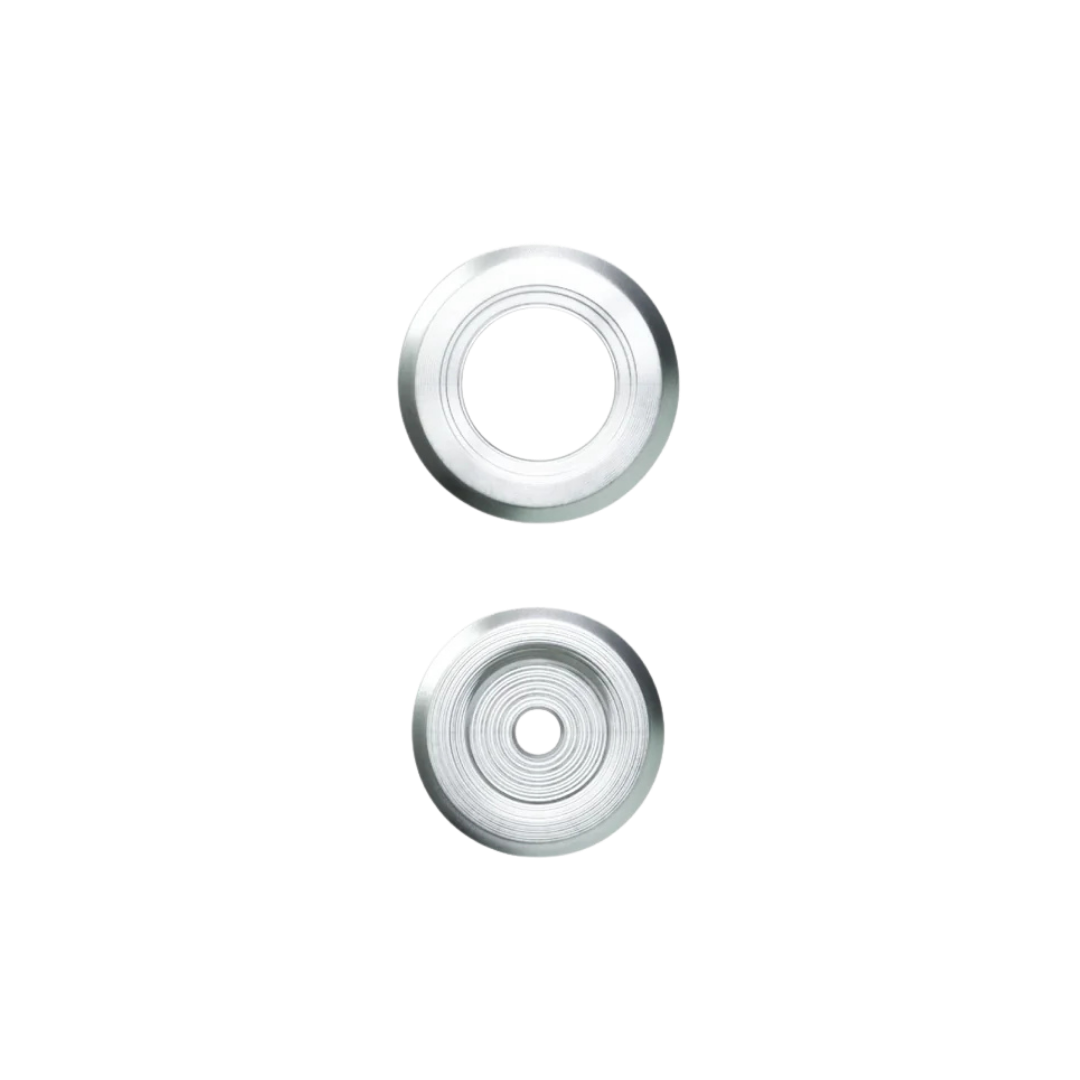

x2 Toothed Pulley

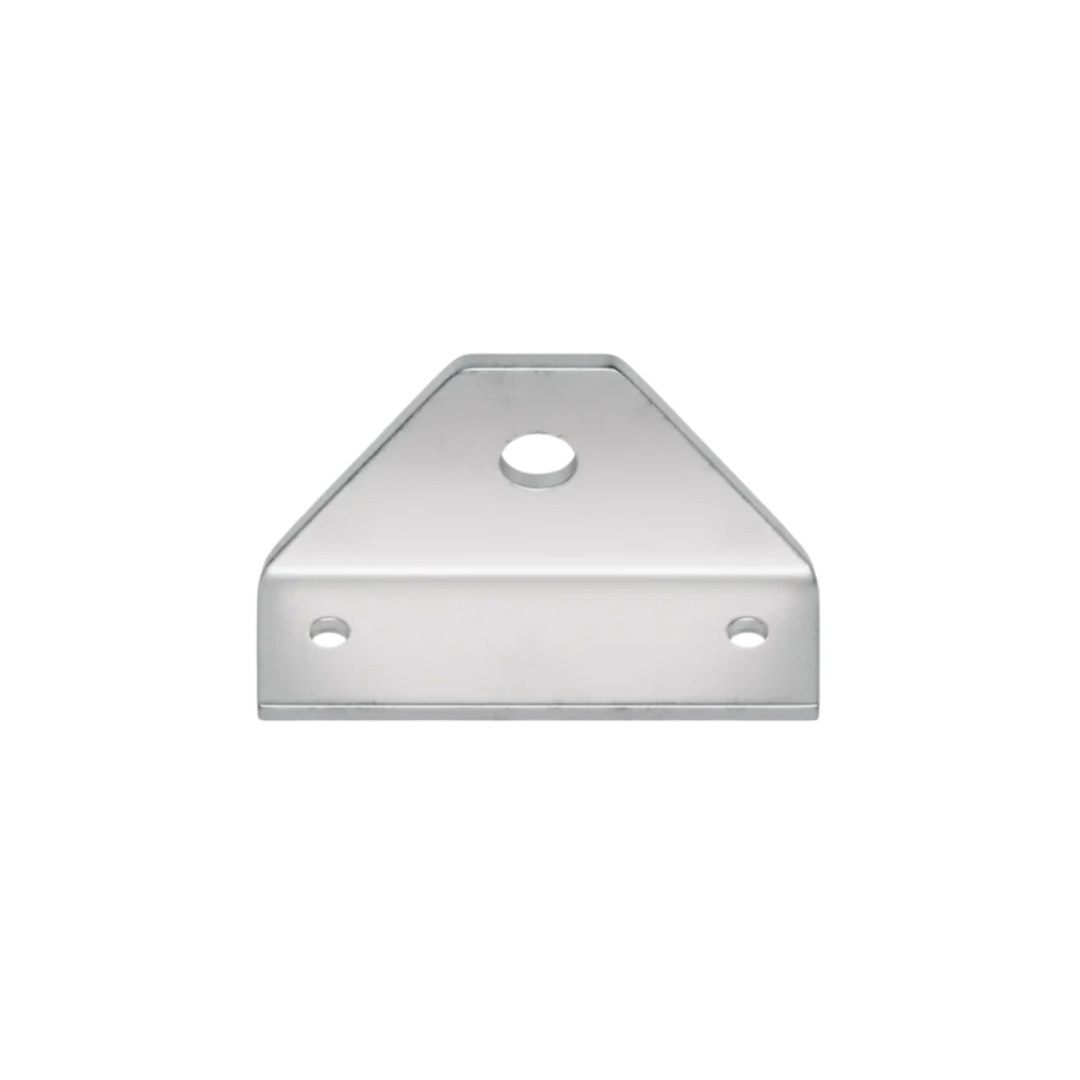

Kart Steering Angle Sensor Bracket

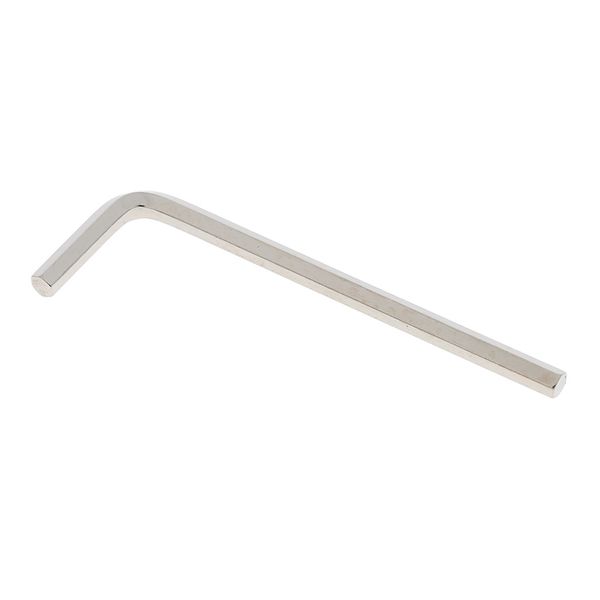

Allen Key
-
Free Aim Software
Downloads
