Aim MXK10 Kawasaki Ninja ZX-10R Plug & Play Dash Logger
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
The Kawasaki OEM Dash Upgrade: MXK10
Upgrade your Kawasaki Ninja ZX-10R Gen 4 (2011-2015) & Gen 5 (2016-2020) with the Aim MXK10 dash logger; a high-performance plug & play dash logger designed for professional, street, and track-day riders.

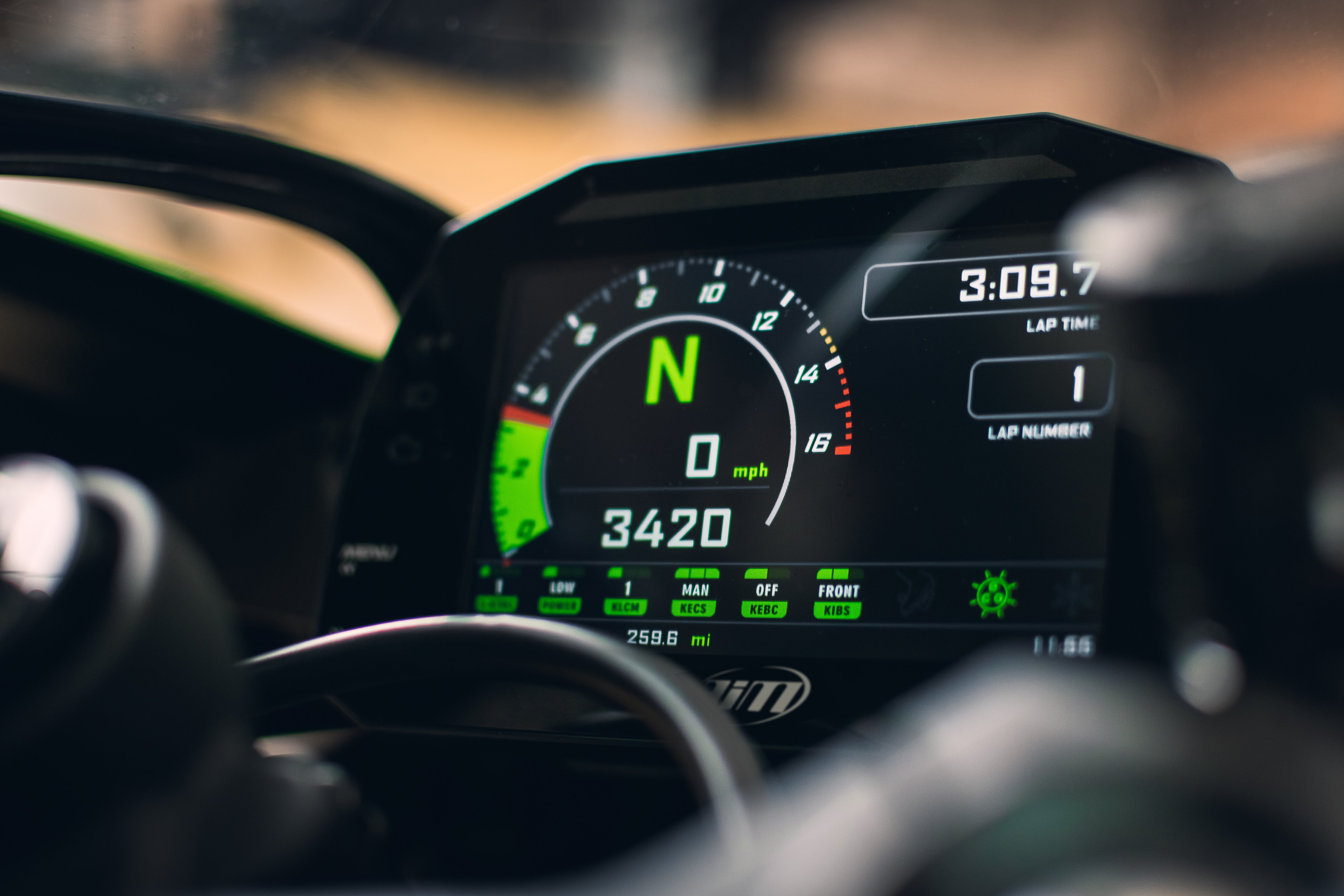

With a 5" high-contrast TFT display, customisable LEDs and seamless integration with your motorcycle’s ECU, the MXK10 Kawasaki dash provides precise performance insights at a glance.
Why Choose the MXK10 Kawasaki Dash
The MXK10 dash logger is more than just a display; it’s a professional-level data acquisition system with advanced features that provide riders with the tools to fine-tune performance, optimise lap times and enhance riding efficiency.
Please Note: The MXK10 dash can be programmed with your current mileage. Please state your required mileage in miles or kilometres in the notes section on your order.

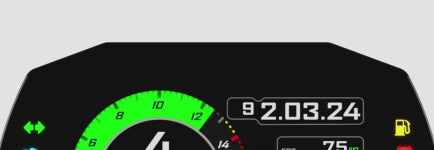

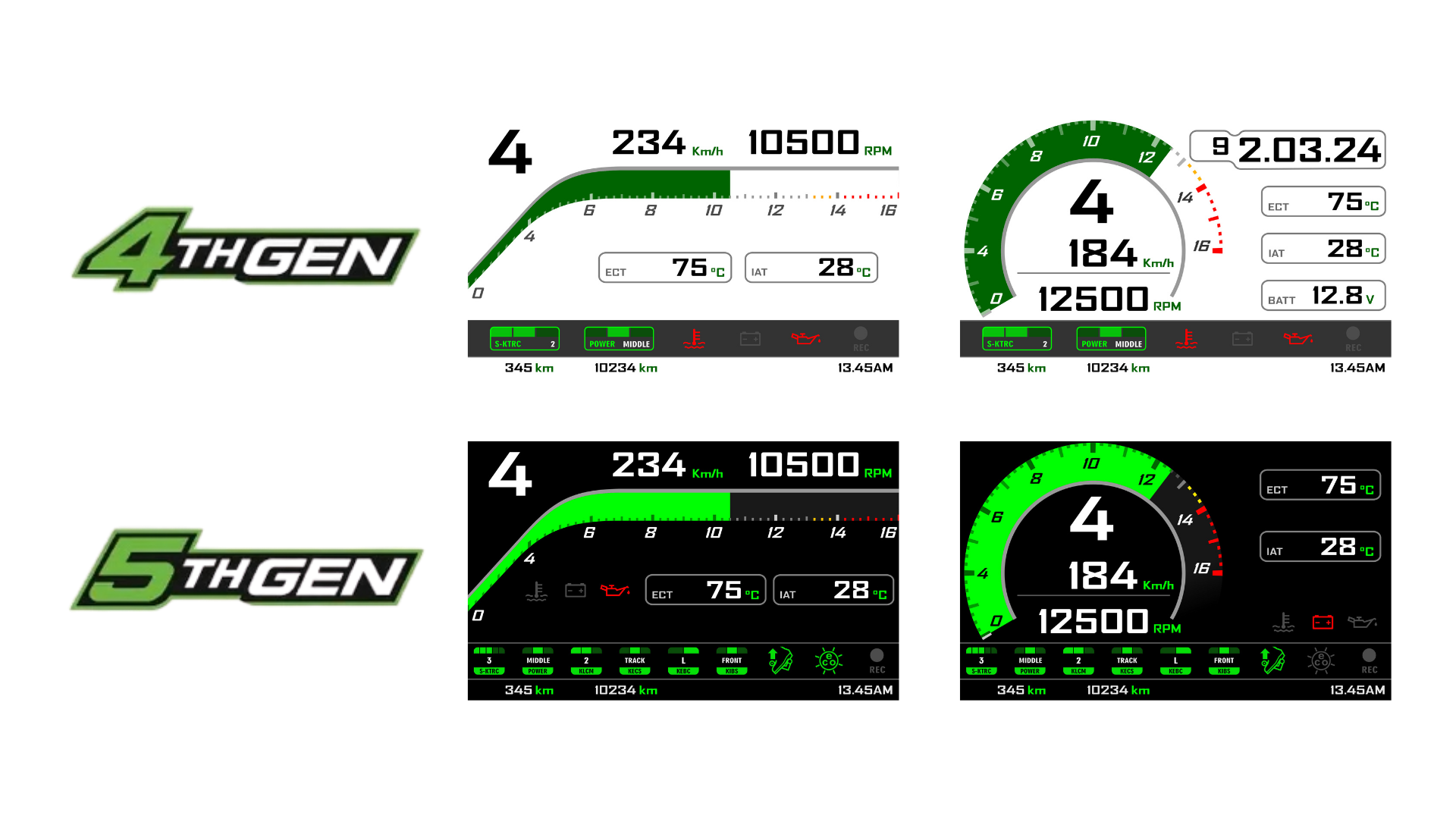

Gen 4 & Gen 5 Pre-Configured Pages
The MXK10 display pages show RPM scale and data such as speed, water temperature and oil pressure, lap times and much more. Define what data is shown with the end of scale and measure units.
Swapping between the pages is easy; just use the push buttons.
Please Note: Both Gen 4 and Gen 5 display pages are available in light and dark configurations.

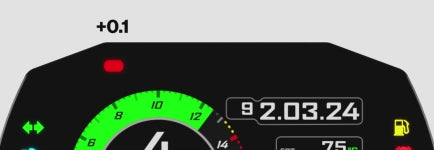

Delta Times
The Delta Times feature provides instant feedback on your performance, showing how your current timing compares to your best.
Set a reference lap and visualise where you are gaining and losing time. The integrated lights will display green or red accordingly.
Lap Timing & Data Logging
Equipped with a 25Hz GPS09 module, the MXK10 Kawasaki dash provides millisecond-accurate lap timing, automatic track recognition and track mapping capabilities. Once the motorcycle is switched on near a known track, the GPS module automatically loads the start/finish coordinates, calculating lap times with precision. Note: If a track is missing, it can be created and added via Race Studio 3.
The MXK10 offers 2 riding modes:
- Track Mode – Disables the lap push button to avoid confusion between GPS signal and lap button.
- Road Mode – Keeps the lap button enabled while disabling the GPS Module.
The 4GB onboard memory allows for over 3,000 hours of data storage, enabling riders to log, review and optimise their braking points, acceleration, throttle response and sector times. With ECU connectivity, the MXK10 dash records essential data, providing real time feedback to help improve riding efficiency and highlight potential faults.
Customisable Display & Integrated LEDs
The MXK10 Kawasaki dash features a high-contrast, customisable 5” TFT display, ensuring riders can clearly see important data in any lighting condition. Enhancing functionality further, the dash includes:
- 10 customisable shift light LEDs for optimal gear changes.
- 6 RGB status LEDs alert for engine performance, pressure, temperature and more.
The MXK10 dash also has 2 types of displays: road or track, in either analogue or digital themes, with light and dark modes for each to suit your preferences.

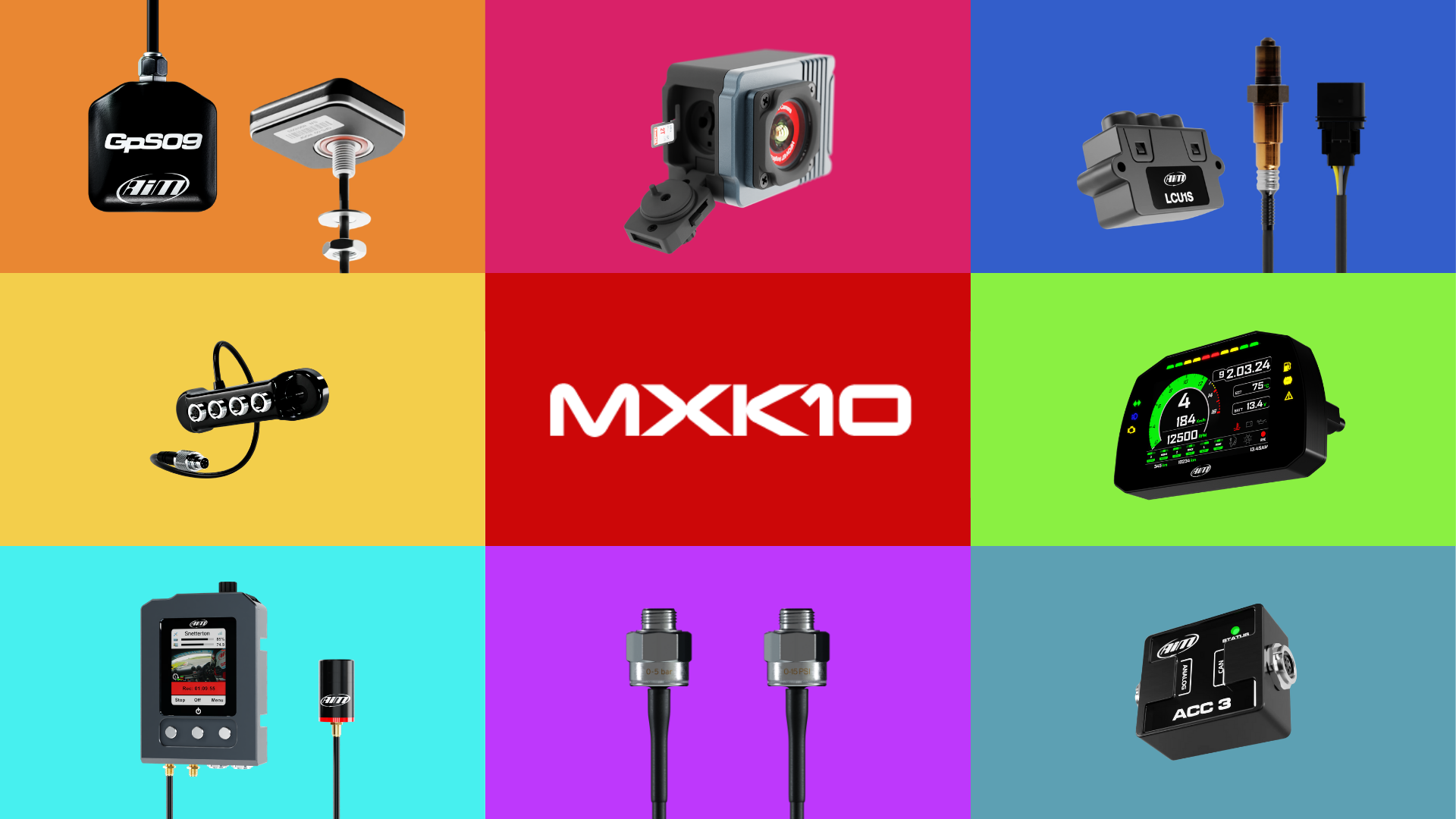

Expand Your System
The MXK10 Kawasaki dash is compatible with various expansions and modules to enhance performance and expand on data collection. Some of the compatible expansions include:
Technical Information
Technical Specs
Diagram
Pinout
Included in the Box
MXK10 Dash
MXK10 Fixings
GPS09 Module - Roof Version
Anodised Plate Fixing Kit
-
Free Aim Software
Downloads
Videos
How To Install The MXK10
Connection Example
FAQs
Please read our FAQs page to find out more.
How do you upgrade the Kawasaki Ninja ZX-10R Dash?
To upgrade your Kawasaki Ninja ZX-10R Dash, you can install the MXK10 Dash Logger, which replaces the OEM unit on the Gen 4 and Gen 5 models. Installation is quick and easy thanks to the plug & play connectivity - simply fit the device into the OEM bracket and connect to the motorcycle's existing connectors. For a more in-depth tutorial, take a look at our MXK10 Kawasaki Ninja ZX-10R installation in the "Videos" tab.
What are the key features of the Aim MXK10 Kawasaki Ninja ZX-10R Dash Logger?
The Aim MXK10 Kawasaki Ninja ZX-10R Plug & Play Dash Logger is a high-performance piece of motorsport equipment that offers an advanced and upgraded data logging experience, whilst having a range of additional features that make it easier to expand your system.
The MXK10 Dash Logger has delta times shown, letting you compare your current lap with others to see exactly where you are gaining or losing seconds. It has customisable LEDs as well as a high contrast TFT display for optimised personalisation and ease in seeing your data in any condition.
The GPS module is also very accurate to 25Hz, allowing for advanced tracking capabilities and data collection. Ultimately, data collection is upgraded massively with the MXK10 Dash Logger, with multiple motorcycle parameters being monitored and recorded for performance analysis.
Does the Aim MXK10 Dash Logger work with other Aim products?
The Aim MXK10 Dash Logger is designed to work with various other Aim products, acting as a central hub for data acquisition on the Kawasaki Ninja ZX-10R. It features an expansion port (via CAN connection) that allows for easy integration of additional sensors and systems to enhance performance monitoring. Please see the "Connections" tab for examples.
