Link Boost Control Solenoid 4 Port

SKU: 4BCS

Prix ​​habituel
£140.00
Prix ​​habituel
Prix ​​de vente
£140.00

Expédition neutre en carbone avec Shopify Planet
Expédition neutre en carbone pour toutes les commandes

Link Boost Control Solenoid 4 Port

Thinking of turning up the boost to the max? Then this 4 port boost control solenoid is perfect. It allows for precise boost control of up to 120PSI.

4 port Boost control solenoids are commonly used for big boost applications, boost levels can be raised as high as 6-7 times the spring pressure of the wastegate and they allow you to use lower wastegate spring pressures for more precise boost control when launching. Particularly useful in high power traction limited situations where you might want a low boost in low gears and a higher boost in high gears.


Features

Up to 120PSI
Compatible with all Link ECU’s
Can be used with single or multiple wastegates
Fast and consistent response times
High shifting forces
MAC 45 series – Rugged, reliable and long operational life
Short stroke, high flow
Balanced poppet, immune to variations of pressure

We recommend starting with a PWM frequency of 25Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in the PC Link software which is available in the download tab.

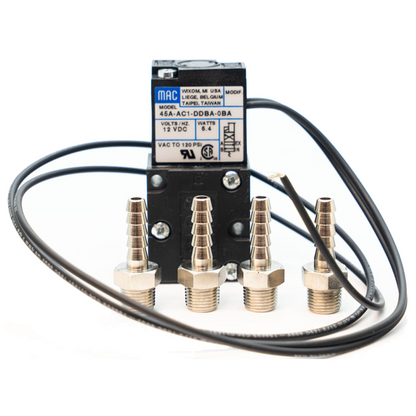

 MAC 45 series
120 PSI max
1/8” BSPPL
12 VDC (5.4W) 18” (45cm) coil leads
Includes 4 x 1/8” BSP hose tail fittings for easy connection

Link Boost Control Solenoid 4 Port

  • 4 Port Boost Control
  • 4 x 1/8" BSP hose tail fittings for easy connection
FAQ Centre

Description



Link Boost Control Solenoid 4 Port

Thinking of turning up the boost to the max? Then this 4 port boost control solenoid is perfect. It allows for precise boost control of up to 120PSI.

4 port Boost control solenoids are commonly used for big boost applications, boost levels can be raised as high as 6-7 times the spring pressure of the wastegate and they allow you to use lower wastegate spring pressures for more precise boost control when launching. Particularly useful in high power traction limited situations where you might want a low boost in low gears and a higher boost in high gears.


Features

Up to 120PSI
Compatible with all Link ECU’s
Can be used with single or multiple wastegates
Fast and consistent response times
High shifting forces
MAC 45 series – Rugged, reliable and long operational life
Short stroke, high flow
Balanced poppet, immune to variations of pressure

We recommend starting with a PWM frequency of 25Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in the PC Link software which is available in the download tab.


Technical

 MAC 45 series
120 PSI max
1/8” BSPPL
12 VDC (5.4W) 18” (45cm) coil leads
Includes 4 x 1/8” BSP hose tail fittings for easy connection

What's in The Box

Link Boost Control Solenoid 4 Port

  • 4 Port Boost Control
  • 4 x 1/8" BSP hose tail fittings for easy connection
