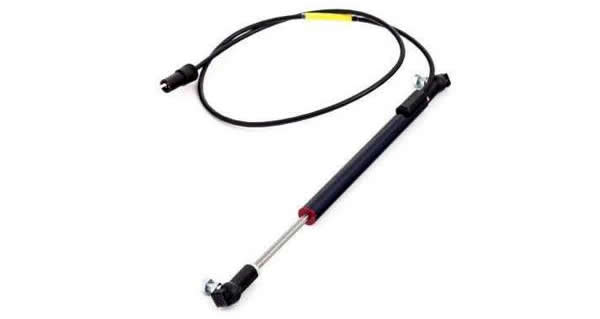

Aim Suspension Potentiometer

The Suspension Potentiometer suits all Aim loggers and dashes display loggers, and we offer a range of sizes for the potentiometer: 50mm, 75mm, 100mm, 150mm.

This potentiometer can be used to measure linear displacements like:

• Suspensions and spring cushions compression or extension.
• Steering column rotation is measured through the rack displacement.
• Shock and suspension travel.
• Ride height.
• Wing or spoiler deflection at speed.

As a simple guide, most bikes use 150mm on the front fork, 75mm on the rear shock and 50mm on the steering damper. Most cars use 100mm on both the front and rear suspension.

The Suspension Potentiometer comes as standard with a 30cm cable. To extend the length or to connect directly to an Aim dash or logger.

Use a 719-719 Patch Lead, which is available in the optional extras at the top of the page. If connecting to an EVO4S Data Logger or Channel Expansion, use a 712-719 Patch Lead.
