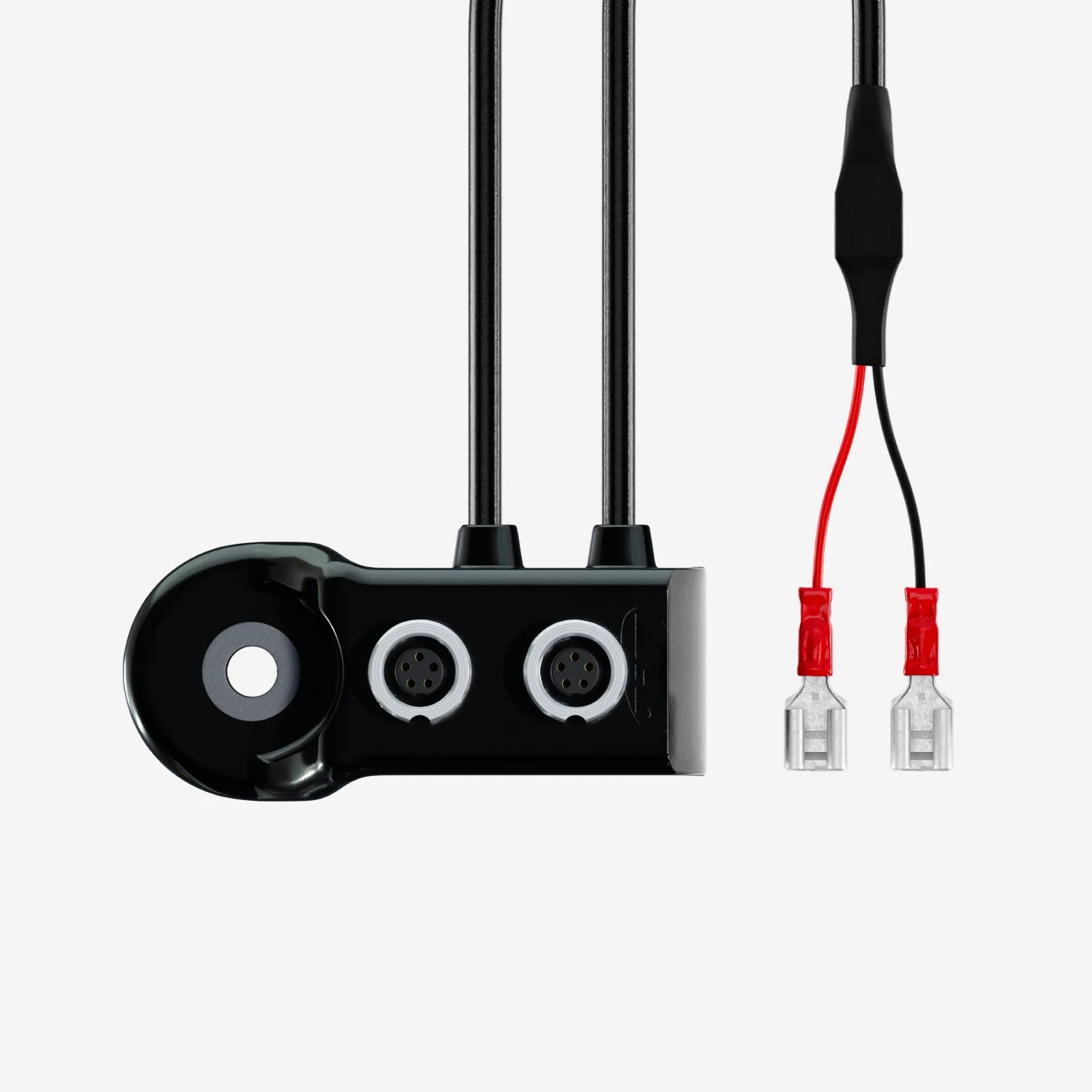

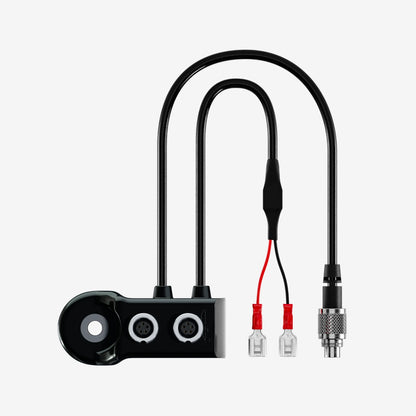

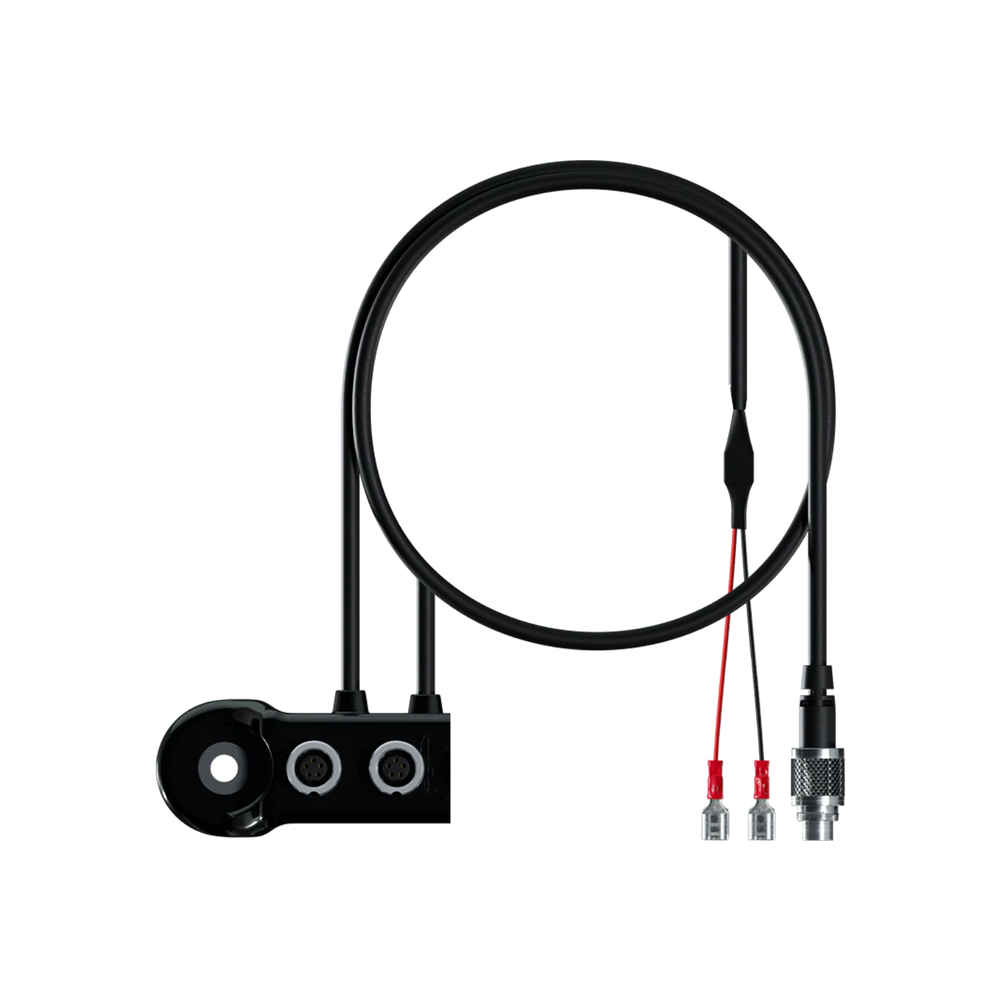

Aim Two-Way Data Hub CAN Connection Multiplier with External Power
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Two-Way CAN Connection Multiplier
The compact two-way data hub with an external power cable provides two additional CAN channels and works as an interface between Aim data loggers and accessories. It also features a 12V external power connection.
Why Choose the Two-Way Data Hub
Using many devices can result in excessive wiring, but with the data hub, all unnecessary wiring can be eliminated. Aim data hubs take all the information you need to your logger with only one cable, minimising wires overall, and are available in the following versions to suit your setup:
- Four-way data hub
- Two-way data hub
- Two-way data hub with external power cable
Connections
The compact two-way data hub with 12V flying cables provides a CAN channel and works as an interface between Aim loggers and accessories. Additional devices, such as GPS modules, TC hubs (thermocouple multipliers), SmartyCams and Lambda sensors can be added to provide extra data from your vehicle and improve performance.
You can also use the two-way data hub with external power cable with our MX series dashes and display loggers, powered by the vehicle's onboard battery supply.
Note: You can connect multiple data hubs to build a wider network.
Technical Information
Technical Specs

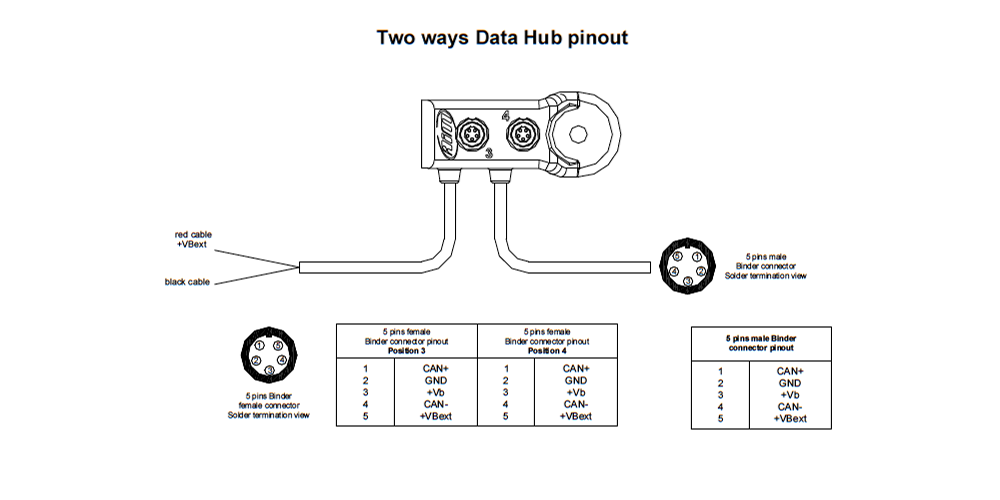

Pinout
Included in the Box
Two-Way Data Hub with External Power
-
