חיים שניים מחוץ לייצור EVO4S Racing Data Logger

The Aim EVO4S power cable offers a direct, dependable power connection tailored for the EVO4S system, replacing worn or damaged cables without needing to rewire the entire harness. The power cable is rated for inputs from 9-15V and includes a battery ground lead, making it suitable for typical road or race electrical systems.

Essentially, the Aim EVO4S power cable is ideal when you need a reliable, OEM-style replacement or spare power cable to ensure consistent logger operation.

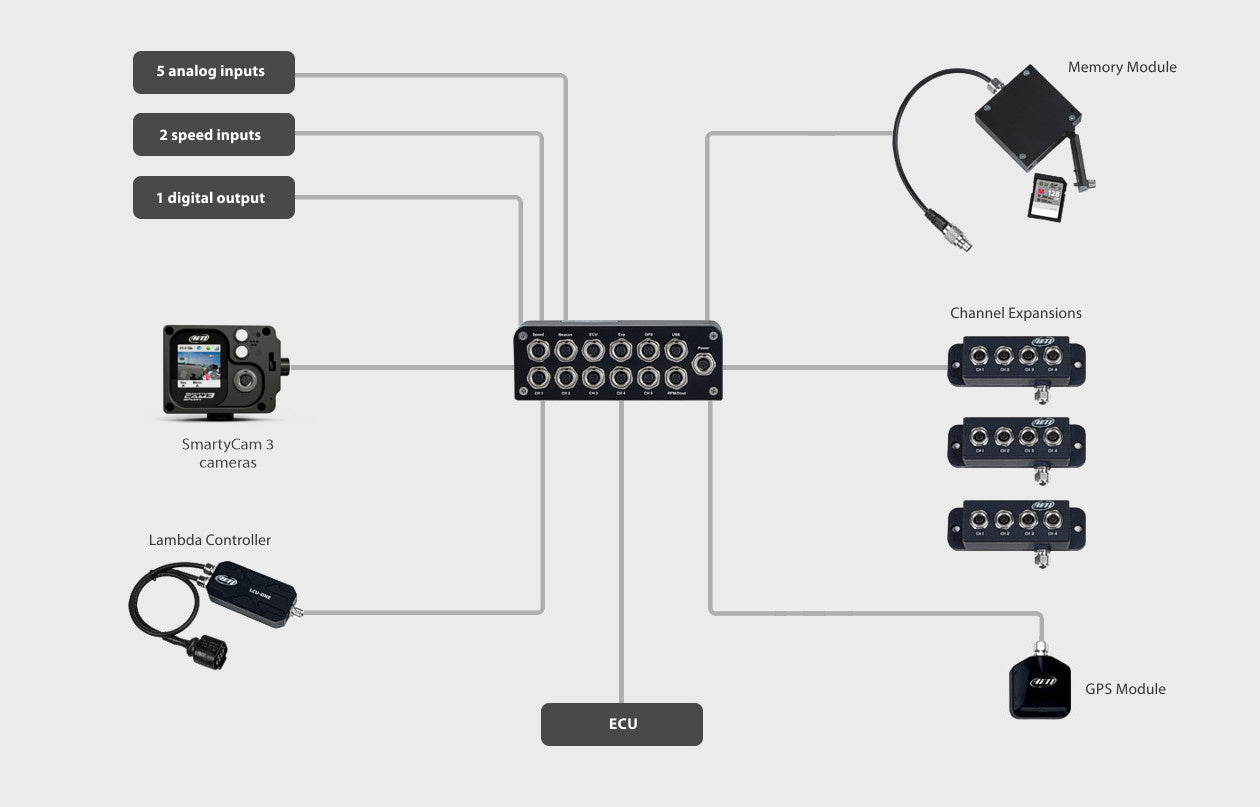

The Aim EVO4S is a powerful and flexible data logger and comes equipped with an optional GPS Module. Offering one connector per channel the EVO4S samples all the information you need, data coming from your vehicle's ECU via CAN, RS232 or K-Line, from the internal accelerometers and gyro and the GPS Module.

From analogue/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analogue channels, to the RPM input and to 2 wheel speed inputs.

Select which harness you require CAN, RS232 or OBD11, and select which GPS Module best meets your requirements. You can also upgrade your kit with our GS-Dash display and Formula Steering Wheel, allowing you to really improve your performance on track days.

You can add optional expansion modules via the built-in CAN bus.

• Channel Expansion: Permits to add 4 0-5 volt analogue channels for pressure, temperature sensors and potentiometers (suspension, steering angle). Two of these channels can be configured to receive digital inputs like wheel speed.
• TC Hub: Adds up to four "K" type thermocouple temperature sensors.
• LCU-One Lambda Controller: Wideband Lambda controller LCU-one, with Bosch LSC 4.9 probe provides air/Fuel data, lambda value and exhaust gas temperature.
• SmartyCam Cameras: Onboard cameras that overlay onto all your videos all the data sampled by your logger.
