AiM Taipan UC Bridge Tuner

SKU: C-UCB-T

Prezzo regolare
£520.00
Prezzo regolare
Prezzo di vendita
£520.00

Spedizione a impatto zero con Shopify Planet
Spedizione a impatto zero per tutti gli ordini

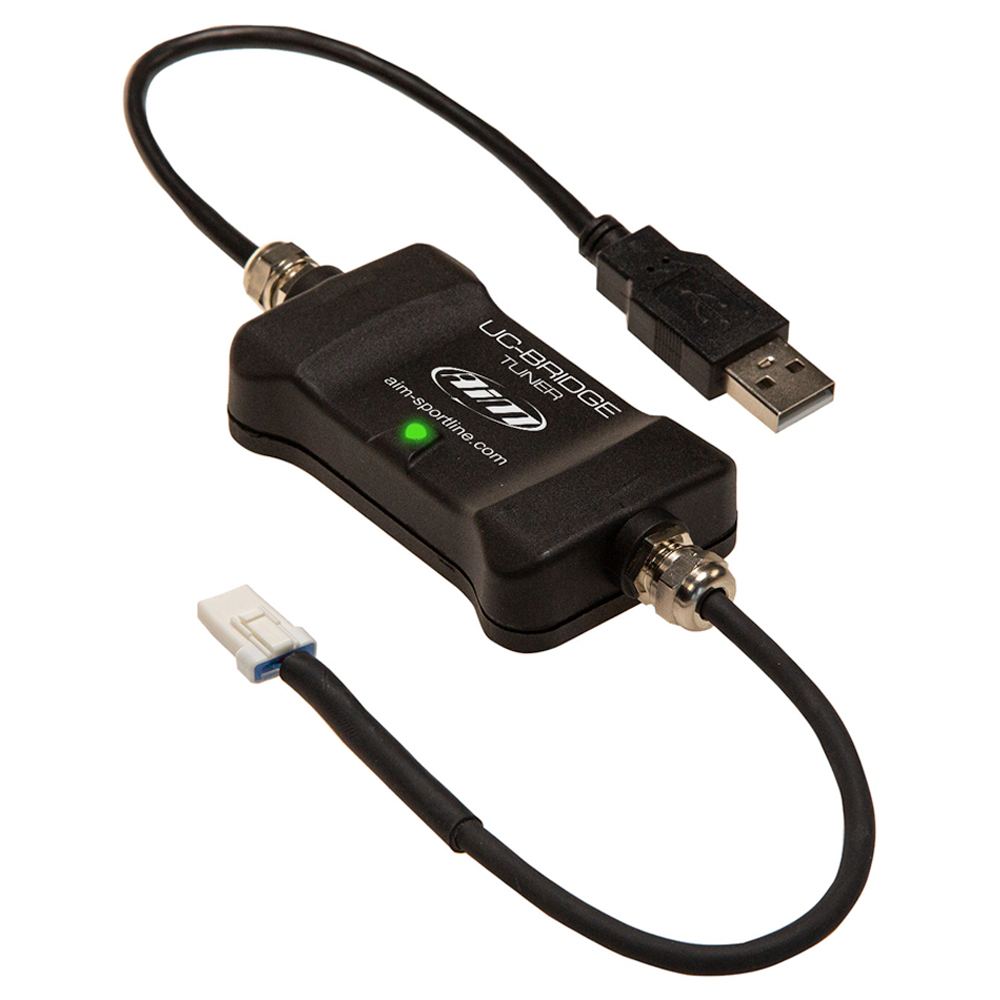

AiM Taipan UC Bridge Tuner

The AiM Taipan UC Bridge Tuner is the connection between the CAN bus of the ECU and the USB port of your PC. This UC Bridge Tuner has been specifically designed to programme and configure an unprogrammed Taipan ECU.

Key Features :

Tuner licence Basic maps



Tuner License

This UC Bridge Tuner has been specifically designed to programme and configure an unprogrammed Taipan ECU.

If you purchase an unprogrammed Taipan ECU you will need this tuner to configure it. The Taipan ECU will able to be configured to any brand/model of bike

With this license, the tuner can create maps, configurations and strategies designed for the rider's bike. The tuner can flash then directly on the ECU or send an e-mail to allow the rider to download and install them in the ECU.

*Please Note: For information regarding the UC-Bridge Tuner, Please contact one of our AiM technical team for further information.


Taipan ECU Connections - Optional Extra

The Taipan ECU has 4 connectors :

Main Connector - Compatible with most off-road bikes.
CAN Connector - Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector - Connect to spare analogue inputs and to a possible second injector.


Aim Handlebar Switch - Optional Extra

The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings :


Up to 5 selectable maps Apply fuel corrections
Activate traction control Activate launch control

The handlebar switch can also be used as a shift light module.


Below shows a functional diagram of products that can be added to the Taipan ECU:




Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Taipan UC Bridge Tuner Technical Specifications and pinout

  • Connectors: n. 1 USB connection for PC
  • n. 1 JST 04R-JWPF-VSLE-S waterproof Connector for CAN Bus communication
  • Body: PA6 + 30% glass fiber
  • Dimensions: 103.5 x 45.3 x 18.1mm
  • Waterproof: IP65
  • Weight: 80g


AiM Taipan UC Bridge Tuner

  • 1 x Taipan UC Bridge Tuner

Taipan Video

FAQ Centre

Description

AiM Taipan UC Bridge Tuner

The AiM Taipan UC Bridge Tuner is the connection between the CAN bus of the ECU and the USB port of your PC. This UC Bridge Tuner has been specifically designed to programme and configure an unprogrammed Taipan ECU.

Key Features :

Tuner licence Basic maps




Tuner License

This UC Bridge Tuner has been specifically designed to programme and configure an unprogrammed Taipan ECU.

If you purchase an unprogrammed Taipan ECU you will need this tuner to configure it. The Taipan ECU will able to be configured to any brand/model of bike

With this license, the tuner can create maps, configurations and strategies designed for the rider's bike. The tuner can flash then directly on the ECU or send an e-mail to allow the rider to download and install them in the ECU.

*Please Note: For information regarding the UC-Bridge Tuner, Please contact one of our AiM technical team for further information.


Taipan ECU Connections - Optional Extra



The Taipan ECU has 4 connectors :

Main Connector - Compatible with most off-road bikes.
CAN Connector - Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector - Connect to spare analogue inputs and to a possible second injector.


Aim Handlebar Switch - Optional Extra



The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings :


Up to 5 selectable maps Apply fuel corrections
Activate traction control Activate launch control

The handlebar switch can also be used as a shift light module.


Below shows a functional diagram of products that can be added to the Taipan ECU:







Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

AiM Taipan UC Bridge Tuner Technical Specifications and pinout

  • Connectors: n. 1 USB connection for PC
  • n. 1 JST 04R-JWPF-VSLE-S waterproof Connector for CAN Bus communication
  • Body: PA6 + 30% glass fiber
  • Dimensions: 103.5 x 45.3 x 18.1mm
  • Waterproof: IP65
  • Weight: 80g


What's in The Box

AiM Taipan UC Bridge Tuner

  • 1 x Taipan UC Bridge Tuner

Taipan Video
