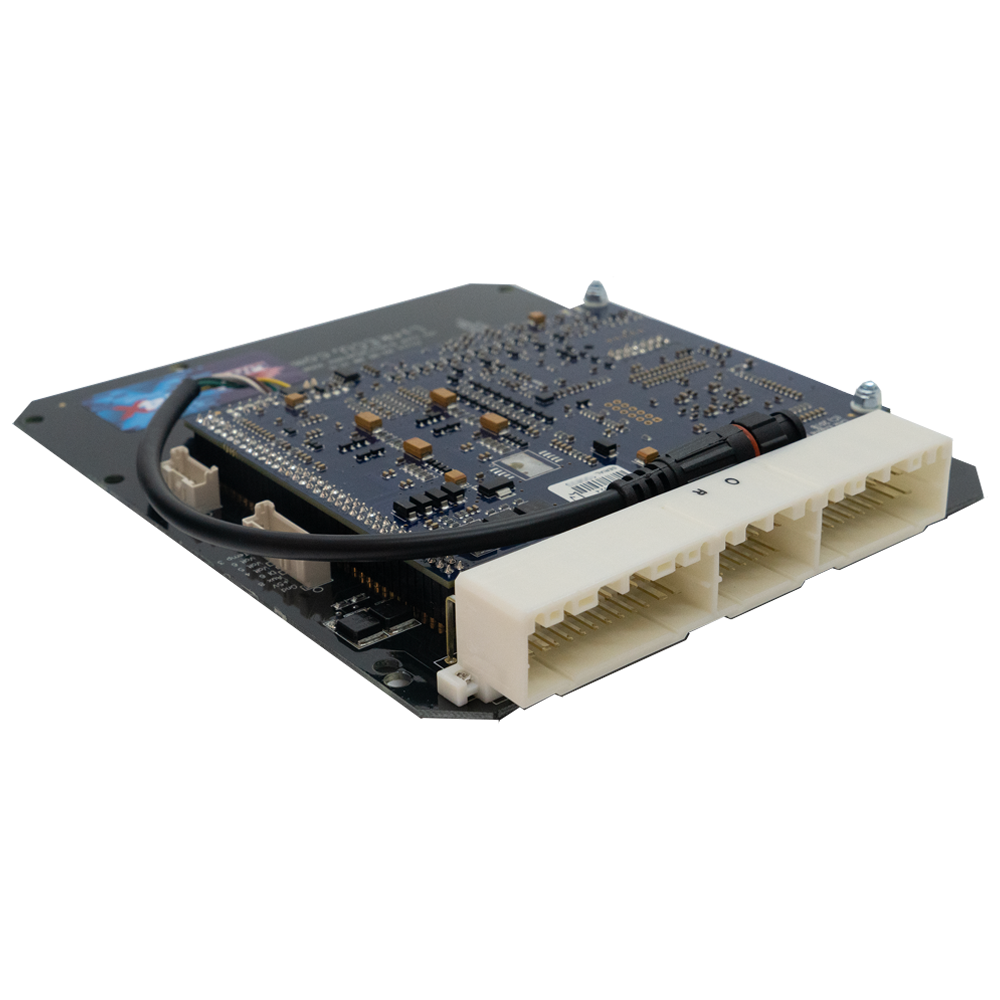

Link Honda CIVICLink - #HC92X PlugIn ECU

SKU: HC92X

Prezzo regolare
£850.00
Prezzo regolare
Prezzo di vendita
£850.00

+ IVA (solo Regno Unito)

Spedizione a impatto zero con Shopify Planet
Spedizione a impatto zero per tutti gli ordini
Powered by Shopify Planet

Link Honda CIVICLink - #HC92X PlugIn ECU

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential of your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1992-1995 Honda B16 and B18 engine. All models that use the Honda “OBD1” ECU.

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
No onboard MAP sensor.
Knock control is not available on this ECU.
Most factory features are supported.


Suitable Applications:

1992-1995 Gen 5 Honda Civic DX/LX/EX/Si
ACURA: 92-95 Integra RS/LS/GS/GS-R
HONDA: 90-95 Accord DX/LX/EX
93-95 Del Sol S/Si, 94-95 Del Sol VTEC
90-91 Prelude Si & 92-95 Prelude S/SE/Si/VTEC


The following expansion connector inputs/outputs are provided:

Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
An Volt 4 Analog 0-5V input
An Volt 5 Analog 0-5V input
An Volt 6 Analog 0-5V input
Aux 8 Auxiliary output (0.5A current MAX)
DI 6 Digital Input
An Temp 3 Temperature sensor input


G4X PluhIn Key Features (where applicable):

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cams, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - anti-lag, launch, flat shift
Continuous barometric correction (onboard)
CAN port
Quick Tune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real-time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 megabytes data logging memory
Staged injection
Knock with "windowing"


I/O Expansion Options:

There is no separate expansion connector on the TT Link. Expansion pins are accessible through the main header, listed below.
Pin 110 - An Temp 3
Pin 111 - An Volt 10
Pin 112 - DI9
Pin 113 - Ign 6


Link Honda CIVICLink - #HC92X

  • G4X PlugIn ECU
  • Wiring and Installation Instructions
  • Stickers
FAQ Centre

Description



Link Honda CIVICLink - #HC92X PlugIn ECU

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential of your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1992-1995 Honda B16 and B18 engine. All models that use the Honda “OBD1” ECU.

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
No onboard MAP sensor.
Knock control is not available on this ECU.
Most factory features are supported.



Suitable Applications:

1992-1995 Gen 5 Honda Civic DX/LX/EX/Si
ACURA: 92-95 Integra RS/LS/GS/GS-R
HONDA: 90-95 Accord DX/LX/EX
93-95 Del Sol S/Si, 94-95 Del Sol VTEC
90-91 Prelude Si & 92-95 Prelude S/SE/Si/VTEC


The following expansion connector inputs/outputs are provided:

Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
An Volt 4 Analog 0-5V input
An Volt 5 Analog 0-5V input
An Volt 6 Analog 0-5V input
Aux 8 Auxiliary output (0.5A current MAX)
DI 6 Digital Input
An Temp 3 Temperature sensor input


G4X PluhIn Key Features (where applicable):

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cams, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - anti-lag, launch, flat shift
Continuous barometric correction (onboard)
CAN port
Quick Tune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real-time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 megabytes data logging memory
Staged injection
Knock with "windowing"


I/O Expansion Options:

There is no separate expansion connector on the TT Link. Expansion pins are accessible through the main header, listed below.
Pin 110 - An Temp 3
Pin 111 - An Volt 10
Pin 112 - DI9
Pin 113 - Ign 6


What's in The Box

Link Honda CIVICLink - #HC92X

  • G4X PlugIn ECU
  • Wiring and Installation Instructions
  • Stickers
