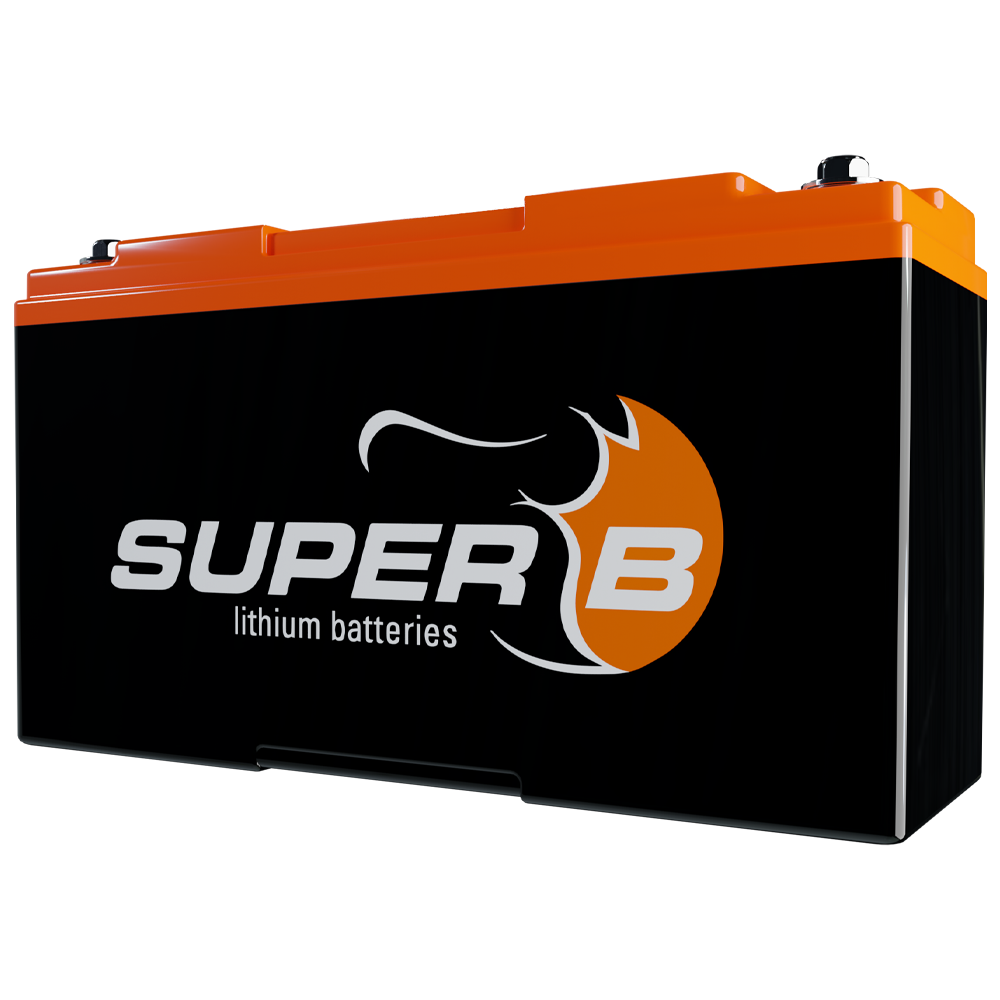

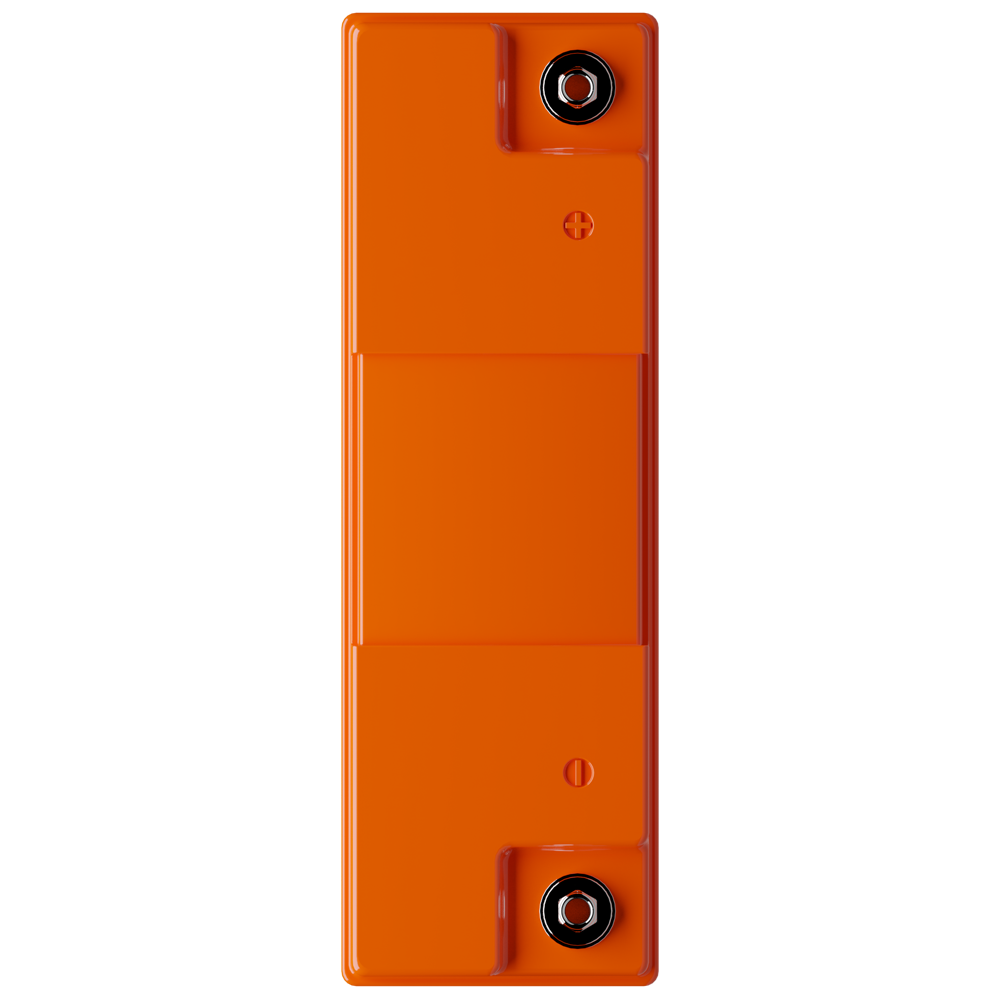

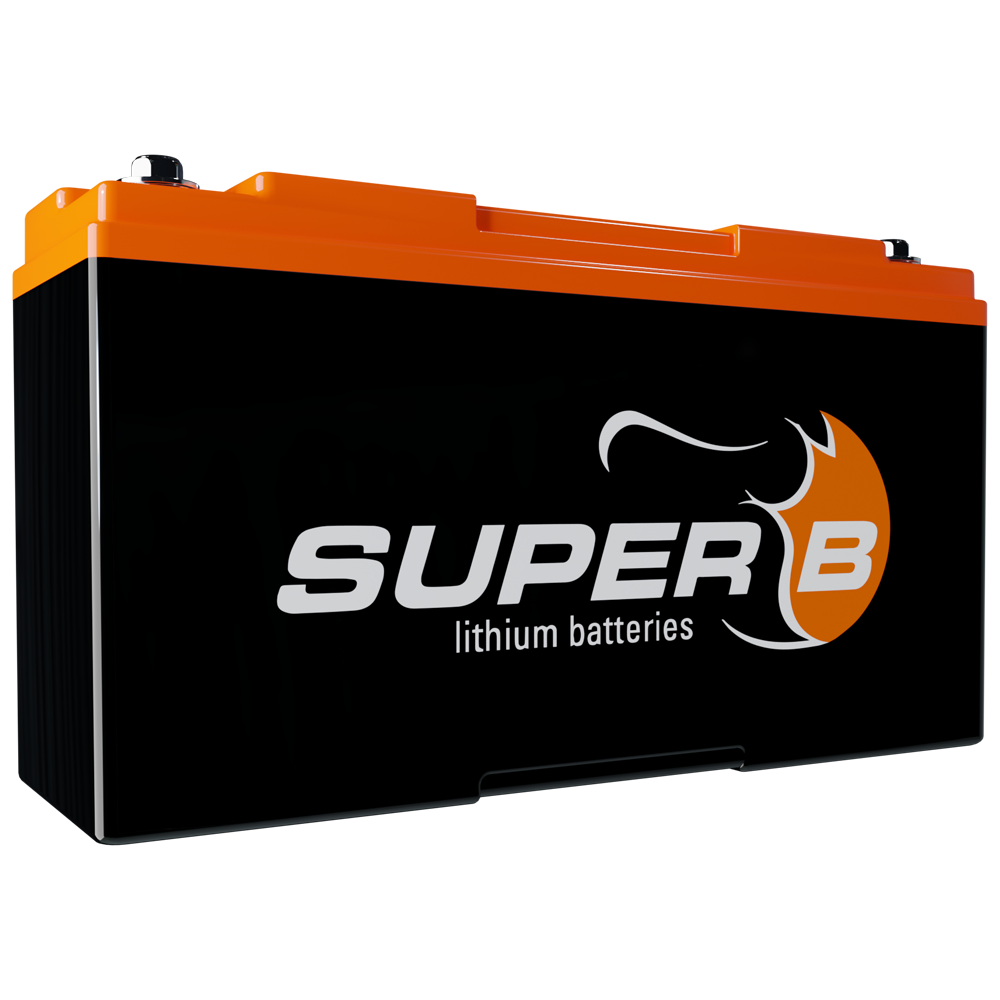

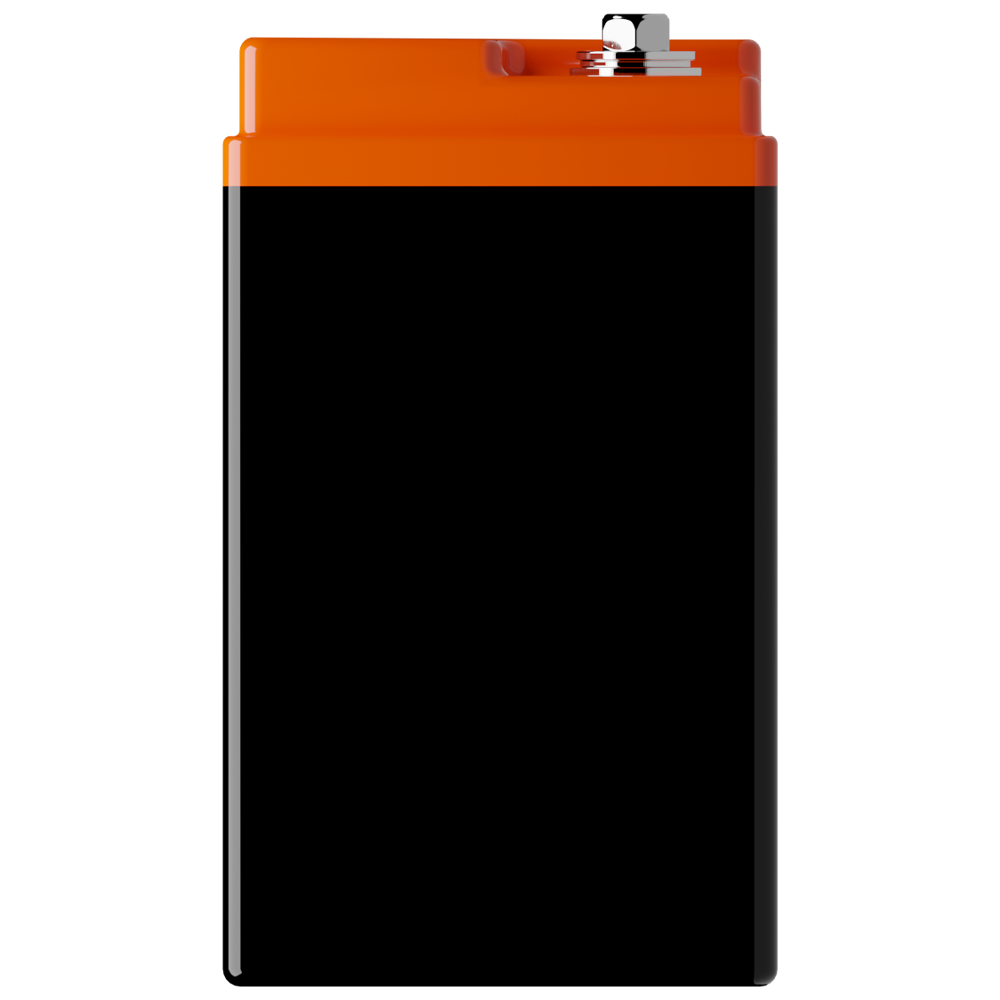

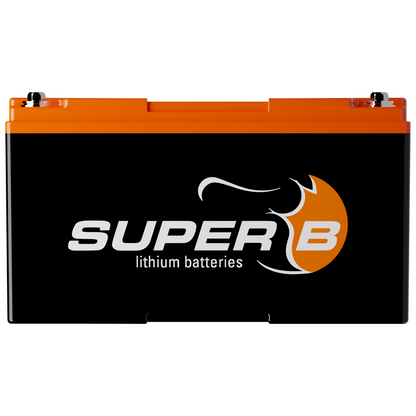

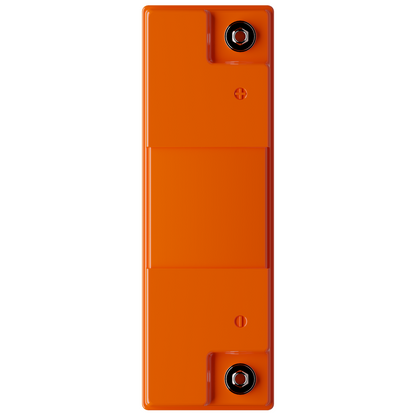

The Super B Andrena 12V20Ah-SC Lithium Battery is a slightly larger and heavier version of the Andrena 12V20Ah, providing the same battery performance and power in a slightly larger form
What Is The Super B Andrena 12V20Ah-SC Lithium Battery?
The Super B Andrena 12V20Ah-SC Lithium Battery is a high-performance lithium iron phosphate (LiFePO4) battery that has been specially developed for motorsports. It’s a reliable and lightweight alternative to traditional lead-acid batteries.
Intended Use
The Super B Andrena 12V20Ah-SC Lithium Battery is ideal for a variety of demanding motorsport environments, including endurance racing, rallies and motocross events.
Why Choose The Super B Andrena Battery
Lightweight Design
With a weight of 3.6 kg (8.0 lbs), the Andrena 12V20Ah-SC Battery saves up to 80% in weight compared to traditional lead-acid batteries. The Andrena is also only ⅓ of the size of conventional batteries. This compact, lightweight design not only improves the performance of your vehicle, but also helps to increase the fuel economy.
High Performance
The Super B Andrena 12V20Ah-SC Lithium Battery delivers exceptional power with a stable and flat discharge curve—meaning over 80% of its capacity is usable. It supports high continuous and pulse discharge currents, making it ideal for demanding motorsport applications.
Fast charging in as little as 25 minutes minimises downtime, while a long cycle life of over 1,000 full discharges ensures reliable, maintenance-free performance. With a self-discharge rate of less than 3% per month, the battery holds its charge for extended periods, allowing vehicles to remain unattended much longer than with traditional lead-acid batteries.
Safe & Reliable
Due to its lithium iron phosphate technology, which is renowned for its thermal and chemical stability, the Super B Andrena Battery is amongst the safest lithium technologies on the market. As well as the technology, the Andrena Battery casing is made from PC-ABS with an ingress protection rating of IP69. These features make the battery completely dust tight and waterproof, which is ideal for extreme motorsport environments.
3-Year Warranty
A 3-year warranty offers the best peace of mind. It is the benefit of years of continuous engineering improvement and proven experience with all of our batteries in the harshest environments.
Specifications
ELECTRICAL SPECIFICATIONS
Open Circuit Voltage
13.2V
Self-Discharge
Less than 3% per month
Cycle Life
More than 1,000 cycles (at 10C charge/discharge, 100% DoD)
EqPb (Equals lead-acid)
70 to 100Ah
MECHANICAL SPECIFICATIONS
Dimensions (LxWxH)
249 x 96 x 141mm | 9.80” x 3.78” x 5.55”
Cell Type / Chemistry
Cylindrical - LiFePO4
CHARGE & DISCHARGE SPECIFICATIONS
Charge voltage
14.3V - 14.6V
End of Discharge Voltage
8V
Discharge Current Continuous
320A
Discharge Pulse Current (1 sec)
892A (45C)
TEMPERATURE SPECIFICATIONS
Charge Temperature
0°C to 45°C1 | 32°F to 131°F1
Discharge Temperature
-20°C to 55°C | -4°F to 131°F
Storage Temperature
-20°C to 45°C | -4°F to 113°F
1 Do not charge below 0°C / 32°F
COMPLIANCE SPECIFICATIONS
Certifications
CE, UN 38.3, UL 1642 (Cells)
Shipping Classification
UN 3480
GENERAL SPECIFICATIONS
Battery Designation
4IFpR27/66-8
