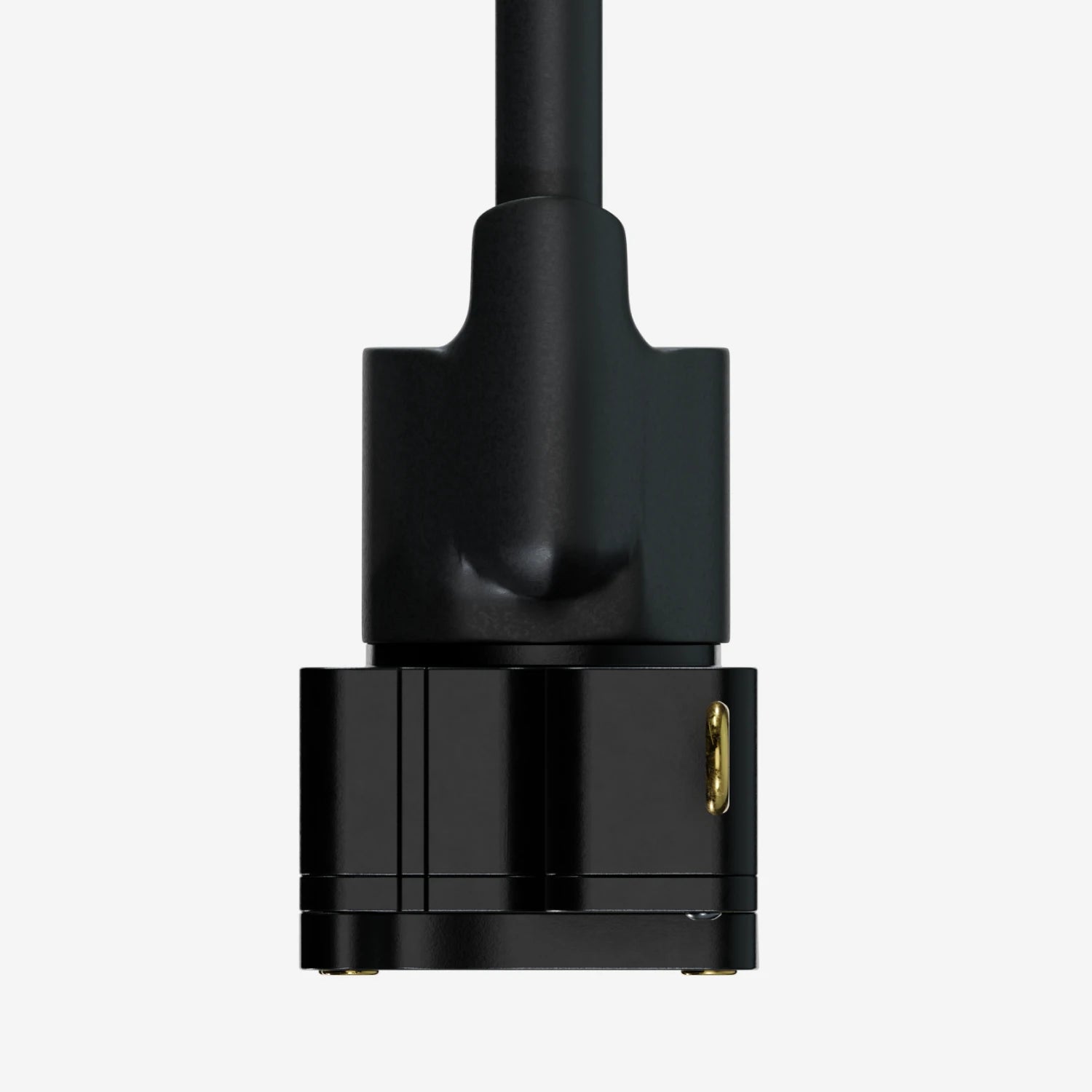

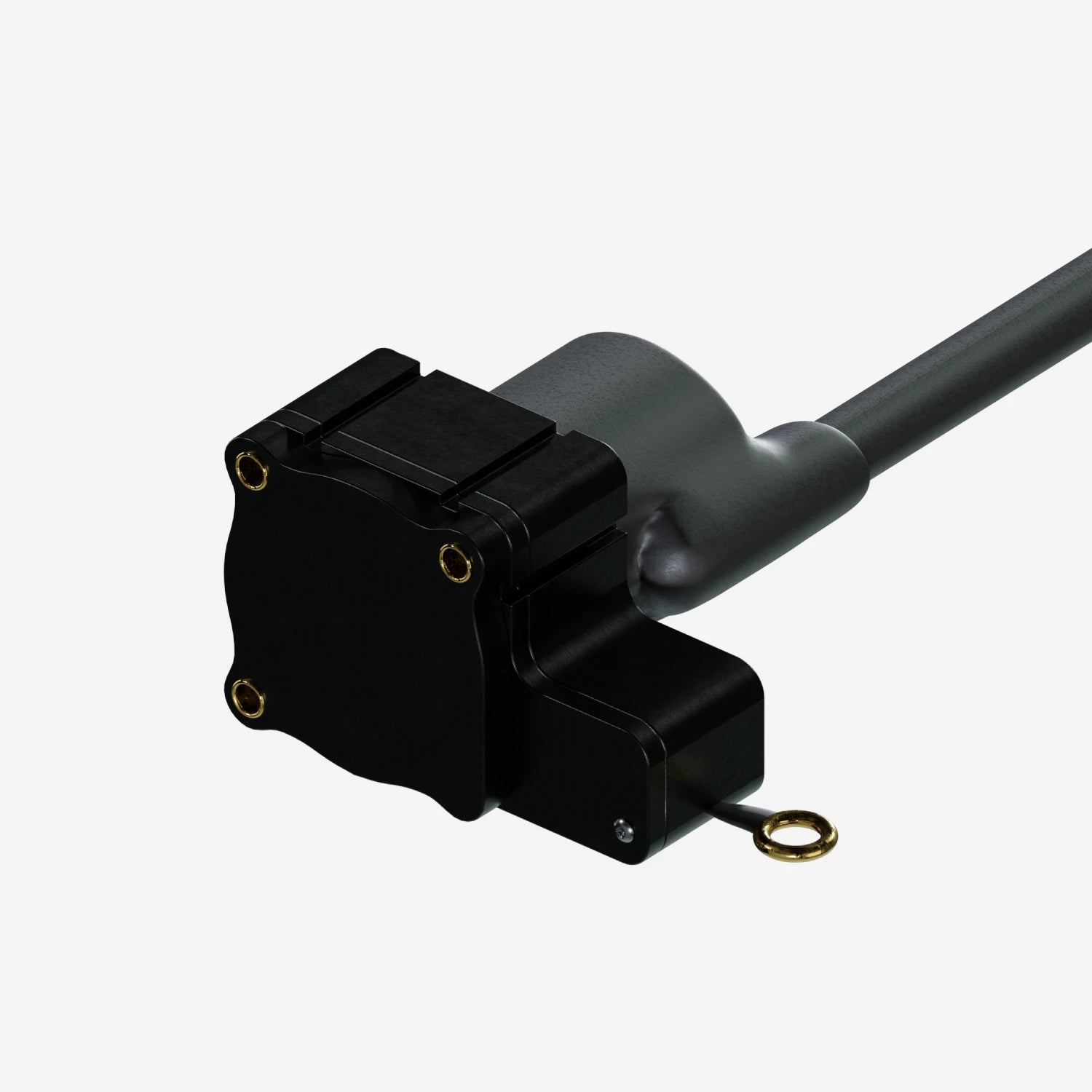

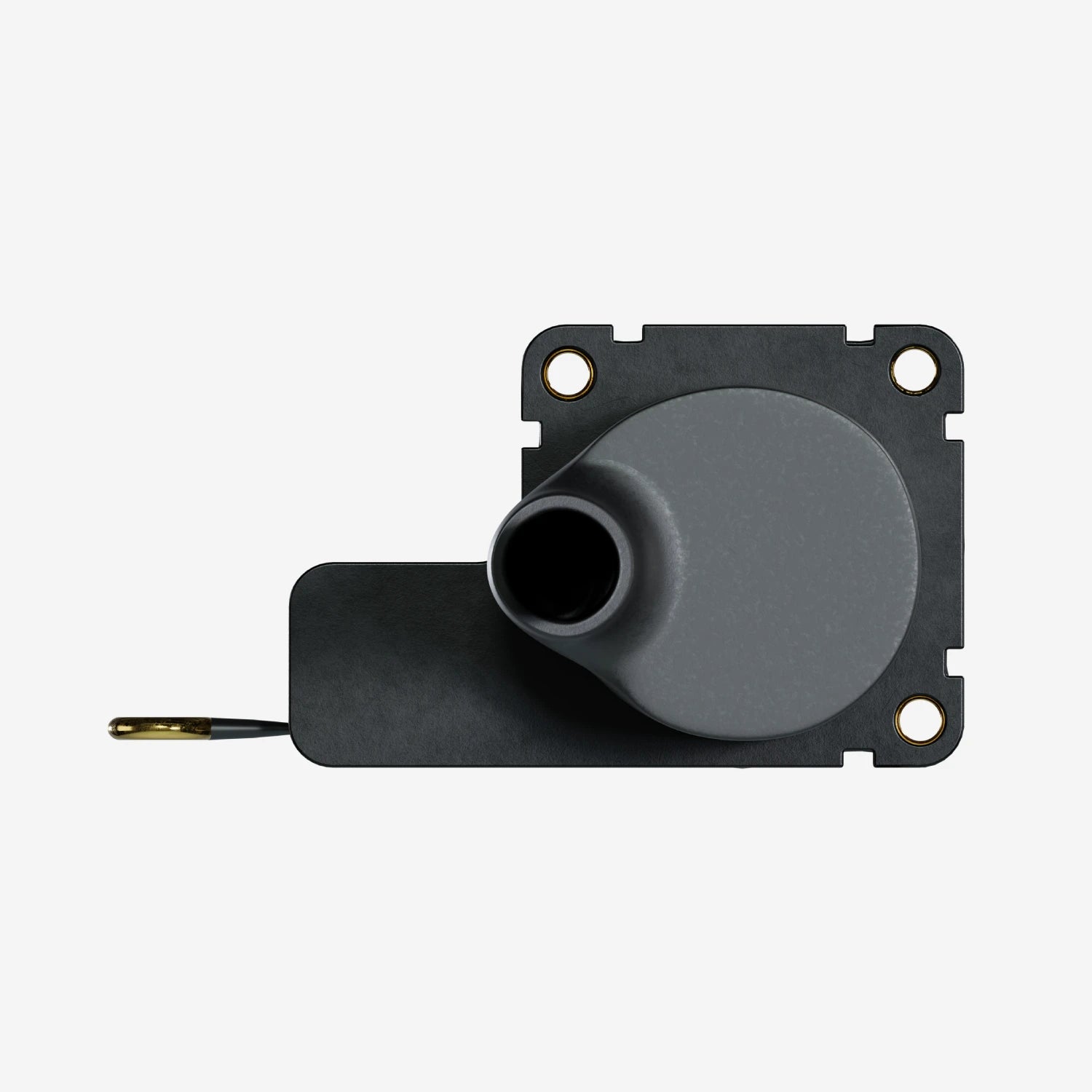

Draw Wire Position Sensor String Pot 750mm

Draw Wire Position Sensor String Pot 750mm

The draw-wire sensor offers a compact and highly accurate way of measuring displacement and position.

Key Features:

Draw Wire Position Sensor String Pot 750mm

The draw-wire sensor offers a compact and highly accurate way of measuring displacement and position.
The string pots consist of a measuring cable, a spool, a spring and a rotational sensor. The line is wound tightly around the spool, and the diameter of the spool is constant. The spring is in place to maintain the tension and retraction of the cable.

The String Pot Sensor can measure linear displacements like:
Dampers compression or extension, an excellent sensor to log on to the track to check how the suspension is performing. You can set up changes such as stiffening or loosening the suspension.

Also, string rotation is measured through the rack displacement.
Mount the sensor through three screws M2.5 DIN 931 or mounting clamps. The sensor does not have to be oriented in a particular way. Prefer an installation position with a measuring wire outlet facing downwards if possible. Choose the installation position so that damage and soiling of the measuring wire are avoided.

Technical

• • Robust plastic housing
  • Conductive plastic, wire, hybrid potentiometer
  • Smallest design in its class
  • Output: E/E830
  • Measuring Range: 750mm
  • Linearity: +0.375mm
  • Resolution: 6.7 pulses/mm - 0.15mm
  • Temperature Range: -20°c. +80°c
  • Material: Plastic
  • Wire Mounting: Eyelet
  • Sensor Mounting: Mounting holes/grooves
  • Protection Class: IP54
  • Weight: app 45g

Warnings

• • Do not open the sensor housing
  • Do not let the wire snap back without control
  • Avoid banging or knocking the sensor
  • Don't let the power supply exceed its limits
  • Fix the sensor with a drawn in measuring wire to the target
  • Do not damage the measuring wire
  • Do not oil or grease the measuring wire at an angle
  • Do not allow to loop of the measuring wire around objects

Whats in the box

1 x String pot sensor with fitting screws

Downloads

User Guide	Race Studio 3
