AiM Solo 2 DL & SmartyCam 3 GP Motocross Plug & Play Lap Timer Kit

SKU: SOLO2-K-SM-CAM-GP-2-HON-MX-PP

{{ product.metafields.descriptors.subtitle.value

通常価格
£2,210.00
通常価格
セールスプライス
£2,210.00

Shopify Planetを使用したカーボンニュートラルな配送
注文すべてでカーボンニュートラルな配送

The AiM Solo 2 DL & SmartyCam 3 GP track day kit is the ultimate tool to capture your footage and lap data. If you want to log ECU data and improve your lap times this is the kit for you.

Key Features :

Capture footage & lap data Log ECU data
Improve lap times Both have configurable displays
Real-time overlay videos Choice of lens 67°, 84°, 120°
10 configurable RGB LEDs 7 different coloured backlights

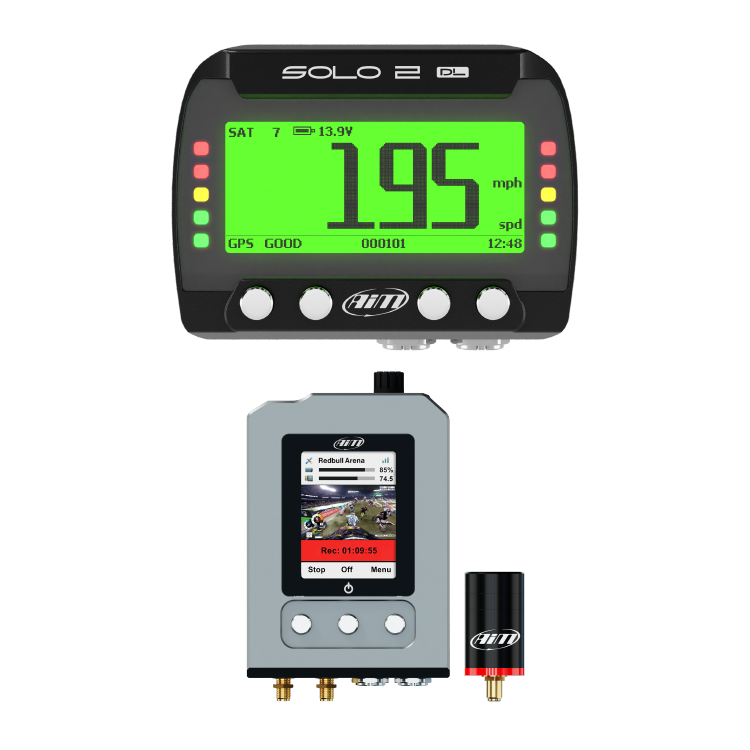

SmartyCam 3 GP & Solo 2 DL Trackday Kit

This kit is a must for competitive race testing and track days. Available with a choice of Motocross Plug & Play ECU leads, this kit combines the Solo 2 DL data logging lap timer and the SmartyCam 3 GP with a choice of three different lens options: 67°, 84° or 120°.  With this kit, you can fine-tune your parameters using Race Studio 3 software. Review your speed, engine revs, and G-force against track position which allows you to see where your lap times can be improved.

Using highly accurate GPS and Glonass technology, the Solo 2 DL lap timer provides you with key information like lap times, lap count and predictive lap times. With over 4,000 tracks already on the database from across the globe, the Solo 2 DL will automatically select the track based on your current position.

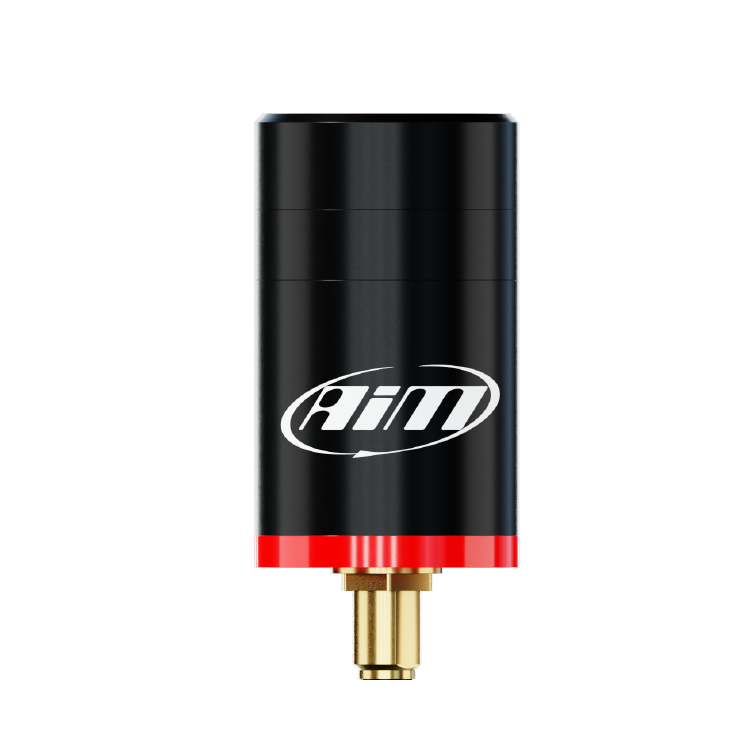

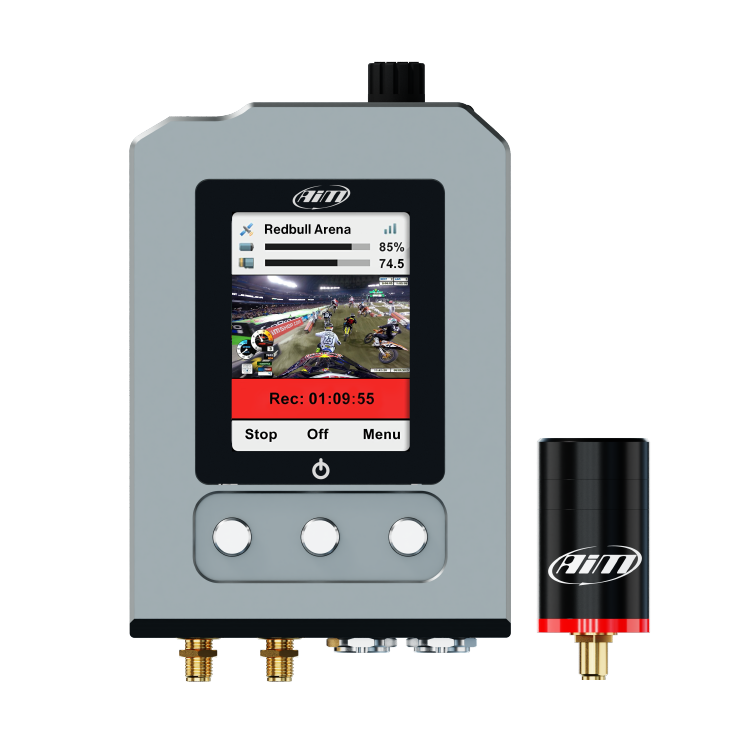

The SmartyCam 3 Dual is an incredibly compact and robust camera system, designed to provide great videos of your racing with its two bullet cameras, and include all the technical information you need to help improve performance on race and track days. The SmartyCam 3 Dual has a wide TFT colour display and intelligent settings allow the camera to automatically start/stop recording by using the inbuilt axis accelerometer, so you can concentrate on the track and not the camera.


ECU Connection

The Solo 2 DL is capable of being connected to the vehicle's ECU to obtain various data coming from the sensors you have fitted to your vehicle. Solo 2 DL manages all the hardware ECU connections as well as all the communication lines. This kit has been specifically designed for Motocross with ECU plug & play leads for Honda, Kawasaki, Suzuki, TM Racing and aftermarket ECUs GET and Microtec.

The sampled data you record depends on the actual ECU but typically includes RPM, engine load, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel). The list of ECUs is constantly updated.

We have a large range of brackets available for you to mount your recording box and bullet cam to where best suits you. Our brackets are strong and robust. Also available in the accessories tab are specially designed bar pads to mount your Solo 2 DL (sold separately).


Predictive Lap Timer

The GPS technology provides excellent reliability from the predictive lap timing function so you can see in real-time how your current lap compares to your best lap. The LEDs are also configurable to give a visual indication of whether you are quicker or slower. You can c the layout of the display to show the data you want to see.


Real-Time Overlay

The SmartyCam 3 Dual automatically overlays on your video all the data you need, including speed, RPM, lap number, gear shifts and much more. You can choose the graphical layout to suit your requirements by choosing from the many different overlays available.


CMOS Sensor & Lens

The SmartyCam 3 Dual includes a global shutter CMOS sensor and a low distortion lens with a field of view of 67°, 84° or 120° covering all areas, its 800g main unit (or bullet camera 45g) framework infallible in providing you with smooth and effortless footage.


Designed for extreme conditions

The SmartyCam 3 GP has been designed to last and work under the pressure of extreme motorsport conditions such as poor weather, strong and prolonged vibrations, continuous rain and extreme high and low temperatures. The SmartyCam 3 GP is made in machinery moulded aluminium.


Automatic Start/Stop

When you're at the starting grid the last thing you want to be doing is fumbling around with your camera. The SmartyCam 3 GP has been designed with this in mind and switches on/off automatically and starts/stops recording in the same way.

The SmartyCam 3 GP can be switched on by the logger it is connected to. Switch-off is automatic too, you decide after what period of non-activity the camera will switch off.

Recording can also be started/stopped automatically or via the keyboard. With an automatic switch-on, the camera will start recording when the speed or RPM threshold is exceeded. In this case, you can simply decide how long after dropping below the selected threshold the video will automatically stop.


Higher Storage Capacity

Generic HD cameras focus too much on pixel numbers resulting in large file sizes. The SmartyCam 3 footage has the same quality as other FHD cameras with smaller files due to H.264 compression system parameters being optimised to a perfect balance between video quality and file size. Choose between three file quality levels: One-hour recording = 4GB (High Quality), 2GB (Normal Quality) or 1.5GB (Lower quality).
The SD card housing is 100% protected from air and weathering.
SD cards are sold separately.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by the Solo 2 DL & SmartyCam and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Solo 2 D & SmartyCam 3 GP Motocross Plug & Play Lap Timer Kit

  • Display: Graphical
  • Display Resolution: 238 x 99 pixels
  • Display Pages: Up to 8 freely configurable
  • Backlight: 7 configurable RGB colours
  • Shift lights/alarm LEDs: 10 configurable RGB LEDs
  • Integrated track database: Yes
  • Inertial platform: Internal 3 axis +5G accelerometer + 3 axis gyro
  • Wi-Fi connection: Yes
  • GPS: 10Hz
  • ECU connection: CAN, RS232 or K-Line
  • External power: 12V

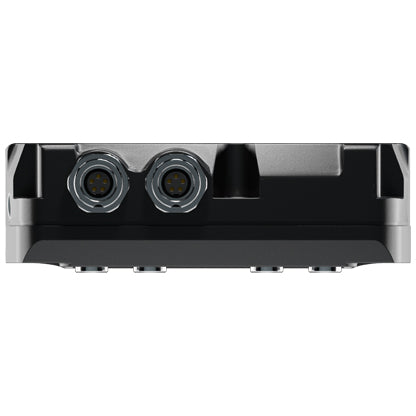

  • Connectors: 1 socket (binder) 712, 5pins, 1 socket (binder) 712 8 pins
  • Memory: 4GB
  • Battery Type: Rechargeable Lithium
  • Pushbuttons: Metallic
  • Dimensions: 98.0 x 73.3 x 30.2mm
  • Weight: 249g, battery included
  • Waterproof: IP67
  • SmartyCam 3 Dual
  • Video format: H.264 1920x1080 pixels @ 60 FPS
  • Display resolution: 2.4" 240 x 320 pixels
  • Lens: Low distortion camera lens
  • CMOS sensor: Global Shutter
  • Field of view: 67°, 84° or 120°
  • Internal battery: Rechargeable lithium battery
  • Video Out: 3G-SDI
  • External power: 9-15 Volt
  • Supports SD card: Up to 2 TB
  • Accelerometer: Three-axial ± 16G
  • Connectors: 1 Deutsch 22 pin + 1 SMA SDI Video out + 2 SMA bullet connection + 1 USB-C
  • Usage temperatures: -10°C/+50°C
  • Auto Power ON: Yes
  • Auto Power OFF: Yes
  • Auto Start/Stop Recording: Yes
  • Body: Anodised Aluminium
  • Dimensions: Main Body - 154.4x109.6 x 42mm, Bullet Camera - 24diam x 48.2mm
  • Bullet Cable Length: From 500mm to 4,000 mm (6 lengths available)
  • Weight: Main Body - 800g, Bullet Camera - 45g
  • Waterproof: IP65





AiM Solo 2 D & SmartyCam 3 GP Motocross Plug & Play Lap Timer Kit

      • Solo 2 DL
      • Mounting Bracket with screws
      • Power cable with AC adapter
      • Motocross ECU plug & play lead
      • SmartyCam 3 GP
      • External CAN cable
      • External power cable
      • Battery charger with AC power adapter
      • User Manual
      • AiM Sticker
