Aim GS-Dash & X Log Motorcycle Data Logging Kit
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Aim X Log Compact Data Logger
The Aim GS-Dash is a compact dash display that has been designed to show data sampled by the XLog datalogger, a compact, lightweight, and waterproof data logger that records everything you need, with advanced GPS, built-in inertial platform, and wide expansion options.
Why Choose the X Log Data Logger
The Aim X Log data logger is essentially a Solo 2 DL without the screen: offering the same logging power, precision, and expandability in a smaller, lighter package. For riders, racers, or anyone working with limited space but still demanding full-scale data analysis, the X Log is the perfect solution.
It provides a powerful solution for anyone who wants to capture and analyse their performance data without needing an on-board display. It integrates GPS lap timing, ECU data logging, acceleration and gyro measurements, and expansion support in a rugged unit that’s smaller than the palm of your hand.
GS-Dash
The compact dimensions of the GS-Dash make it particularly suitable for motorcycles. Manufactured in aluminium with edge-to-edge glass and metallic push buttons, the Aim GS-Dash is robust and fully waterproof.
It displays racing data from the bike’s ECU, from the accelerometers, GPS and any custom sensors, and it features connectivity with the XLog with minimum effort.
X Log Features
The X Log calculates and records:
- Lap times
- Sector times
- Vehicle position and speed
- 3D acceleration and gyro
- ECU data via CAN, K-Line or RS232 connections.
(You can select the protocol of your car/bike among thousands of pre-defined protocols, or easily develop your own) - Digital RPM input from the primary of the coil (150-400V) or from a square wave (8-50V) when no ECU connection is available.
In addition, the X Log features a second CAN for connecting external device or Aim Expansion, meaning you can add a Lambda Controller, analogue inputs, and a professional motorsport camera for enhanced functionalities.
Suspension Potentiometer
The Suspension Potentiometer sensor allows you to measure linear displacements such as dampers compression or extension, and steering rotation measured through the rack displacement.
The Suspension Potentiometers are available with a rose joint or a pop end.
Brake Pressure Sensor
The brake sensor pressure allows you to detect fluid and air pressures. It offers a high level of reliability and endurance and is protected against the high vibration, shock and high temperatures found in motorsport.
These brake pressure sensors are available in a range of sizes as well as PSI and Bar variants.
Display, Configurable Pages & Lap Times
The GS-Dash can be backlit in one of eight available colours; it also features an ambient light sensor that makes brightness and contrast ideal in all light conditions.
The GS-Dash can also swap among pages showing lap times and data in a customisable way to suit your needs. Choose the data and create pages displaying up to eight fields in each. You can visualise the rolling time or static or predictive lap time (as an absolute value or as a difference vs. the best lap.)
Alarm LEDs are managed in a very flexible way. You can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch off. A warning message can also be shown.
GPS & Inertial Platform
- GPS Technology: Tracks position and speed at 25Hz using four satellite constellations (GPS, GLONASS, BeiDou, Galileo) with <0.5m precision.
- 6-Axis IMU: Records 3D accelerations and angular velocity at 100Hz, allowing in-depth analysis of braking, acceleration, and chassis behaviour.
- Lap Timing & Sectors: Automatically recognises track layouts, samples laps and sectors, and provides all the raw data for Race Studio 3 analysis.
X Log Connectivity
The X Log is designed to connect seamlessly to your vehicle and your data analysis workflow:
- ECU Connection: Supports thousands of predefined CAN, RS232, or K-Line protocols, or you can build your own protocol via CAN builder.
- Second CAN Option: Configure for Aim expansions, or connect additional sensors and third-party CAN devices.
- Wireless: Integrated Wi-Fi and Bluetooth for fast, cable-free data transfer.
- USB-C & Memory Key: 4GB internal memory plus a removable 16GB USB-C key for quick access.
Compact, Durable Design
Measuring only 72.3 × 65.3 × 30.3mm, the X Log is compact to fit in even the tightest cockpits. Its rugged, waterproof housing ensures reliable operation in all conditions. With a built-in rechargeable lithium battery (up to 10 hours) and support for an external 8–16V supply, the X Log is built for trackside convenience.
Analyse with Race Studio 3
All data logged by the X Log can be downloaded wirelessly or via USB-C, then reviewed in Aim’s professional Race Studio 3 software.
Analyse lap times, sector times, GPS maps, accelerations, engine data, and video (when paired with a SmartyCam 3) to improve your performance and understand your vehicle in detail.
Histograms, XY view, diagrams, maps, and videos recorded with SmartyCam 3 are automatically synchronised for better comparison.
Expand Your System
The X Log features a second CAN for connecting an external device or Aim Expansion, meaning you can add a Lambda Controller, analogue inputs, and a professional motorsport camera for enhanced functionalities, on top of the 8-piece kit you will receive standard.
Integrate the Data Hub and ACC3 that come in the kit to sample data coming from temperature, pressure, suspension and other sensors; you will also be able to integrate a SmartyCam 3, sold separately, taking your data to the next level by incorporating synchronised video footage to overlay the data recorded by the XLog data logger onto your footage post-session with Race Studio 3, as well as the LCU-One Lambda Controller which captures air/fuel ratios and exhaust data for tuning and performance optimisation.
Technical Information
Technical Specs
Diagram
Included in the Box
GS-Dash with Spiral Cable
X Log
x2 Suspension Potentiometers
ACC3
Pressure Sensor M10
Brake Pressure Sensor Adaptor
ACC 4 Channel Harness
Connection Multiplier
Extension Cables
-
Free Aim Software
Downloads

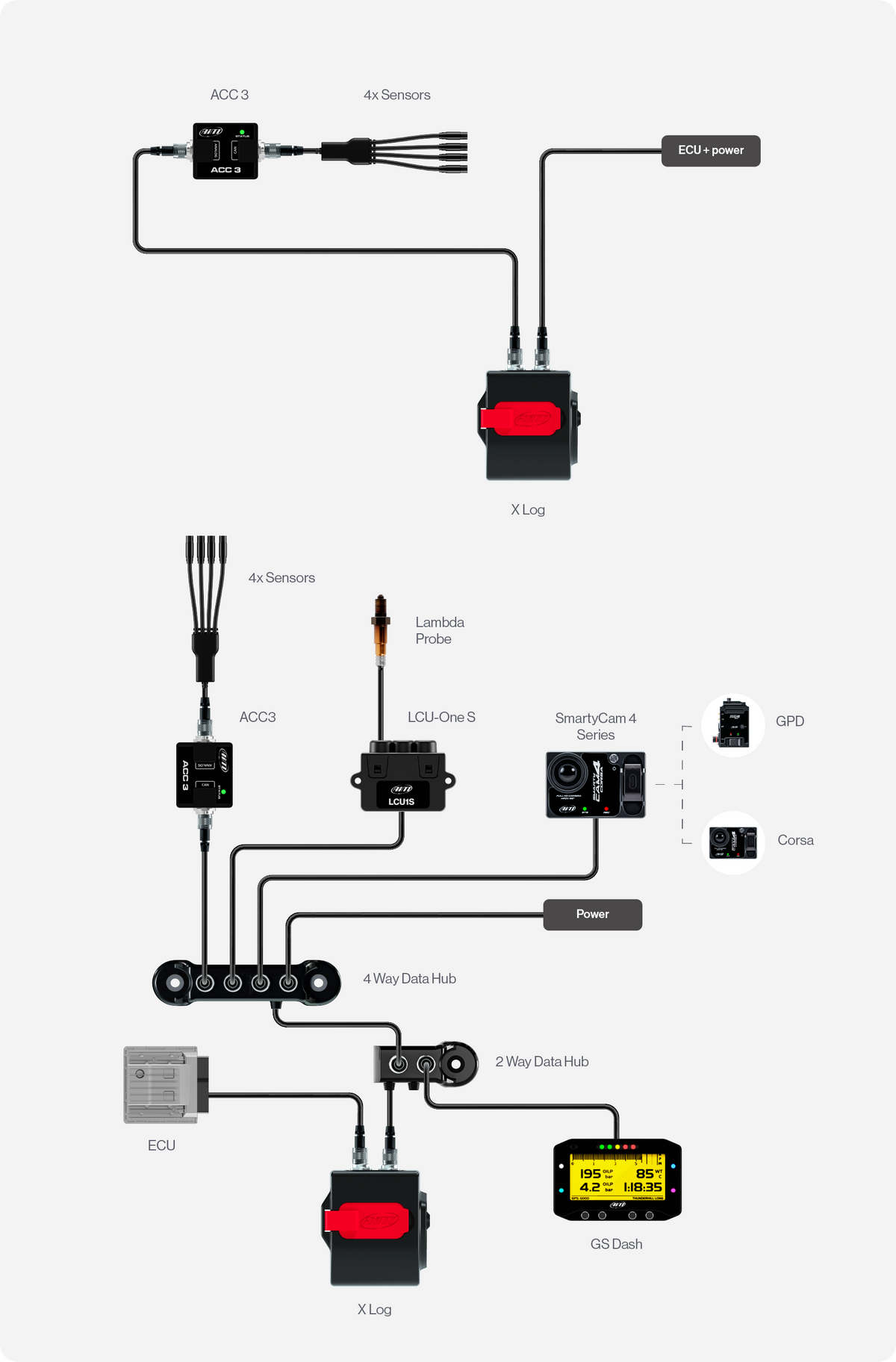

Connection Example
