Link M10 140 Bar Pressure Sensor
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Link 140 Bar Pressure Sensor
The Link high-pressure sensor for liquid is used for things like fuel, clutch, brake etc.
Why Choose the Link M10 140 Bar Pressure Sensor
The Link M10 140 bar pressure sensor provides accurate measurement of high-pressure systems up to 140 bar (2030 PSI). It features an M10x1 thread with a 45-degree cone seat for a secure, leak-free connection. Supplied with a mating connector kit, it ensures straightforward installation and dependable performance in demanding environments.
Technical Information
Technical Specs

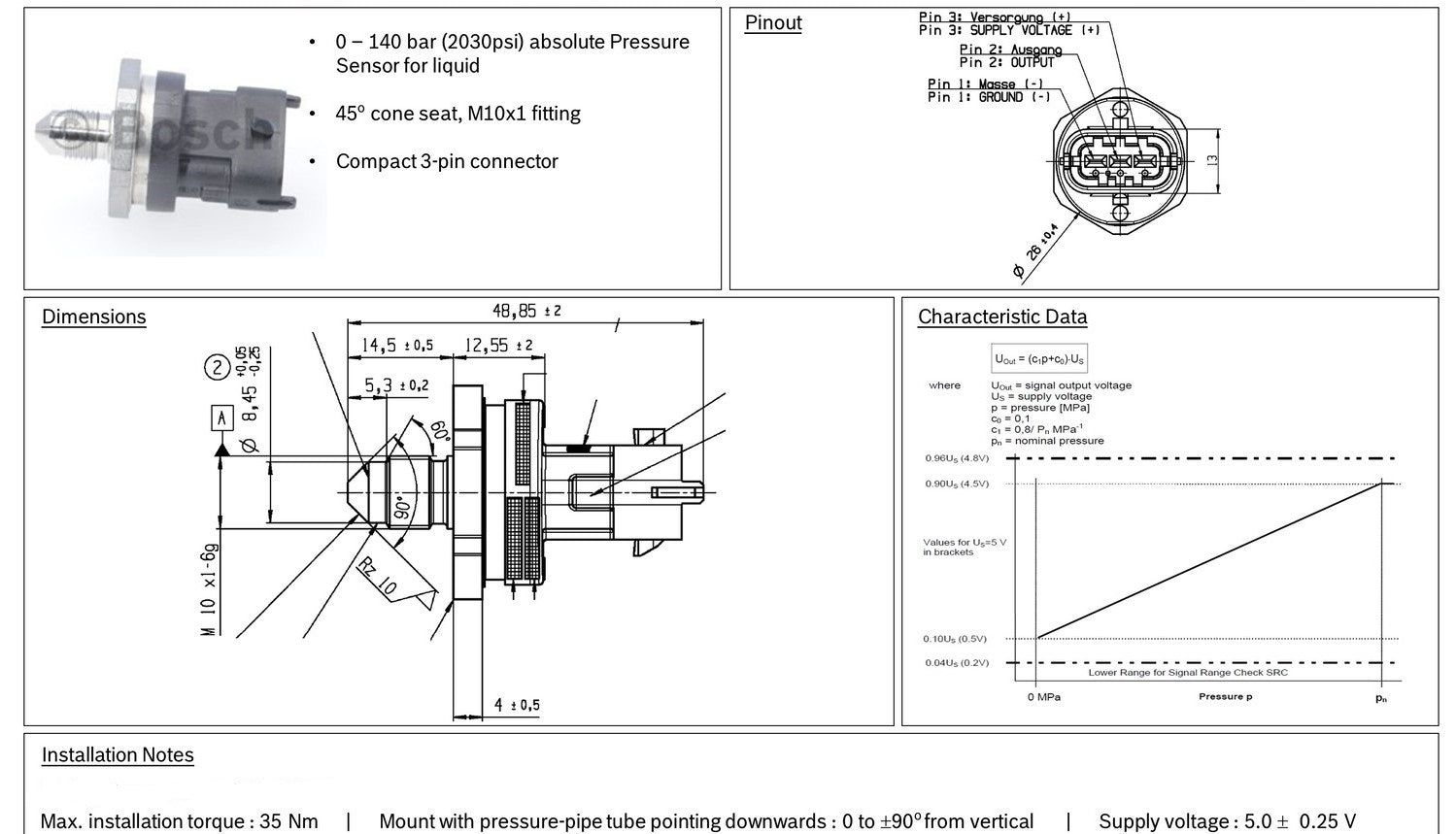

Diagram
Included in the Box
Pressure Sensor M10

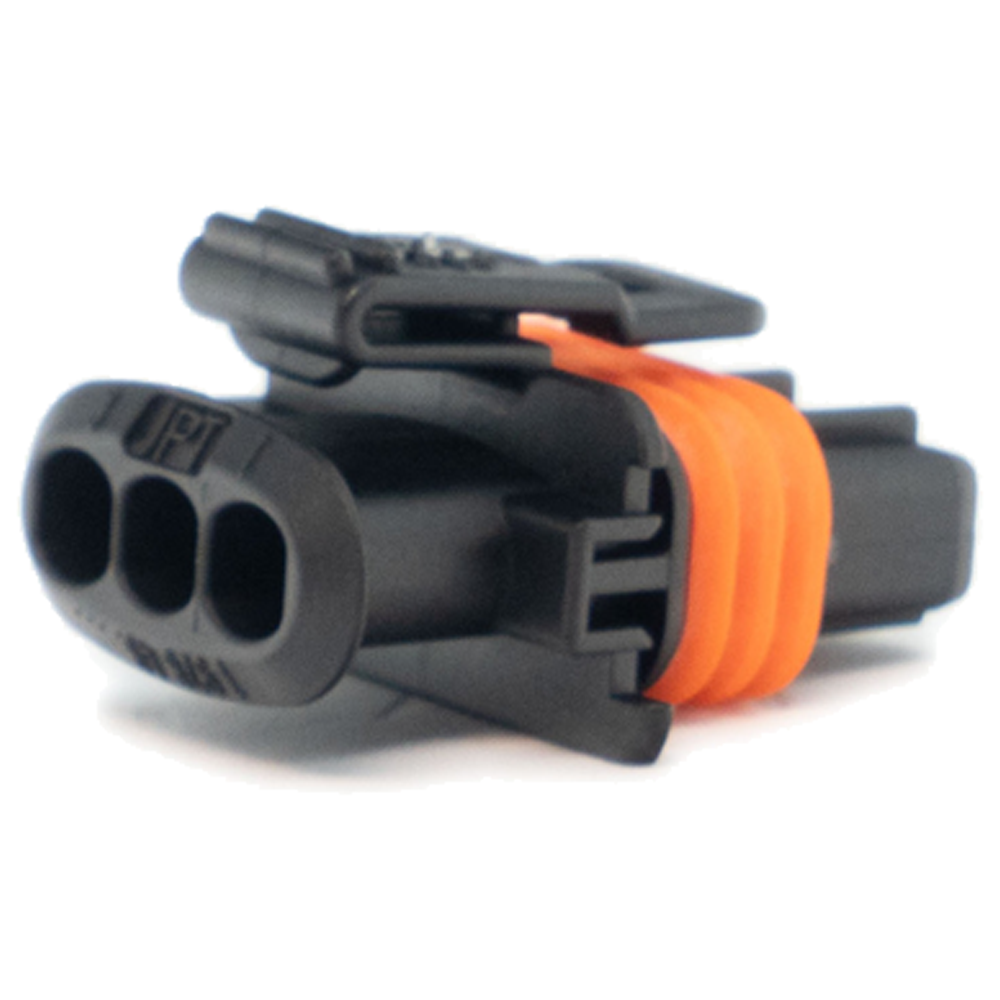

Mating Connector Plug

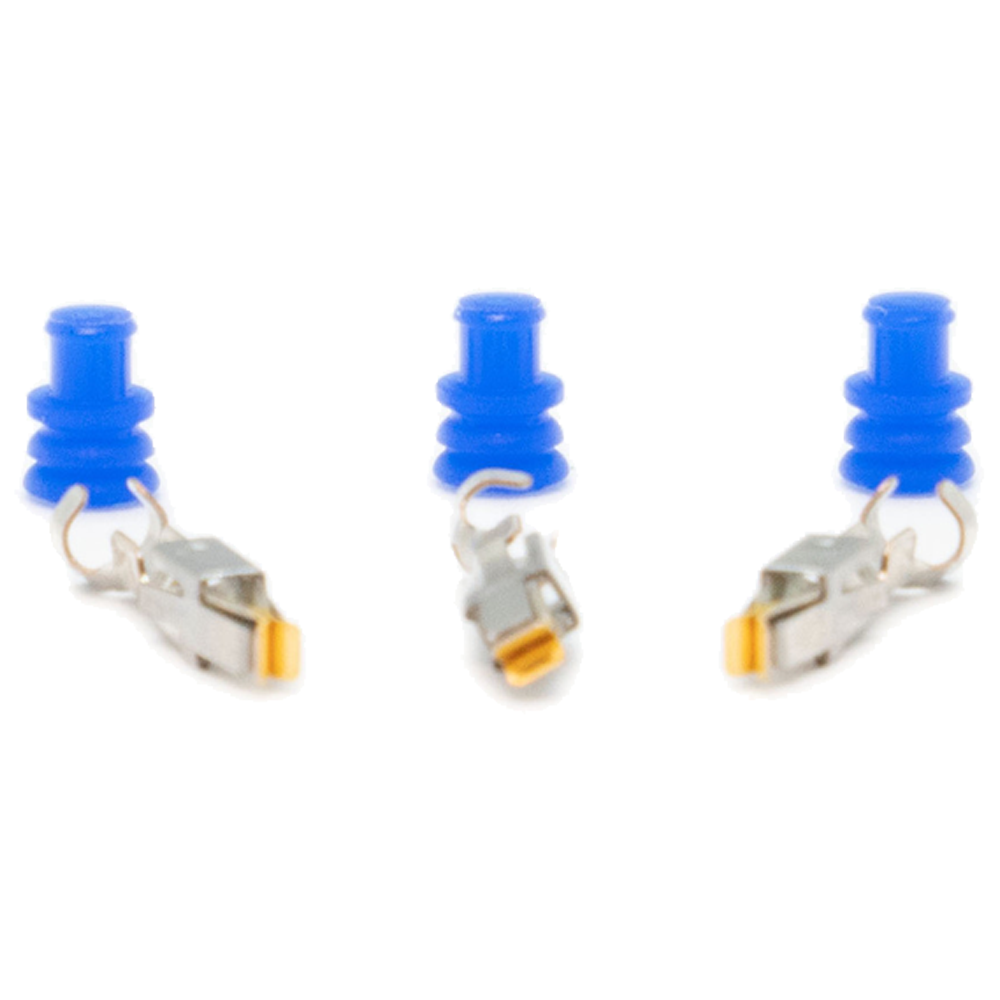

Mating Connector Pins
-
Free Aim Software
Downloads
