PDM Heavy Duty Amphenol Power Connector

PDM Heavy Duty Amphenol Power Connector

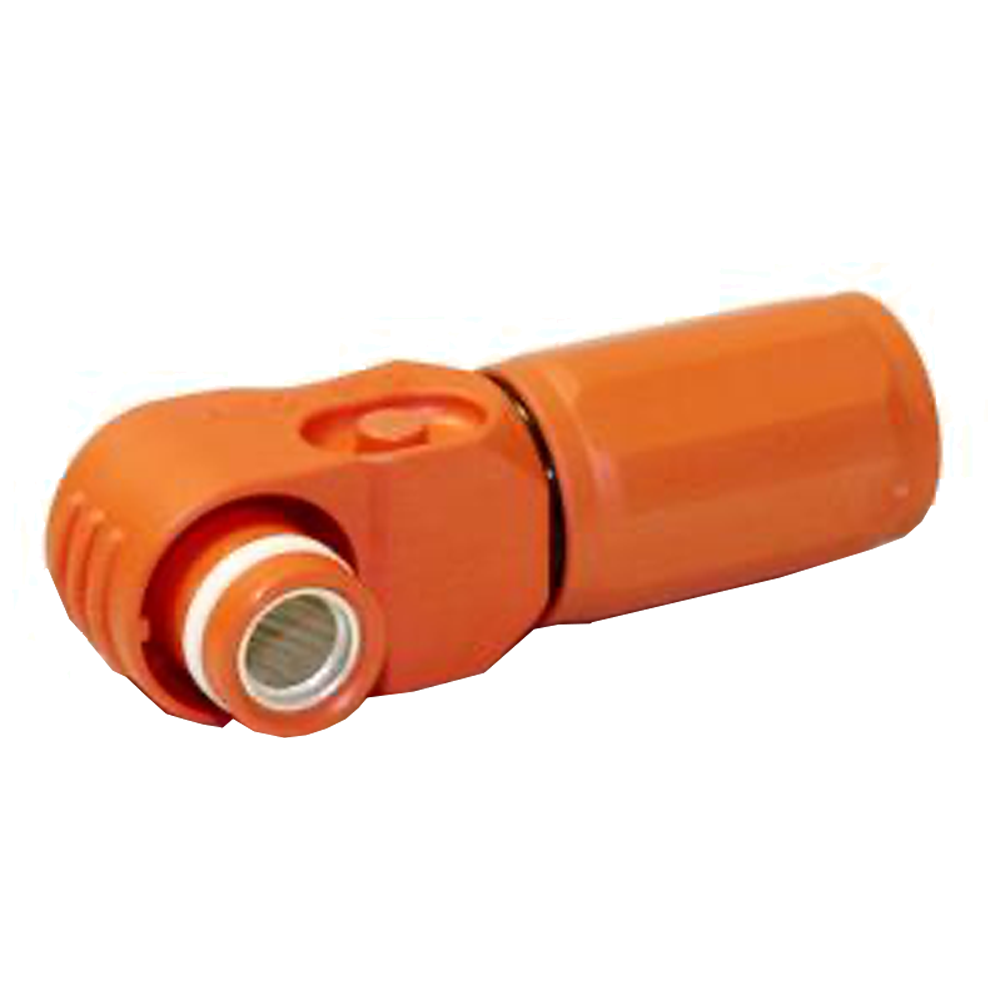

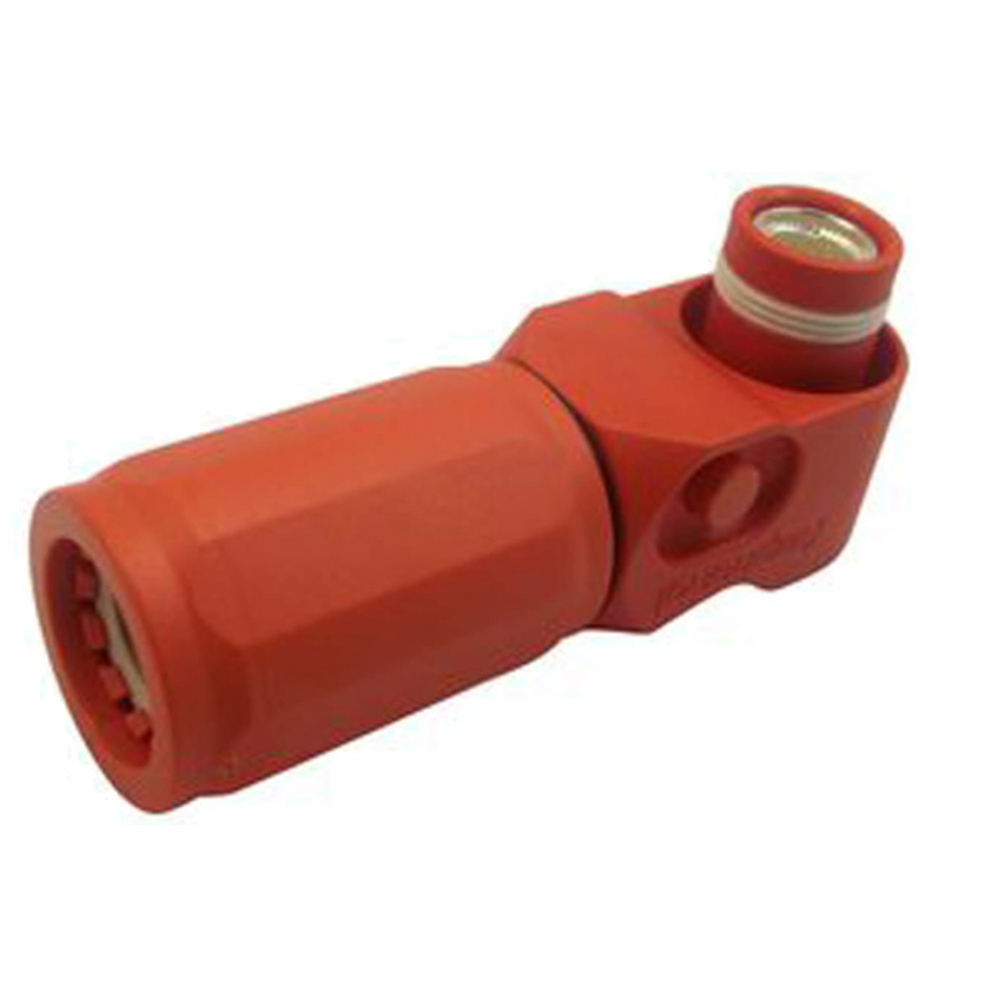

This plug for the PDM is a compact and quick mating compression lug that features a quick lock and press to release connection.

Key Features :

PDM Heavy Duty Amphenol Power Connector

This plug for the PDM is a compact and quick mating compression lug that features a quick lock and press to release connection. Robust and environmentally sealed, the plug is field installable and highly reliable. PDM compact and quick mating compression lug.

Plug rotates 360°
Touch Proof
Spring Locking
Keyed to prevent mismating
IP67

Technical

PDM Heavy Duty Amphenol Power Connector

• Cable entry angle: Right
• Connectors: Heavy-duty power connectors
• Current rating: 120 A
• Housing gender: Male
• Mounting style: Panel
• Number of positions: 1 position
• Series: SurLok
• Termination style: Busbar
• Voltage rating: 1 KV

What's in The Box

PDM Heavy Duty Amphenol Power Connector

• 1 x Heavy Duty Amphenol Power Connector
