Aim 37-Pin Deutsch Harness for EVO5 / EVO6
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Deutsch Harness for EVO Loggers

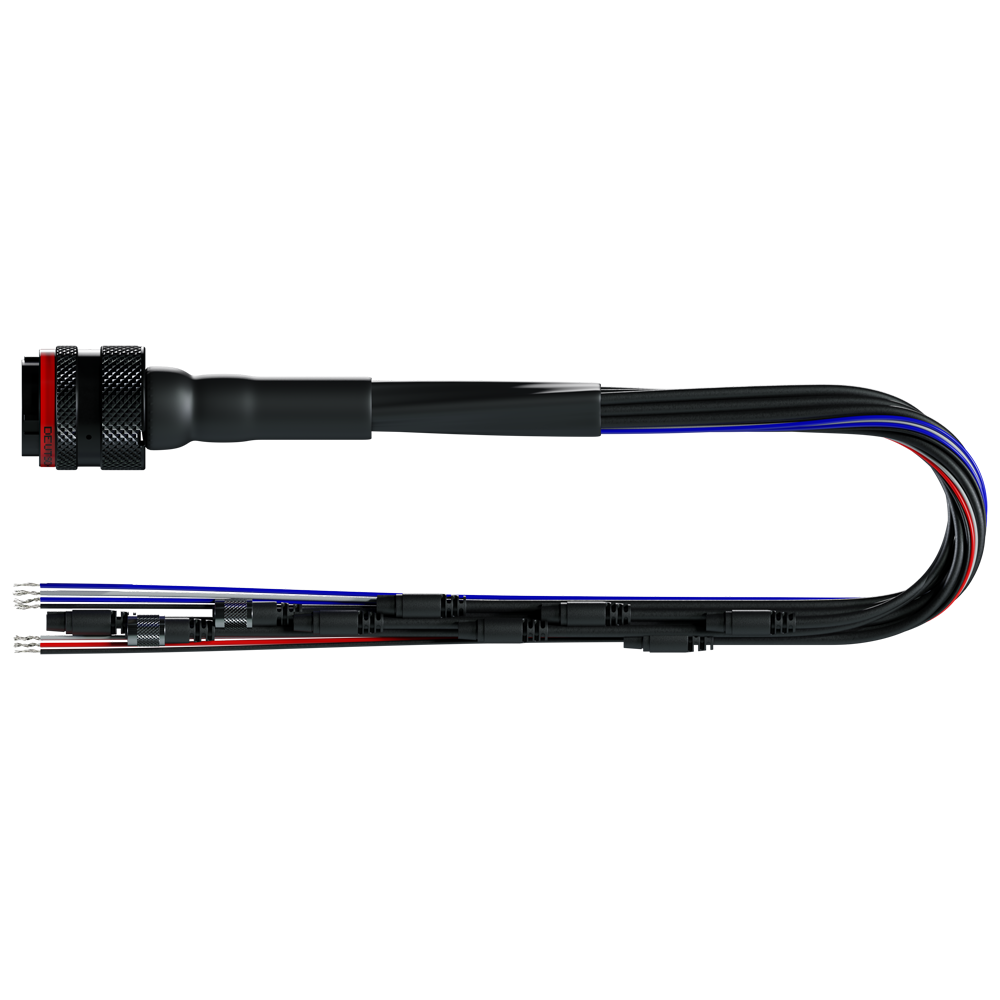

The Aim 37-Pin Deutsch Harness is the standard harness that comes with the Aim EVO5 / EVO6 Data Logger. The 37-Pin Deutsch Harness includes a 37-pin Deutsch female flying connector, 4-pin 719 female binders, 5-pin 712 female binders and non-ended cables. It connects into the 37-pin socket on your EVO5 / EVO6 Data Logger, giving you access to analogue sensor channels (1-4), CAN expansion, Power+, Ground-, CAN ECU connection and K-Line.
Why Choose the Aim 37-Pin Deutsch Harness
The Aim 37-Pin Deutsch Harness is designed to work with Aim EVO5 / EVO6 Data Loggers in race or track vehicles. When combined with the optional 22-Pin Deutsch Harness, both harnesses can offer additional analogue channels and advanced functions in a compact, motorsport-ready package.
The standard 37-Pin Harness that comes with the logger supports 4 primary analogue channels, including water temperature, oil temperature, oil pressure and brake pressure. Using the 22-pin harness, you can add 4 more analogue channels (sensors), including steering angle, throttle position, gearbox and differential temperature.
Technical Information
Technical Specs

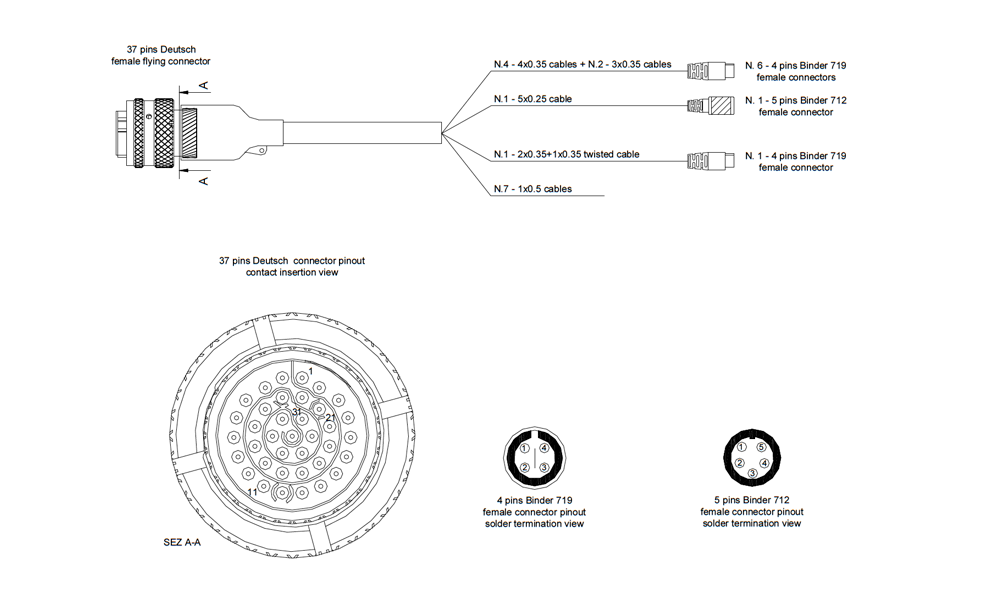

Pinout
Included in the Box
37-Pin EVO Deutsch Harness
-
Free Aim Software
Downloads
