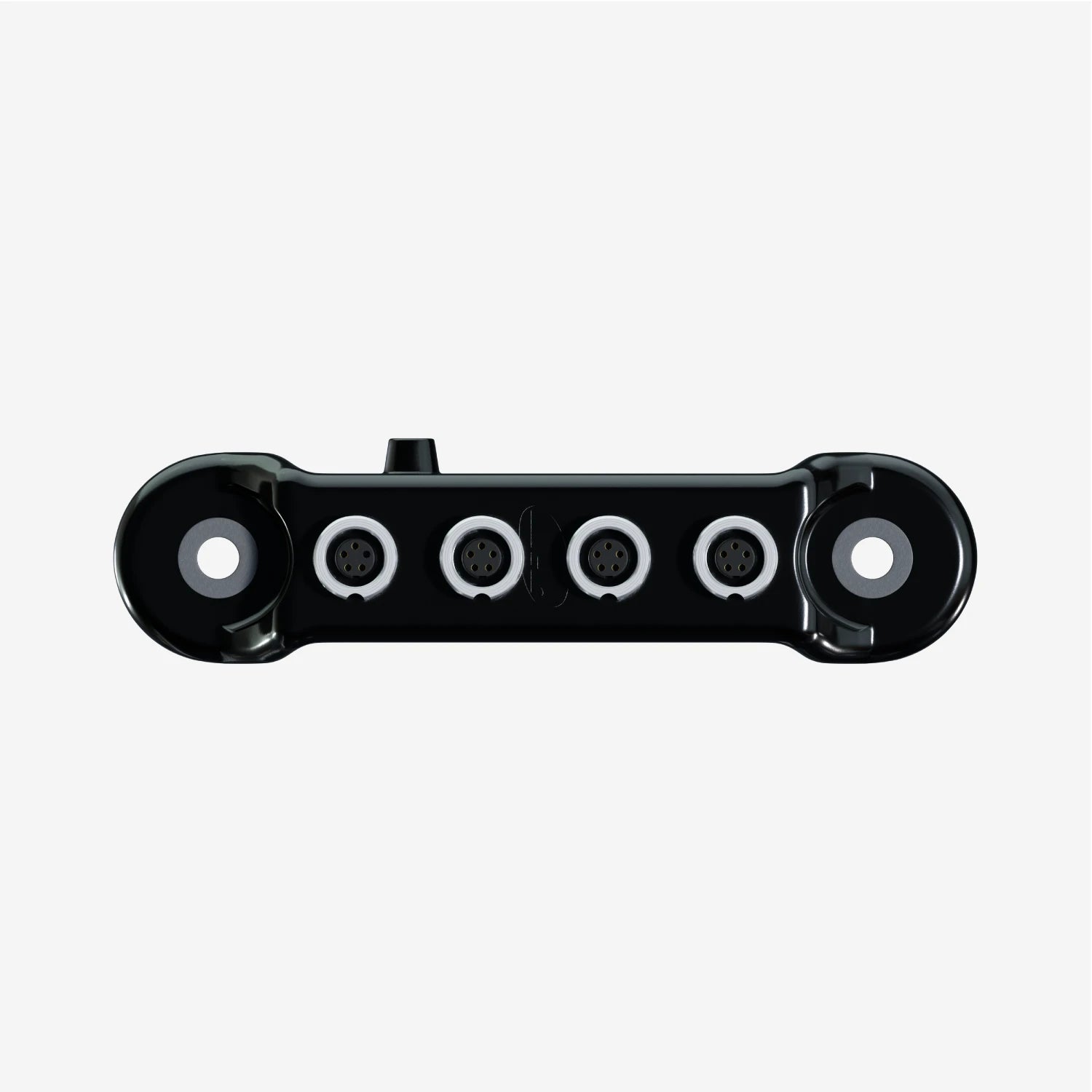

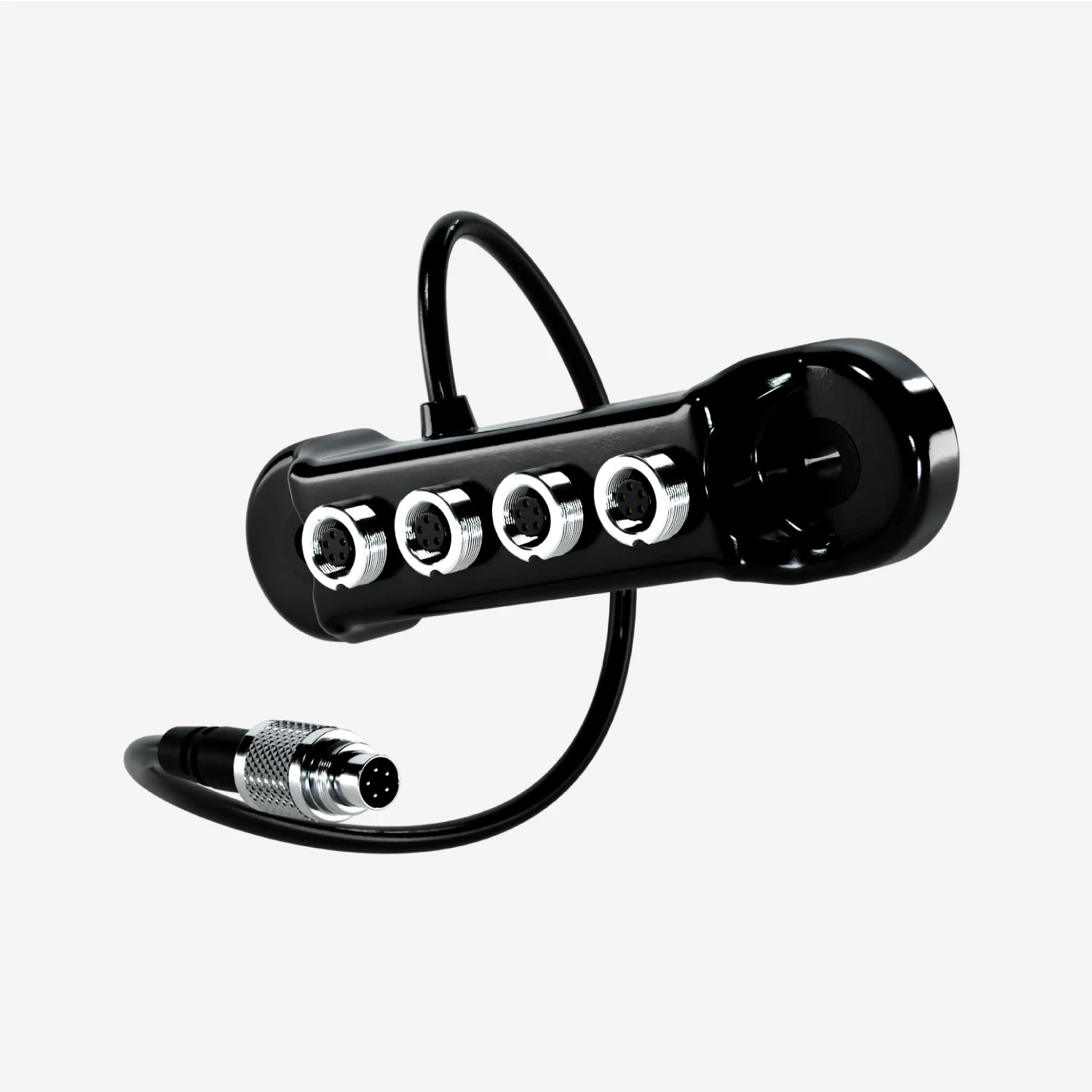

AiM Four-Way Data Hub CAN Connection Multiplier

SKU: CAN-M-40

{{ product.metafields.descriptors.subtitle.value

通常価格
£65.00
通常価格
セールスプライス
£65.00

+ VAT (UK Only)

Shopify Planetを使用したカーボンニュートラルな配送
注文すべてでカーボンニュートラルな配送
Shopifyが提供するPlanet

AiM Four-Way Data Hub CAN Connection Multiplier

The AiM four-way Data Hub provides a CAN channel and works as an interface between our AiM loggers and sensors.

Key Features :

Five pins 712 male Binder Four-way hub
CAN connection Build a network


Four-Way Data Hub CAN Connection Multiplier

The compact Data Hub provides four additional CAN channels and works as an interface between the AiM logger and its peripheral devices and accessories. Such as the LCU Lambda Controller, GPS Module, TC Hub (thermocouple multiplier), Memory key and SmartyCams.

Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring.

The four-way Data Hub takes all the information you need to your logger with only one cable, minimizing wires overall.

You can connect more Data Hubs to build a network. You can see it in the image below.

You can use the four-way Data Hub with our MX series dashes and loggers powered by the vehicle's 12V onboard battery supply.

Our Data Hubs are also available in the following versions and are in the accessories tab.

Two-way data hub with external power leads
Two-way data hub

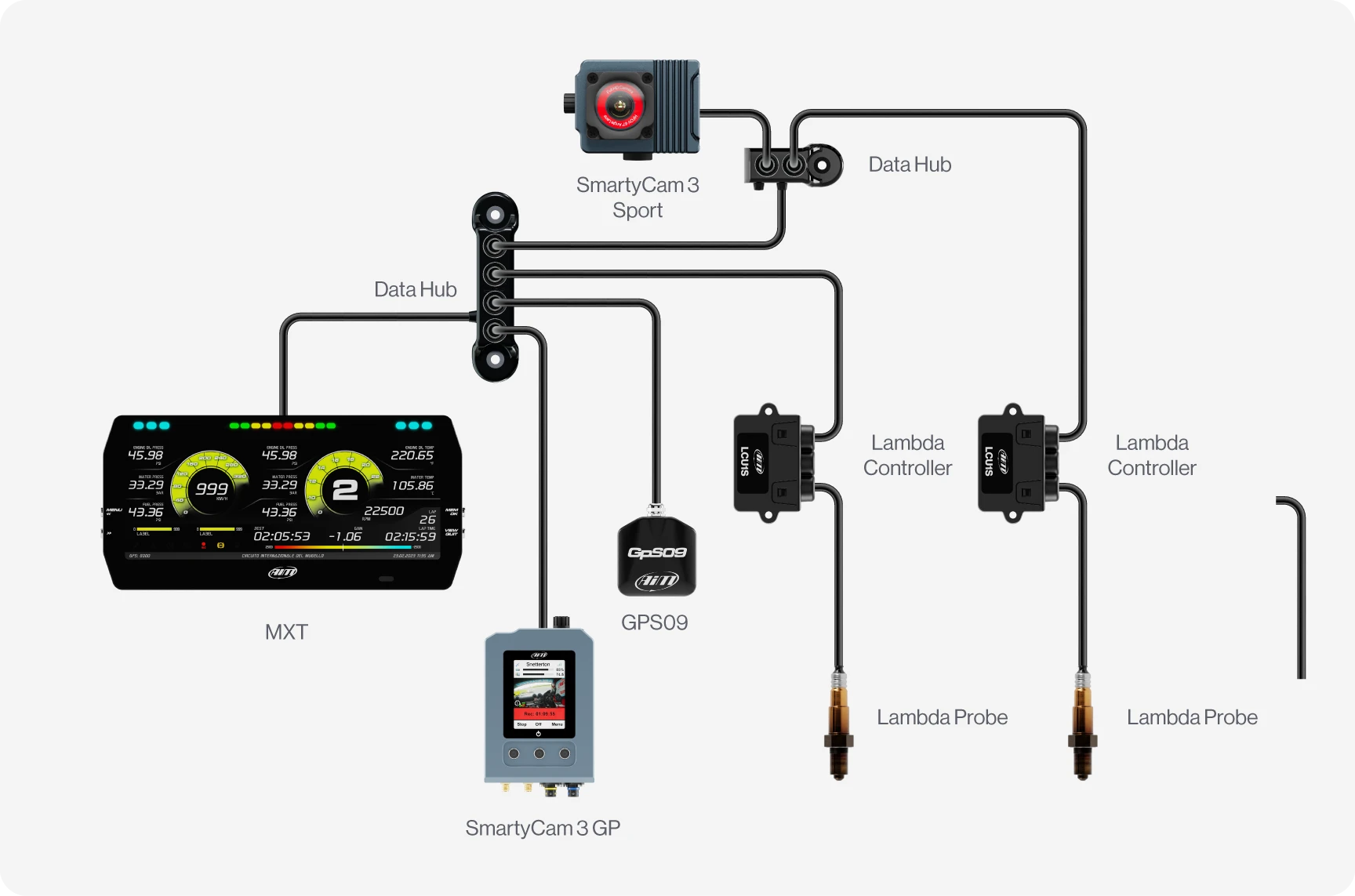

Connection Example

These are some devices that can add extra data to your vehicle for incrementing performance and data.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Four-Way Data Hub CAN Connection Multiplier

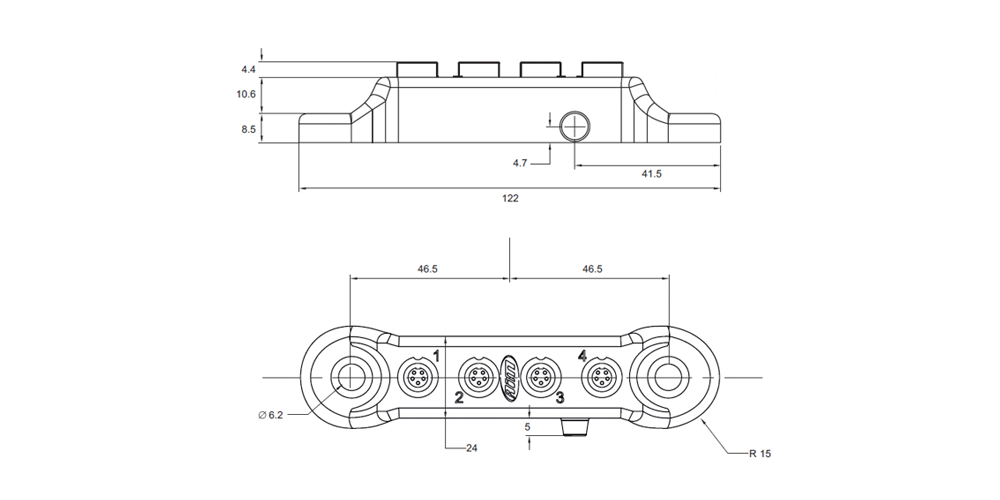

  • Dimensions: 123 x 30 x 23.5mm
  • CAN cable length: 40/150cm
  • Weight: 97g
  • Waterproof: IP65

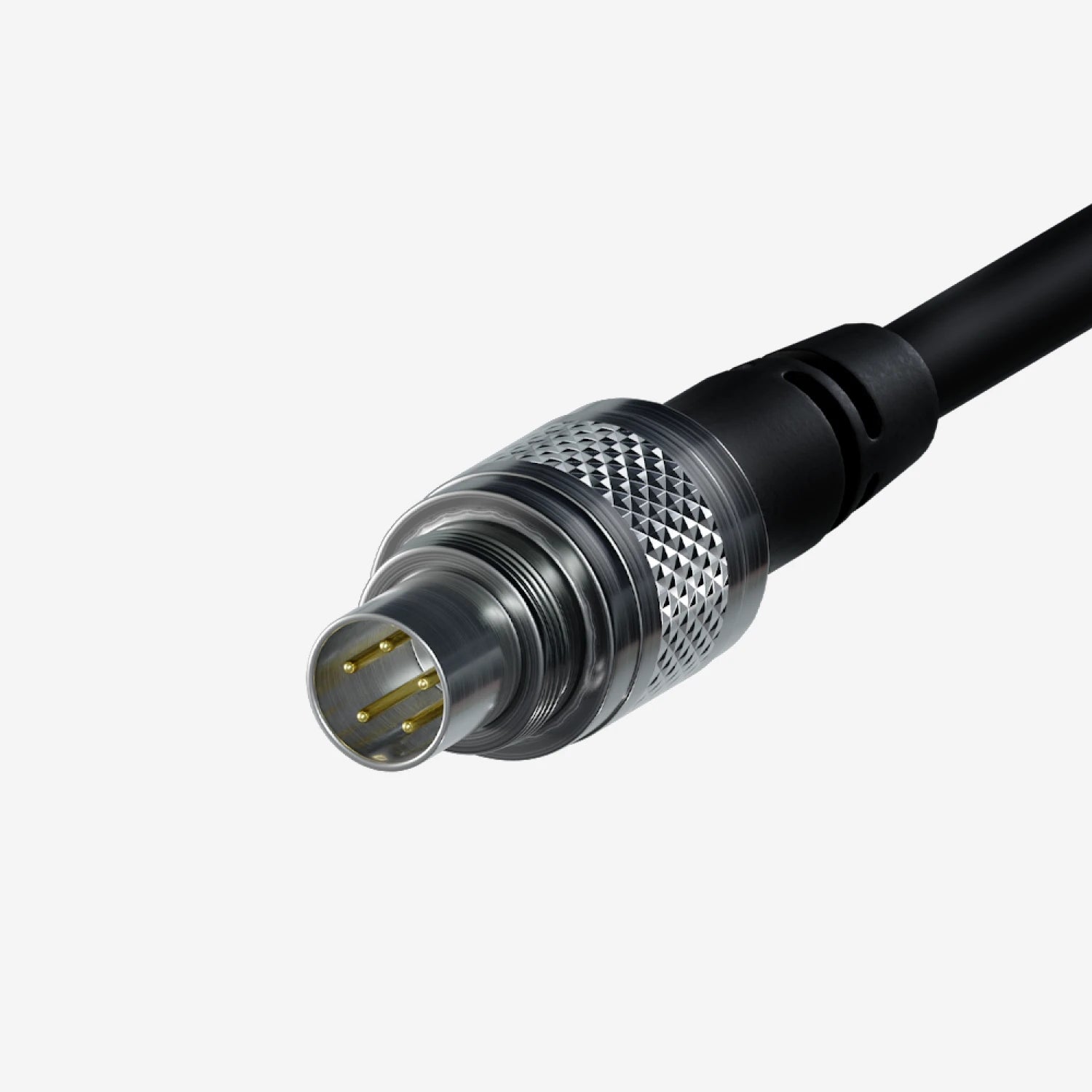

  • Five pins 712 male Binder connection







AiM Four-Way Data Hub CAN Connection Multiplier

  • x 1 Four-way Data Hub
