The Aim Taipan universal extension cable has been specifically designed to allow connection of various ancillary systems to the Taipan ECU.
Key Features :
UC bridge extension cable
2m or 4m length
Handlebar Switch extension cable
JST Connector - 04R-JWPF-VSLE-S
Aim Taipan Accessories
The Aim UC Bridge extension cable has been manufactured to connect the Taipan ECU to the UC bridge and/or the Handlebar Switch
The patch lead is connected to the JST connector on the Taipan ECU and is available in two lengths 2m or 4m.
Below shows a functional diagram of products that can be added to the Taipan ECU:
UC Bridge - Optional Extra
The UC Bridge is the connection between the CAN bus of the ECU and the USB port of your PC. It is available in 2 different licenses:
User License:
A Taipan ECU comes with some basic maps that already give you better performance than the stock maps. Highly professional tuners all over the world offer specific maps that better fit your requirements, managing, for example, different exhaust, two injectors etc. The UC Bridge is required for two functions: - Transfer new and different maps to your ECU through the User License UC Bridge. - Receiving diagnostic information from the Taipan ECU. Tuner License:
With this license, the tuner can create different maps, configurations and strategies designed for the rider's bike. The tuner can then flash them directly onto the ECU or send them via email to allow the rider to download and install them in the ECU. *Please Note: For information regarding the UC-Bridge Tuner, please contact one of our Aim technical team for further information.
Taipan ECU Connections - Optional Extra
The Taipan ECU has 4 connectors :
Main Connector - Compatible with most off-road bikes. CAN Connector - Connects to the Handlebar Switch and Data Logger. 2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC. 3rd Connector - Connect to spare analogue inputs and to a possible second injector.
Aim Handlebar Switch - Optional Extra
The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings:
Up to 5 selectable maps
Apply fuel corrections
Activate traction control
Activate launch control
The handlebar switch can also be used as a shift light module.
Technical

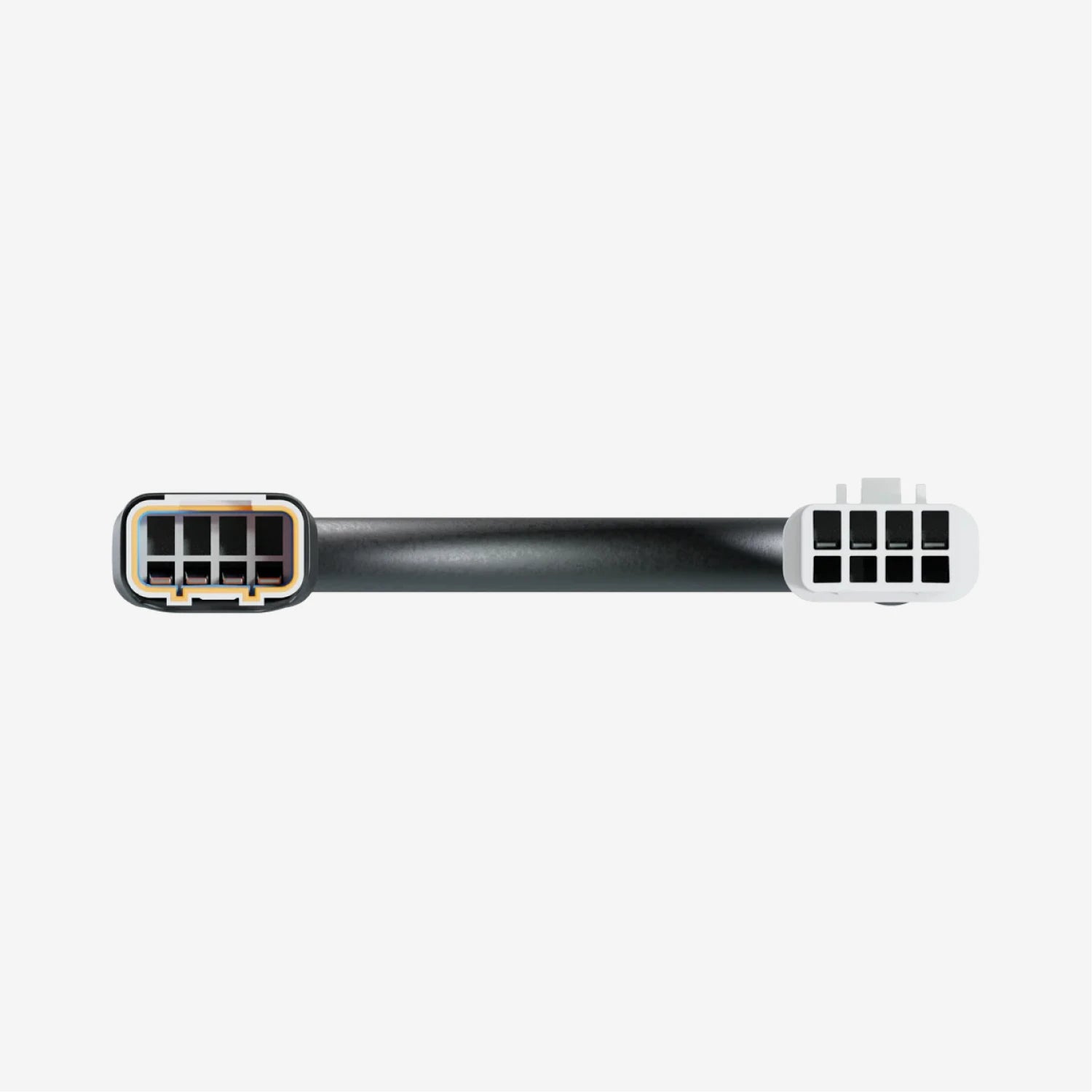

Aim Taipan Universal Patch Lead
UC Bridge and/or Handlebar Switch extension cable
Length: 2m or 4m lengths available
Connects from Taipan ECU to UC Bridge and Handlebar Switch
JST Connector - 04R-JWPF-VSLE-S
What's in The Box
Aim Taipan Universal Patch Lead
Universal Patch Lead in 2m or 4m lengths available at checkout
