Aim 37 Pin Deutsch Harness
The Aim 37 pin Deutsch Harness is the standard harness supplied with our MX Series Dash Loggers.
Key Features :
| Suitable for MXS, MXP, MXG & MXm |
Standard harness |
| 37 pin harness |
|
37 Pin Harness for the MX Series

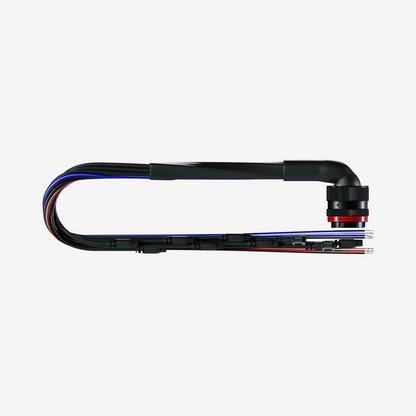

The Aim 37 pins harness is the standard harness that comes with the MX Series Dash Loggers - MXS, MXP, MXG & MXm.
This harness can be used to replace a damaged harness or for a second vehicle installation when sharing a dash logger.
The Aim 37 pins Deutsch harness functions are listed below:
Analogue sensor channels (sensors) 1, 2, 3, 4
Digital wheel speed channel 1
Optical lap timing sensor output
CAN expansion
Power+
Ground-
CAN ECU connection
K-Line connection
Please Note: If you wish to add extra race data, then you will need the 22 pin Deutsch harness. This will add four more analogue channels (sensors). Available in the Accessories Tab.
Also available is our 37 pins Deutsch harness with a thermocouple connector. These are available with 1 or 2 thermocouple connectors and will enable you to connect thermocouple sensors.
Expand Your System
These are some of the items that can be added to your car to improve performance and data.
Technical
Aim 37 Pin Deutsch Harness For MX Series

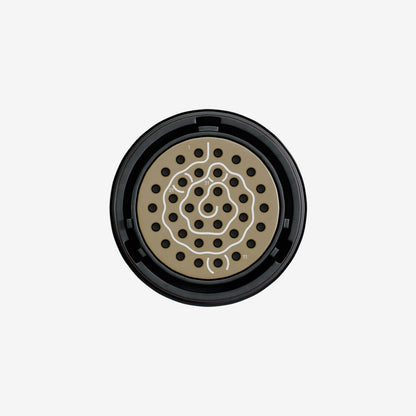

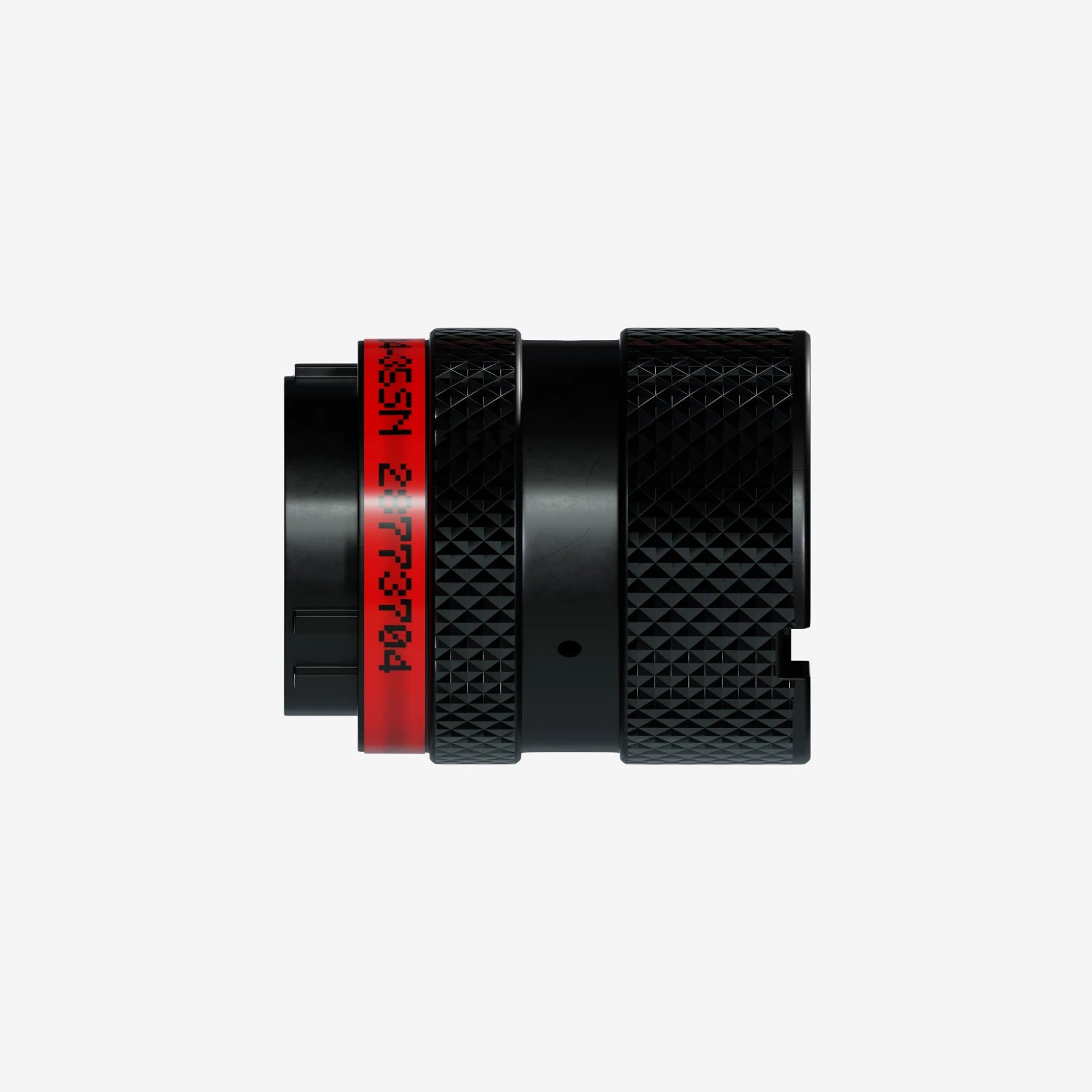

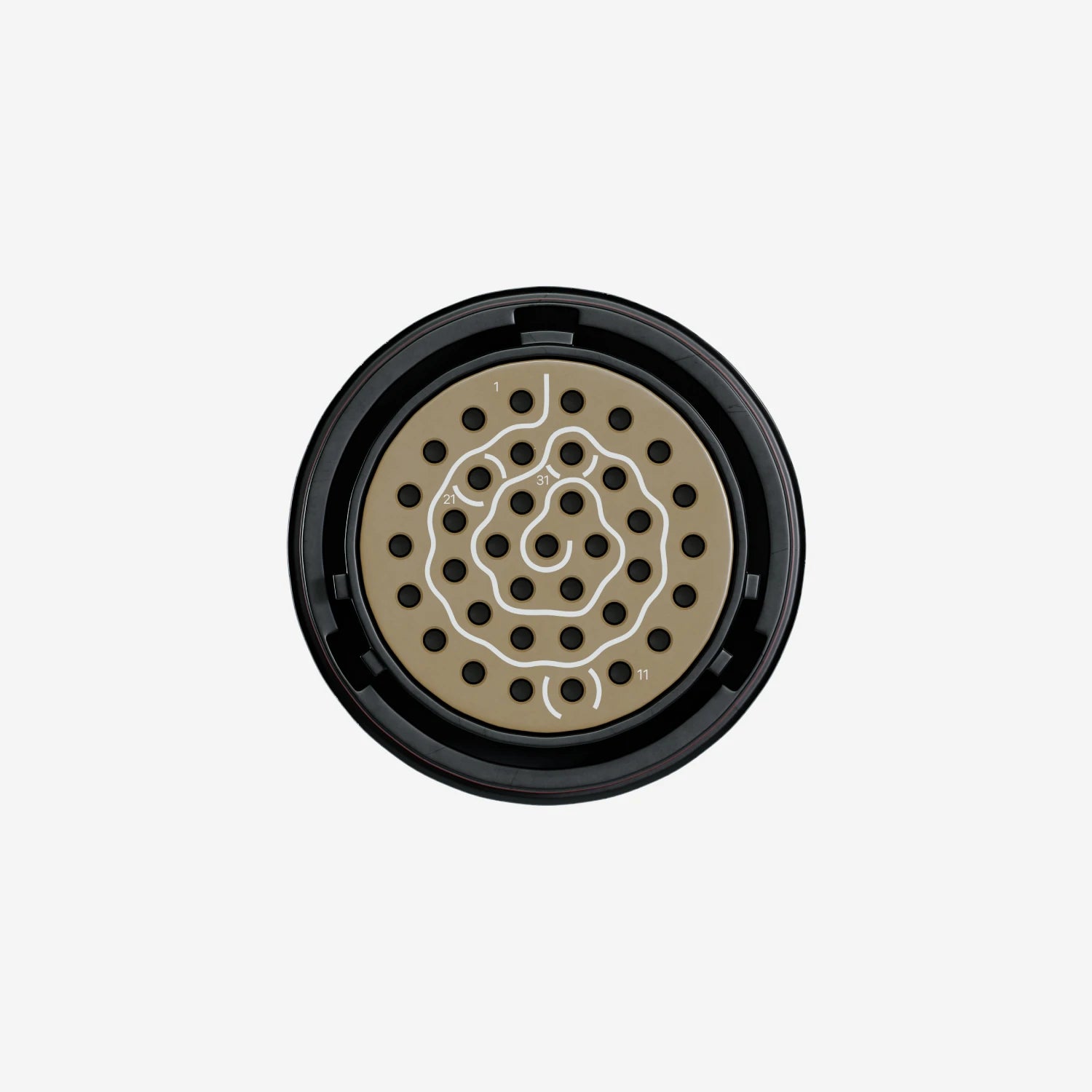

- 37 pin Deutsch Female Flying Connector
- 4 pins Binder 719 Female connector - See table in Downloads Tab
- 5 pins Binder 712 Female Connector - See table in Downloads Tab
- 7 non-ended cables - See table in Downloads Tab
What's in The Box
Aim 37 Pin Deutsch Harness For MX Series
