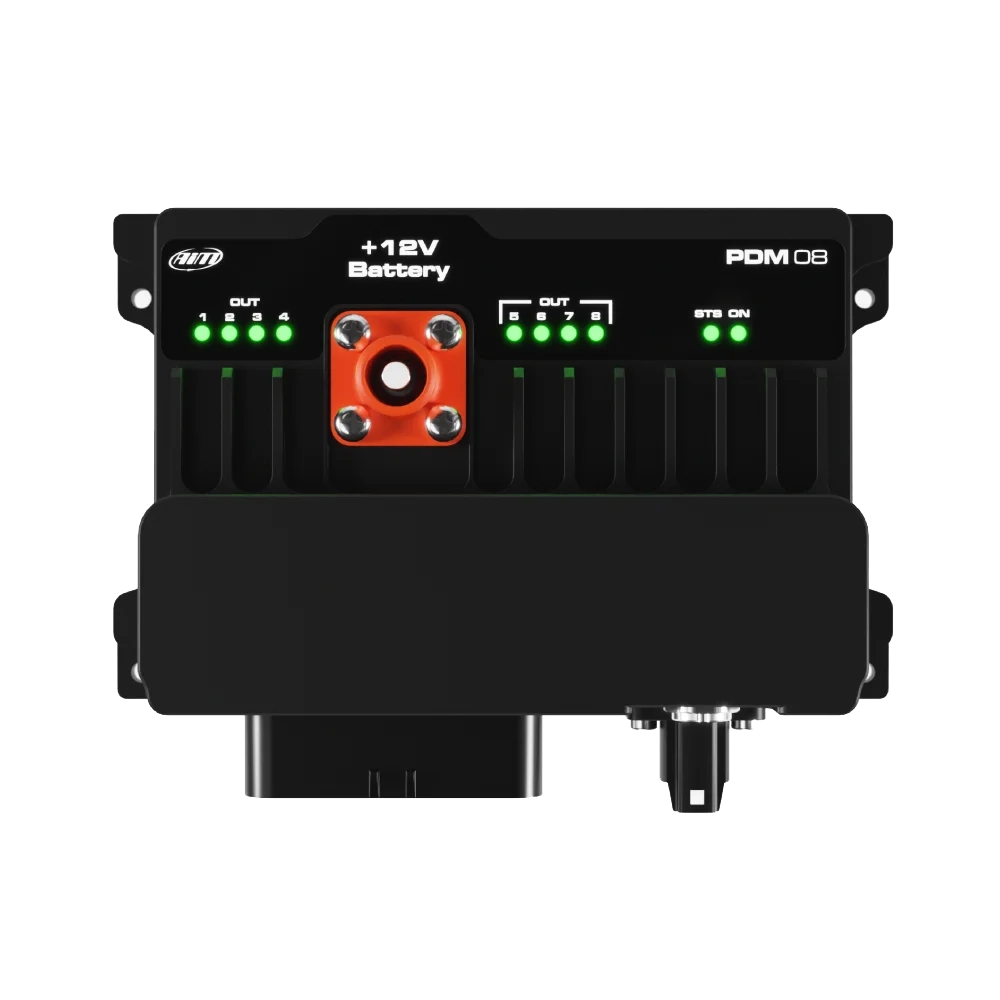

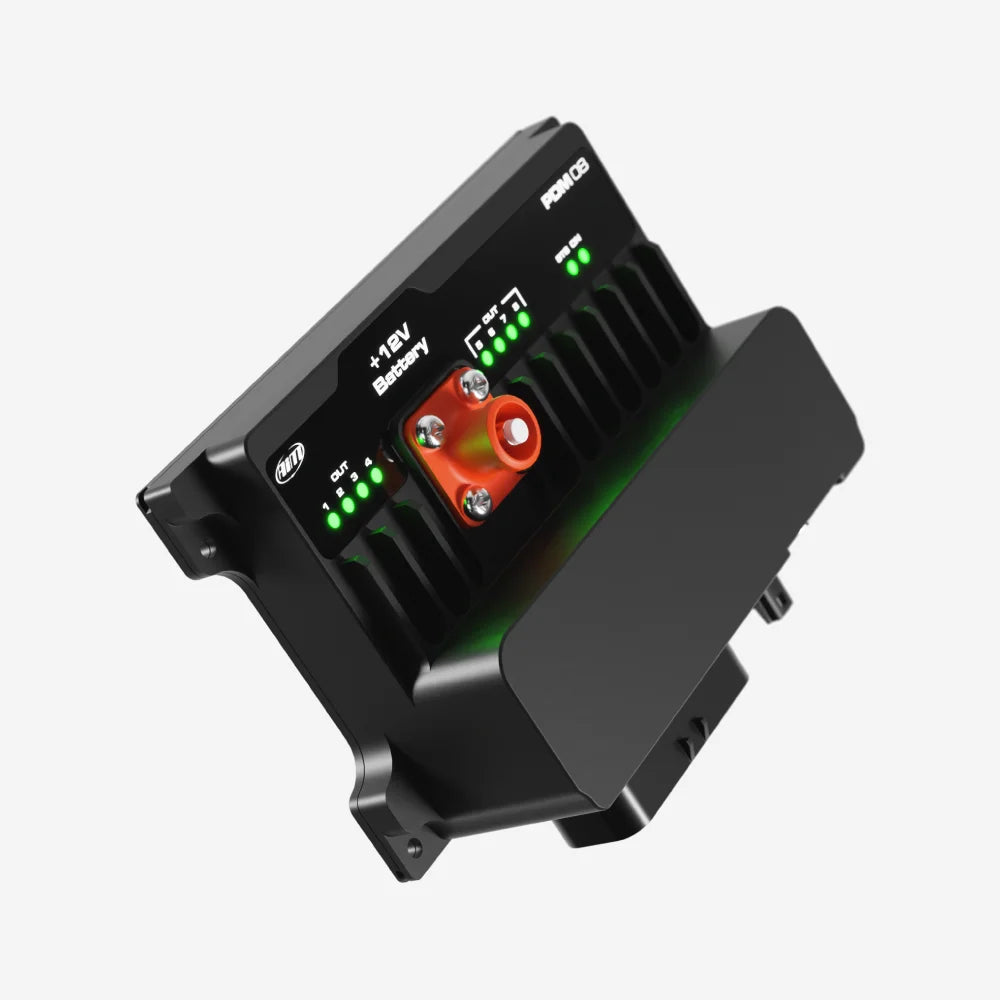

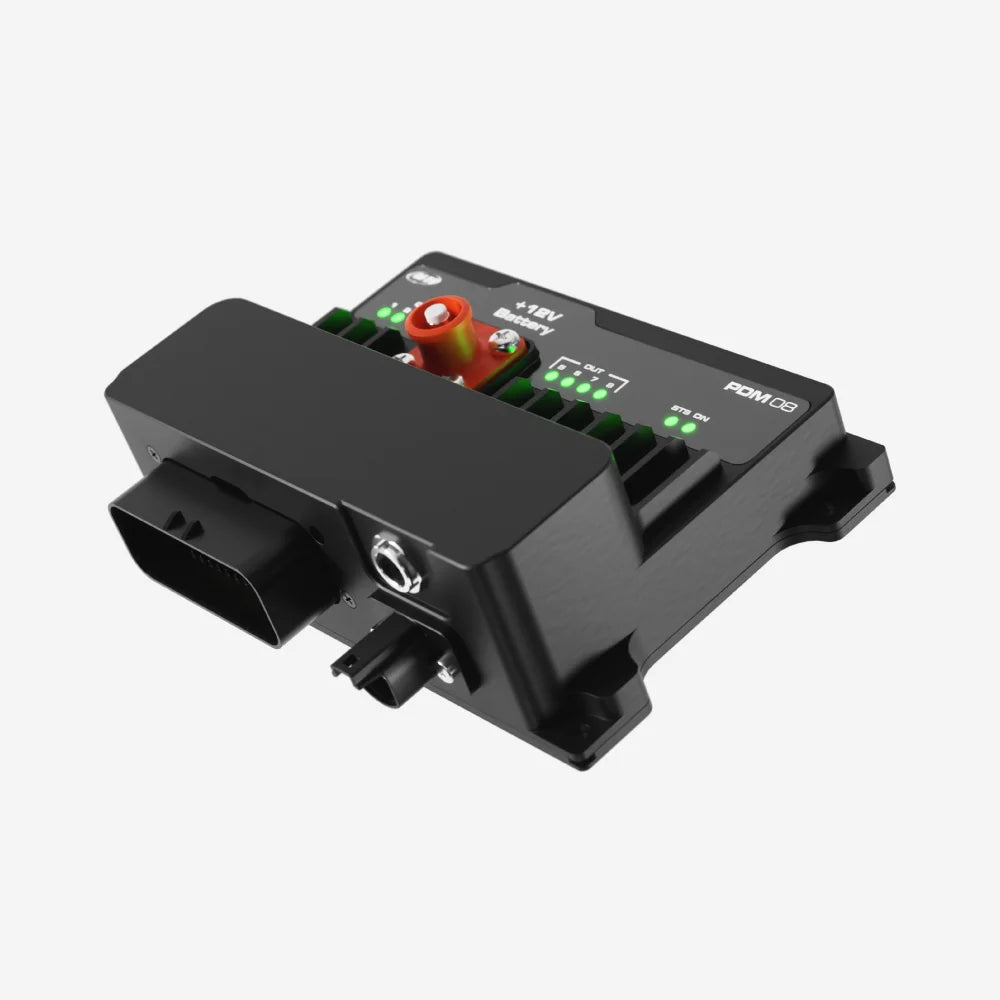

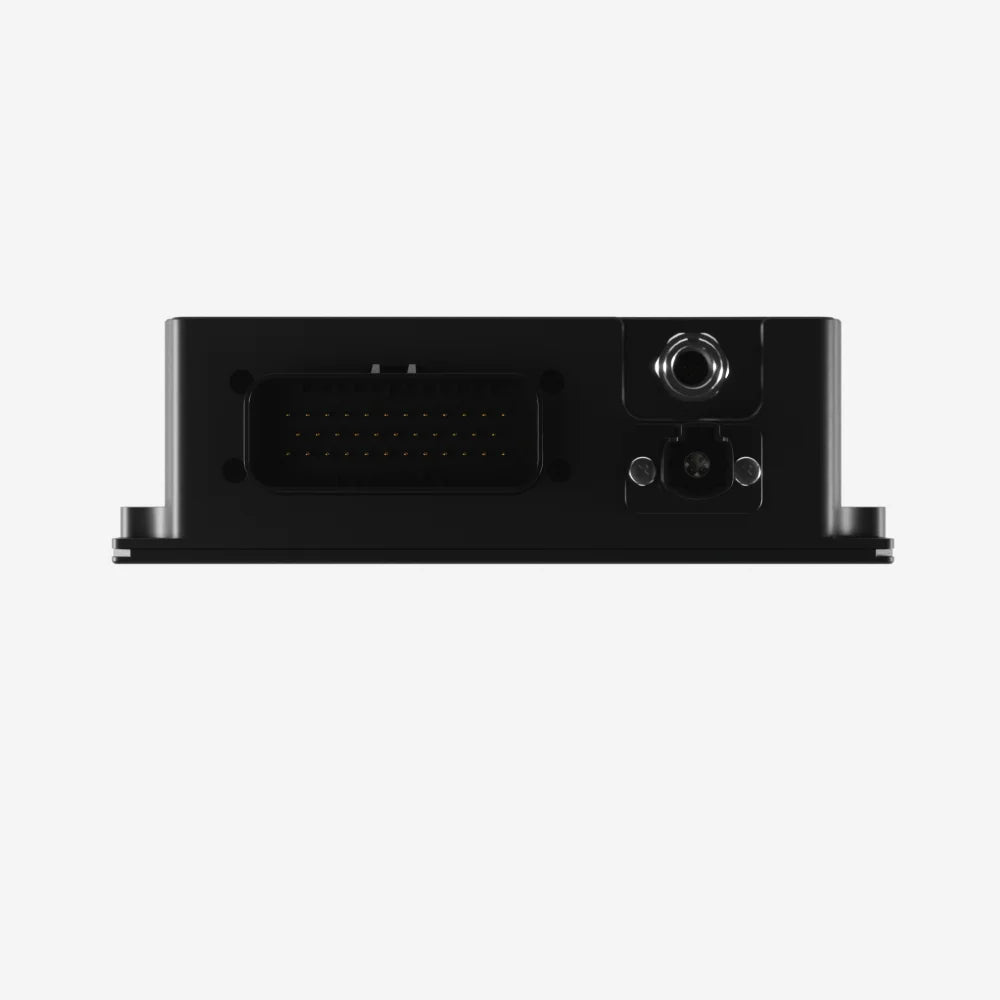

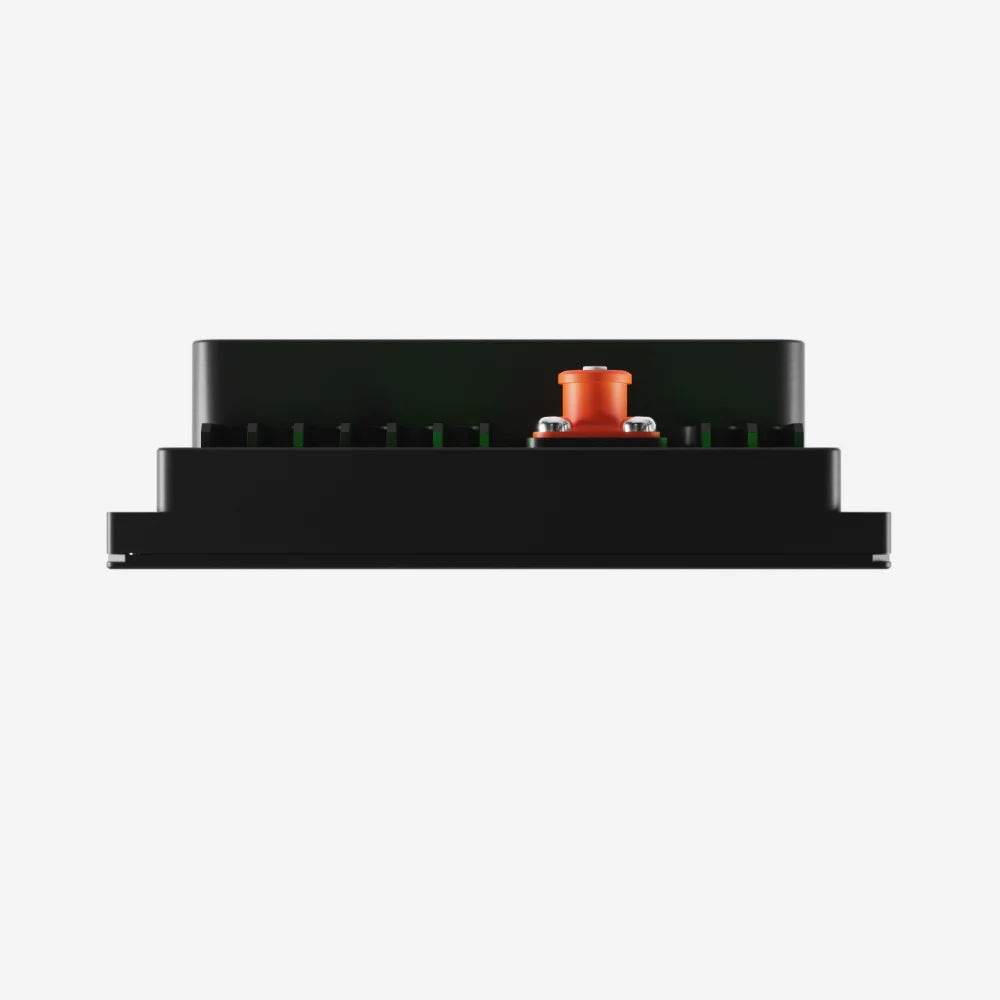

Aim Power Distribution Module PDM08

The PDM08 is available on its own or with a choice of 5", 6" or 10" dash displays. It also capable of receiving data from the vehicles ECU and even comes with an optional data logger and GPS module for lap timing and track mapping.

With a total continuous max current of 100A, each of the outputs provides feedback to the data logger to provide vital information such as open circuits, short circuits, high/low voltage, the number of fault retires and the time between the reties is user definable. All outputs can be configured as PWM's for a soft start/stop. All of the PDM circuits can be set up and monitored via the Race Studio 3 software.

The PDM08 can receive and record data from the following sources:

• ECU: Over 1,000 protocols available
• Digital/analogue inputs
• Internal 9-axis EMU
• GPS: Lap time and position
• Expansion Modules
• Push buttons from RIO02 (Remote Input Output module) or any commercial CAN keypad
• PDM Outputs: Currents and status of each channel individually
• Other user-defined math channels

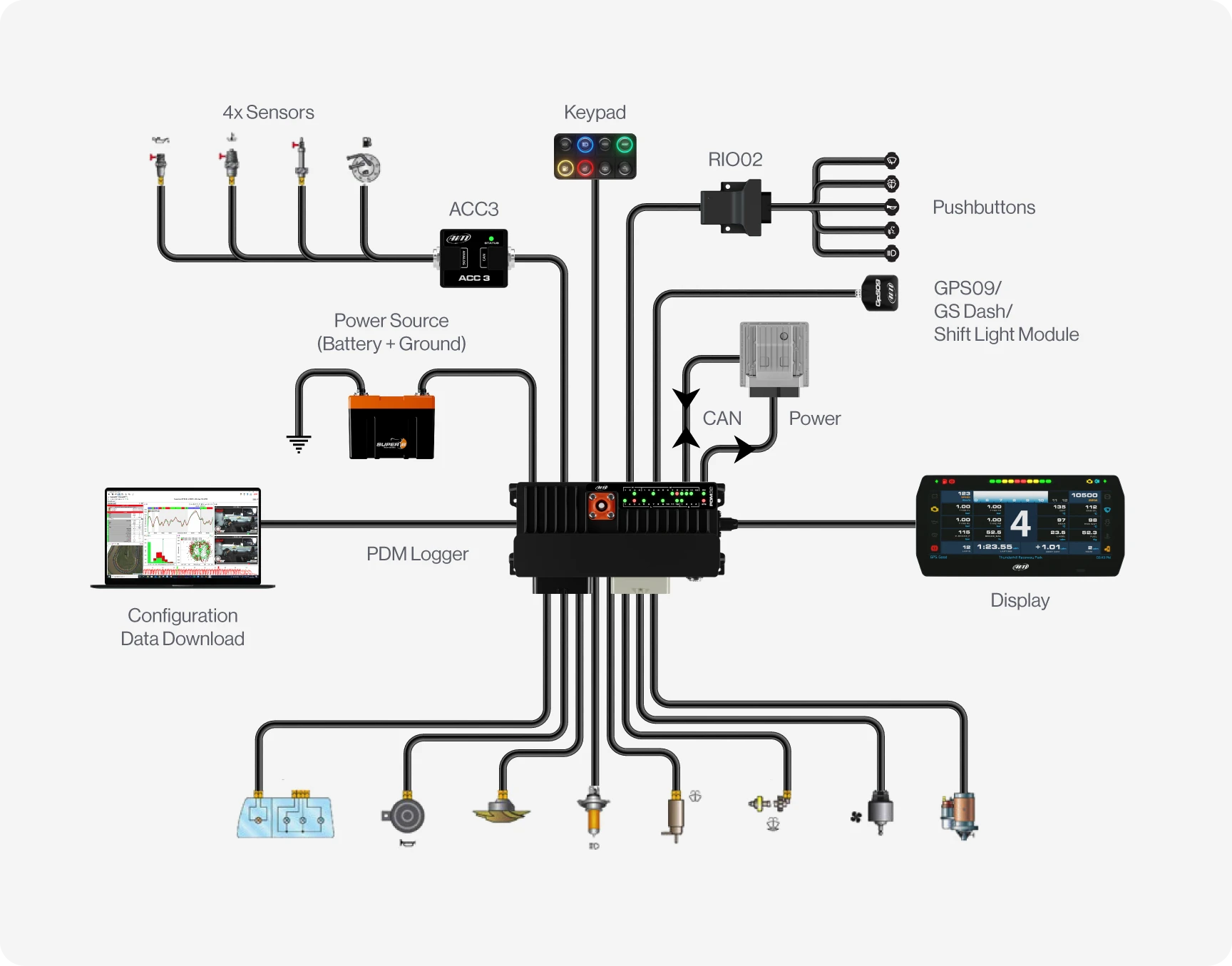

Pair your PDM with a dash of 5", 6" or 10", 2 camera inputs, and a GPS Module for lap timing and track mapping.

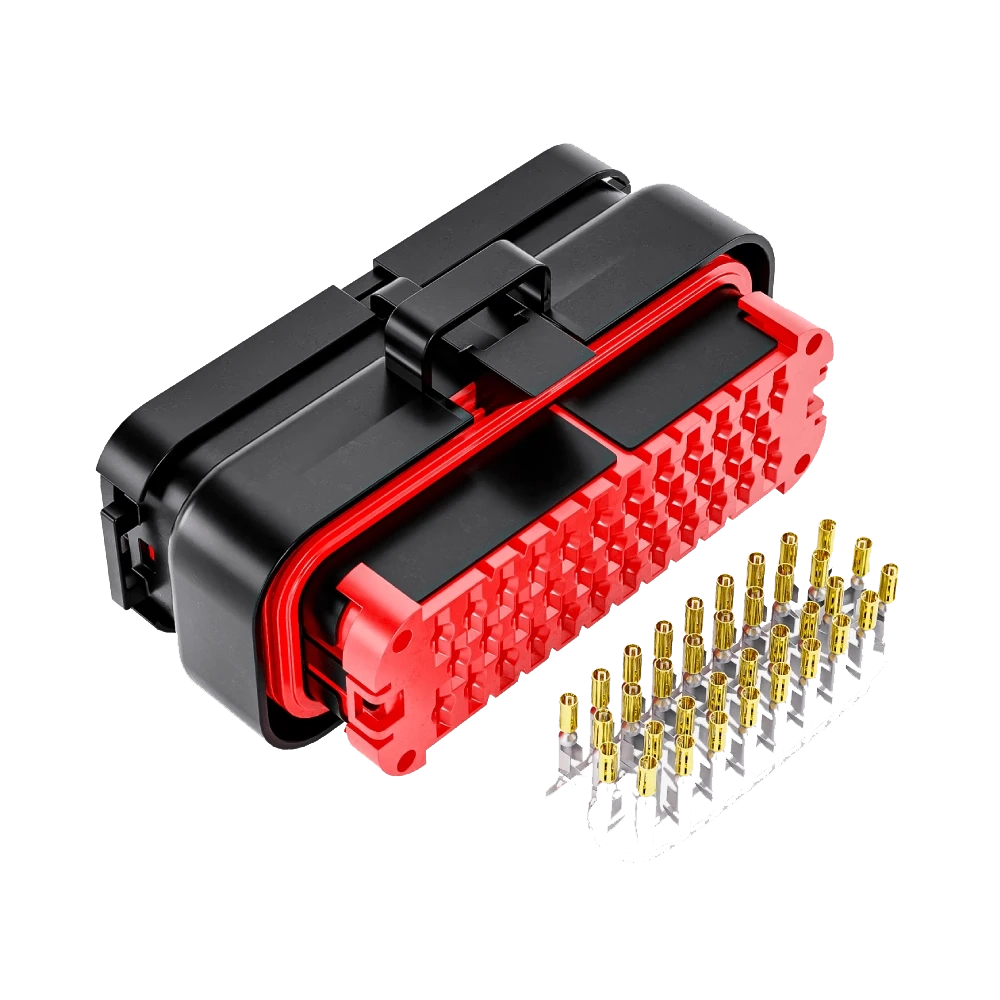

A pre-assembled harness is available for a more straightforward wiring solution, colour-coded and tagged to provide the easiest installations.

The GPS09 module option provides easy lap timing and lap position for track mapping. The PDM has over 4,000 racetracks in the database, so once you arrive at the track, the system already knows the timing points so that you can get on with the driving.

The GPS09 module is available with various lead lengths to suit different applications and with cable entry from underneath (roof version) or the side.

Have your very own selected buttons at your fingertips and gain control over your vehicle with a range of keypads. From simply turning on the engine, the fans or the indicators, to switching gears and more, you can program our range of keypad buttons to ensure seamless performance on the road or on the track.
