35-Pin AMP Connector
Robust & Reliable
2-Piece Contact Hold
High Operating Temperatures

Sort 35-pinners AMP PDM-pluggkontakthuskontakt

In stock, ready to ship
£15.00

Pairs well with
35-Pin AMP Connector
Robust & Reliable
2-Piece Contact Hold
High Operating Temperatures
shipping
Order within 7 hrs 18 mins 45 secs

Same Day Shipping

When you order before 15:00 BST

Monday - Friday

Worldwide Shipping

Worldwide Shipping

Free Shipping Above £50

Free Shipping Above £100

All Orders are Carbon-Neutral

All Orders are Carbon-Neutral

  • Apple Pay
  • Google Pay
  • Mastercard
  • Paypal
  • Shop Pay
Race Studio 3 Software Download Icon

Connect Your System

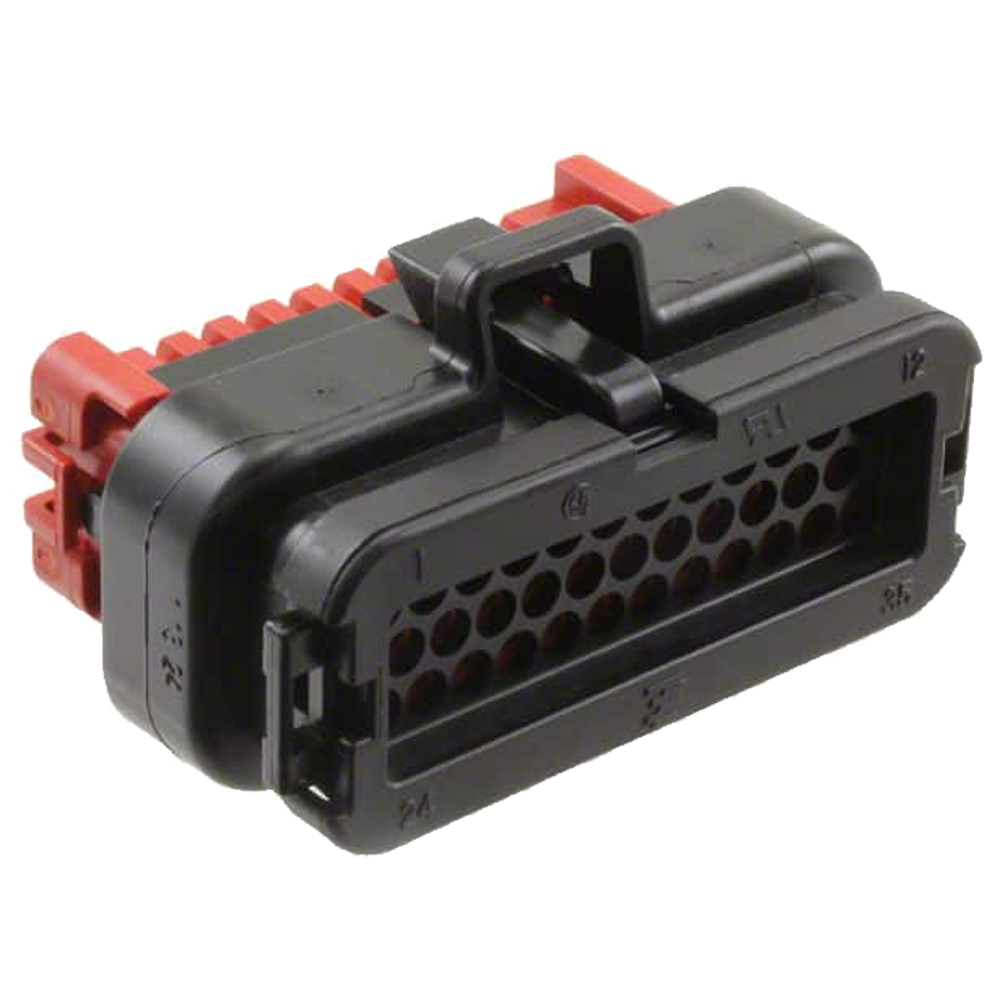

The Black 35-Pin AMP PDM Plug Connector provides a rugged housing socket for PDM connection harnesses. It's highly reliable under high temperatures and has an IP67 rating, making it extremely water and dust-resistant.

Why Choose the Aim 35-Pin Black AMP Connector Plug

The 35-Pin AMP Plug Connector is a brilliant and rugged connector housing that can withstand extremely high temperatures (-40°C to +125°C). It has a 2-piece contact hold design with secondary locking to prevent the contact from getting torn out under harsh conditions. These connectors accept a wire size of 0.5 to 1.25mm².

Technical Information

Technical Specs
  • Type: Automotive connector housing
  • Number Of Contacts: 35
  • Gender: Female
  • Number Of Rows: 3
  • Current Rating: 17A
  • Mounting Type: Cable mount
  • Termination Method: Crimp
  • Colour: Black
  • Height: 27.6mm
  • Width: 63.4mm
  • Depth: 33.6mm
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: +125°C
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Waterproof: IP67
  • 2-piece contact hold
  • Integrated latch for mating

SKU: P-AMP-35-B
Part Number: 5CND7761641
