Aim Eksosgasstemperatur (EGT) K-type termoelementsensor

Aim Exhaust Gas Thermocouple Temperature Sensor M5 K Type

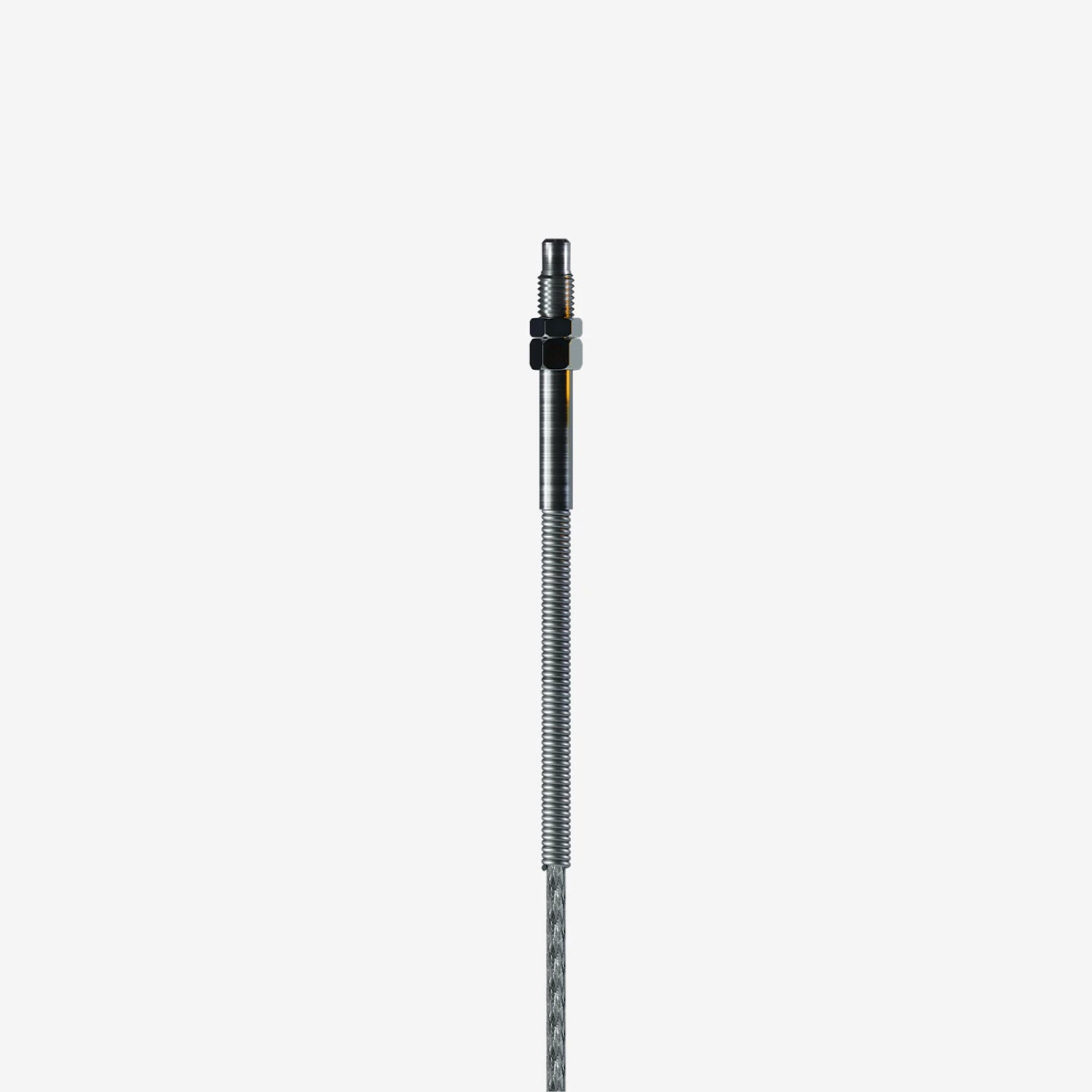

The Aim Exhaust Gas Temperature Sensor (EGT) can measure the exhaust gas temperature by being placed in the exhaust header pipe.

Key Features :

Aim Exhaust Gas Thermocouple Temperature Sensor M5 K Type

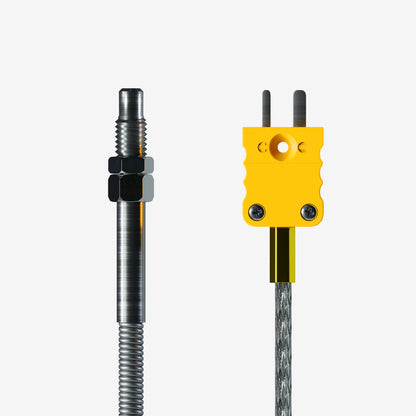

The Aim K Type thermocouple temperature sensor is fitted with a two pins male thermocouple connection.
It can measure the exhaust gas temperature by being placed in the exhaust header pipe around 150mm from the exhaust pipe.

Temperature range of 0-1000°C
Sensor cable length 25cm
Professional quality sensors for accurate readings
Designed for the harsh Motorsport environment
2 Pin K-Type thermocouple male connector

Connections

To use the sensors with EVO4 and EVO4S data loggers, you will need a TC yellow 712 4 pin patch lead (metal binder plug) or to use them with an Aim TC Hub or directly to a MyChron kart lap timer/dash logger, you will need a TC yellow 712 3 pin patch lead (metal binder plug).

MXS, MXG, MXP, MXL2 and EVO5 will require a TC - TC yellow patch lead. To connect the thermocouples to these Aim dash/loggers, you need to use the dedicated harness supplied with your device.

Technical

Aim Exhaust Gas Thermocouple Temperature Sensor M5 K Type

• Temperature working range: 0-1000°C
• Cable sensor length: 25cm
• Cable Type: Compensated
• Two pin male thermocouple connection
• K Type thermocouple
•


What's in The Box

Aim Exhaust Gas Thermocouple Temperature Sensor M5 K Type

• Aim Exhaust Gas Thermocouple M5 Sensor (EGT)

Downloads

	Technical sheet	Race Studio 3
