SmartyCam 3 Sport
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
The Best Compact Motorsport Camera

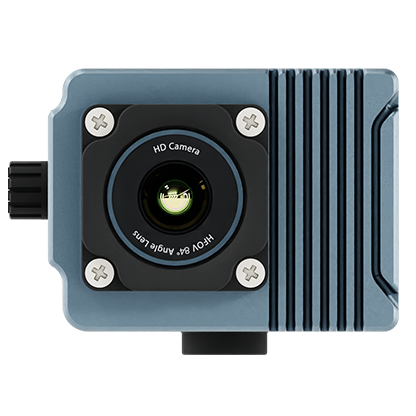

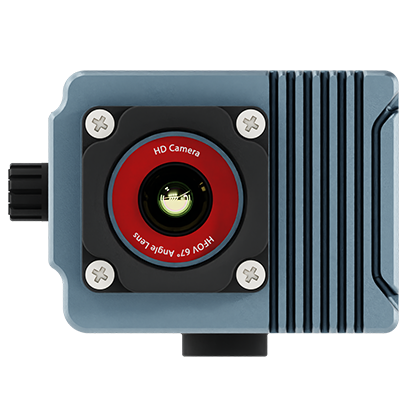

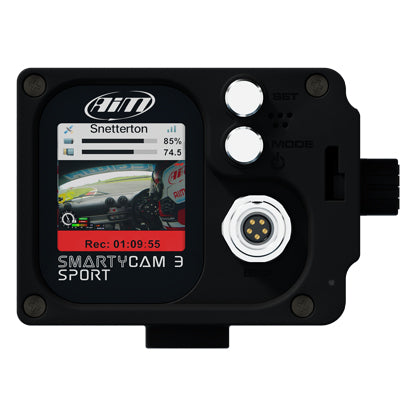

The SmartyCam 3 Sport is one of the best compact motorsport cameras, providing a range of benefits for motorsport drivers & teams: Full HD recording, crystal clear video, TFT colour display, automatic start/stop, real time overlay videos, configurable, choice of lens and can cable, wave & wobble-resistant with a global shutter CMOS sensor, resistant to extreme temperature & weather changes and IP65 waterproof rated.
Please Note: The camera MUST be externally powered as the internal battery is only designed for initial configuration.
Why Choose the Aim SmartyCam 3 Sport
The lightweight SmartyCam 3 Sport automatically powers on and off in-sync with your engine and will auto start/stop recording based on parameters you set. The SmartyCam 3 Sport also saves all your data to a supported micro-SD card for up to 2TB of data including speed, RPM, lap number, gear shifts and more.
The compact motorsport camera allows you to analyse your data from a vast range of sources such as ECU information, GPS information, track map, vehicle position, speed, lap & split times.
Automatic Track Selection & Overlay
SmartyCam 3 Sport can automatically recognise which track you're on and begin mapping - if your track does not register, you can create your own custom track within Race Studio 3.
With Race Studio 3 software you can also configure your overlay. Add your logo and track map; choose your graphic elements from a list of pre-determined sets with same layout or even single objects from different sets, and your videos will be truly yours.
SmartyCam 3 Sport Connections
The SmartyCam 3 Sport camera can be directly connected to any of our supported dashes, lap timers and loggers that supply the camera with power and CAN information directly from your vehicle.
Finished with a sleek new look, the SmartyCam 3 is assured to add efficiency, informational data, productivity, and style to your racing; it’s lighter, sleeker and better than ever.
Sync & Analyse Your Data & Video Like Never Before

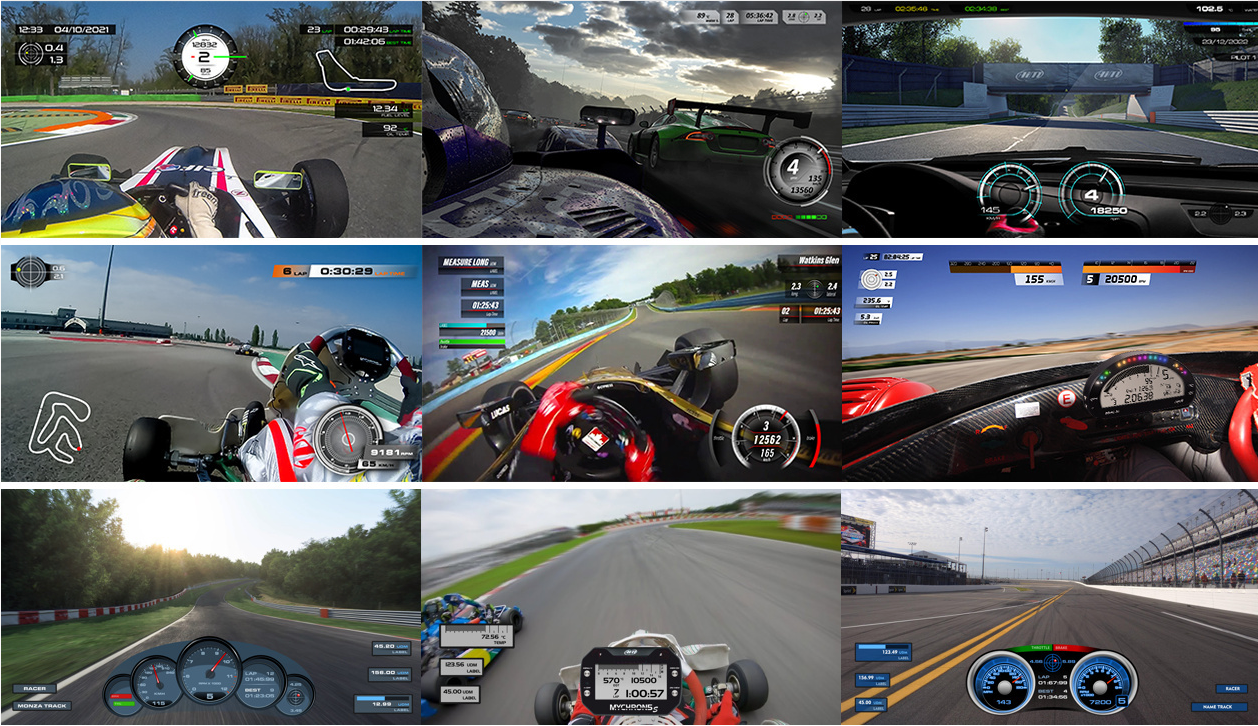

View all the channels, including RPM, throttle, engaged gears, acceleration, temperatures, and pressures including a tri-axis accelerometer, displayed on the video footage and review them with our Race Studio 3 analysis software.
The Key to Performance Improvement
Data analysis in motorsport is a formidable framework for enhancing your personal or team’s performance.
Visualise and manage alerts and essential data such as oil pressure and battery voltage to identify potential issues early.
The video of a whole session, once downloaded on your PC, can be split into individual videos of each lap: sync your video and data to visualise where you were faster or slower.
The same operation can be performed with a SmartyCam 3 video recorded on the same track; you will be able to compare your best lap with a previous lap, or your friend/rival’s personal best.
Higher Storage Capacity
Other HD cameras often chase higher pixel counts which leads to huge file sizes without much real benefit. The SmartyCam 3 Sport is different: it uses smart H.264 compression settings that keep the video quality you need while keeping file sizes small. This means you can quickly download and review footage at the track for data analysis, instead of dealing with huge cinematic files that look pretty but slow you down.
The SD card housing is 100% protected from air and weathering.
SD cards sold separately.
Expand Your System
Overlay your delta, predictive, timing splits, lap data and more in Race Studio 3 when you pair the SmartyCam 3 Sport with the Aim Solo 2 DL GPS lap timer. Expand your system further with additional sensors and expansions such as the ACC, LCU-One S, Data Hubs, sensors and more.
Technical Information
Technical Specs
Diagram
Pinout
Included in the Box
SmartyCam 3 Sport
Your Chosen Connection Cable
12V Mains Charger
-
Free Aim Software
Downloads
Connection Example
