AiM Taipan Analog Channels & Second Injection Harness

SKU: C-H-AN-IN

Regular price
£45.00
Regular price
Sale price
£45.00

+ VAT (UK Only)

All deliveries are carbon neutral
Powered by Shopify Planet

AiM Taipan Analog Channels & Second Injection Harness

The AiM Taipan Analog channels and second injection harness is an optional cable for the Taipan ECU.

Key Features :

Analog channels & second injection JST connector
5 flying wires


AiM Taipan Accessories

The AiM Taipan Analog channels and second injection harness is an optional cable for the Taipan ECU.

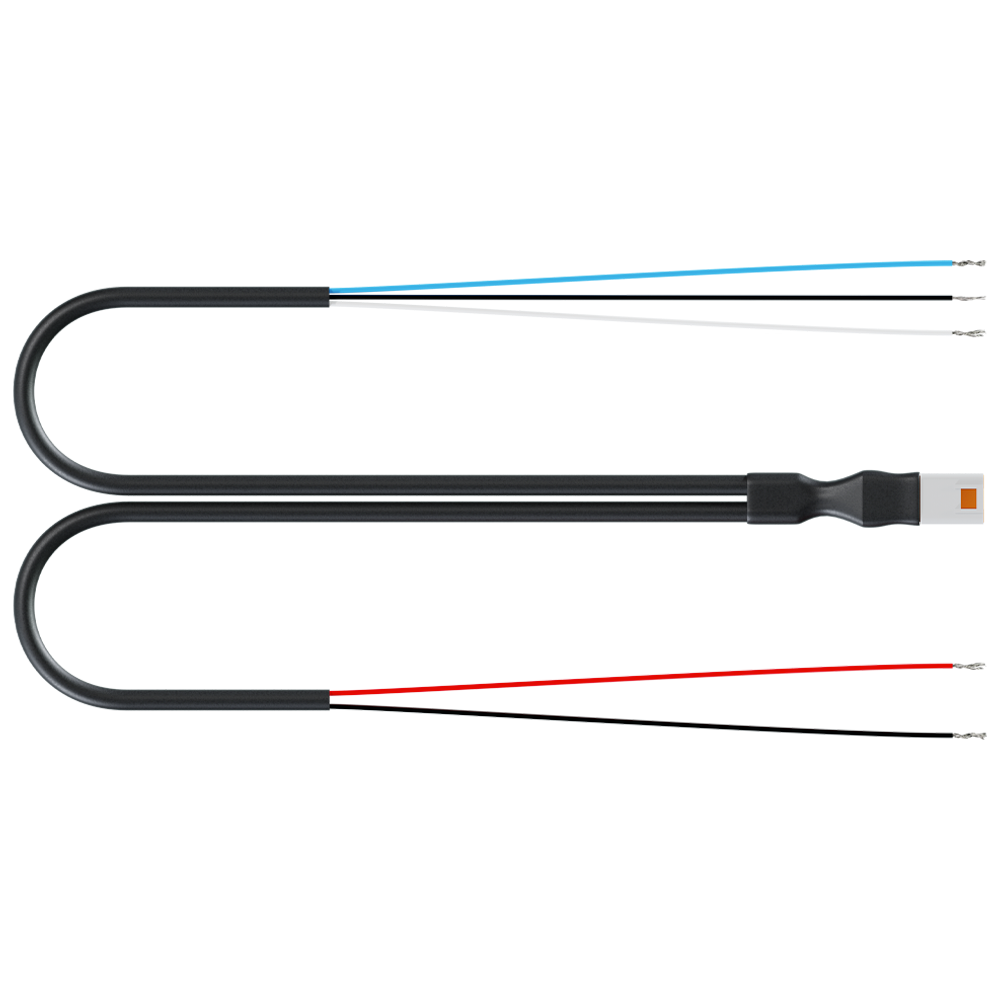

The harness has a JST connector that connects to the Taipan ECU. Two flying cables for the second injection and three flying wires for analog channels.

Below shows a functional diagram of products that can be added to the Taipan ECU:






UC Bridge - Optional Extra



The UC Bridge is the connection between the CAN bus of the ECCU and the USB port of your PC. It is available in 2 different licenses :

User License:

A Taipan ECU comes with some basic maps that already give you better performance than the stock maps. Highly professional tuners all over the world offer specific maps that better fit your requirements, managing, for example, different exhaust, two injectors etc.

The UC Bridge is required for two functions:
- Transfer new and different maps to your ECU through the User License UC Bridge.
- Receiving diagnostic information from the Taipan ECU.

Tuner License:

With this license, the tuner can create different maps, configurations and strategies designed for the rider's bike. The tuner can then flash them directly onto the ECU or send them via email to allow the rider to download and install them in the ECU.

*Please Note: For information regarding the UC-Bridge Tuner, Please contact one of our Aim technical team for further information.


Taipan ECU Connections - Optional Extra

The Taipan ECU has 4 connectors:

Main Connector - Compatible with most off-road bikes.
CAN Connector - Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector - Connect to spare analogue inputs and to a possible second injector.


Aim Handlebar Switch - Optional Extra

The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings:


Up to 5 selectable maps Apply fuel corrections
Activate traction control Activate launch control

The handlebar switch can also be used as a shift light module.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Taipan Analog Channels & Second Injection Harness

  • JST Connector 08T-JWPF-VSLE-D
  • Two flying wires:
  • Red Wire - 12V Second INJ
  • Black Wire - Second INJ CMD
  • Three flying wires:
  • Black Wire - GND
  • White Wire - Spare Analog 1
  • Blue Wire - Spare Analog 2
  • Fill length - 2500mm



AiM Taipan Analog Channels & Second Injection Harness

  • Analog Channels & Second Injection Harness 2500mm - Full Length
