AiM Solo 2 DL RPM & External Power Lead

The AiM PRM cable is used for vehicles when the particular ECU is not supported.

Key Features :

RPM External Power Cable

In the unlikely event, your particular ECU is not supported you can connect the Solo 2 DL to the coil RPM which will provide a digital input delivered from square wave signals or pulse signals.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RS232/CAN cables.

Expand Your System

These are some of the items that can be added to your bike for incrementing performance and data.

AiM Solo 2 DL RPM & External Power Lead

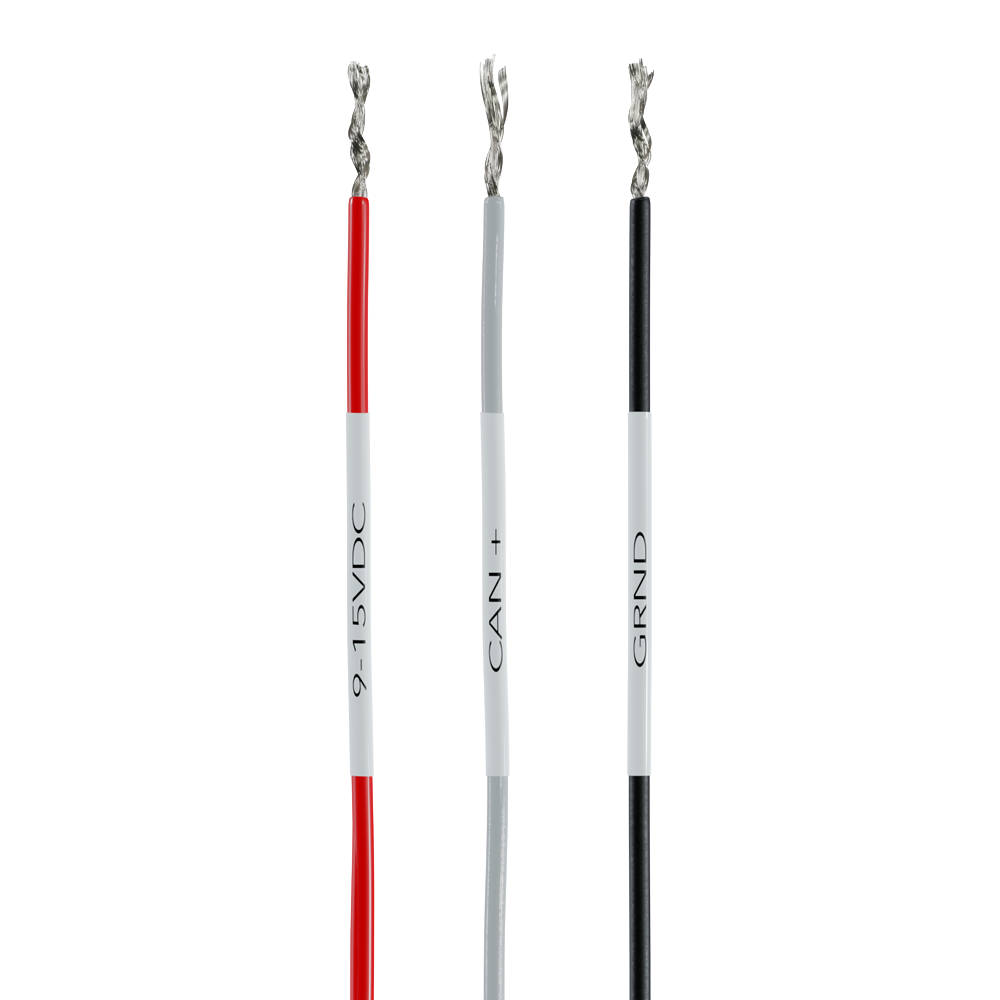

• 7 pin - 712 male binder connection
• 2m Cable
• Red - 9-15 VDC
• Black - GND
• White - RPM

AiM Solo 2 DL RPM & External Power Lead

• Solo 2 DL RPM & External power cable connector
