AiM Car Steering Angle Rotary Potentiometer/ Belt Type Sensor

SKU: S-SA-X05SNST10G

Regular price
£95.00
Regular price
Sale price
£95.00

+ VAT (UK Only)

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

AiM Car Steering Angle Rotary Potentiometer/ Belt Type Sensor

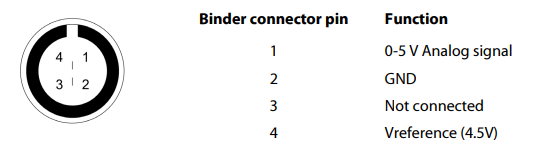

The AiM Steering angle (rotary potentiometer) sensor comes with a male four pins black 719 binder plug connections to suit all AIM loggers and dash display/loggers.

Key Features :

Measures the angle of a steering wheel Supplied with mounting a bracket
719 4 pin male connector 10 Revolutions


AiM Car Steering Angle Rotary Potentiometer/ Belt Type Sensor

The AiM Steering angle (rotary potentiometer) sensor comes with a male four pins black 719 binder plug connections to suit all AIM loggers and dash display/loggers.

The steering angle sensor measures the angle of the steering wheel in degrees and is used to highlight over/under steering situations. It can pick out and see if the driver is losing time due to the steering input.

The sensor measures the angle of the steering wheel in degrees as the driver turns the wheel.
As the wheel is turned, you can see how much steering input has been put in. You can then pick out and see if the driver is losing time due to steering. This could be due to turning too much or too little into a corner.


Connections

MXS / MXP / MXG / MXL (Strada and Pista) / MXL2 / EVO5 / MXm etc harnesses are fitted with 719 connections. To extend the length between your dash display/logger and the analogue sensor, please use the 719 - 719 patch lead, which is available in various lengths from 0.5 - 3 metres.

For most installations, you will need one of these leads.
EVO4 / EVO4S logger / Channel Expansion are fitted with 712 connections and require a 712 - 719 patch lead to connect these sensors.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Car Steering Angle Rotary Potentiometer/ Belt Type Sensor

  • Nominal Resistance: 10K ohm
  • Tolerance on Resistance Value: 5%
  • Precision: 0.030%
  • Mechanical Displacement: 3600°
  • Working Temperature Range: -55/+125°C
  • Cable Length: 30cm


AiM Car Steering Angle Rotary Potentiometer/ Belt Type Sensor

  • 10G Steering Potentiometer
  • 1 Toothed Belt
  • 2 Toothed Pulleys
  • 1 Allen Key

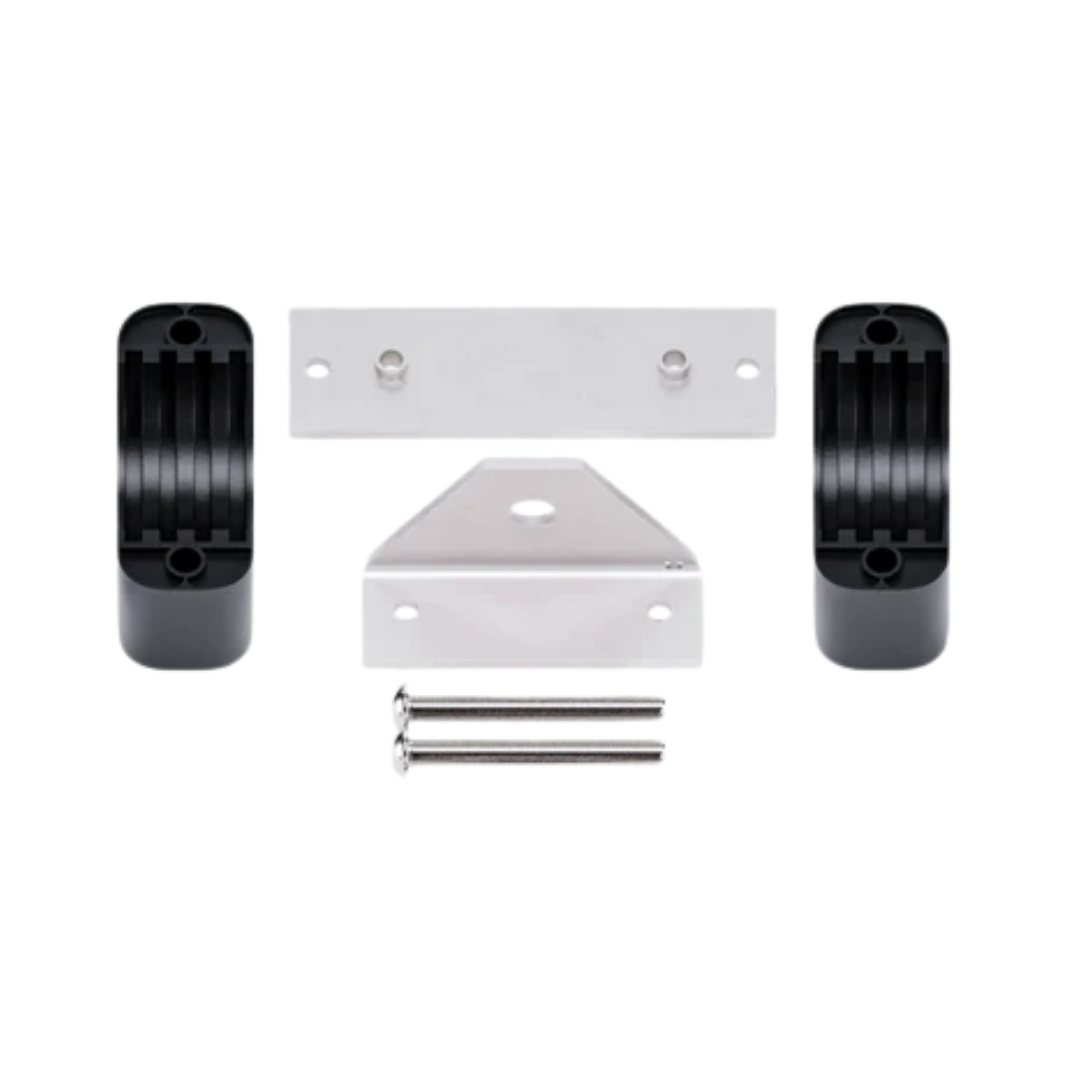

  • 1 Bracket Kit
