Aim MXM Legends Data Logging Dash Display Kit

The MXM dash display features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their vehicles and to improve their performance. The MXM is designed to acquire and display data coming from your ECU, as well as from the internal GPS receiver, analogue/digital inputs, and predefined math channels.

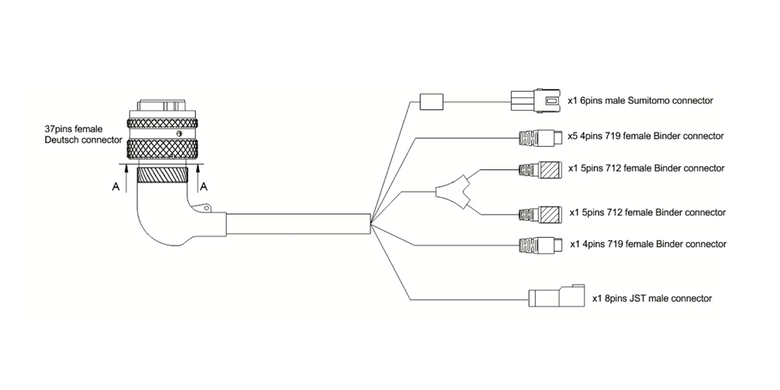

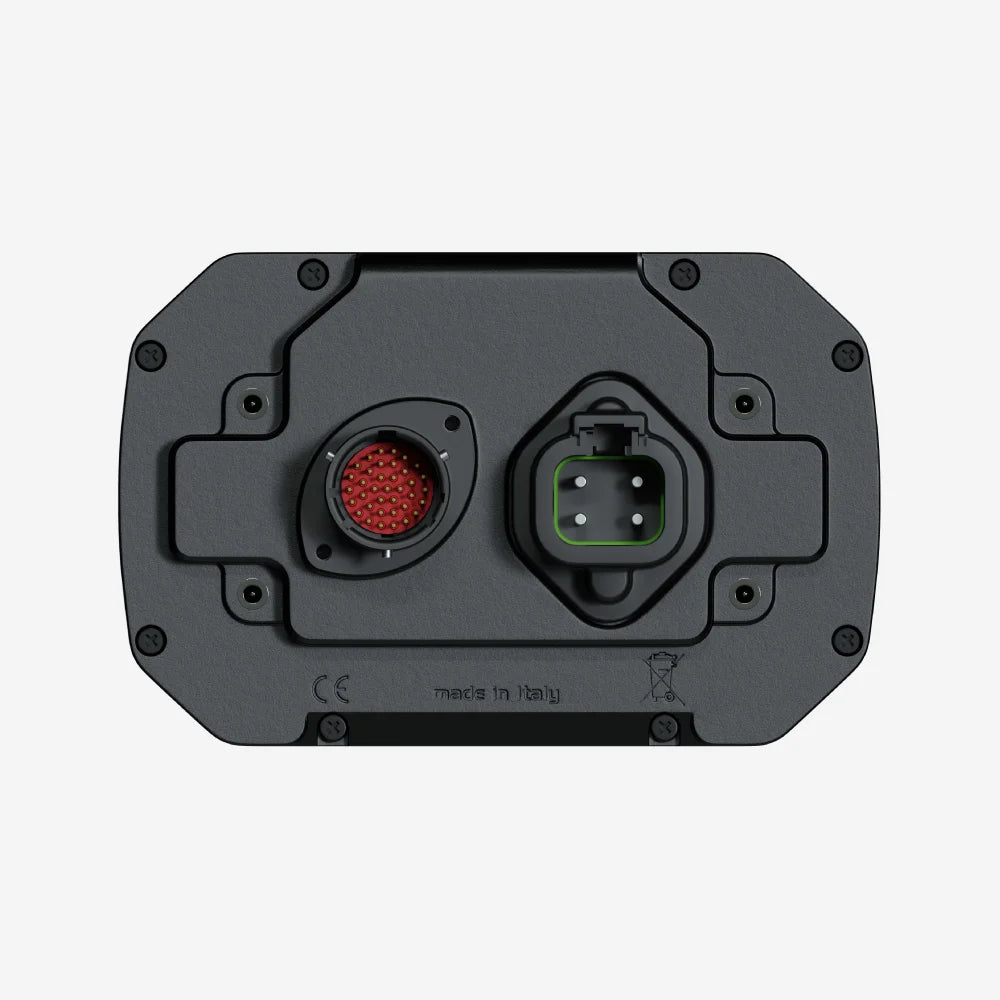

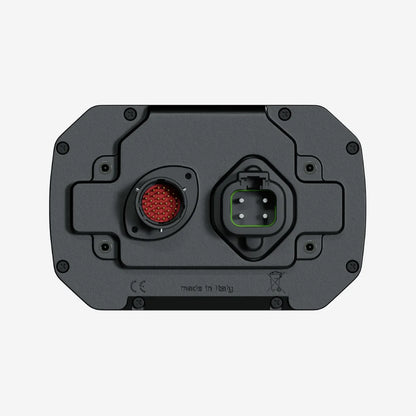

The Legends cars' specific 37-pin Deutsch connector harness allows connection to the vehicle battery and ECU directly, through the 8-pin, white JST connector labelled “ECU”, and to the onboard gear sensor, through the 6-pin, white Sumitomo connector labelled “CH. 1”.

The MXM dash display kit is compatible with Legends cars (with a 3-cylinder Yamaha FZ09 engine) from 2018 onwards.

Please Note: If you are unsure if this cable will fit your car, don't hesitate to contact our team.

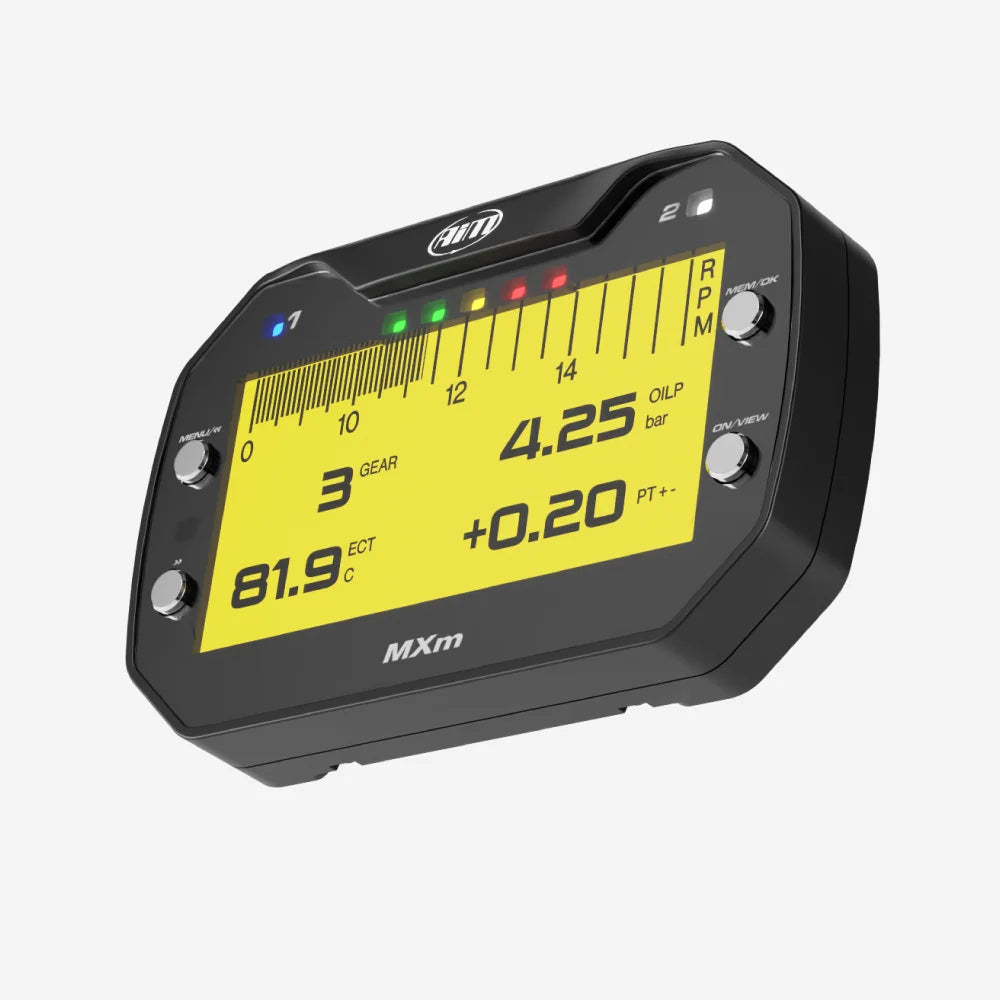

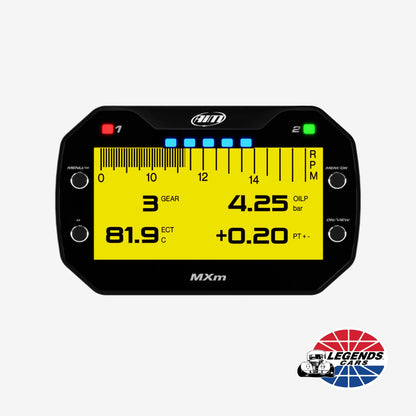

The MXM display has an integrated shift light system that features 5 fully configurable LEDs, which can be customised to your requirements and for each gear.

Two further LEDs can be configured to operate as warning alarms. These warning lights can be customised for a particular parameter that requires a warning light, the colour of the LED, and whether you want a solid or a flashing style alarm; even the flashing frequency can be tailored to suit your requirements.

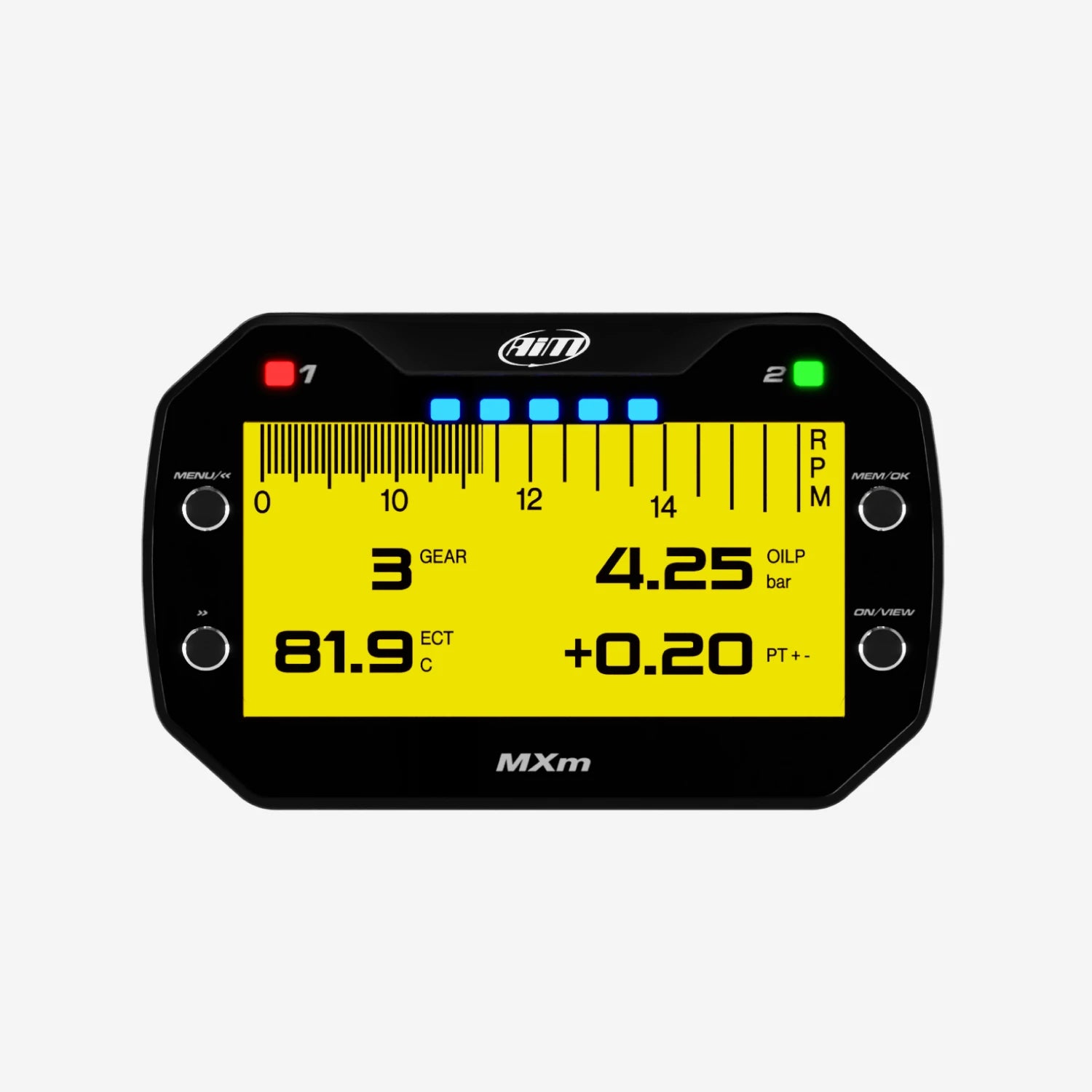

Making use of a sharp liquid crystal display, you can select the information that is displayed, and the backlight can be switched between a selection of available colours, all with high contrast and easy-to-read graphics.

The information that is displayed on the screen can be fully configured to show the most important information to you. If there is too much information shown on the screen, you can scroll between multiple pages using the integrated buttons so that nothing is missed.

After the session has concluded, all the data can be recalled on the screen, including a summary of your best laps, along with max/min RPM, speed and temperatures. If you would prefer to go through the data in more detail, the MXM dash features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 meters away, so you no longer need to take the laptop to the car.

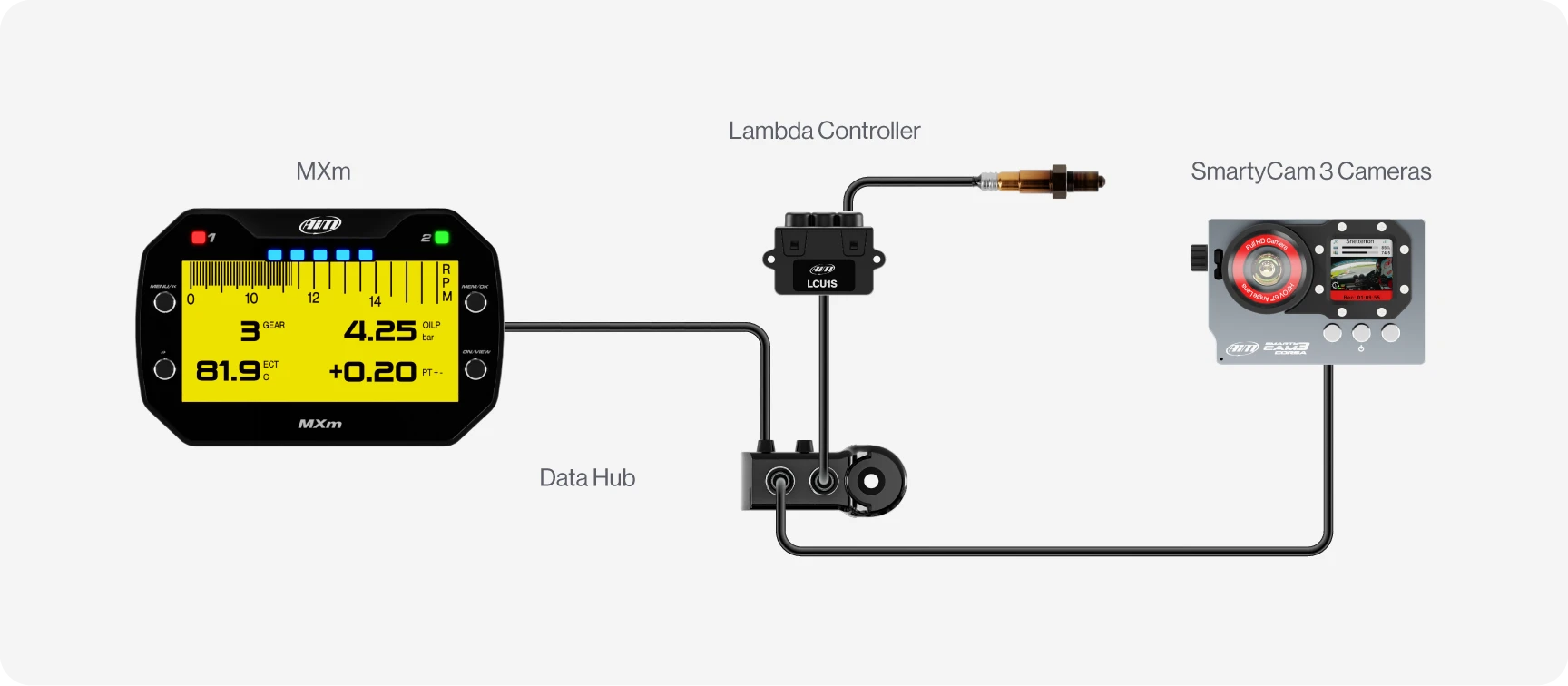

Expand your MX Logger’s capabilities with a range of compatible accessories to guarantee precision and reliability.

The LCU-One S allows you to perfectly tune the carburetion of your engine to keep it at its best and improve the engine's performance. Alongside the Analogue CAN Converter, you can choose, according to your needs, among 5 different split harnesses. Up to 4 thermocouples or 4 analogue channels 0-5V/0-12V are available.

The SmartyCam 3 series also connects to record synchronised video and telemetry ready for analysis in Race Studio 3.
