Aim MXT 1.3 10" TFT Car Dash Display Logger

The Aim MXT 1.3 is a compact, but powerful motorsport display and data logger. It offers real time data on its 10” TFT screen, has customisable display layouts, lap timing capabilities thanks to the GPS09 Module (included in the kit), and is compatible with a range of Aim devices and expansions for the ultimate setup.

The MXT digital dash is designed to collect and display data from the ECU, the internal accelerometer & gyro, the included GPS09 Module, analogue & digital inputs, and predefined math channels. You can also expand its capabilities by adding up to 8 modules to enhance performance and data acquisition.

Connecting the MXT 1.3 dash to the ECU is simple. You can sample dozens of channels straight from the car's ECU, (compatible with over 1,000 different ECUs) requiring only a cable connection to the ECU instead of multiple connections and analogue sensors.

The data you can sample will depend on your specific ECU, but it typically includes RPM, engine load, throttle position (TPS), oil, air & water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel ratio).

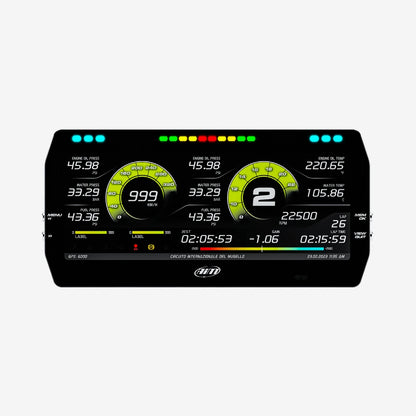

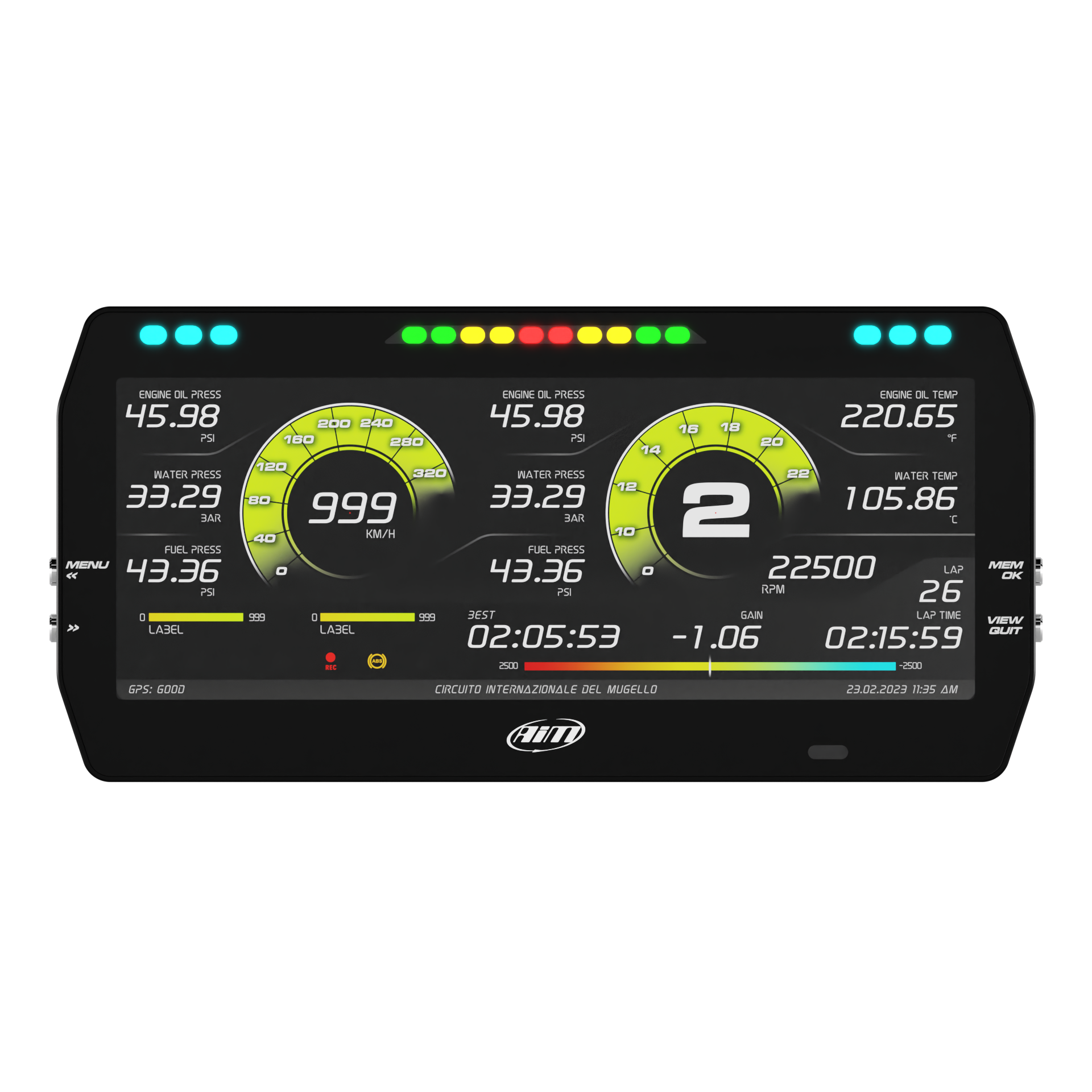

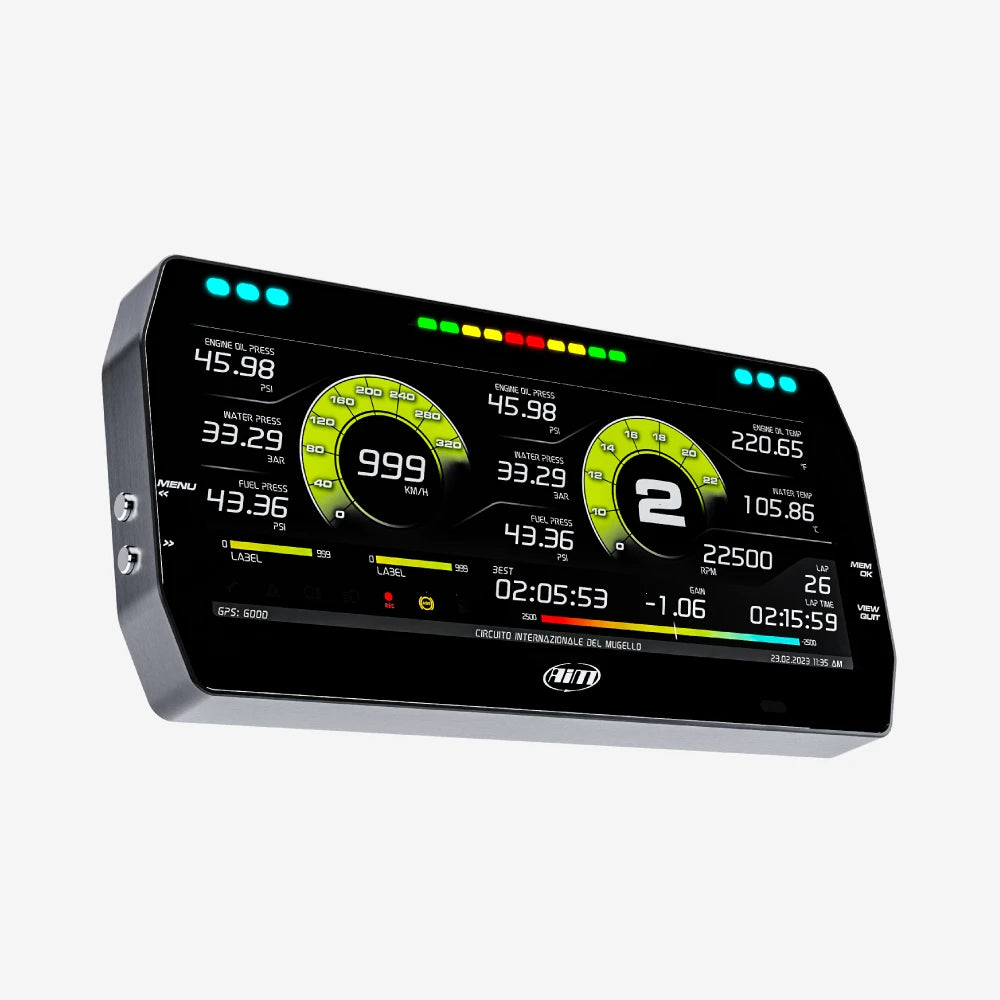

With its high-contrast 10” TFT display you can configure pages to suit your needs, the digital display also allows you to easily navigate through the pages to choose from a variety of styles, data types and measurement units.

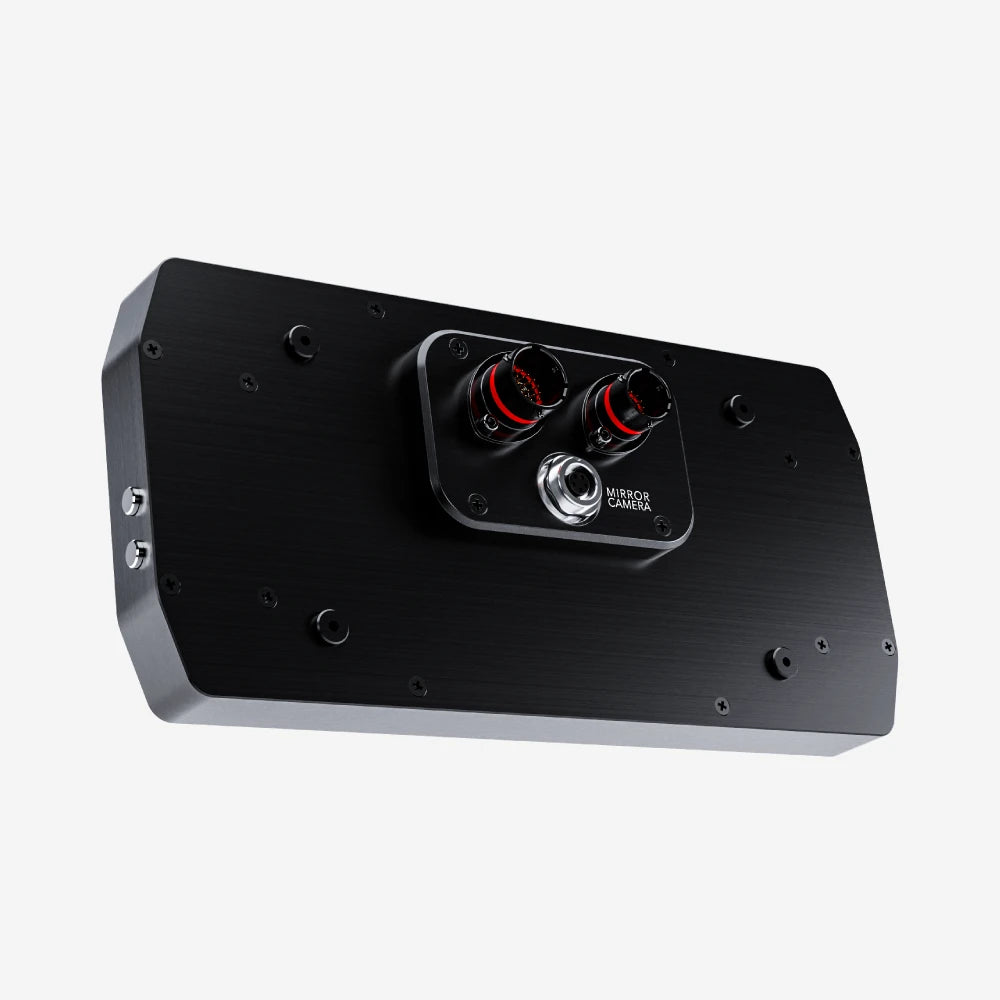

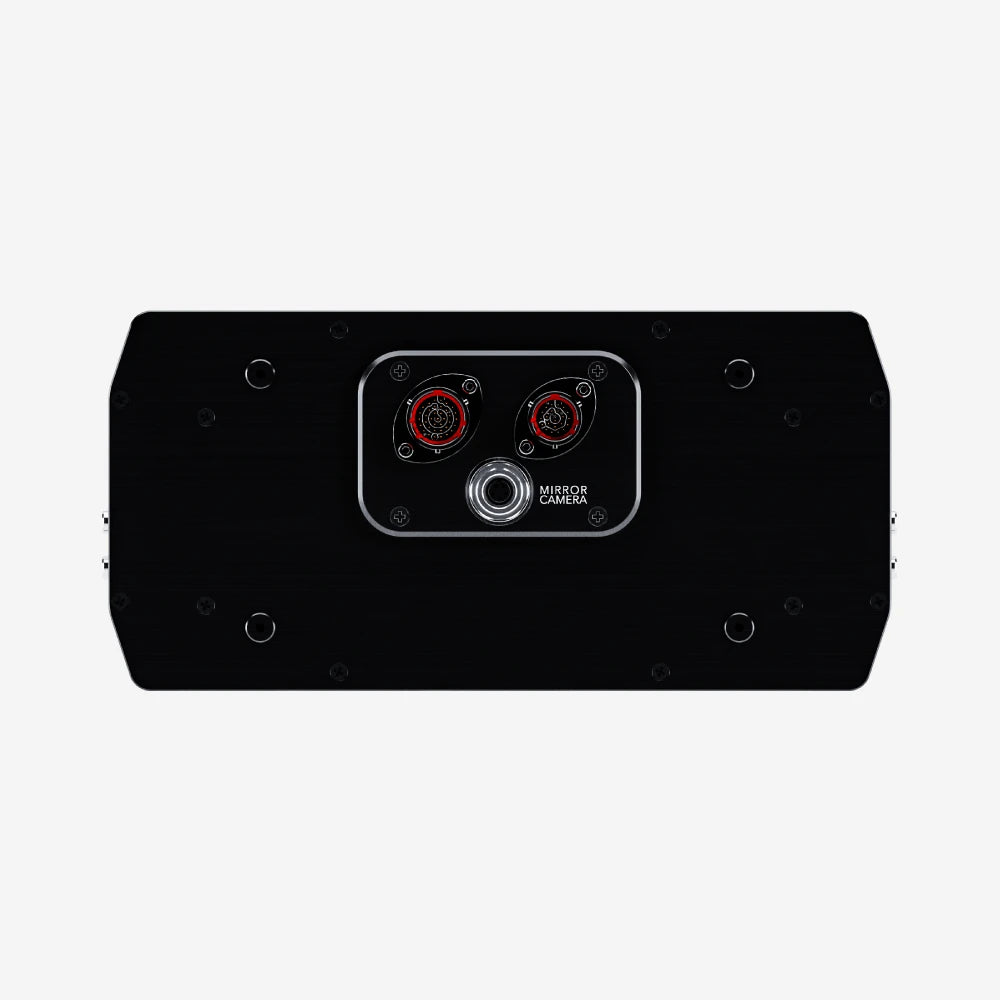

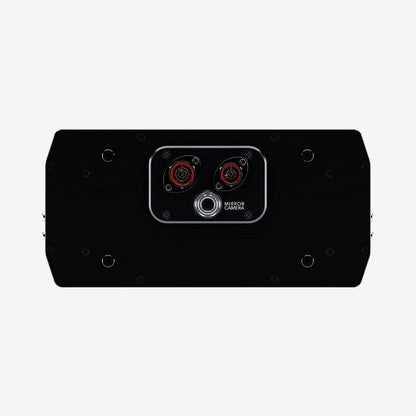

Two analogue camera inputs are available to switch your display into a mirror camera, activated by a push button or event. The camera is sold separately.

With integrated shift lights, you can choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to suit your requirements, and for each unique gear when required.

The MXT display logger also comes with 6 RGB LEDs, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements.

The GPS09 module connected via CAN to the MXT dash logger, simplifies lap time calculations and track position analysis. With 4,000+ worldwide tracks already stored with the start and finish line coordinates, you will have no problem when you're on the track.

As soon as the MXT is turned on, the GPS module will locate its position, identify track line coordinates and start immediately sampling lap and split time. If the track is not in the database, you can easily add the start/finish line coordinates to the MXT using our Race Studio 3 software.

Note: The included GPS Module is available with cable lengths of 0.50m, 1.3m, 2m or 4m. We also have an option for a roof-mounted version which is available with 2m or 4m length cables.

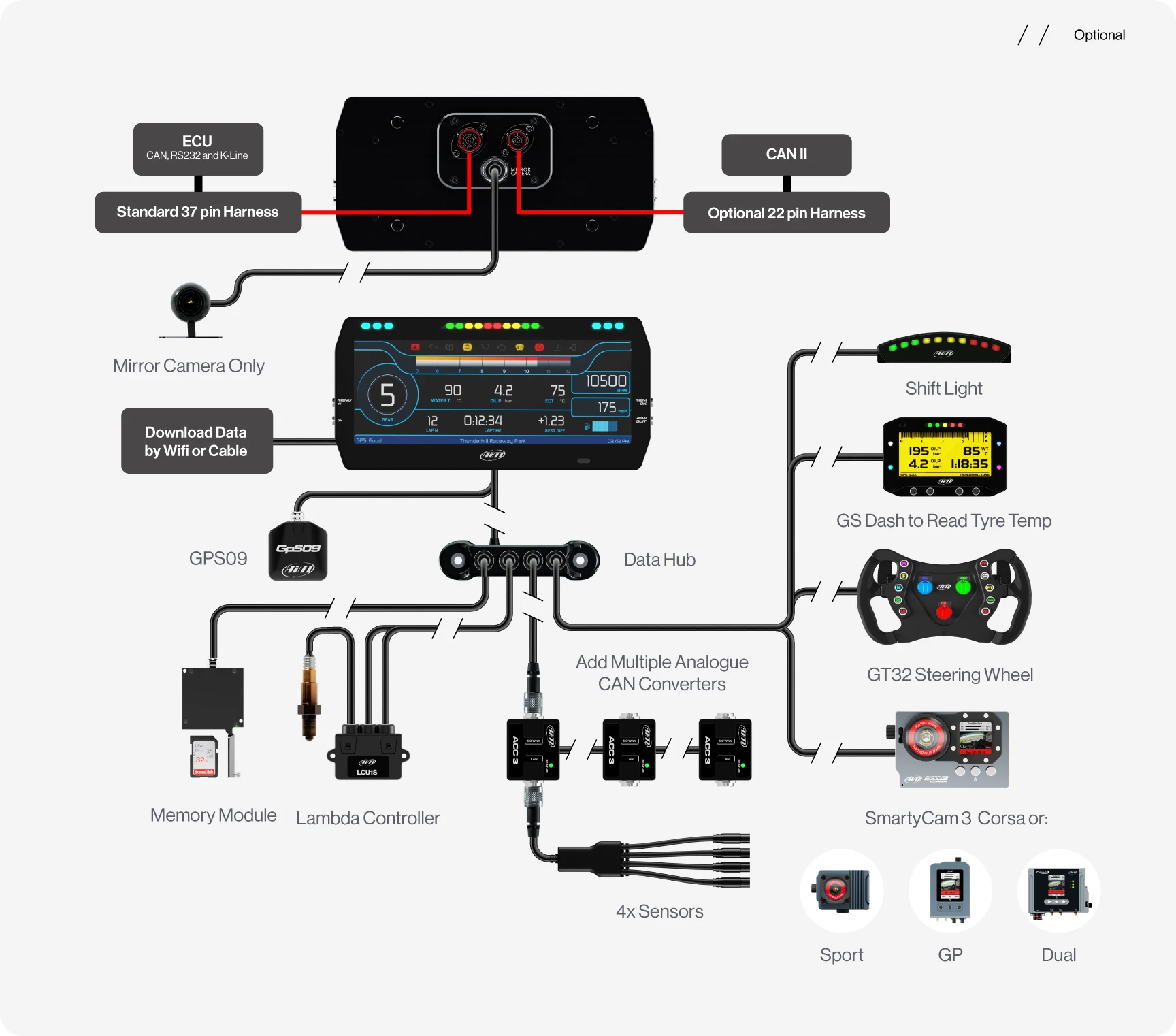

Expand your MX Logger’s capabilities with a range of compatible accessories to guarantee precision and reliability.

The LCU-One S allows you to perfectly tune the carburetion of your engine to keep it at its best and improve the engine's performance. Alongside the Analogue CAN Converter, you can choose among 5 different split harnesses. Up to 4 thermocouples or 4 analogue channels 0-5V/0-12V are available.

The SmartyCam 3 series also connects to record synchronised video and telemetry ready for analysis in Race Studio 3.

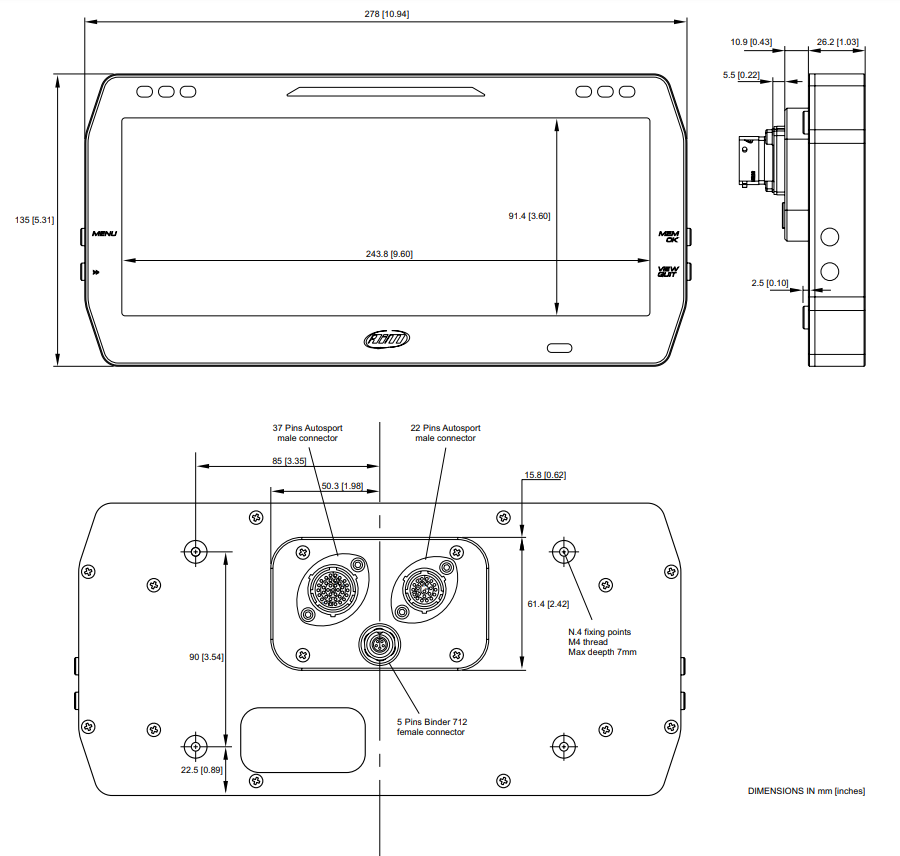

Please Note: A 37 pin harness comes standard in the kit. Should you need more data, you can add our 22 pin harness as an optional extra.
