The Ultimate Track Day Kit

The Aim SmartyCam 3 Sport & Solo 2 DL with double bracket is a must-have kit for competitive testing and track days. It combines the Solo 2 DL data logging lap timer with the SmartyCam 3 Sport onboard motorsport camera, allowing you to easily review parameters such as speed, engine revs and cornering G-force against track position to see where lap times can be improved.

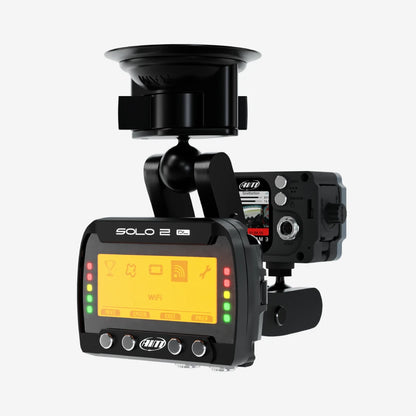

Aim SmartyCam 3 Sport & Solo 2 DL with Double Bracket Trackday Kit

Accurate Lap Timing, Real Time & Post-Session Review

The Solo 2 DL lap timer provides key information: lap times, lap count, delta times and predictive lap times. With over 4,000 tracks already loaded onto the database from across the globe, you can automatically select your nearest track based on your current position.

Log your vehicle’s ECU data for reviewing after a race day to help improve driver performance or vehicle set-up, and capture every lap in full HD and overlay lap and ECU data onto the footage for the ultimate lap-by-lap review.

Aim SmartyCam 3 Sport & Solo 2 DL with Double Bracket Trackday Kit

Inertial Platform

The Solo 2 DL calculates, displays, and records lap times, sector times, position & vehicle speed, with a sampling rate of up to 25Hz, and 3D acceleration & gyro. This allows you to see your exact racing line, compare it to optimal lines for faster lap times, track your vehicle’s movements and provide detailed data on acceleration, braking and cornering forces.

Paired With The Best Onboard Motorsport Camera

The Aim SmartyCam 3 Sport is an incredibly compact and robust video camera, which has been designed to provide great videos of your racing and include all the technical information you need to help improve your performance on race and track days. 

With the SmartyCam 3 Sport, you can record your entire session in glorious high definition. A high-quality CMOS sensor also provides outstanding video quality and stability for later review. The SmartyCam 3 Sport automatically overlays on your video all the data you need, including speed, RPM, lap number, gear shifts and much more. You can choose the graphical layout to suit your requirements from the various overlay options available.

Aim SmartyCam 3 Sport & Solo 2 DL with Double Bracket Trackday Kit

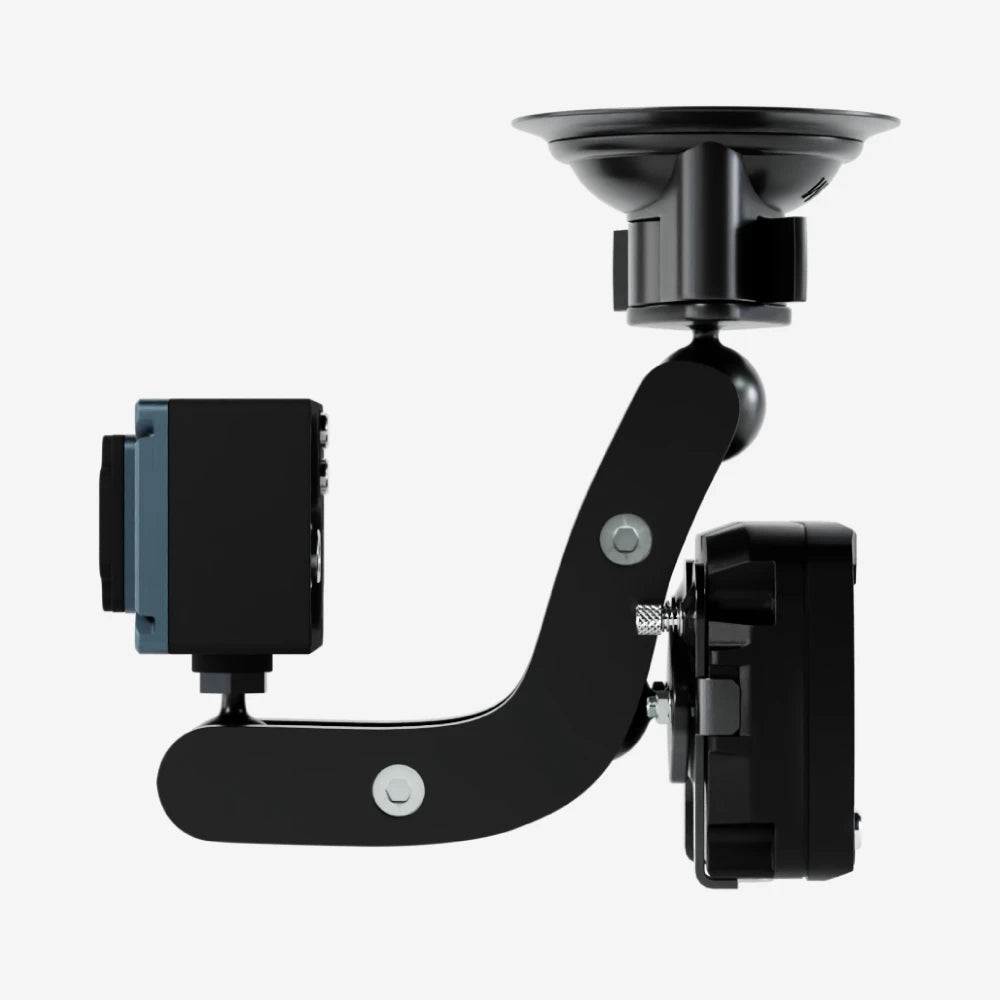

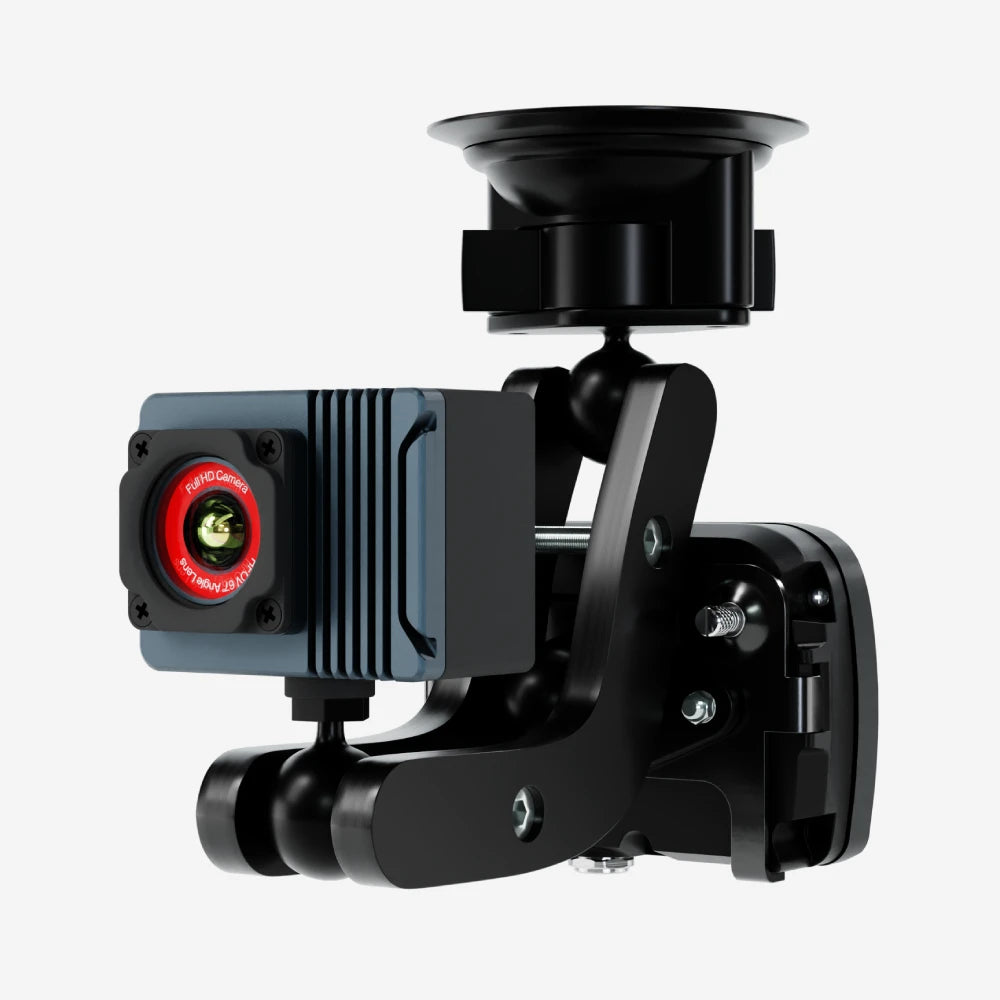

A Compact Mounting Solution

Providing a compact and neat mounting solution, both the Solo 2 DL and SmartyCam 3 Sport can be secured in place on the included double bracket mounting frame. The kit can be mounted in the vehicle via a powerful suction cup for use on the windscreen or dashboard, or by securely fastening to a roll cage. This provides various options depending on circuit or driver requirements for a quick and easy transfer from vehicle to vehicle.

Advancing Your Performance

Both the data recorded from the Solo 2 DL and the video from the SmartyCam 3 Sport can also be combined in our free analysis software, Race Studio 3. This allows you to review your driving and compare data such as speed, G-forces, throttle position and more, and acts as a performance tool to assist you in improving your driving skills by providing a visual reference for driving lines and technique.

Technical Information

Technical Specs

Solo 2 DL

Technical
  • Display: Graphical LCD
  • Display Resolution: 238 x 99 pixels
  • Display Pages: Up to 8 freely configurable
  • Backlight: 8 configurable RGB colours
  • Shift Lights/Alarm LEDs: 10 configurable RGB LEDs
  • Integrated Track Database: Over 4,000 worldwide
  • Inertial Platform Internal 3-axis ±5G accelerometer + 3-axis gyro + 3-axis magnetometer
  • Wi-Fi Connection: Yes
  • GPS: 25Hz
  • External Power: 9-15V
  • Connectors: 1 socket (binder) 712, 5 pins, 1 socket (binder) 712, 8 pins
  • Memory: 4GB
  • Battery Type: Rechargeable lithium
  • Push Buttons: Metallic
  • ECU Connection: CAN, RS23 or K-Line to thousands of industry-leading ECUs
Size & Weight
  • Dimensions: 98.0 x 73.7 x 30.2mm
  • Weight: 240g, battery included
Waterproof
  • IP65

SmartyCam Sport

Technical
  • Display Resolution: 128 x 128 pixels
  • Video Format: H.264 - 1920 x 1080 pixels at 30 fps
  • Lens: Low-distortion camera lens
  • CMOS Sensor: Global shutter
  • Field Of View: 67° or 84°
  • Internal Battery: Rechargeable lithium battery
  • External Power: 9-15V
  • Supported MicroSD Card (Not Included): Up to 2TB
  • Accelerometer: Three-axial ± 16G
  • Connectors: 1 binder 712 female
  • Usage Temperatures: -10°C/+50°C
  • Auto Power ON/OFF: Yes
  • Auto Start/Stop Recording: Yes
Size & Weight
  • Dimensions: 79.9 x 54 x 46.5mm
  • Weight: 200g, battery included
Waterproof
  • IP65

SKU: SM-SOLO2

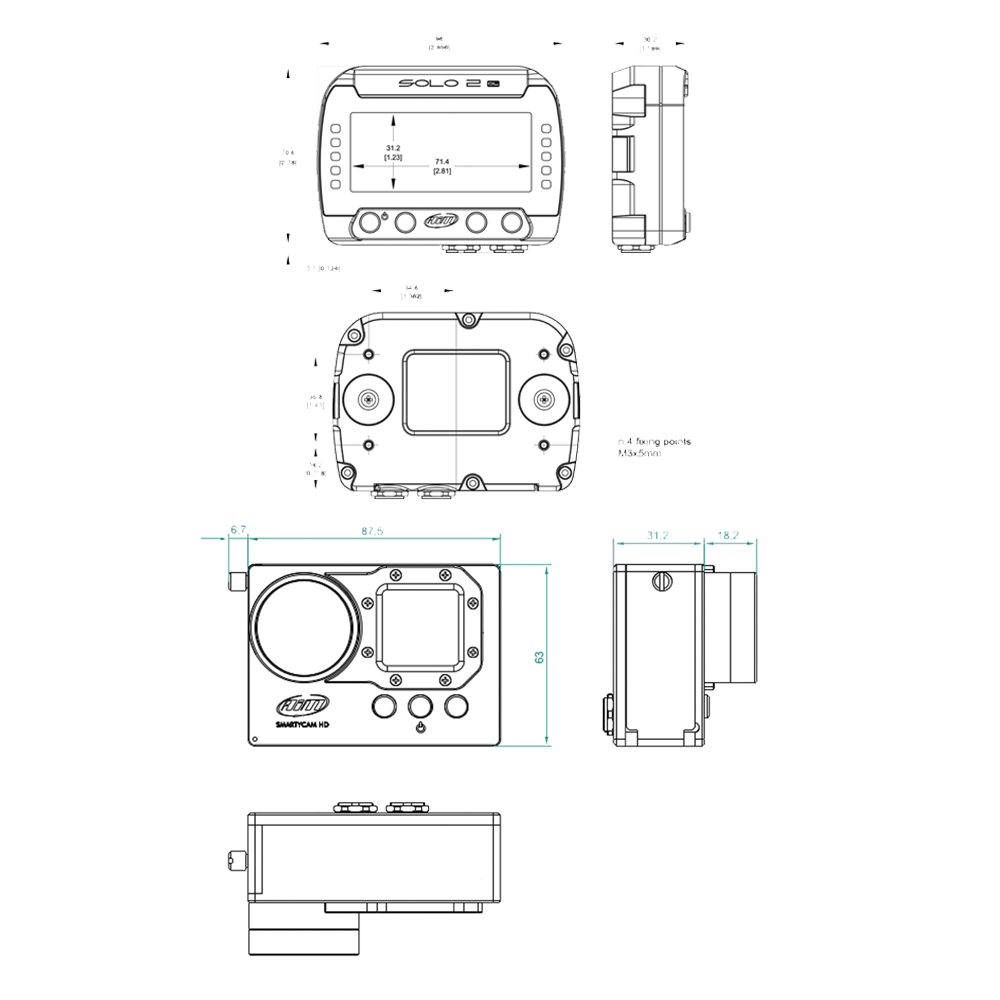

Diagram

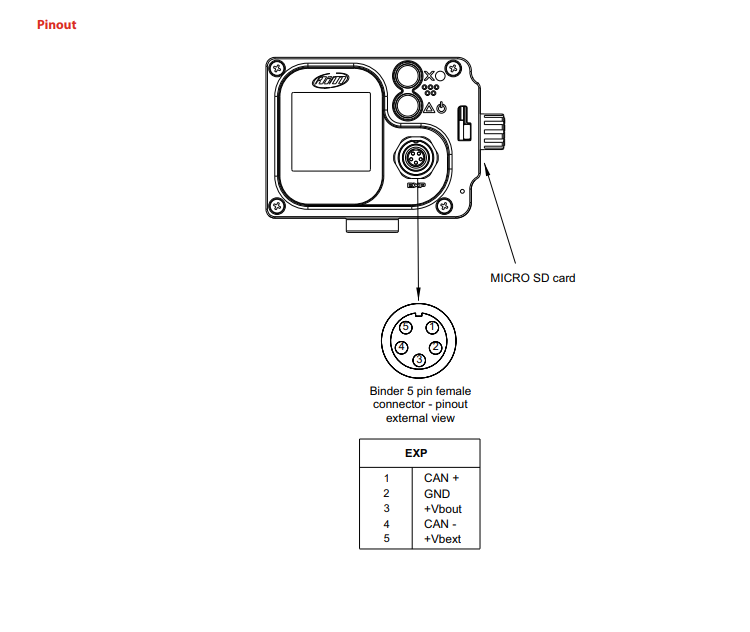

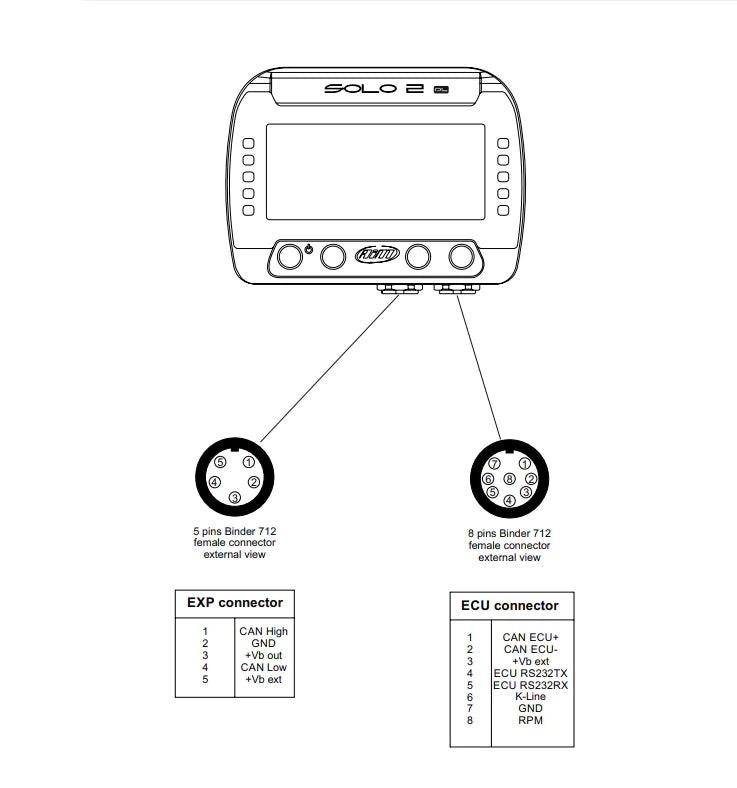

Pinouts

Included in the Box

  • Solo 2 DL

  • Your Chosen Connection Cable

  • AiM Solo 2 & Solo 2 DL Mains Charger & Power Lead UK Plug - AimShop.com

    12V Mains Charger

  • Solo 2 Mounting Bracket with Screws

  • SmartyCam 3 Sport

  • CAN Connection Cable

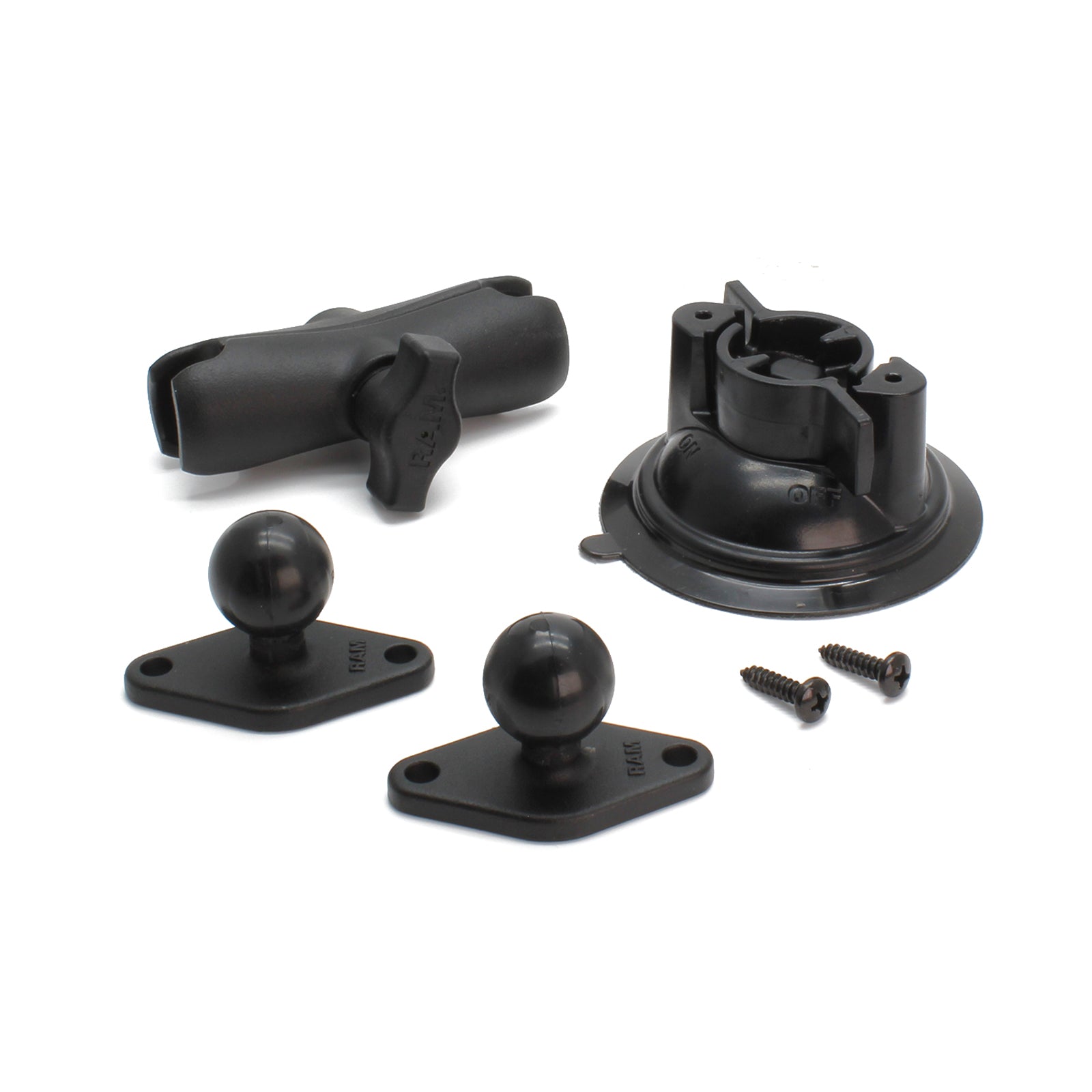

  • AiM Solo & Solo 2 & Solo 2 DL Suction Cup Mount - AimShop.com

    Suction Cup Mount

  • Free Aim Software

    Free Aim Software

Downloads

Solo 2 DL User Guide
Aim Shop Tech Sheet Download Icon
Solo 2 DL Tech Sheet
SmartyCam 3 Sport User Guide
Aim Shop Tech Sheet Download Icon
SmartyCam 3 Sport Tech Sheet
Race Studio 3 Download Icon
Race Studio 3

Videos

Overview

Ladda video: An in-depth review of the main features and functions of the Aim Solo 2 DL track day lap timer.

Connection Example
