Carbon 10 Button Wireless Steering Wheel Plate
Race faster, harder and safer with push-button controls at your fingertips, combining minimum driver distraction with maximum ease of use.
Please Note: The steering wheel: not included. Stickers: sold separately.
4 & 8 Channel Stickers 10 Chanel Stickers
Key Features :
| CAN wireless system |
CR2 lithium battery |
| 8 digital push buttons |
Two 12 position analogue inputs |
| Bolt between the wheel & boss |
3-year guarantee |
|
Carbon 10 Button Wireless Steering Wheel Plate
The carbon ten channel wireless system allows you to have push-button controls at your fingertips whether you have a detachable steering wheel or would like to avoid the need for an unreliable coiled wire connection from your steering wheel to the dashboard.
The system uses a wireless (RF) connection between the wheel plate transmitter and the CAN receiver. The compact receiver is neatly installed behind your dashboard and attached to an Aim CAN device directly using the binder harness.

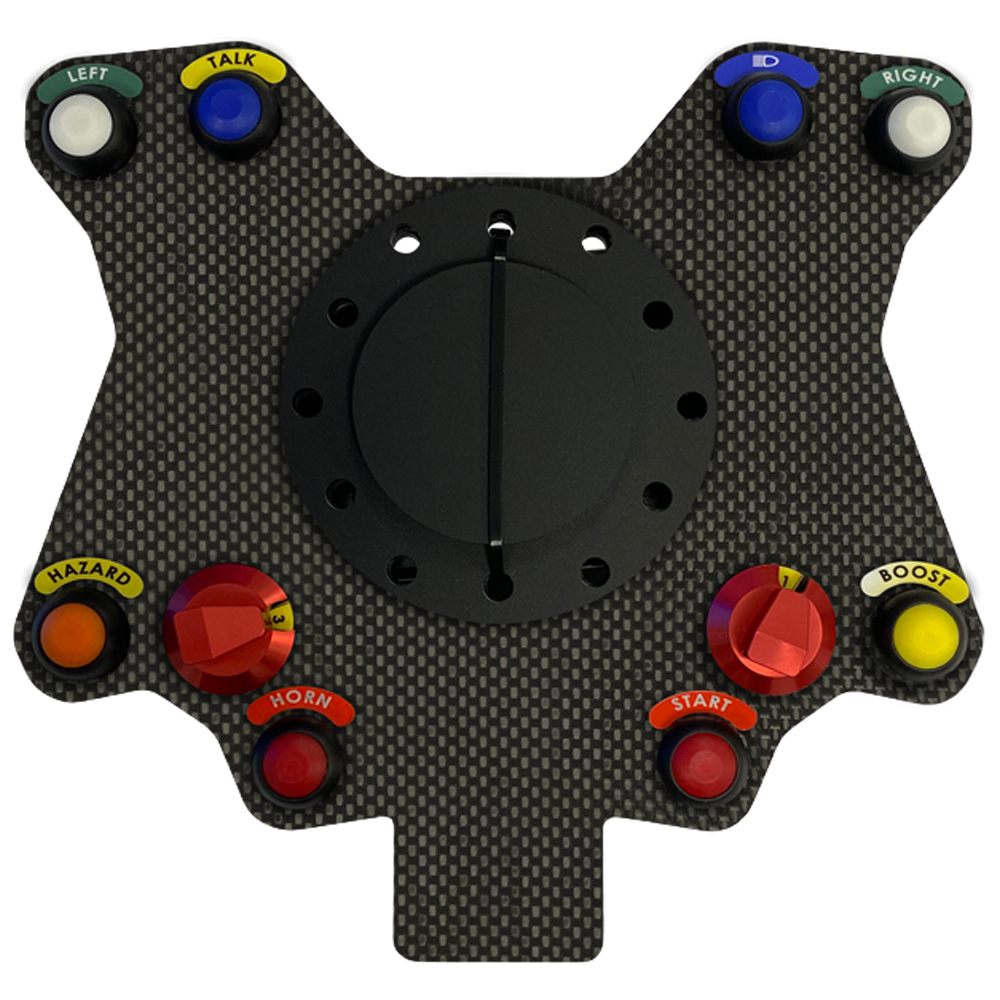

Upgrade your wheel plate with adhesive stickers. Pre-cut and hard-wearing, and professionally printed. They are easy to apply and add a professional finish to your wheel plate. See accessories tab.

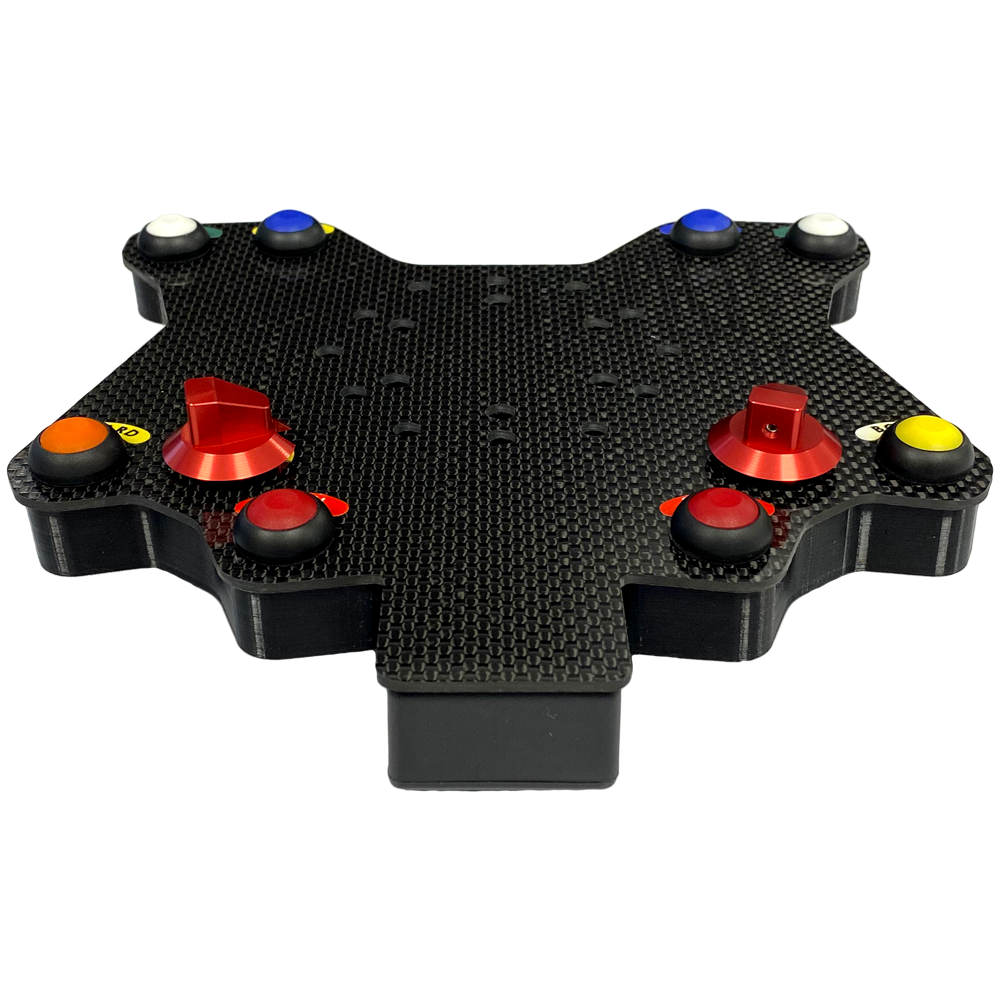

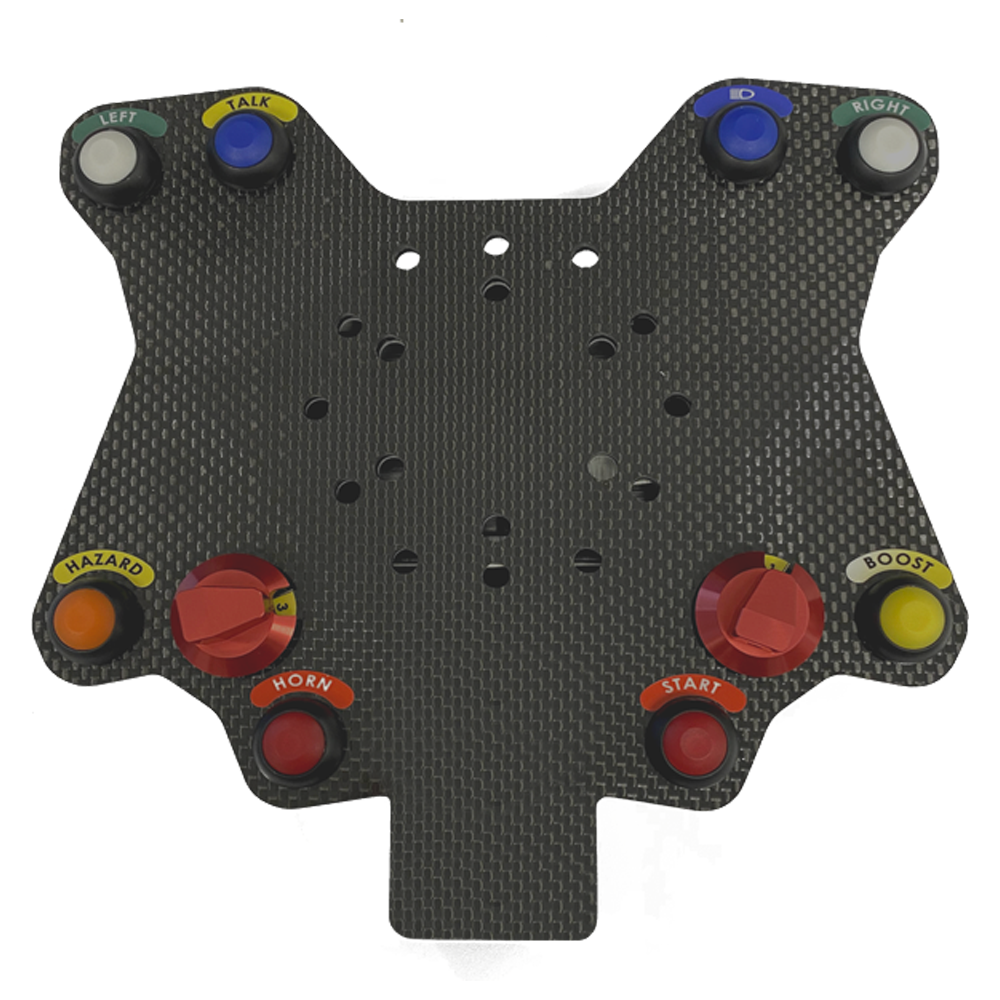

8 Digital pushbuttons & 2 analogue inputs
Wirelessly implemented, the in-vehicle commands in a fraction of the time with eight instant steering button controls and two 12 position analogue inputs can be set as traction control settings or for engine mapping giving you a wide range of adjustability at your fingertips.
The steering wheel plate is lightweight and integrates with most CAN devices, including dashboards, ECUs, PDUs and data loggers, and has been tested to withstand the harshest EMI generated within your car.

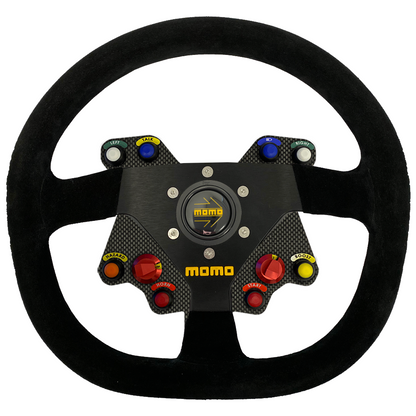

The button plate is suitable for most standard bolt patterns on 6 x 70mm, 3 x 50.8mm and 3 x 50.8mm steering wheels.
Battery Life
The ten channel wireless wheel plate has a standard CR2 lithium battery with a guaranteed life of 3 years or 50,000 miles. You don't have to worry about the battery going flat.
The battery voltage is regularly transmitted to the CAN receiver with the intelligent system and then forwarded to the Aim device that gives you around 30 days notice when the battery needs to be replaced.
Using our PDM systems and Race Studio 3 software will allow you to completely control the behaviour of the momentary push-buttons to act as simple latching switches or more complex management.
Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3, you can also analyse all data recorded and download it to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.
Technical
Carbon 10 Button Wireless Steering Wheel Plate
-
Button plate front: Matt black, Carbon
- 176 x 154mm
- Battery housing: ABS-UL94-VO
- 54 X 38 X 23mm external
- CR2 lithium battery
- 50,000 miles active use
- Pushbuttons: IP67
- Assembly: 10 channel 285g
What's in The Box
Carbon 10 Button Wireless Steering Wheel Plate
- 10 channel wireless wheel plate
- Connection harness
- CR2 lithium battery
- Aim sticker
