Link Mazda MX5Link - MX5X PlugIn ECU
SKU: MX5X
- Vanligt pris
- £850.00
- Vanligt pris
-
- Försäljningspris
- £850.00
- Enhetspris
- per
+ moms (endast Storbritannien)
Link Mazda MX5Link - MX5X PlugIn ECU
Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential of your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.
Designed for the MX5 B6ZE(RS) / BP 1.8L engine.

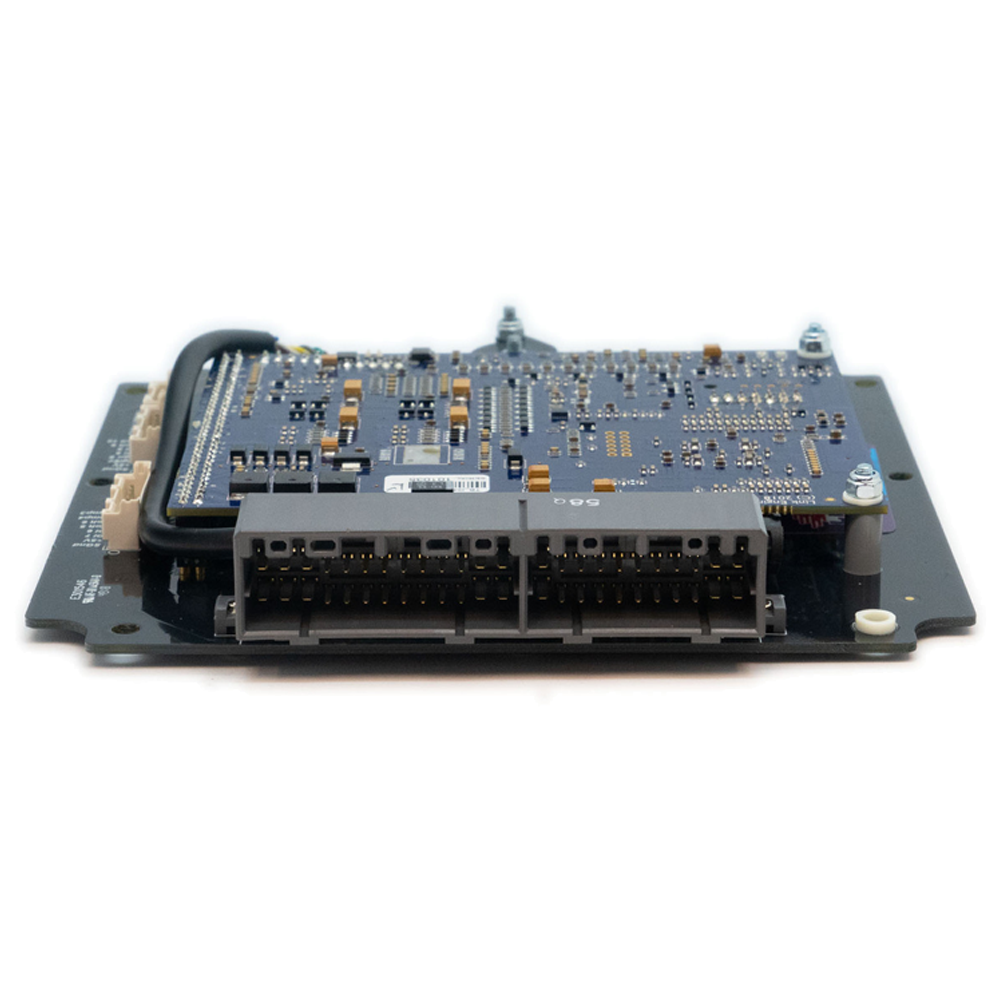

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
Includes onboard 4 bar or 7 bar MAP sensor
Knock control not available on this ECU.
Most factory features are supported
Suitable Applications:
1600 1989-1997 NA MX5
1800 1989-1997 NA MX5
1800 323 GTX
1800 323 GTR
Please note: This ECU does not fit NB, NC, ND models. This unit is only suitable for the 2 plug ECU and not the later 3 plug models).
G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cams, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - anti-lag, launch, flat shift
Continuous barometric correction (onboard)
CAN port
Quick Tune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real-time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 megabytes data logging memory
Staged injection
Knock with "windowing"
I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
SGnd Sensor Ground Only
+5V Low Current +5V Supply
DI 7 Digital Input
DI 6 Digital Input
Volt 5 Analog 0-5V input
Volt 6 Analog 0-5V input
Temp4 Temperature sensor input
Temp3 Temperature sensor input
Expansion connector 2
SGnd Sensor Ground Only
+5V Low Current +5V Supply
Ign 7 Auxiliary Output
Ign 8 Auxiliary Output
DI 8 Digital Input
DI 9 Digital Input
Volt 9 Analog 0-5V input
Volt 10 Analog 0-5V input
