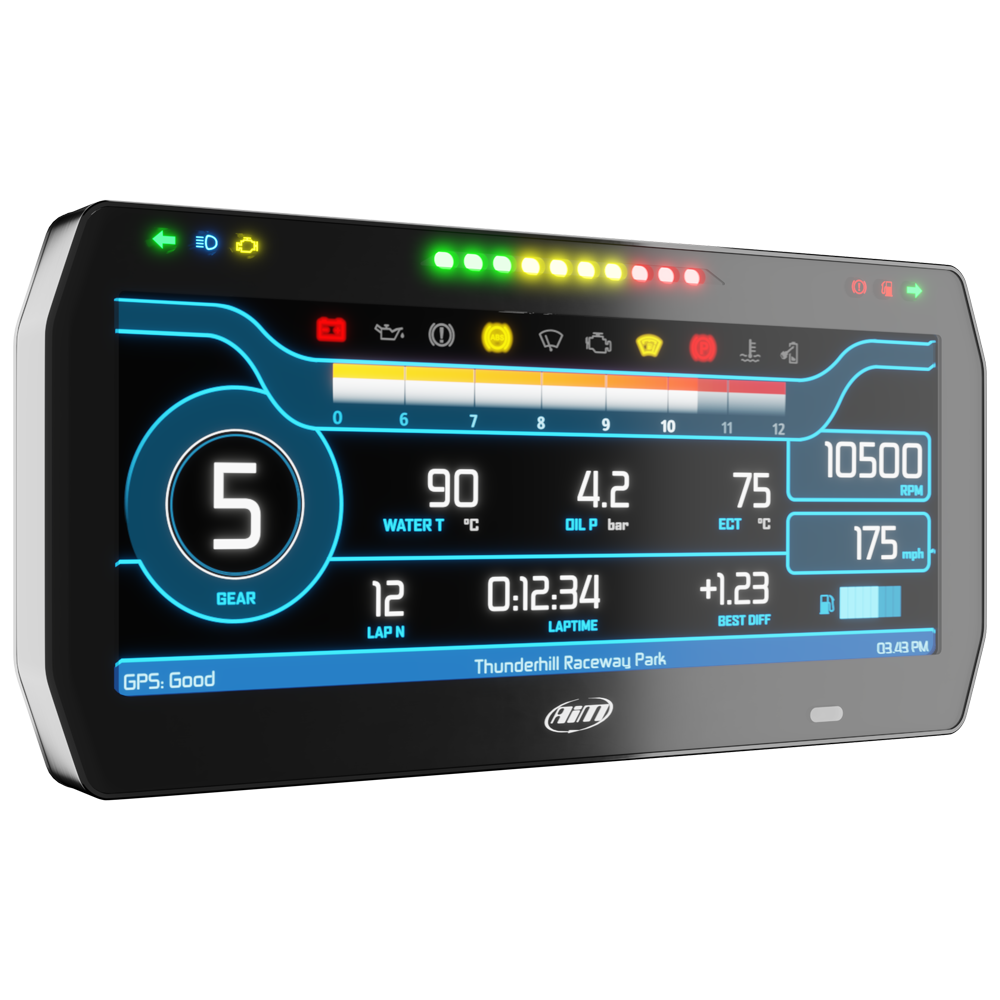

AiM 10" TFT Dash Display with Road Icons for PDM08/PDM32
The AiM 10" TFT dash display with road icons is suitable as a replacement unit for those supplied with the AiM PDM kits or an upgrade for PDM kits that do not include a dash display. Optional GPS Module connection available.
Key Features :
10" TFT dash display | Road Icons |
Six status information LEDs | Ten shift light LEDs |
Fully configurable display | Range of layouts |

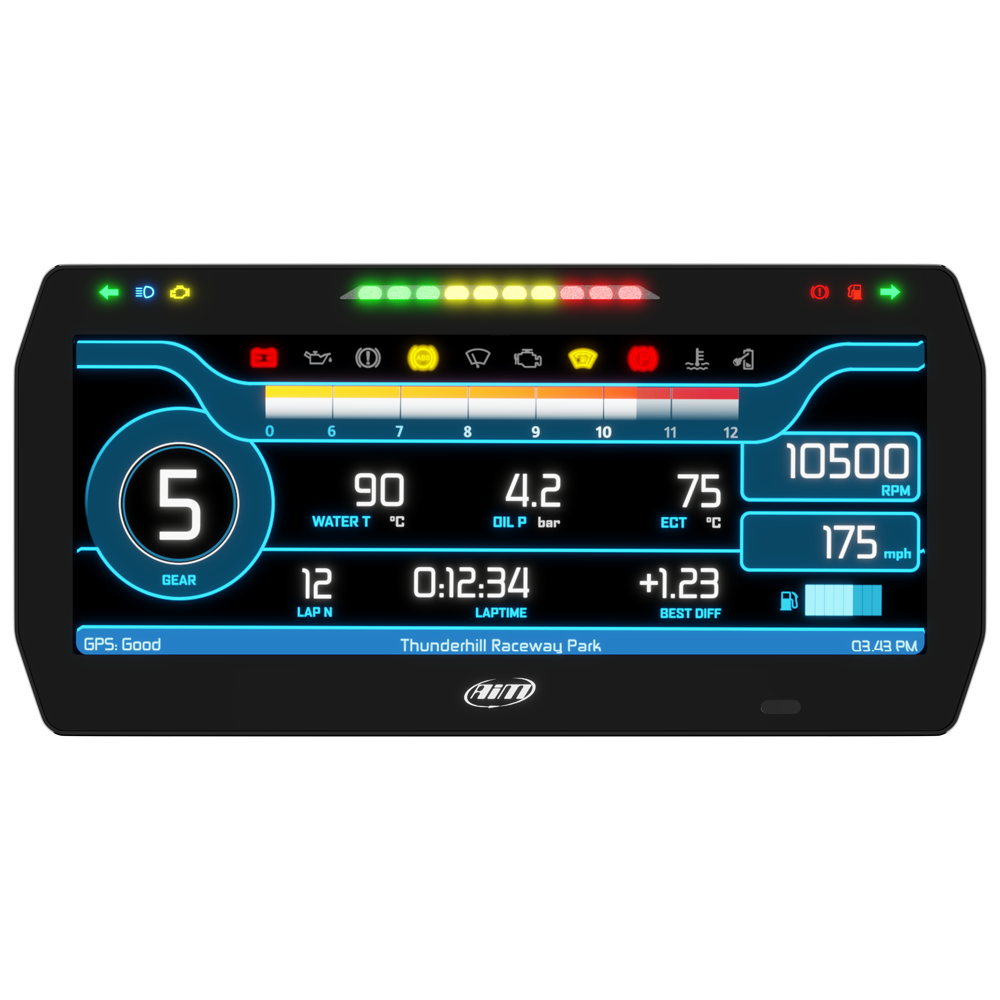

10" TFT Dash Display
Suitable for replacing all of the dashboard gauges and warning lamps, the TFT dash display is available in 6" or 10" versions and with "Race" or "Road" icons. Both versions have full user-configurable displays and offer a range of layouts.
Check out the Downloads Tab for all the information required on connection and programming to the PDM08 and the PDM32.
Please note - the 10" dash display is ONLY for use with AiM PDM kits and can not be used as a stand-alone dash display.
Optional Extra
The dashes also double up as a reversing mirror using a separately available camera—ideal for cars with limited rear vision. You can add up to 2 cameras for both front and rear views. You can find the optional Reversing Mirror Camera in the Accessories Tab. You will require a PDM32 in order for this to work.
Expand Your System
Improve your performance
Add extra devices to your system to give additional data and improve your racing performance, such as GPS Module, Channel Expansion, TC Hub, SmartyCam HD, Lambda Controller, Remote I/O Pushbutton Module, Formula Steering Wheel, TPMS System, and Keypads.
Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3, you can create, modify, delete, import, and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights, and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3, you can also analyze all data recorded by MXL2 and downloaded to your PC: graphs, histograms, and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.
AiM 10" TFT Dash Display with Road Icons for PDM08/PDM32
- Display: 10" TFT
- Resolution: 1280 x 480 pixels
- Contrast: 1,100:1
- Brightness: 800cd/m
- Ambient Light Sensor: Yes
- Status information LEDs: 6
- Shift Light LEDs: 10
- Body: Anodized Aliminium
- Pushbuttons: Metallic

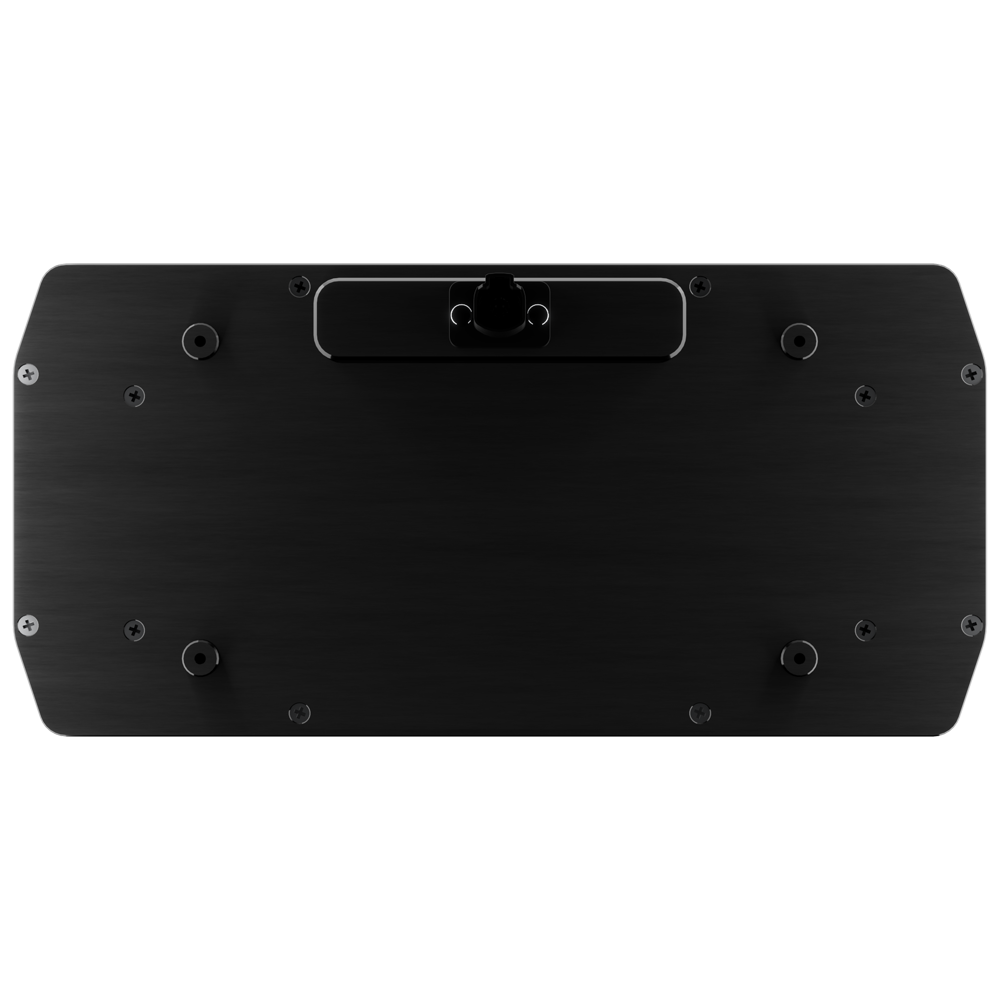

- Connectors: LVDS Link 4 Pins Rosenberger male connector
- Dimensions: 278.0 x 135.0 x 26.2mm
- Weight: 1000 g
- Power consumption: 250 mA
- Waterproof: IP65
AiM 10" TFT Dash Display with Road Icons for PDM08/PDM32
- 10" TFT Dash Display with Road Icons
Description
AiM 10" TFT Dash Display with Road Icons for PDM08/PDM32
The AiM 10" TFT dash display with road icons is suitable as a replacement unit for those supplied with the AiM PDM kits or an upgrade for PDM kits that do not include a dash display. Optional GPS Module connection available.Key Features :
10" TFT dash display | Road Icons |
Six status information LEDs | Ten shift light LEDs |
Fully configurable display | Range of layouts |
10" TFT Dash Display
Suitable for replacing all of the dashboard gauges and warning lamps, the TFT dash display is available in 6" or 10" versions and with "Race" or "Road" icons. Both versions have full user-configurable displays and offer a range of layouts.Check out the Downloads Tab for all the information required on connection and programming to the PDM08 and the PDM32.
Please note - the 10" dash display is ONLY for use with AiM PDM kits and can not be used as a stand-alone dash display.
Optional Extra
The dashes also double up as a reversing mirror using a separately available camera—ideal for cars with limited rear vision. You can add up to 2 cameras for both front and rear views. You can find the optional Reversing Mirror Camera in the Accessories Tab. You will require a PDM32 in order for this to work.Expand Your System
Improve your performance
Add extra devices to your system to give additional data and improve your racing performance, such as GPS Module, Channel Expansion, TC Hub, SmartyCam HD, Lambda Controller, Remote I/O Pushbutton Module, Formula Steering Wheel, TPMS System, and Keypads.Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3, you can create, modify, delete, import, and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights, and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam HD cameras.Analysis
With Race Studio 3, you can also analyze all data recorded by MXL2 and downloaded to your PC: graphs, histograms, and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.Technical
AiM 10" TFT Dash Display with Road Icons for PDM08/PDM32
- Display: 10" TFT
- Resolution: 1280 x 480 pixels
- Contrast: 1,100:1
- Brightness: 800cd/m
- Ambient Light Sensor: Yes
- Status information LEDs: 6
- Shift Light LEDs: 10
- Body: Anodized Aliminium
- Pushbuttons: Metallic
- Connectors: LVDS Link 4 Pins Rosenberger male connector
- Dimensions: 278.0 x 135.0 x 26.2mm
- Weight: 1000 g
- Power consumption: 250 mA
- Waterproof: IP65
What's in The Box
AiM 10" TFT Dash Display with Road Icons for PDM08/PDM32
- 10" TFT Dash Display with Road Icons
