Power Your EVO4S

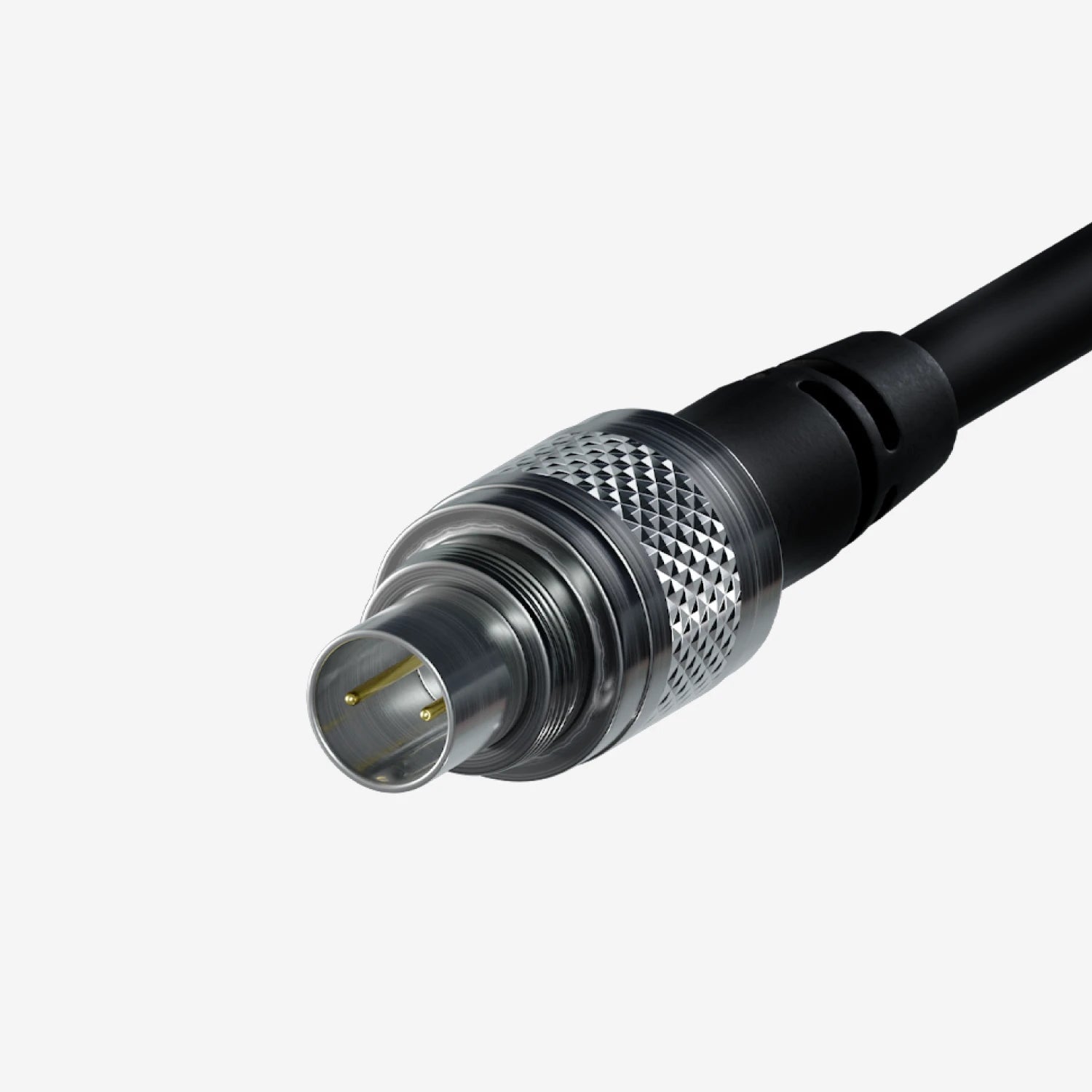

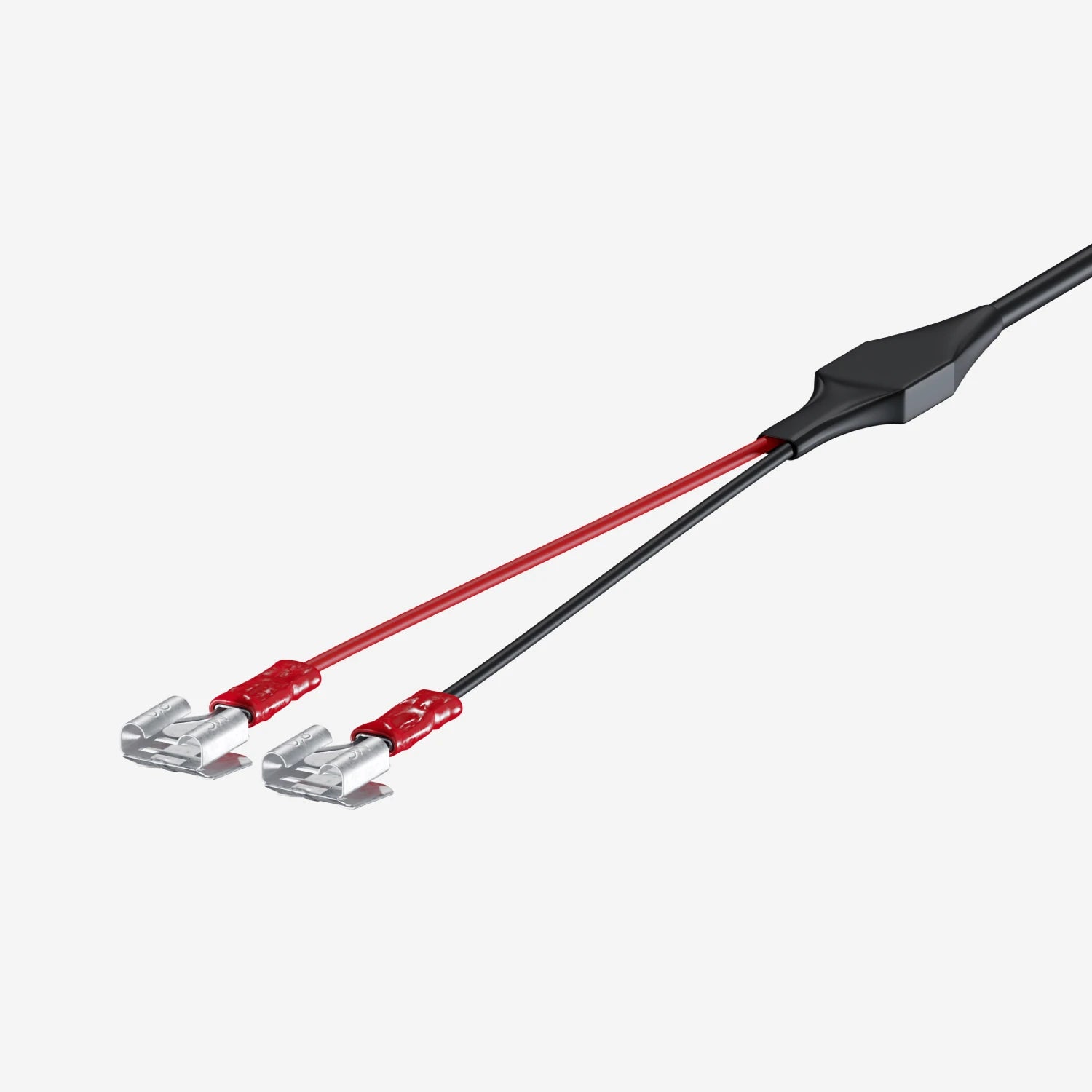

The Aim EVO4S power cable is a spare external power cable for the EVO4S data logger. It features a 2-pin 712 male Binder connector to plug into the logger’s power input, and 2 flying spade connectors to connect to the vehicle’s 12V supply.

Why Choose the Aim EVO4S Power Cable

The Aim EVO4S power cable offers a direct, dependable power connection tailored for the EVO4S system, replacing worn or damaged cables without needing to rewire the entire harness. The power cable is rated for inputs from 9-15V and includes a battery ground lead, making it suitable for typical road or race electrical systems.

Essentially, the Aim EVO4S power cable is ideal when you need a reliable, OEM-style replacement or spare power cable to ensure consistent logger operation.

Technical Information

Technical Specs

  • 2-pin 712 male Binder
  • 2 flying spade connectors
  • 9-15V
  • Battery GND

SKU: EVO4S-PC

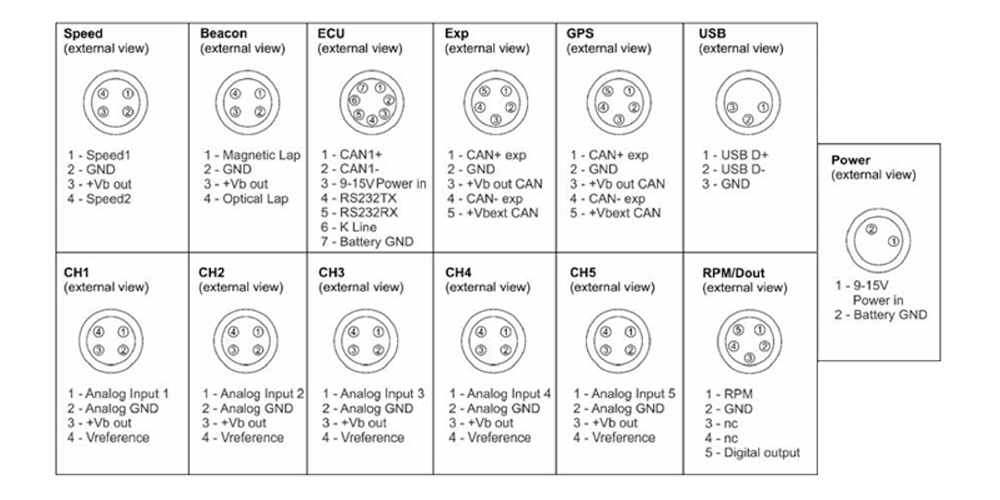

Pinout

Included in the Box

Downloads

EVO4S User Guide
Aim Shop Tech Sheet Download Icon
EVO4S Tech Sheet
Race Studio 3 Download Icon
Race Studio 3
