Aim SD Card Memory Module
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
SD Card Memory Module

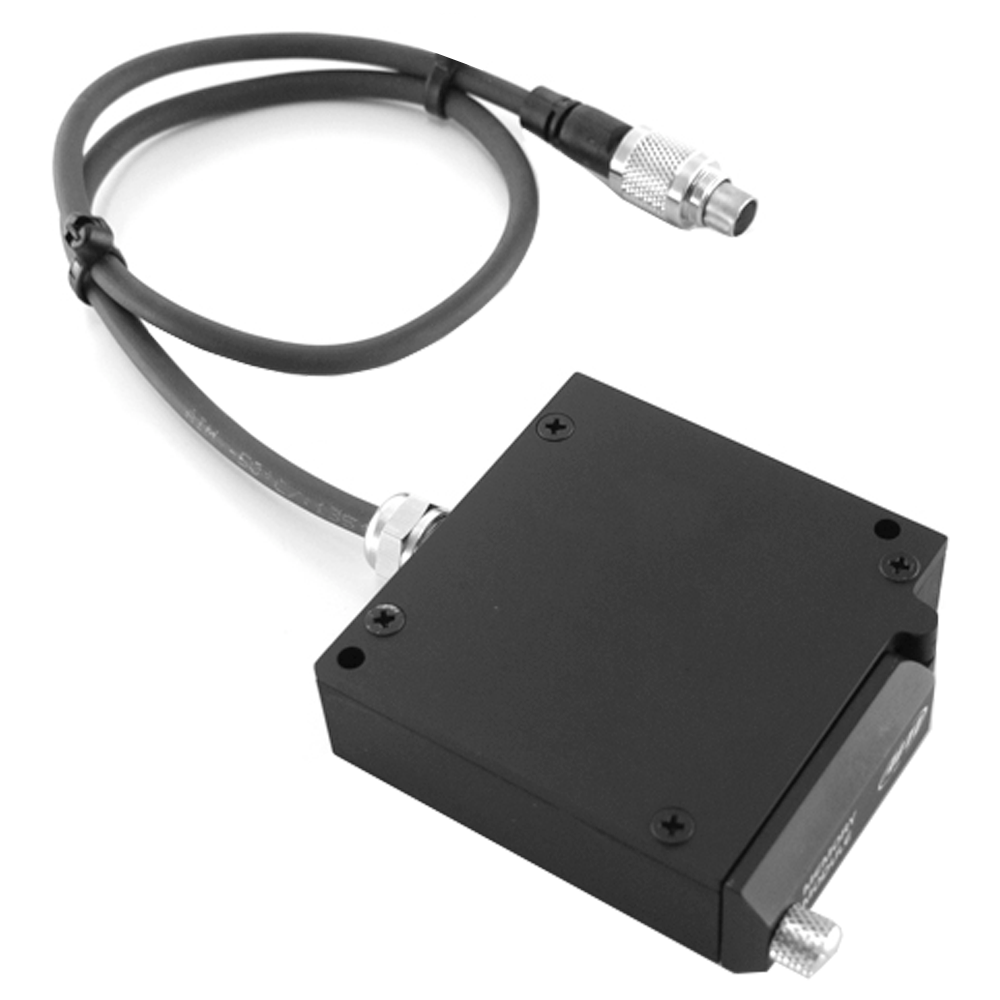

The Aim memory module is a small SD card holder that can be connected via CAN bus to the MX display logger range, as well as the X Log data loggers.
Why Choose the SD Card Memory Module

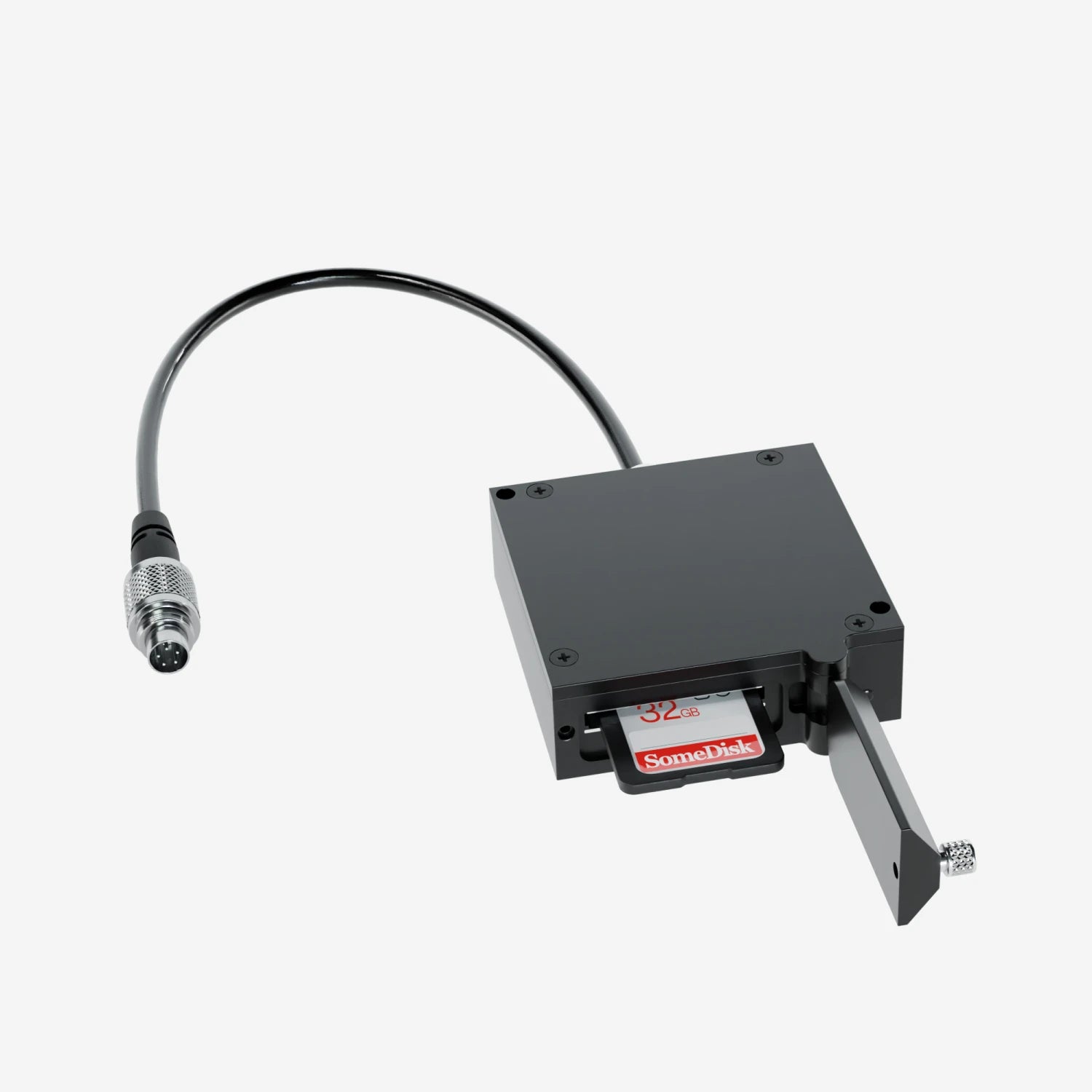

The memory module can be connected to your data logger to transfer your data from the logger to the SD card with no configuration. The SD card can be removed and replaced during pit stops while the vehicle engine is still on, making it easy to get the data during races or extended tests when time is limited.
When the session is over, remove the SD card from the module, put it into your PC, and download the data using Race Studio 3.

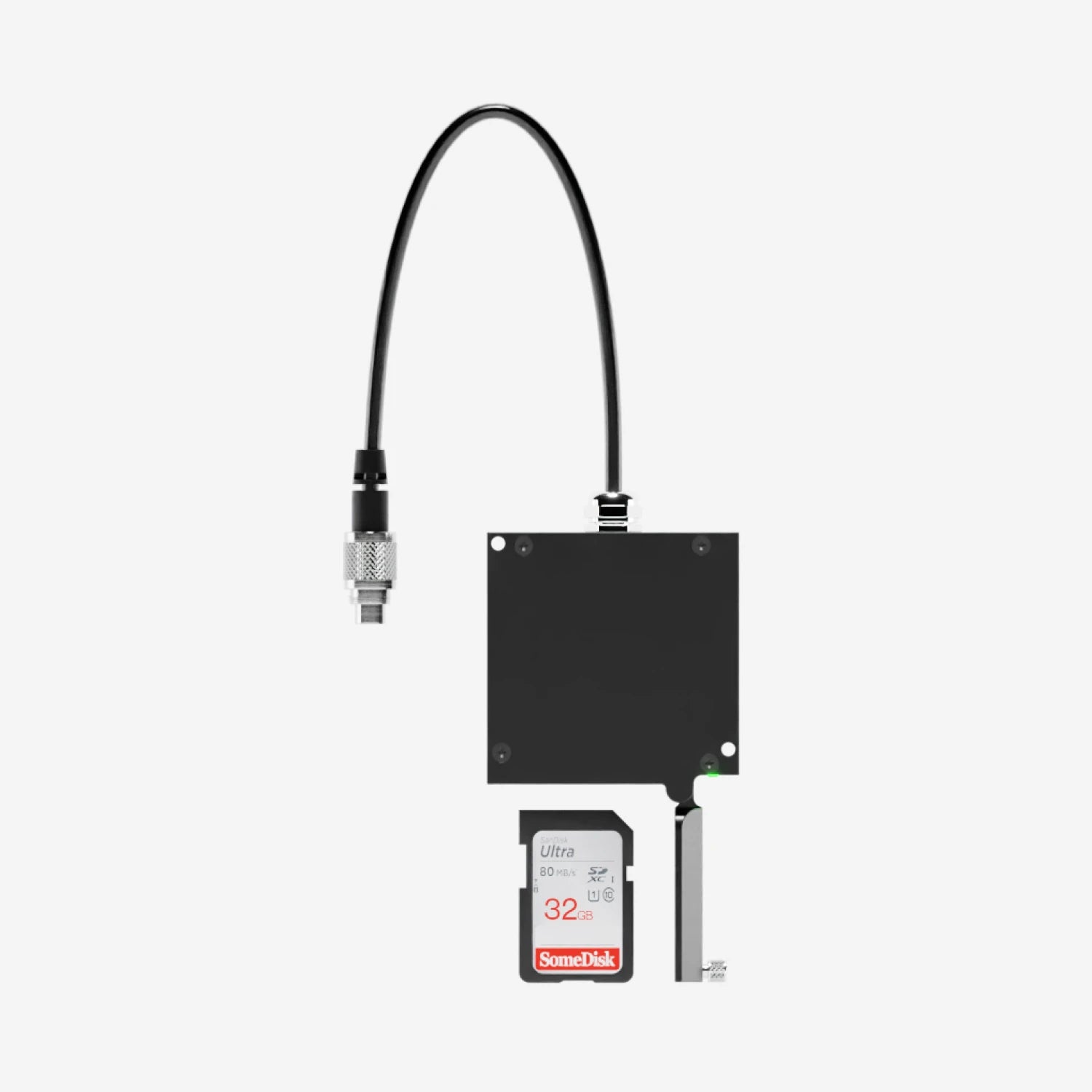

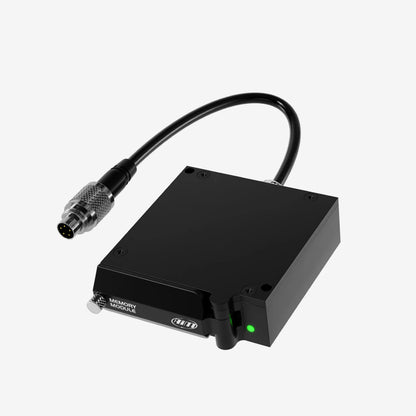

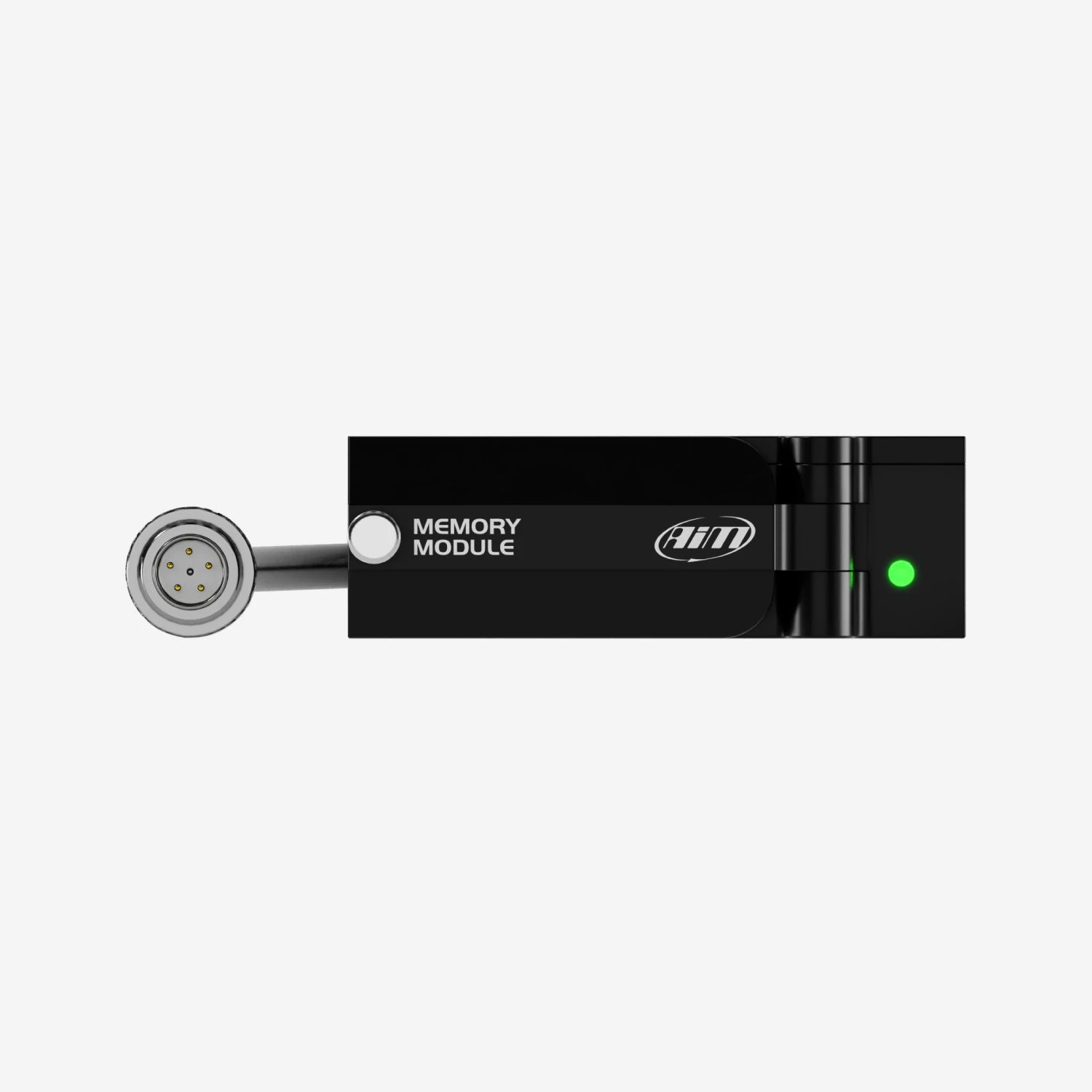

The module features a front LED showing its recording data, and it can support SD cards up to 32GB (not included).
Technical Information
Technical Specs

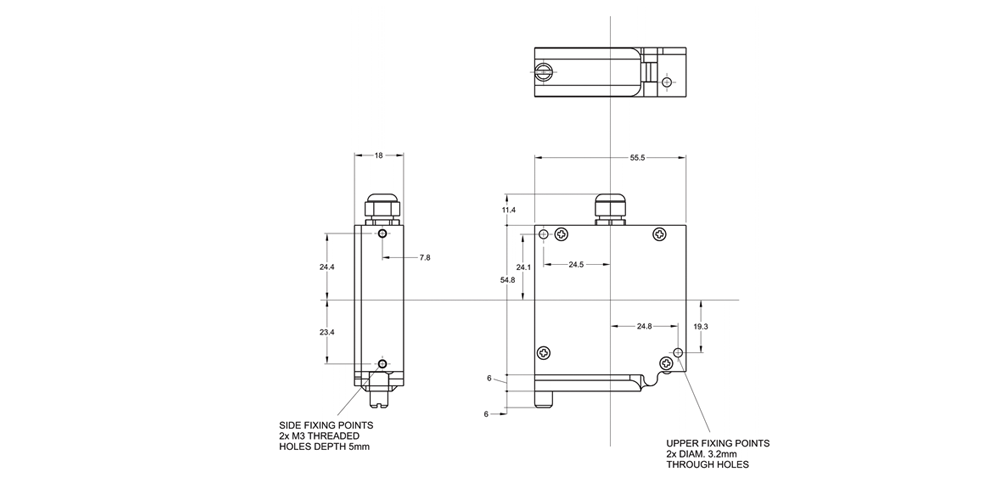

Diagram

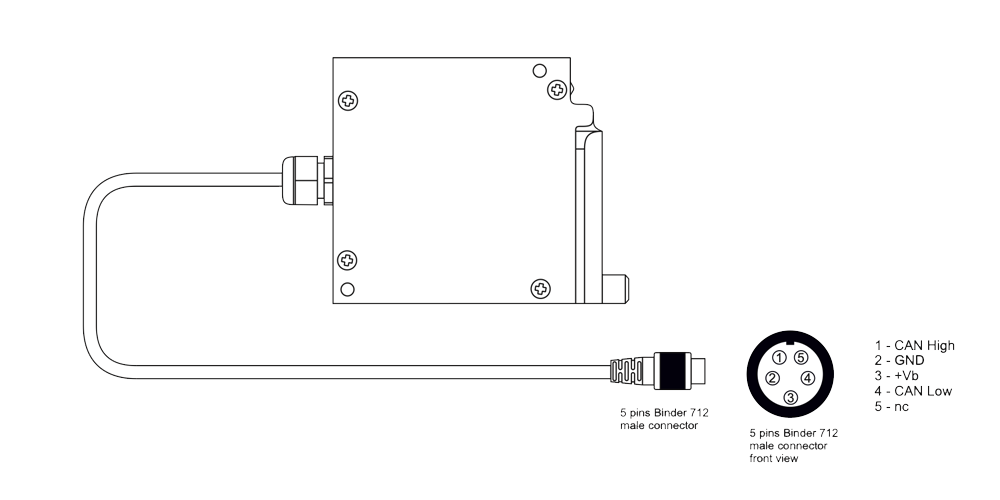

Pinout
Included in the Box
Memory Module (SD card not included)
-
Free Aim Software
Downloads
