Fuel Level Sender With AiM 4 pin 719 Binder

SKU: EL-AD-152

Normal pris
£250.00
Normal pris
Udsalgspris
£250.00

+ VAT (UK Only)

CO₂-neutral levering med Shopify Planet
CO2-neutral levering på alle ordrer
Drevet af Shopify Planet

Fuel Level Sender With AiM 4 pin 719 Binder

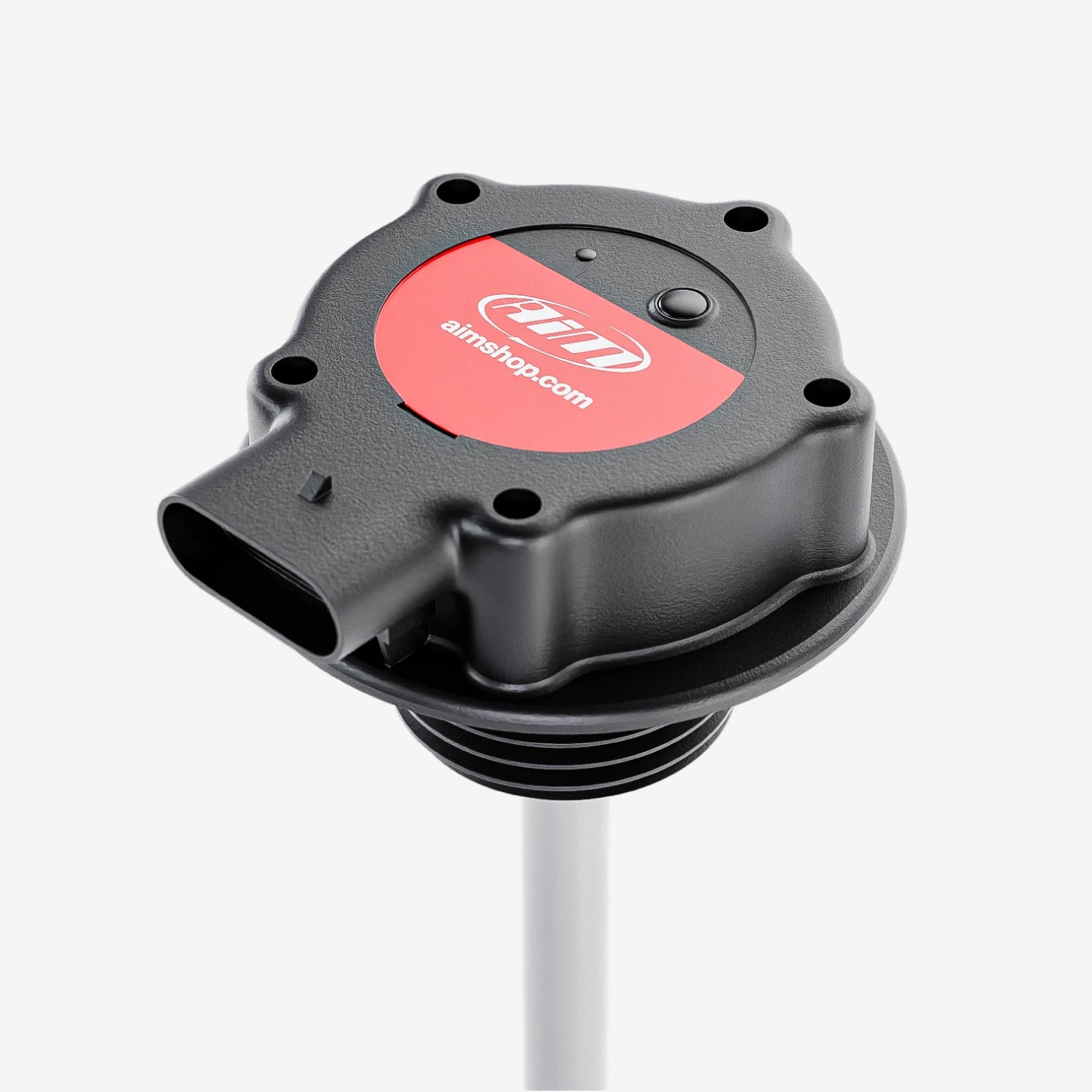

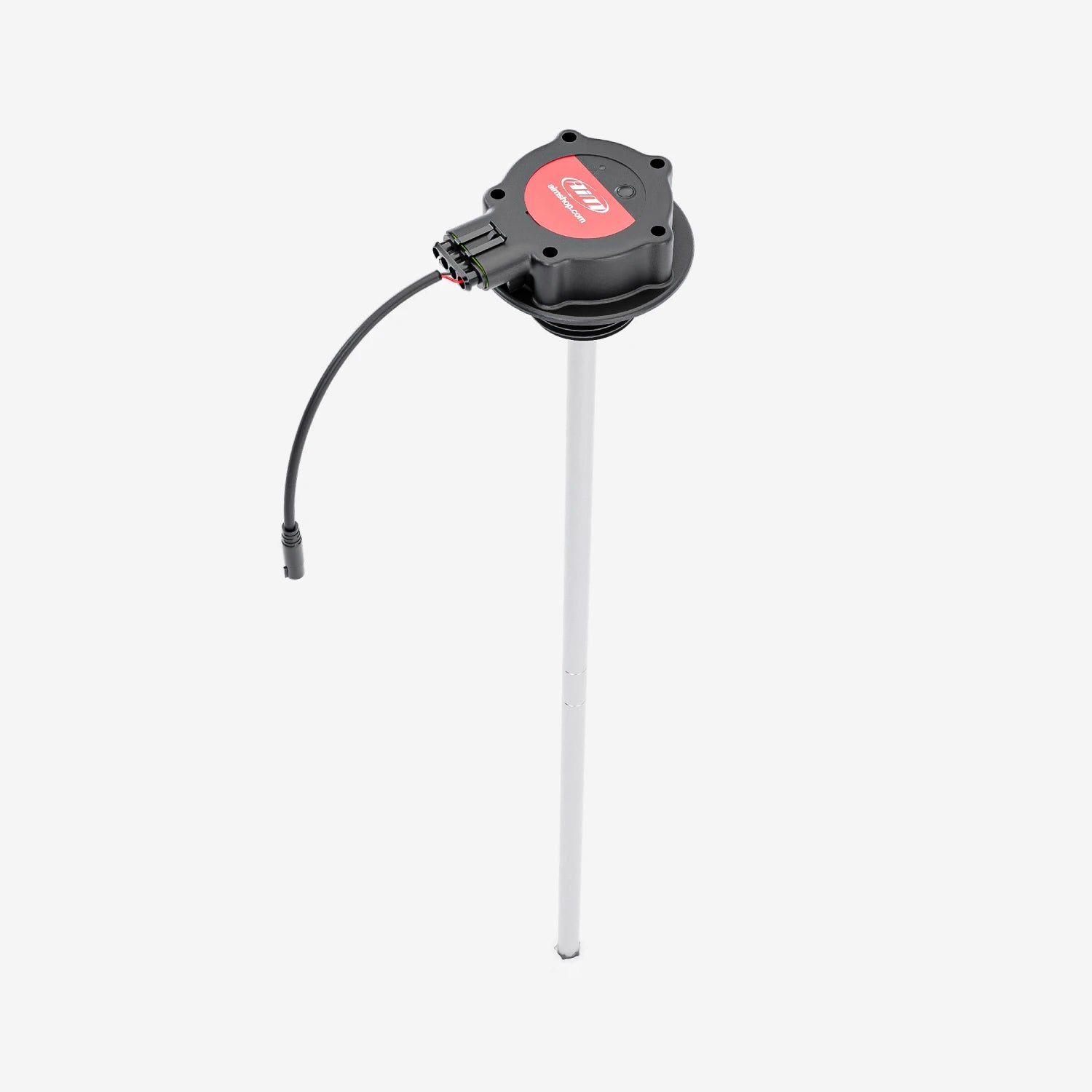

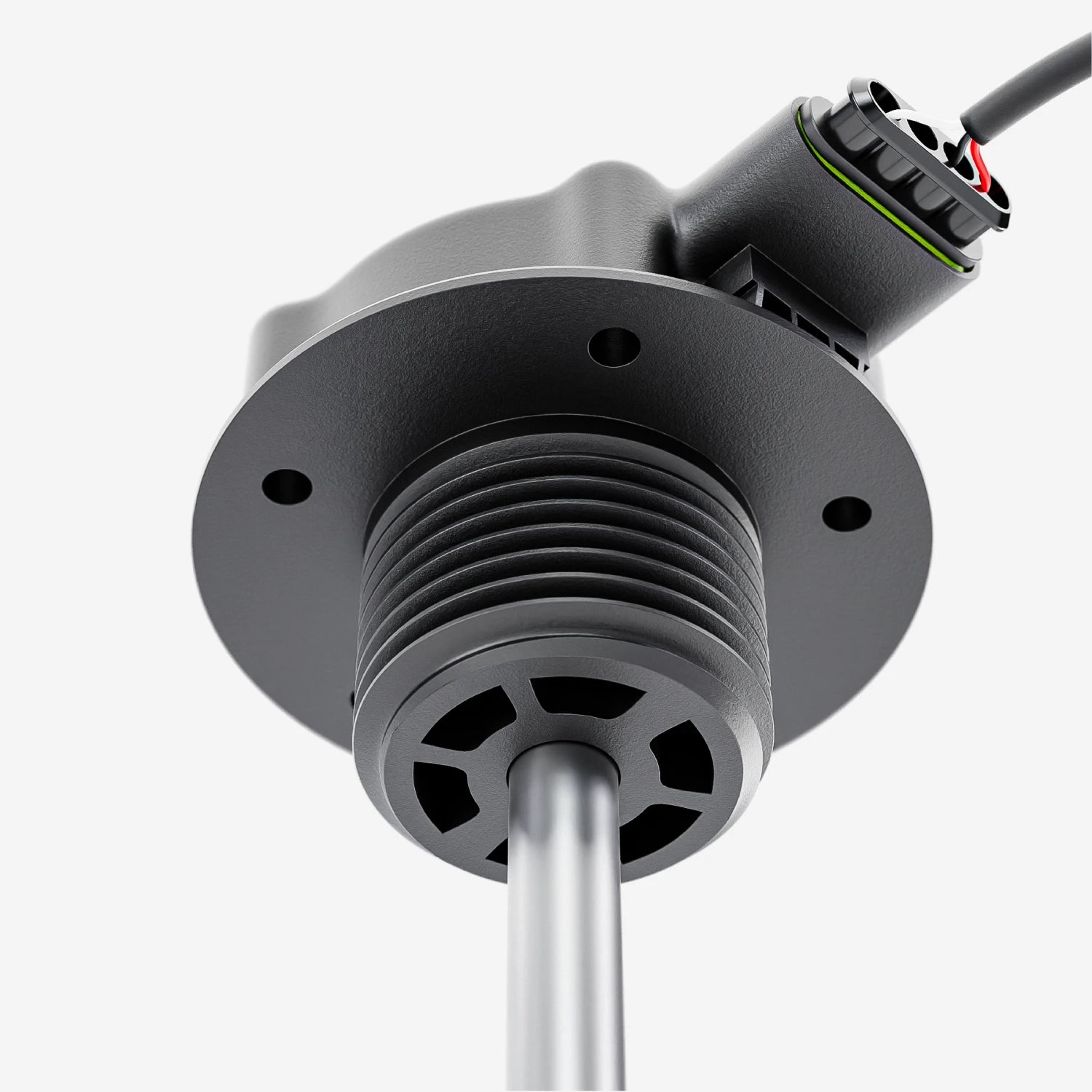

The fuel level sender with a 719 binder plug records the fuel level, allowing you to determine how much fuel you need for a session or race.

Key Features :

Probe length - 240mm max Supply voltage - 10-32V DC
-20°C to 85°C Sealing IP67
4 pin 719 binder


Fuel Level Sender With AiM 4 pin 719 Binder

The fuel level sender with a 719 binder plug records the fuel level, allowing you to determine how much fuel you need for a session or race.

As the fuel arm moves from the empty to the full position, contact is moved across the board on the rheostat, which varies the resistance seen by the fuel gauge. For example, a 69 Camaro has a 0-90 ohm fuel sender.

You will calibrate the supplied fuel sender for its entire length; however, you may need to shorten the fuel sender for your fuel tank.
If shortening the length of the fuel sender is required, ensure the distance is 10mm short of the full depth of the tank but should not be shorter than 200mm from where the gasket sits.

The fuel level sender can work with the AiM Channel Expansion and the required patch lead.

The AiM IVA loom for OEM builds has a pull-up resistor incorporated, which is unnecessary with the fuel level sender and can cause inconsistent readings.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Fuel Level Sender With AiM 4 pin 719 Binder

  • Fuel Tyes: Typically Diesel, Biodiesel, Kerosene and Petrol
  • Probe length: Min 200mm max 540mm
  • Mounting: SAE5 hole
  • Supply Voltage: 10-32V DC
  • Supply Protection: Over voltage 80v DC for 2 minutes, Reverse Polarity
  • Signal Output: 0-5v DC or 20mV steps, Max 10mA source
  • Connections: 500mm long with either flying leads or AiM plug fitting
  • Accuracy: + 3% of depth @ 20°C
  • Enclosure: 30% Glass filled Nylon
  • Enclosure Bush: Polypropylene
  • Internal Electrode: Aluminium
  • Sensor Tube: 316 stainless steel
  • Internal Spacers: Polyropylene
  • End Plug: PTFE
  • Wetted seals: Viton (FKM) & Nitrile
  • Gasket: Nitrile
  • Cable: Polyurethane
  • Sealing IP67 (Assuming suitably sealed cable breakout)
  • Operating Temperature: -20°C to 85°C
  • Shock: 50g 6.3ms
  • Vibration: 9.7g BS EN 60068-2-64-1993


Fuel Level Sender With AiM 4 pin 719 Binder

  • Fuel level Sender with 4 pin 719 binder connector
