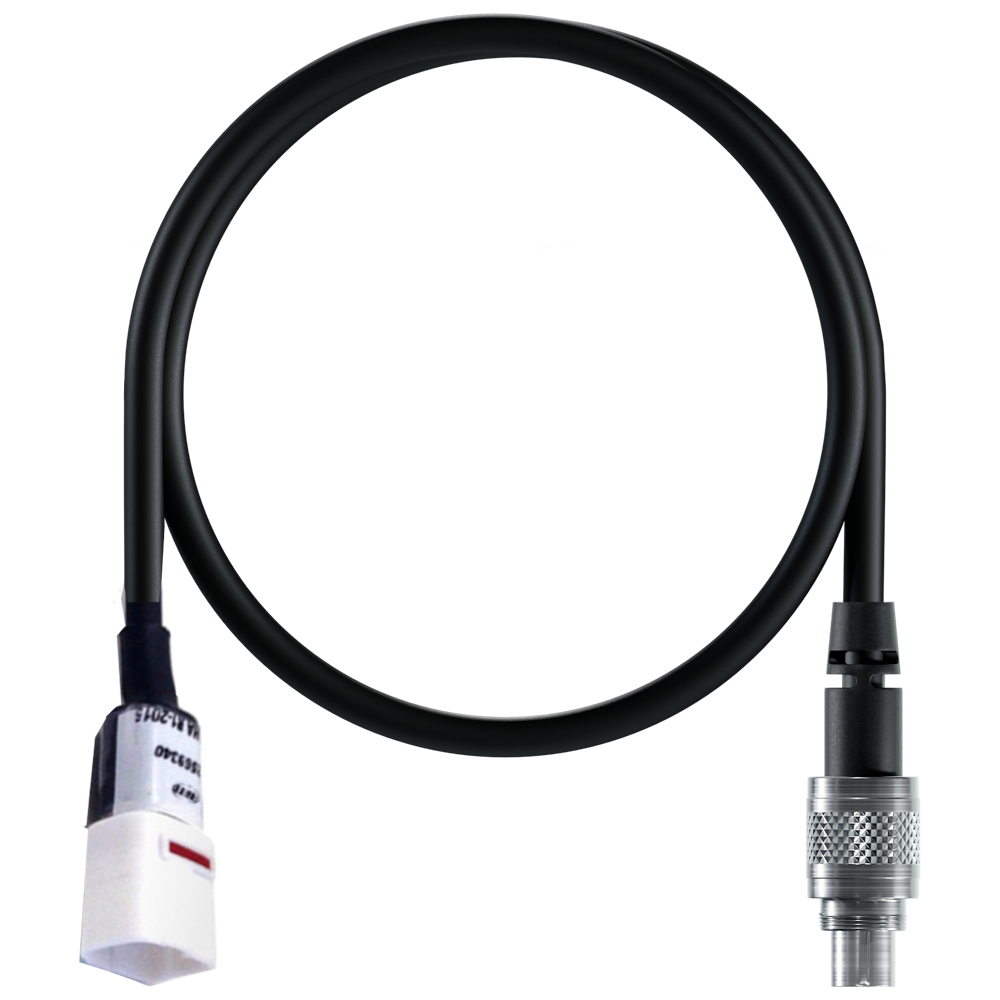

Yamaha YZF-R1/R1M & YZF-R6 AiM Solo 2 DL Plug & Play Cable
The AiM ECU plug & play cable has been specifically designed for Yamaha bikes. Allowing easy installation to a Solo 2 DL. With a 7-pin 712 male binder connection.
Key Features :
| Yamaha plug & play cable |

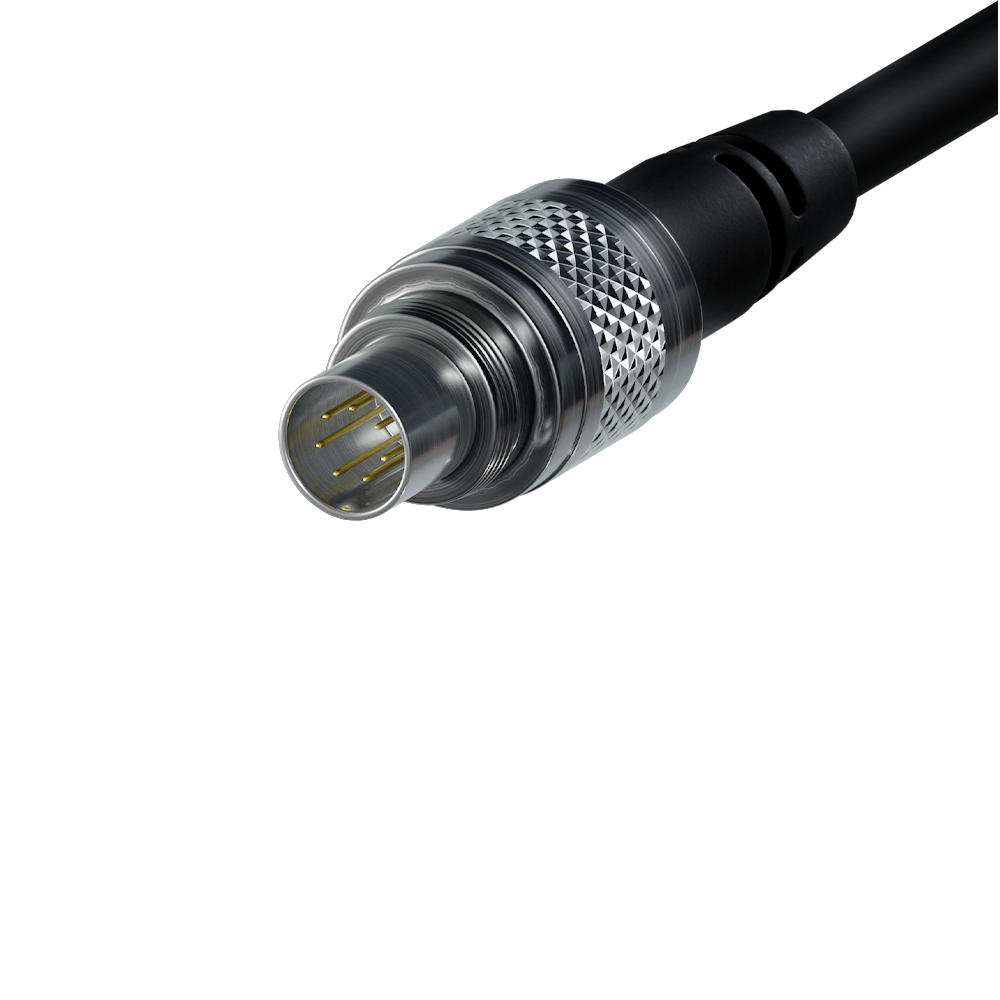

7 pin - 712 male binder connection |
| Receive data |
Suitable for Solo 2 DL |
|
|
Yamaha Plug & Play ECU Cable
The AiM ECU plug & play cable has been specifically designed for the Yamaha bike. This plug & play cable can be used for the Solo 2 DL.
The cable is an easy fitment to your bike and allows ECU data to be logged.
Please Note: If you are unsure this ECU cable will fit your bike, don't hesitate to contact one of our team. Either by email, phone or online chat.
Plug & Play
The plug & play cable currently fits the following Yamaha bike models:
 |
| Yamaha YZF-R1 - From 2015 |
Yamaha YZF-R1M - From 2015 |
| Yamaha YZF-R6 - From 2017 |
|
Example data protocols
Example data protocols sampled include RPM, Active gear, Vehicle speed, Front wheel speed, Rear wheel speed warning led, Engine coolant temperature, Brake pressure, Throttle position, Speed, ABS intervention, ALC intervention, Low fuel level, Traction control, Oil pressure, Map menu and many more. Refer to the technical sheet in the Downloads Tab for an extensive protocol list.
Please Note: For these models/years Aim recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls.
Expand Your System
These are some of the items that can be added to your bike for incrementing performance and data.
Technical
Yamaha YZF-R1/R1M & YZF-R6 AiM Solo 2 DL Plug & Play Cable
- Below is a pinout drawing for the Yamaha YZF-R1/R1M & YZF-R6 Solo 2 DL plug & play connection cable
What's in The Box
Yamaha YZF-R1/R1M & YZF-R6 AiM Solo 2 DL Plug & Play Cable
-
Yamaha YZF-R1/R1M & YZF-R6 Solo 2 DL Plug & Play connection cable
